$41.30The Story

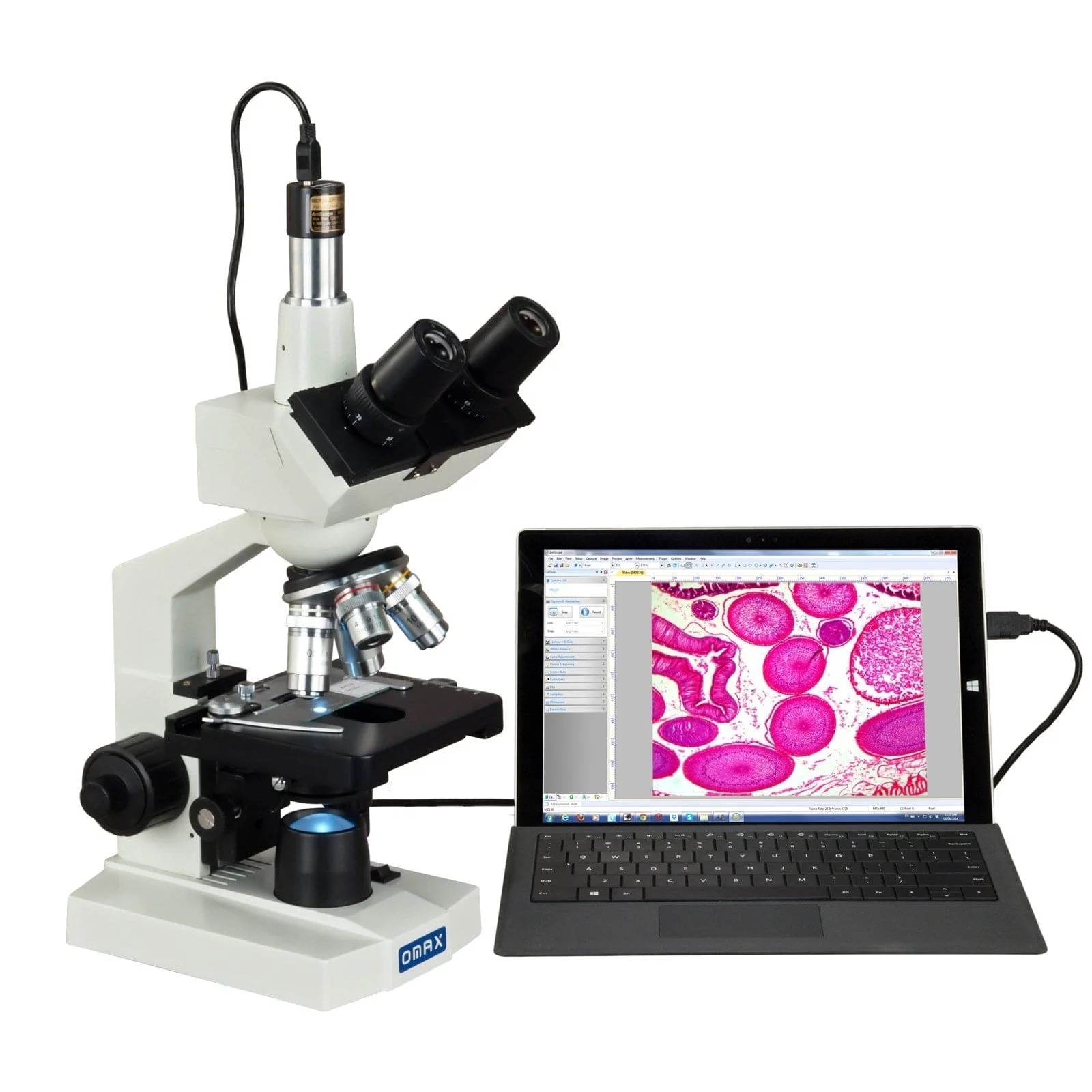

OMAX digital eyepiece cameras provide a compact, lightweight solution for capturing photos and videos with your microscope. These models are UVC-compatible, so they can be used with a wide range of imaging and video-conferencing software on multiple operating systems including Windows, Mac OS, and Linux. This simple yet amazing feature allows you to stream images from a microscope to remote viewers. On top of that, these cameras work with the same imaging software as our other A35 series cameras, providing an extensive set of tools for general microscopy.

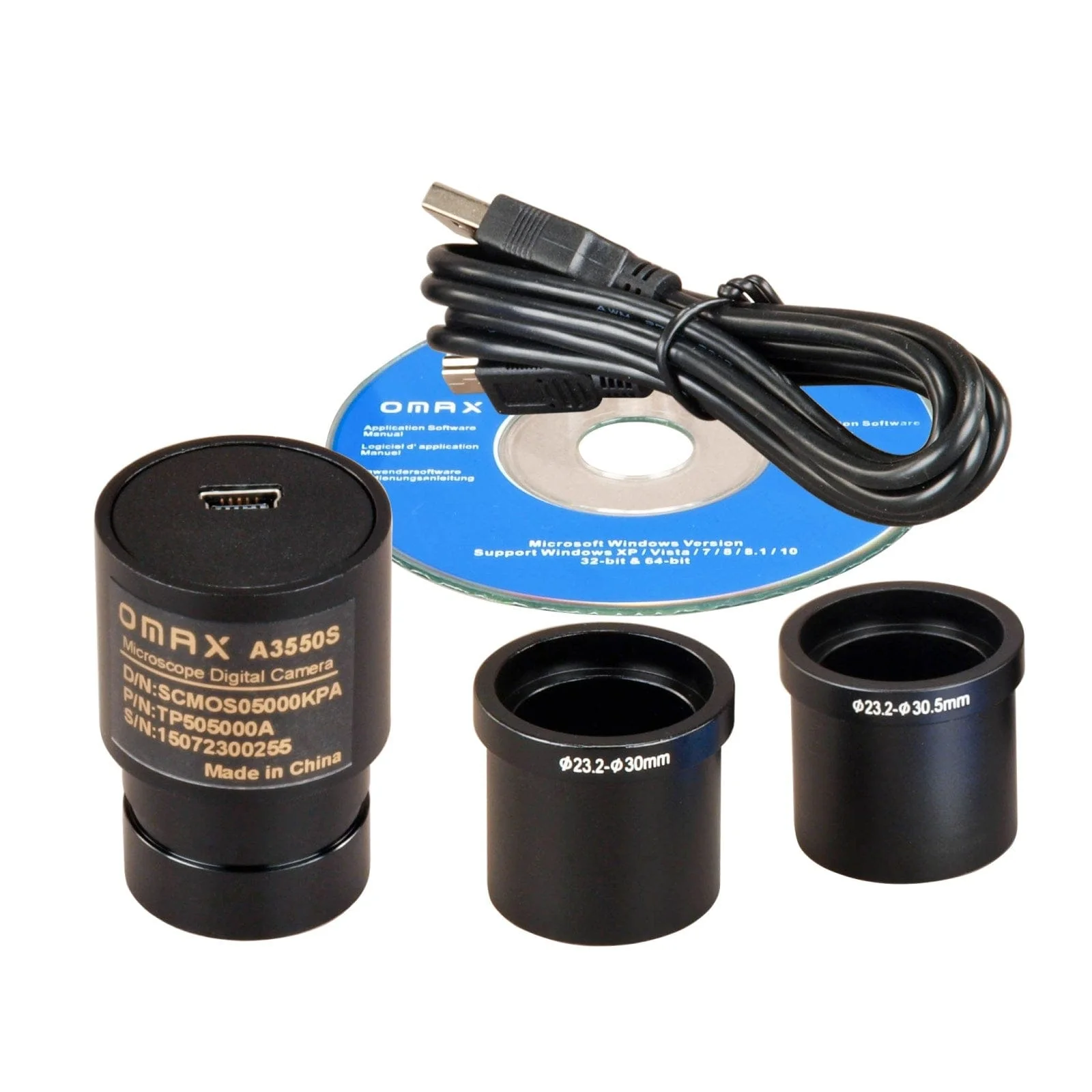

The A3550S-MK2 is an updated version of our popular 5MP camera with a maximum resolution of 2592x1944. The frame-rate has been greatly improved to provide up to 30fps. The camera can fit 23mm ocular tubes and photo ports, or larger ports using the included 30mm and 30.5mm adapters. Since the USB connection is used for data and power, only a single cable is needed.
Specifications
| Sensor | |
| Sensor Model | AR0521 (color) |
| Sensor Type | CMOS |
| Optical Format | 1/2.5" |
| Pixels | 5M |
| Pixel Size | 2.2µm x 2.2µm |
| Active Recording Area | 5.70mm x 4.28mm |
| Shutter | Electronic Rolling shutter |
| Camera | |
| Frame Rate(s) | 30fps @ 2592x1944 30fps @ 1280x940 30fps @ 640x480 |
| Connectivity | USB 2.0 |
| Mounting Size | 23mm |
| Compensating Lens | — |
| Power | 5V over USB |
| Dimensions | 27.2mm Ø x 40mm |
| Operating Temperature | -10-50°C |
| Operating Humidity | 30-80% |
Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | ||||||
|---|---|---|---|---|---|---|---|
| Hardware Recommendations | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB 2.0 | ||||||
| Features |
|
