$218.05The Story

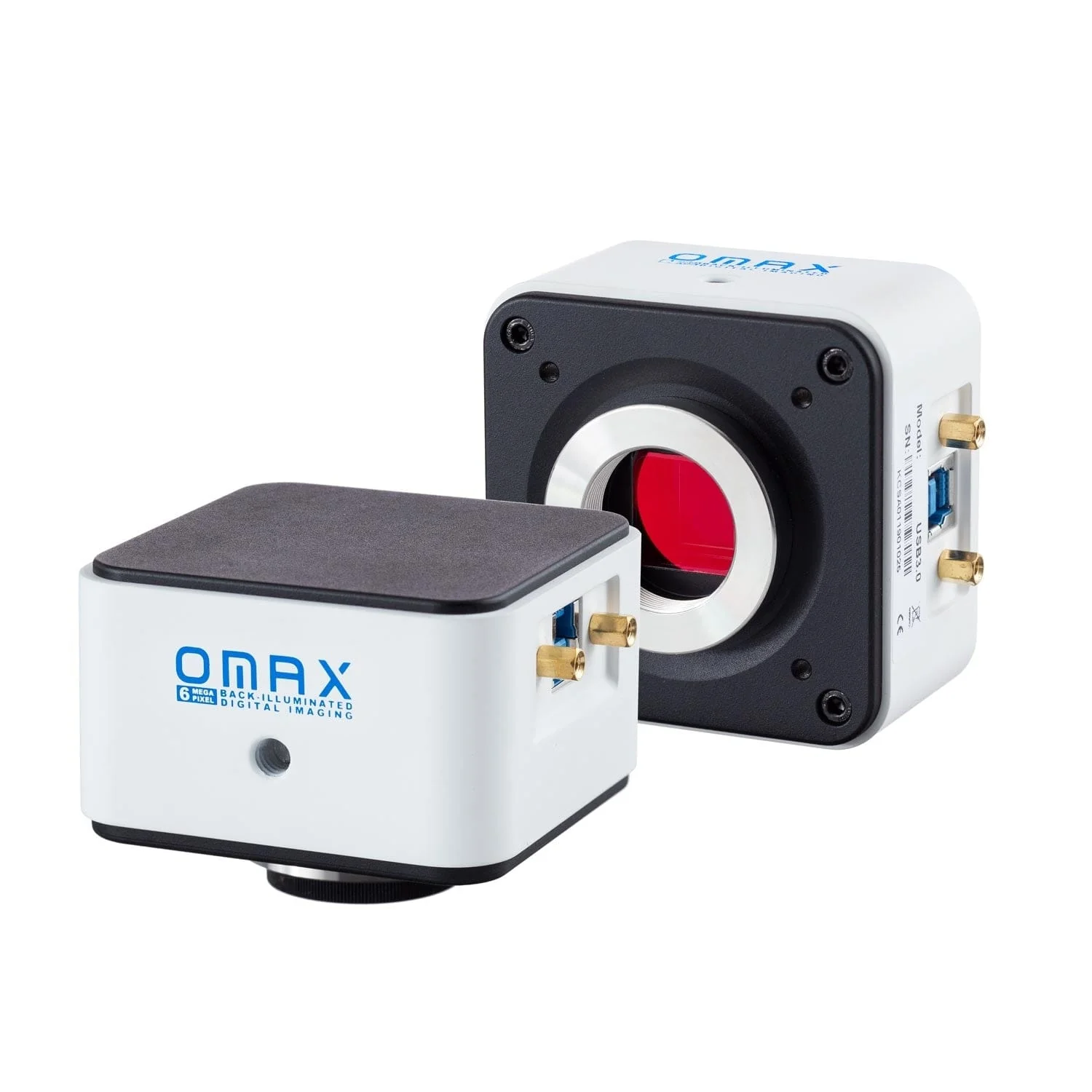

OMAX Digital Cameras provide a range of solutions for schools, laboratories, and industry. Designed specifically for microscopy applications, our cameras provide performance and reliability, with a software suite tailored for professional use.
The A55BI060U3 uses a high-speed 6MP back-illuminated CMOS sensor for high resolution with high quantum-efficiency.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images.
Sensor
| Sensor | Sensor Type | Sensor Size | Pixels |
|---|---|---|---|
| Sony IMX178 | Back-illuminated CMOS | 1/1.8" format (7.37mm x 4.91mm) | 6.3M |
| Pixel Size | Shutter | Sensitivity ?
|
Saturation Signal |
| 2.4µm x 2.4µm | Rolling Shutter | 425mV @ 1/30s (f5.6) | 945mV |
Camera
| Max Frame Rate(s) | Connectivity | Lens-mount |
|---|---|---|
| 40fps @ 3072x2048 | USB 3.0 | C-mount |
| Compensating Lens | Exposure Time | Compatibility |
| 0.5X (not included) | 0.13ms-15s | Windows (64 bit) 7/8/10 |
Software
| OS Requirements | Windows (64 bit) 7/8/10 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core i5 or better(Quad or more Core), 8GB RAM, USB3.0 port for maximum speed | ||||||||
| Features |
|
