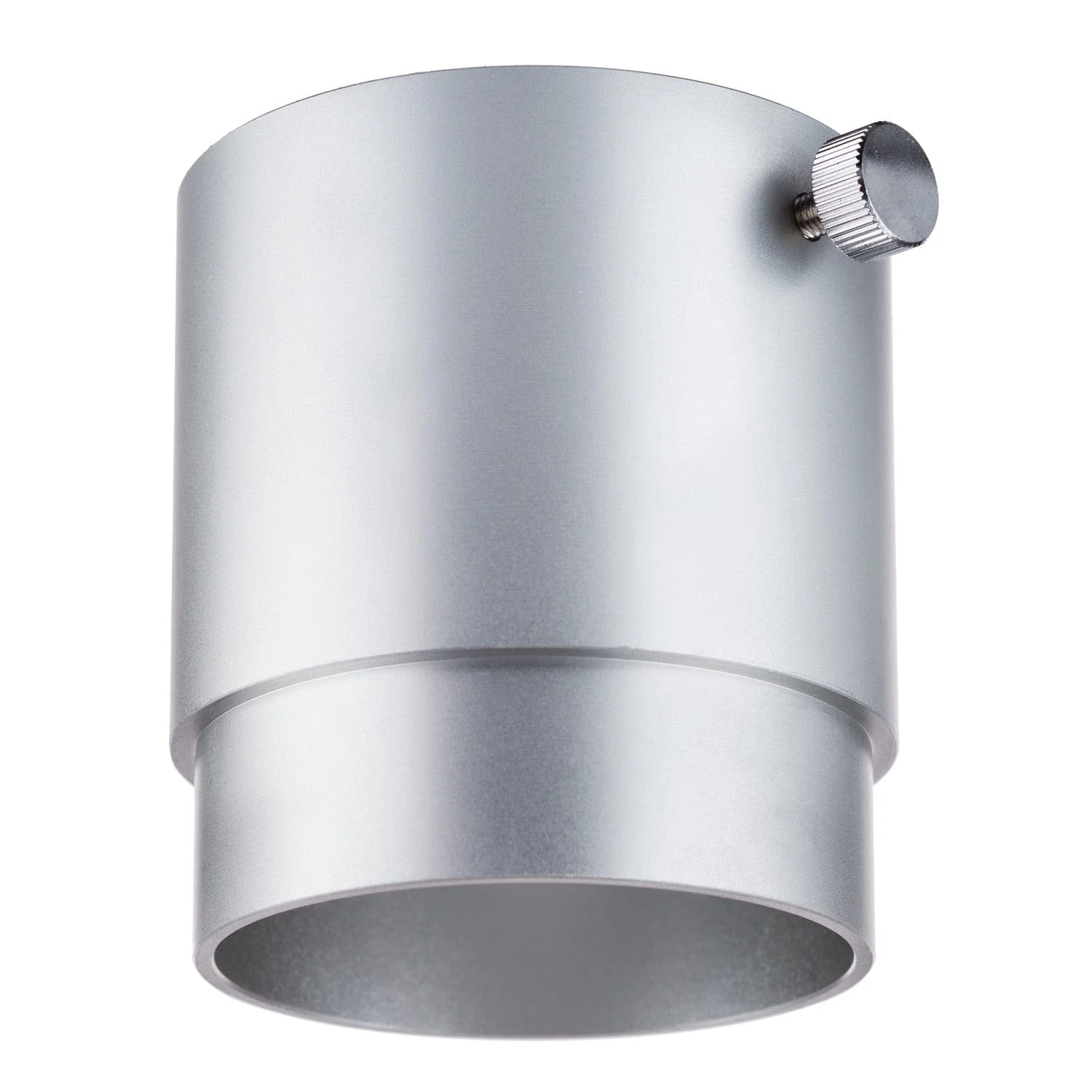

AmScope 65mm Extension Sleeve Adapter for XM Series Microscopes

This extension sleeve for our XM series microscopes is intended to raise the microscope head to compensate for large working distances, such as when using reducing Barlow lenses. Simple to use, simply insert the sleeve into the microscope's focusing collar, then slide the head into place. This is an easy way to increase working-distance when using a 0.5X Barlow lens.

Specifications

Extension: 65mm (2.56in)

Collar Flange Length: 24mm

Inner Diameter (top): 76mm

Outer Diameter (top): 82mm

Inner Diameter (bottom): 71.5mm

Outer Diameter (bottom): 76mm
