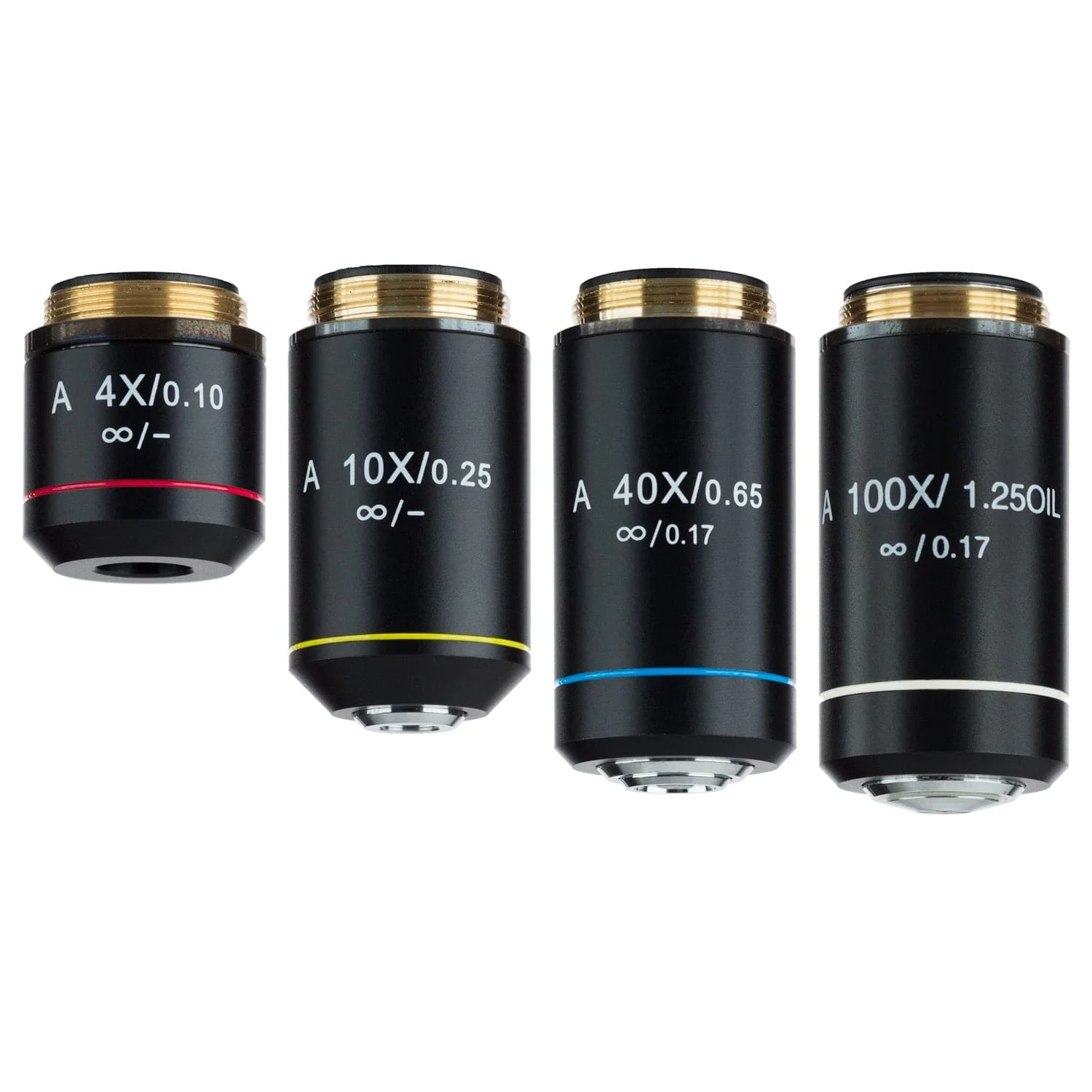

This is a set of 4 achromatic objective lenses with black finish for certain infinity-corrected microscopes. The set includes 4X, 10X, 40X, and 100X lenses. Intended primarily for biological applications, they are designed to work with infinity-corrected microscopes using RMS mounting thread 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.
| Compatibility | |
| Optical System | Infinite |
| Reference Focal Length | 180mm |
| Mounting Thread | RMS 20.32mm |
| Parfocal Distance | 45mm |
| Lens Specifications | |
| Magnification | Corrections | NA | Cover-glass Thickness | Immersion Medium | Nosecone |
|---|---|---|---|---|---|
| 4X | Achromatic | 0.10 | — | — | Fixed |
| 10X | Achromatic | 0.25 | — | — | Fixed |
| 40X | Achromatic | 0.65 | 0.17mm | — | Spring |

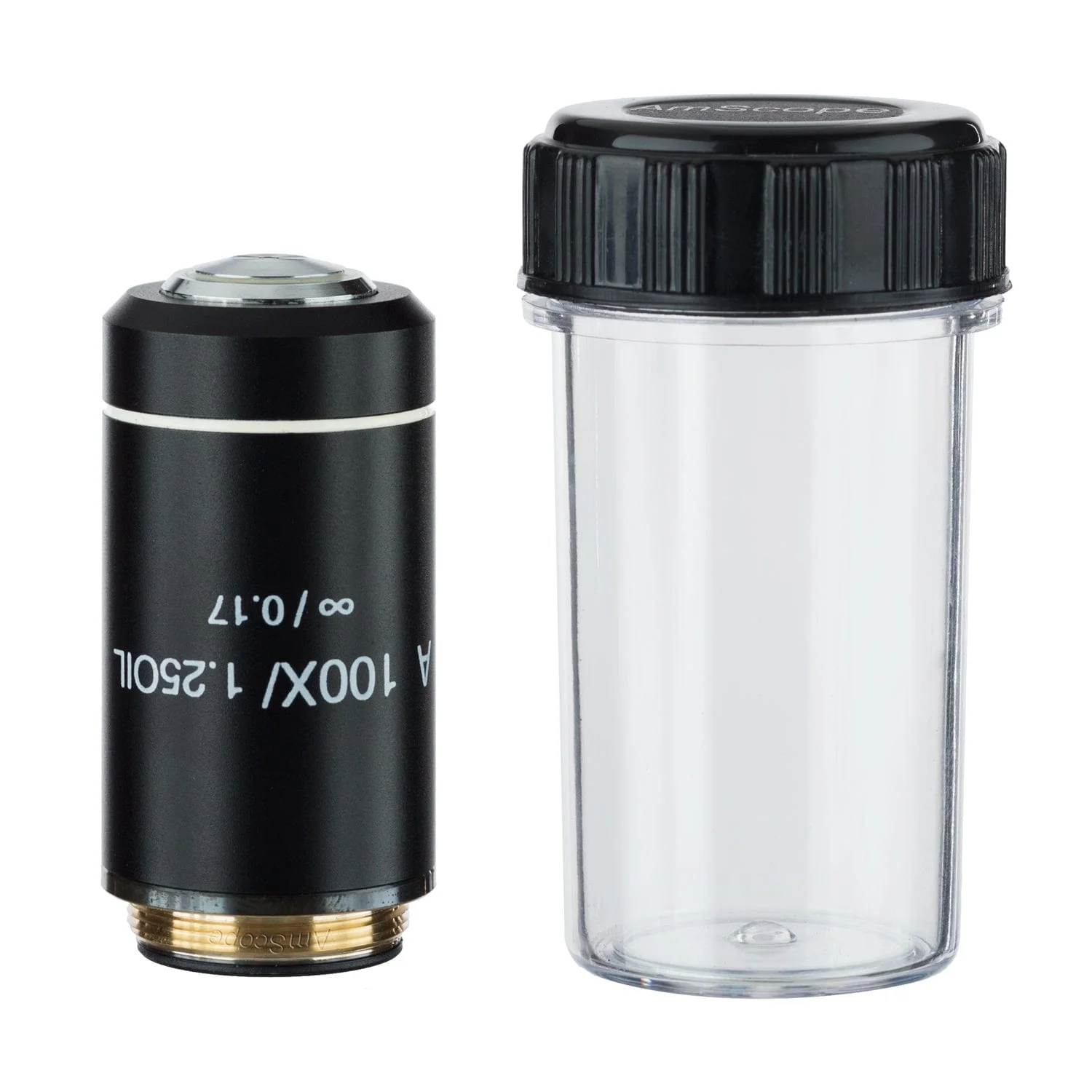

| 100X | Achromatic | 1.25 | 0.17mm | Oil | Spring |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This is a set of 4 achromatic objective lenses with black finish for certain infinity-corrected microscopes. The set includes 4X, 10X, 40X, and 100X lenses. Intended primarily for biological applications, they are designed to work with infinity-corrected microscopes using RMS mounting thread 45mm parfocal distance. Achromatic correction provides improved color accuracy and resolution.
| Compatibility | |
| Optical System | Infinite |
| Reference Focal Length | 180mm |
| Mounting Thread | RMS 20.32mm |
| Parfocal Distance | 45mm |
| Lens Specifications | |
| Magnification | Corrections | NA | Cover-glass Thickness | Immersion Medium | Nosecone |
|---|---|---|---|---|---|
| 4X | Achromatic | 0.10 | — | — | Fixed |
| 10X | Achromatic | 0.25 | — | — | Fixed |
| 40X | Achromatic | 0.65 | 0.17mm | — | Spring |
| 100X | Achromatic | 1.25 | 0.17mm | Oil | Spring |
