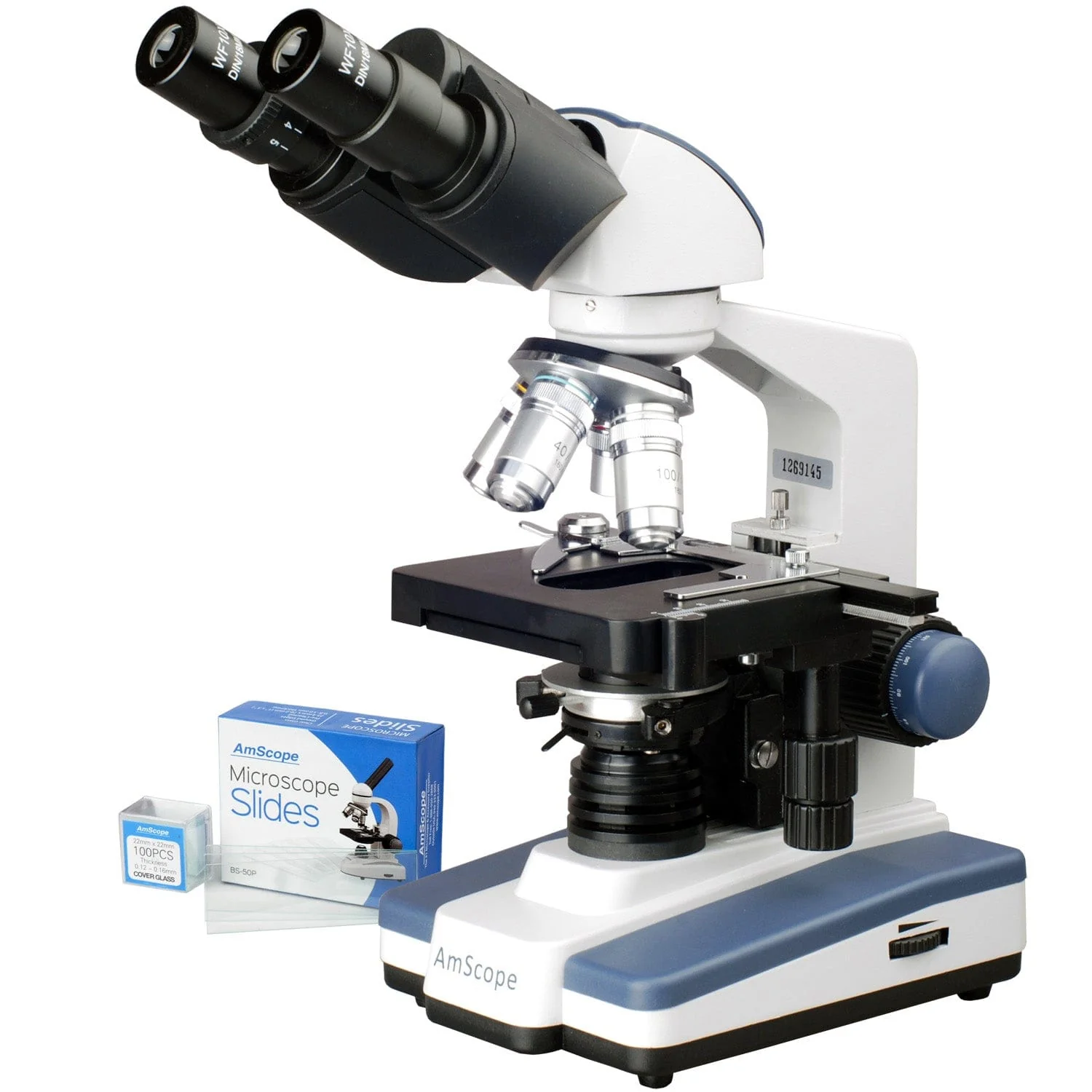

AmScope B020 Series LED Lab Compound Microscope 40X-2500X Magnification with 3D Two-Layer Mechanical Stage + Slides

Our new binocular compound microscope with glass slides and coverslips is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for professionals, teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system plus 50 piece pre-clean glass slides and 100 piece coverslips. There are six magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Features :

• 30 degree inclined 360 degree swiveling Siedentopf binocular head
• High quality precise optical glass elements
• Easy to attach a microscope camera or digital imager
• Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X
• Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
• Two pairs of widefield eyepieces: WF10X and WF25X
• Adjustable interpupillary distance
• Adjustable ocular diopter
• Variable intensity illumination
• Coaxial coarse and fine focus adjustment
• Focusing knobs are on both sides
• Stage upward moving lock protects objectives and slides
• Stain-resistant double layer mechanical stage
• NA1.25 Abbe Condenser with iris diaphragm & filters
• Rack and pinion adjustment condenser
• Manufactured under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Manufacturer Warranty



Specifications :

• Eyepieces: widefield, WF10X and WF25X
• Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
• Head: 30 degree inclined 360 degree swiveling binocular
• Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
• Adjustable ocular diopter
• Nosepiece: revolving quadruple
• Mechanical Stage: 3-D double layer
• - Size: 4-5/8" x 5" (118mm x 127mm)
• - Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
• Condenser: NA1.25 Abbe condenser with iris diaphragm
• Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
• Focusing: coaxial coarse & fine knobs on both sides
• Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
• Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)



Packing List :

• One Siedentopf Binocular Microscope Head
• One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
• Four DIN Standard Objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 25X Eyepieces
• One Blue Color Filter
• One Dust Cover
• Sample Immersion Oil
• User's Manual Download
• 50 Piece Pre-clean Glass Slides and 100 Piece Coverslips
• Net weight: 11 lbs
• Shipping weight: 13 lbs
