AmScope B120 Series Binocular Compound Microscope 40X-2000X Magnification with LED, Siedentopf Head, 3D Stage, Book and Pre-Cleaned Slide Set

Our new binocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf binocular head, double layer mechanical stage with course & fine focusing, LED illumination system, a microscope slide set with 100 coverslips & 50 blank slides, and the microscope book - "Complete Book of the Microscope" . There are eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800x, 1000X & 2000X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Features :

• 30 degree inclined 360 degree swiveling Siedentopf binocular head
• High quality precise optical glass elements
• Easy to attach a microscope camera or digital imager
• Eight magnification settings, 40X, 80X, 100X, 200X, 400X, 800x, 1000X & 2000X
• Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
• Two pairs of widefield eyepieces: WF10X and WF20X
• Adjustable interpupillary distance
• Adjustable ocular diopter
• Variable intensity illumination
• Coaxial coarse and fine focus adjustment
• Focusing knobs are on both sides
• Stage upward moving lock protects objectives and slides
• Stain-resistant double layer mechanical stage
• NA1.25 Abbe Condenser with iris diaphragm & filters
• Rack and pinion adjustment condenser



Specifications :

• Eyepieces: widefield, WF10X and WF20X
• Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
• Head: 30 degree inclined 360 degree swiveling binocular
• Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
• Adjustable ocular diopter
• Nosepiece: revolving quadruple
• Mechanical Stage: 3-D double layer
• - Size: 4-5/8" x 5" (118mm x 127mm)
• - Travel Range (X-Y): 70mm x 21mm
• Condenser: NA1.25 Abbe condenser with iris diaphragm
• Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
• Focusing: coaxial coarse & fine knobs on both sides
• Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
• Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)



Packing List :

• One Siedentopf Binocular Microscope Head
• One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
• Four DIN Standard Objectives, 4X, 10X, 40X and 100X
• One Pair of Widefield 10X Eyepieces
• One Pair of Widefield 20X Eyepieces
• One Blue Color Filter
• One Dust Cover
• Sample Immersion Oil
• User's Manual Download
• One Microscope Book

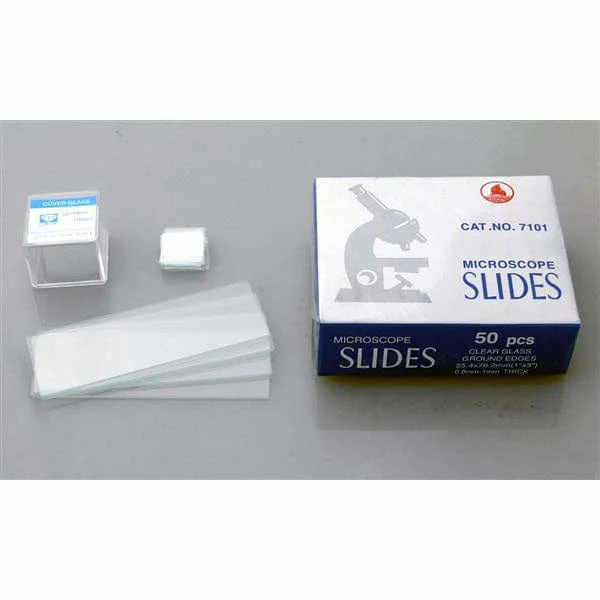

• 100 Coverslips and 50 Blank Slides
• Shipping weight: 13 lbs
