The Story

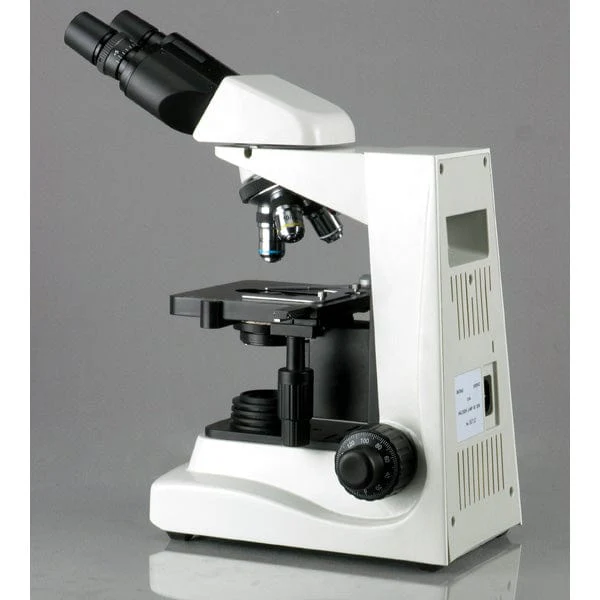

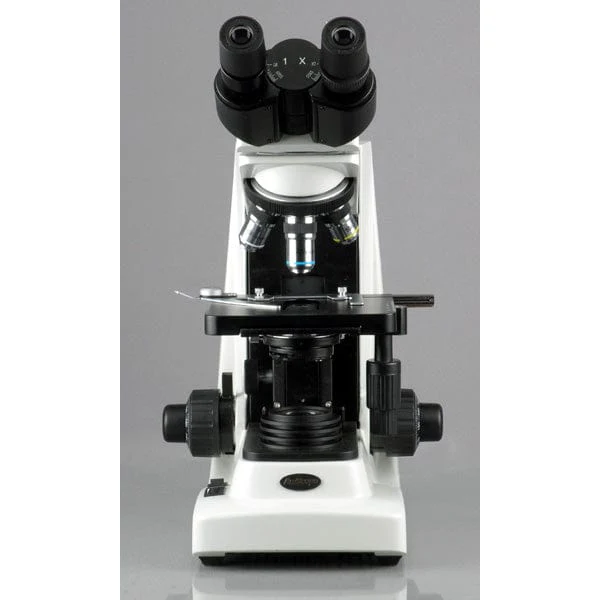

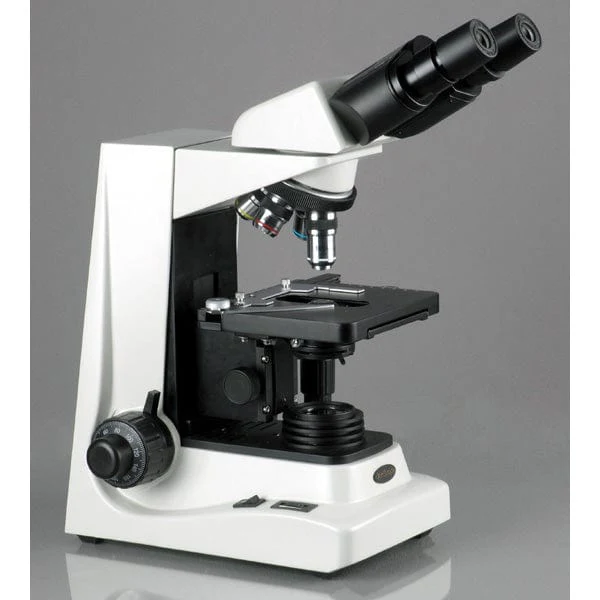

This professional compound microscope is designed for advanced applications in clinical examination and research labs, offering widefield sharp clear images. It comes with a 30 degree inclined 360 degree swiveling compensation free binocular head, 3-D mechanical stage, intensity-variable halogen illumination system and a backward nosepiece providing spacious room for comfortable operation. It offers eight magnification settings, 40X-64X-100X-160X-400X-640X-1000X-1600X. The microscope is designed to accept accessories for advanced applications including darkfield, phase contrast and fluorescent microscopy.
Features :
- Fully Coated Optical System with High Resolution Showing Sharp Image
- Magnifications: 40X-100X-400X-1000X, 64X-160X-640X-1600X
- 30 Degree Inclined, 360 Degree Ratable Compensation Free Binocular Head
- Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
- Large Double Layer Mechanical Stage with Slide Clips
- Coaxial Coarse & Fine Focusing with CA Knob Tension Control
- Upward Stage Stopper to Prevent Slide Breakage and Objective Damage
- Abbe Condenser with Iris Diaphragm & Swing-In Color Filter
- Built-In Variable Halogen Illumination System with Adjustable Brightness
- Advanced Accessory Compatible, Including Phase Contrast Kit, EPI-Fluorescent Kit and Darkfield Condensers
- Excellent Five (5) Year Warranty.
Specifications :
- Nosepiece: ball bearing quadruple
- Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
- Mechanical Tube Length: 6-5/16" (160mm)
- Head: binocular anti-mould viewing head inclined at 30 degree
- Wide-Field Eyepiece: WF10X, P16X
- Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
- Stage Dimensions: 5-1/2"x 6-5/16" (140x160mm)
- Stage Traveling Range: 2-3/4"x 2-0" (70x50mm)
- Focusing Range: 1-3/16" (30mm)
- Division of Fine Focusing: 0.0000787" (0.002mm)
- Abbe Condenser: NA=1.25 with rack and pinion focusing control
- Illumination: halogen lamp, 6V/20W
- Power Supply: 110V, CE certified
Packing List :
- One Binocular Microscope Siedentopf Head
- One Microscope Body Frame with Mechanical Stage and Halogen Illumination System
- Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
- One Pair of Widefield 10X Eyepieces
- One Pair of Widefield 16X Eyepieces
- Two Color Filters
- One Dust Cover
- One Power Cord
- One Spare Halogen Bulb
- One Focusing Tension Wrench
- One L-shape David Screw Driver
- Two Spare Fuses
- Immersion Oil Sample
- User's Manual Download
- Shipping Weight: 30 lbs
