AmScope Objective Lenses for DM756 and H756 Digital Microscopes

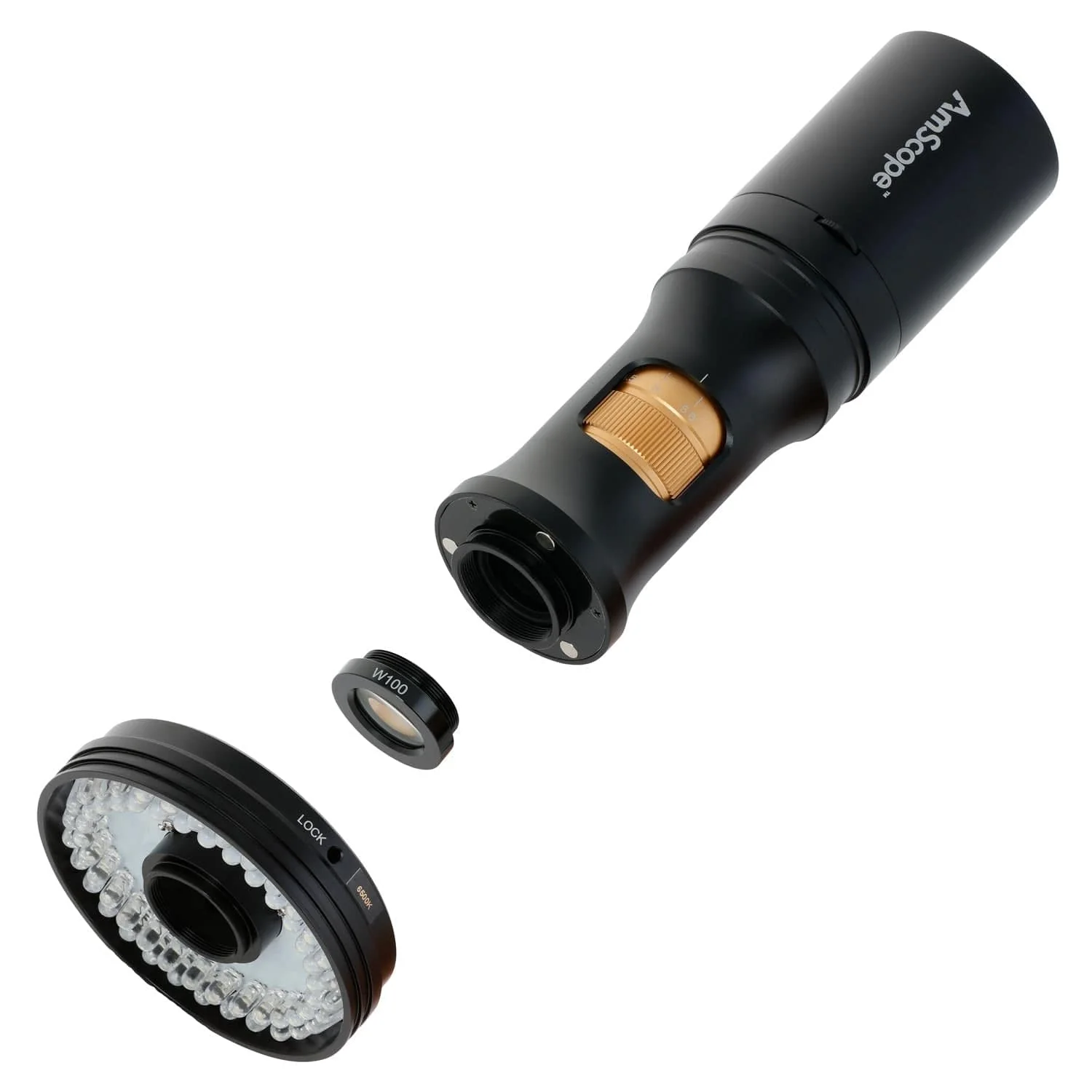

The AL-DM756 series lenses are designed specifically for our DM756 digital microscopes. The modular design of the microscope allows for various objective lenses to be used to suit changing magnification requirements. Lower magnifications will benefit larger subjects which require a greater field-of-view, while higher magnifications provide improved detail of smaller subjects. While the microscope’s standard 0.7X-5X magnification range is optimal for covering common use-cases, these lenses offer the flexibility to expand the coverage when needed.

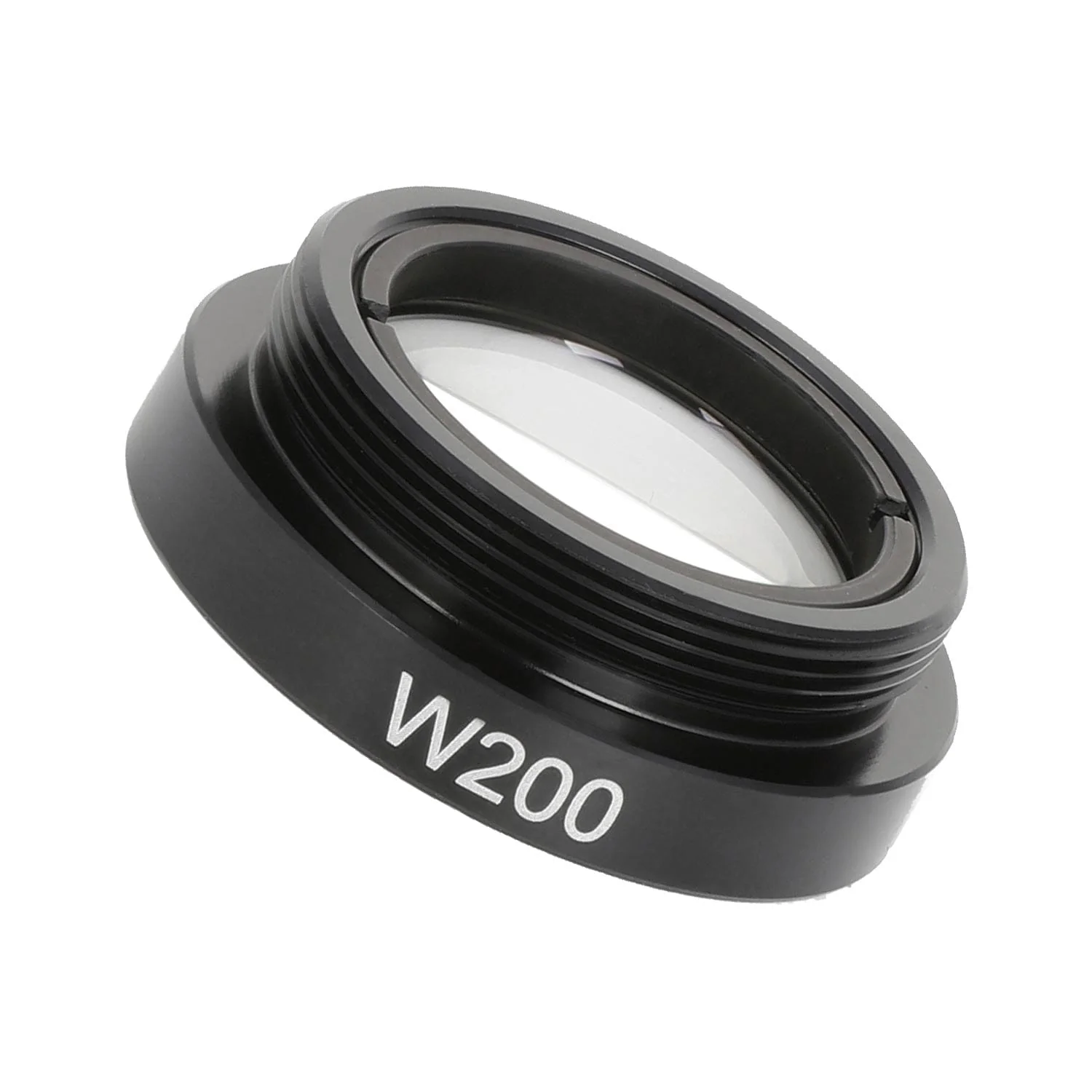

AL-DM756 Objective Lenses

Model	Lens Magnification	Modified Zoom Range	Working Distance	Numerical Apertures
AL050-DM756	0.5X	0.35X-2.8X	160mm	0.009-0.046
AL075-DM756	0.75X	0.525X-4.2X	105mm	0.013-0.069
AL100-DM756 (included with microscope)	1X	0.7X-5.6X	80mm	0.018-0.092
AL150-DM756	1.5X	1.05X-8.4X	51.5mm	0.026-0.138
AL200-DM756	2X	1.4X-11.2X	37.5mm	0.035-0.182
