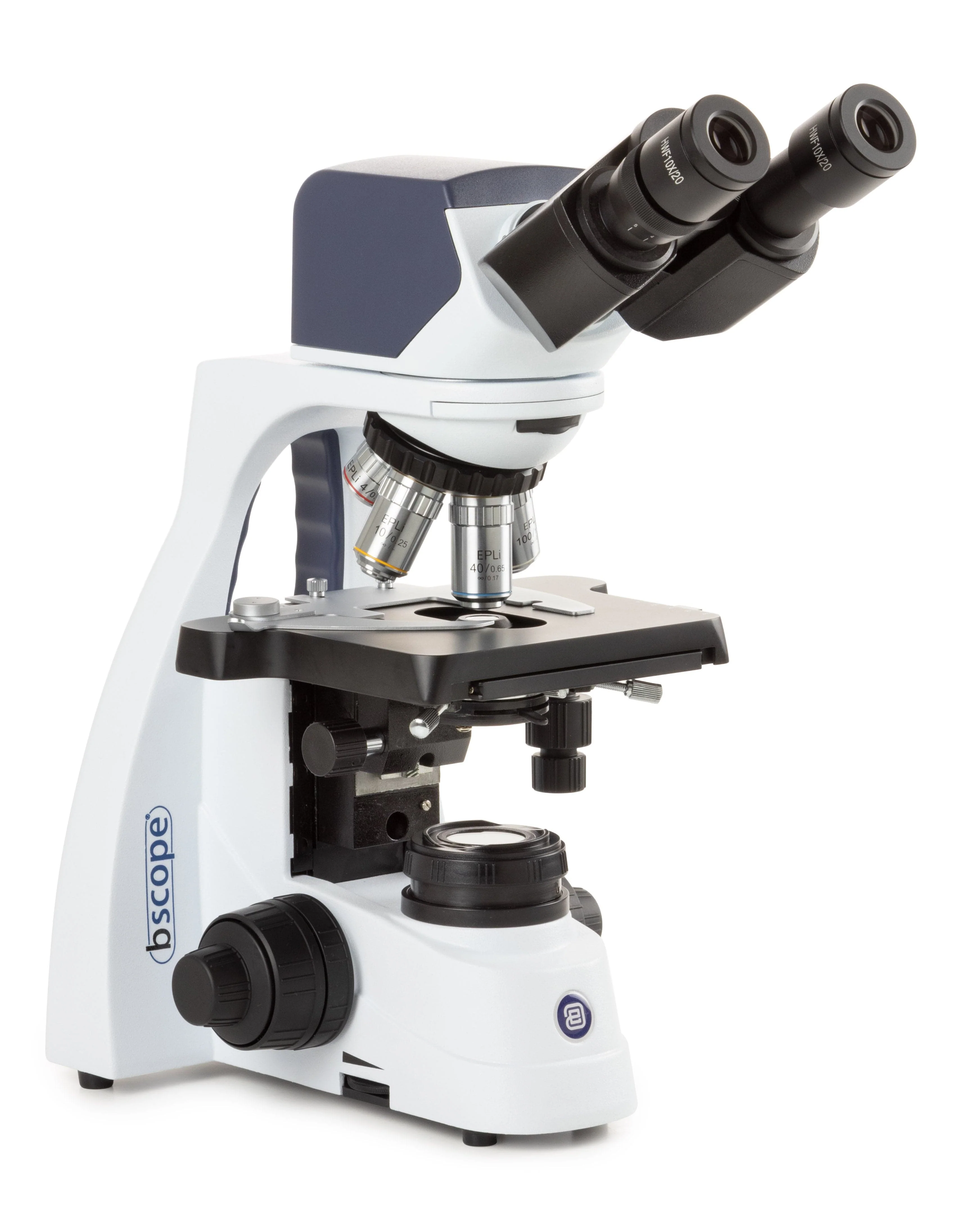

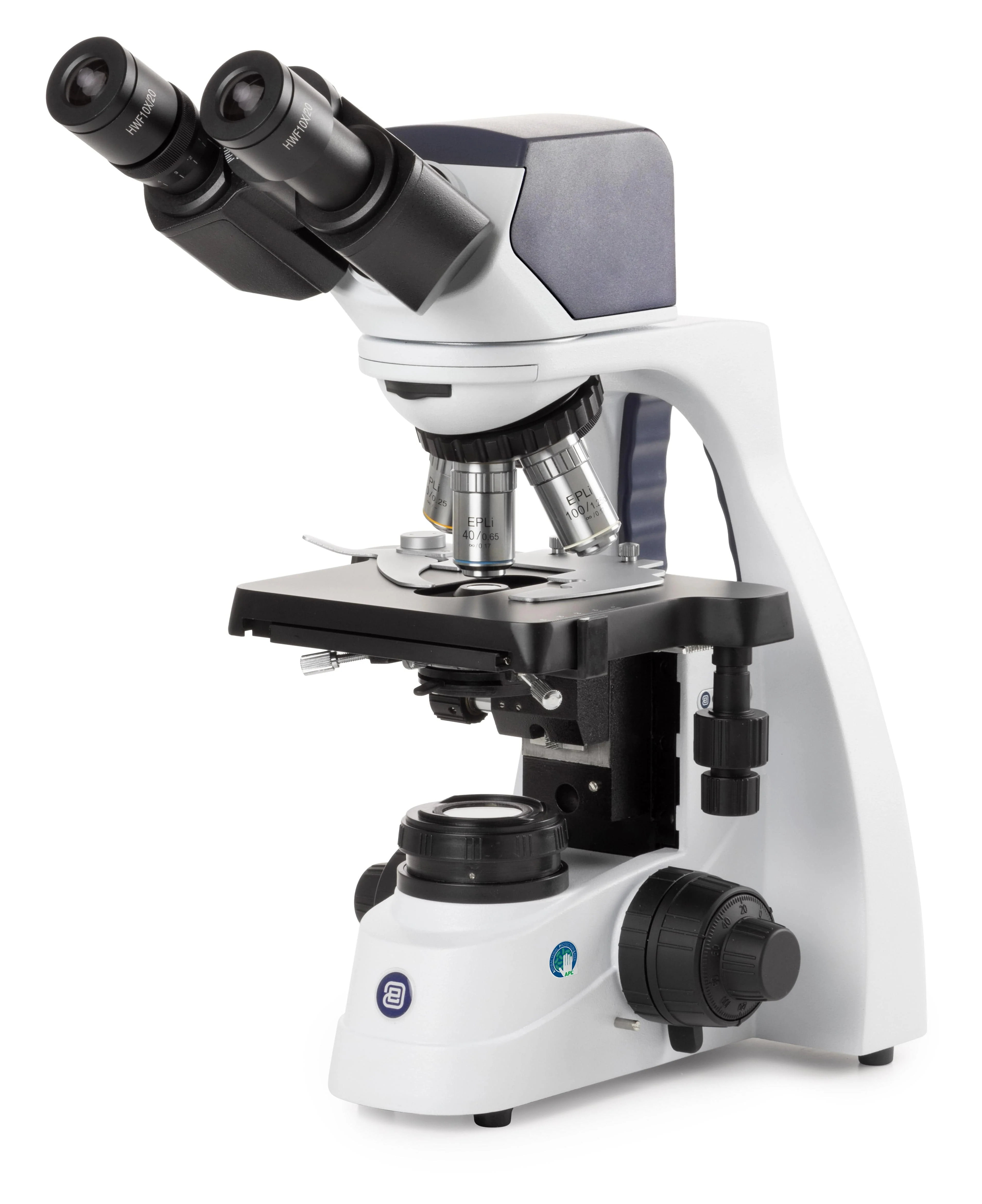

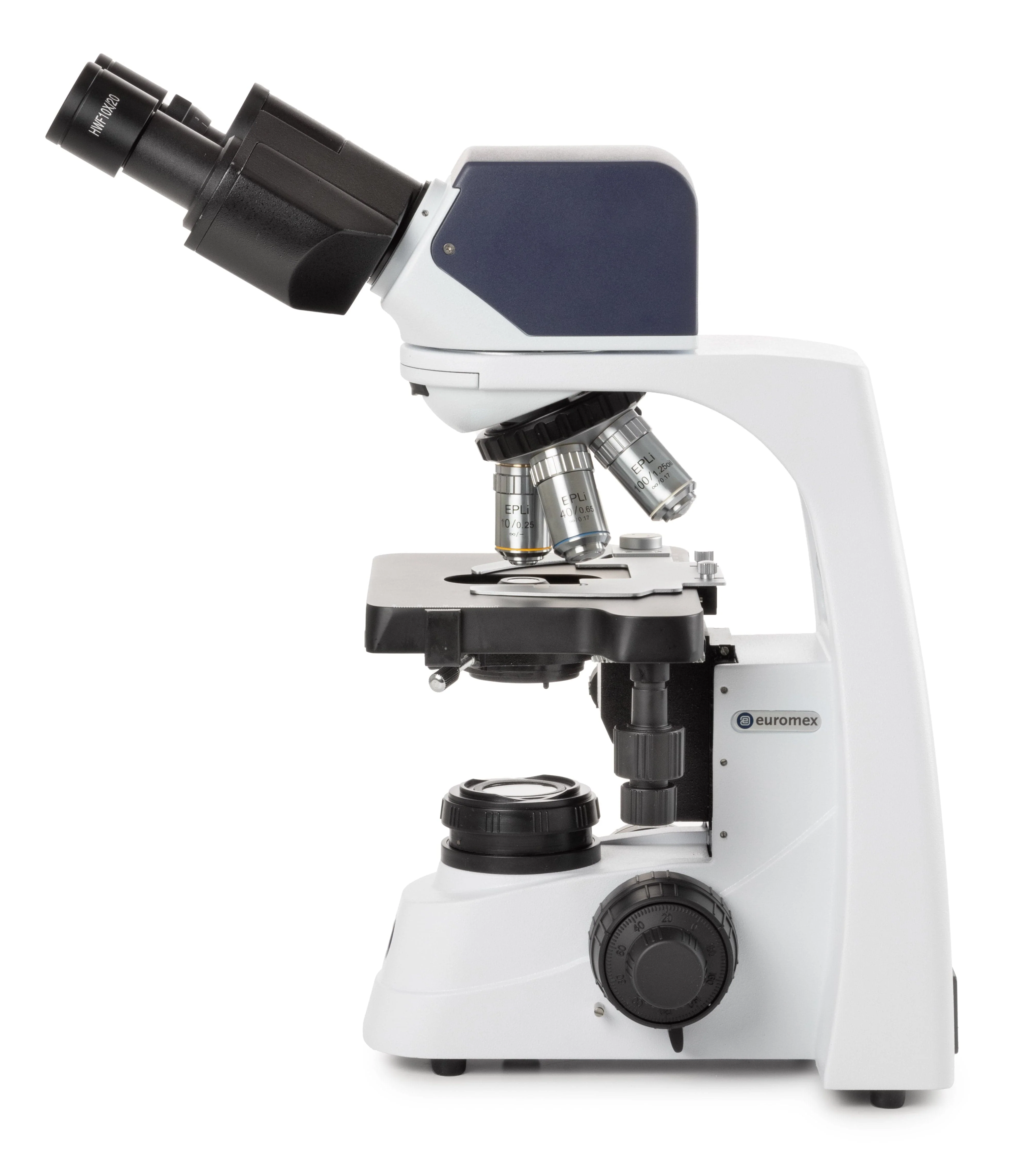

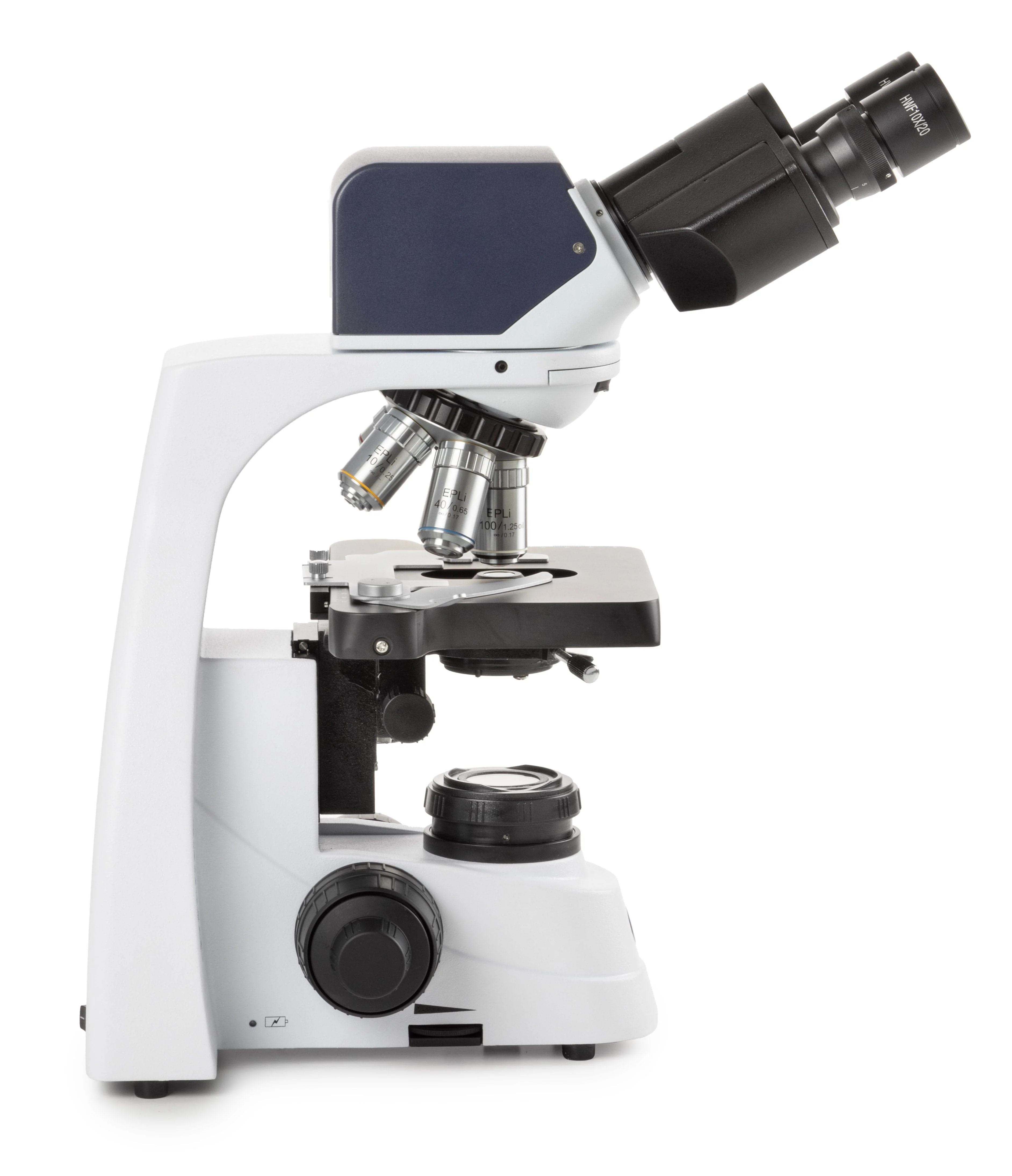

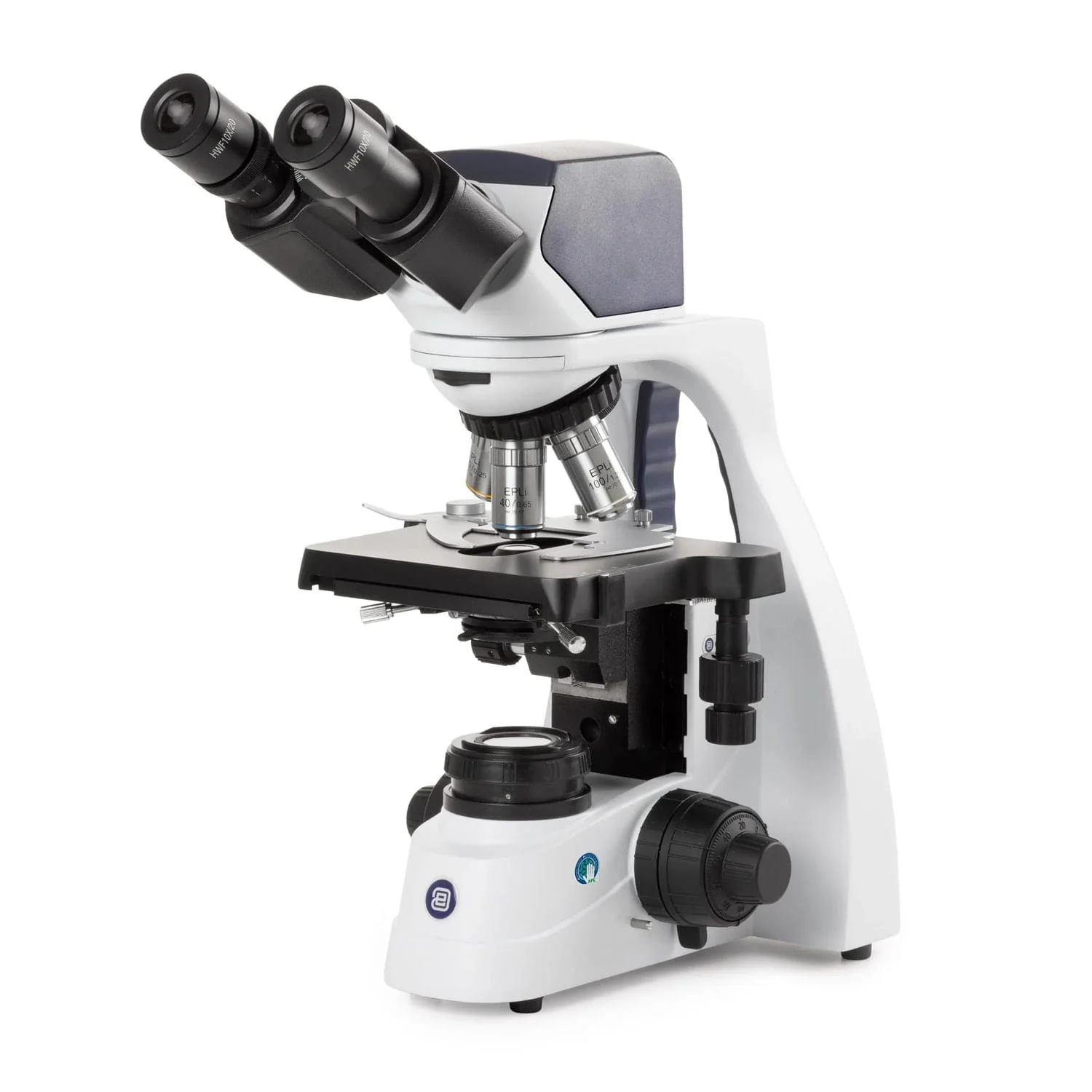

Euromex bScope Series CMOS Binocular Digital Compound Microscope with E-plan IOS Objectives

The well-equipped microscopes of the bScope series are intensively used in secondary schools, universities, small and mid-sized laboratories and for veterinary applications.

This model has a built-in 5MP digital camera. Height adjustable eyepieces and low stage controls minimize fatigue during long working sessions and therefore provide more comfort for microscopists. The robust and compact size of the bScope with its Cable Storage System allows more working space, safer operation, and easy storage.

Features

• Binocular model with a built-in 5MP digital camera
• HWF 10x/20mm eyepieces
• Reversed quintuple nosepiece with slot for sliders
• E-plan infinite IOS objectives
• Rackless integrated X-Y mechanical stage
• Coaxial coarse and fine adjustment with adjustable rack-stop
• 3W NeoLED illumination
• Cable Storage System
• Integrated carrying grip
• APL, antimicrobial

EYEPIECE(S)
High wide field HWF 10x/20 mm secured eyepiece(s) with 20 mm field of view.

HEAD

• Binocular model with a diopter ± 5 adjustment on left eyepiece.
• interpupillary distance adjustable between 48 to 76 mm
• Integrated 5.0 MP CMOS color USB.2 camera.
• 2592 x 1944 pixels
• 7 frames per second (2592 x 1944 pixels)
• 27 frames per second (1280 x 960 pixels)
• ImageFocus Alpha software

CAMERA
The digital bScope microscopes are equipped with a 5.0 MP 1/2.5 inch CMOS USB-2.0 camera, 24 bits color depth, 7 frames per second (2592 x 1944 pixels) or 27 frames per second (1280 x 960 pixels). Dynamic range is 76db and signal/noise ratio 41 db. Supplied with ImageFocus Alpha software, USB-2.0 cable and a micrometer 1mm/100 calibration slide.

SOFTWARE
The capture and analysis ImageFocus Alpha software allows to save images in .jpg, .tif, .bmp or .dicom formats as well as .avi format videos. Measurements and annotations can be done on live or captured images. Compatible with Windows 10 and 11, both 32 and 64 bits configurations. A Mac OS version is also available. Free updates can be downloaded from our website.

NOSEPIECE
Revolving and reversed ball-bearing quintuple nosepiece.

OBJECTIVES
E-Plan infinite IOS corrected 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion objectives.

The S40x and S100x oil immersion objectives are spring loaded.

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.

FOCUSING
Double coaxial, low-positioned coarse and fine adjustments with 180 graduations. Precision 1.11 µm, 200 µm per rotation, total travel approximately 19 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustment is equipped with friction control.

STAGE
Scratch resistant 152/197 x 131 mm stage with integrated 75 x 36 mm X-Y rackless mechanical stage, Vernier scale, soft-close removable specimen holder.

The rackless stage has no protruding parts, enables more smooth movements and is safer in use. Low-positioned X-Y control knobs prevent fatique during long working sessions.

CONDENSER FOR BRIGHTFIELD
The standard in height adjustable Abbe N.A. 1.25 condenser for brightfield comes with an iris diaphragm and swing-out filter holder.

Köhler NEOLED™ ILLUMINATION
The 3 W adjustable Köhler NeoLED diascopic illumination system for increased light output and contrast with 100-240 Vac integrated power supply. The innovative NeoLED design offers larger apertures, allowing the optical system of the bScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime.

CSS – CABLE STORAGE SYSTEM
Allows users to easily stow away excess cable length into the back of the instrument during operation and to roll up the power cable for easy storage.

CARRYING GRIP
The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope.

ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft.

APL (ANTIMICROBIAL PROTECTION LAYER)
APL is a revolutionary paint treatment applied to the most critical parts of our products. A microscope with APL will restrict the growth of micro-organisms, including bacteria and mold.

PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, white filter, user manual and 5 ml immersion oil. Smart Styrofoam packaging ensures safety during transport.
