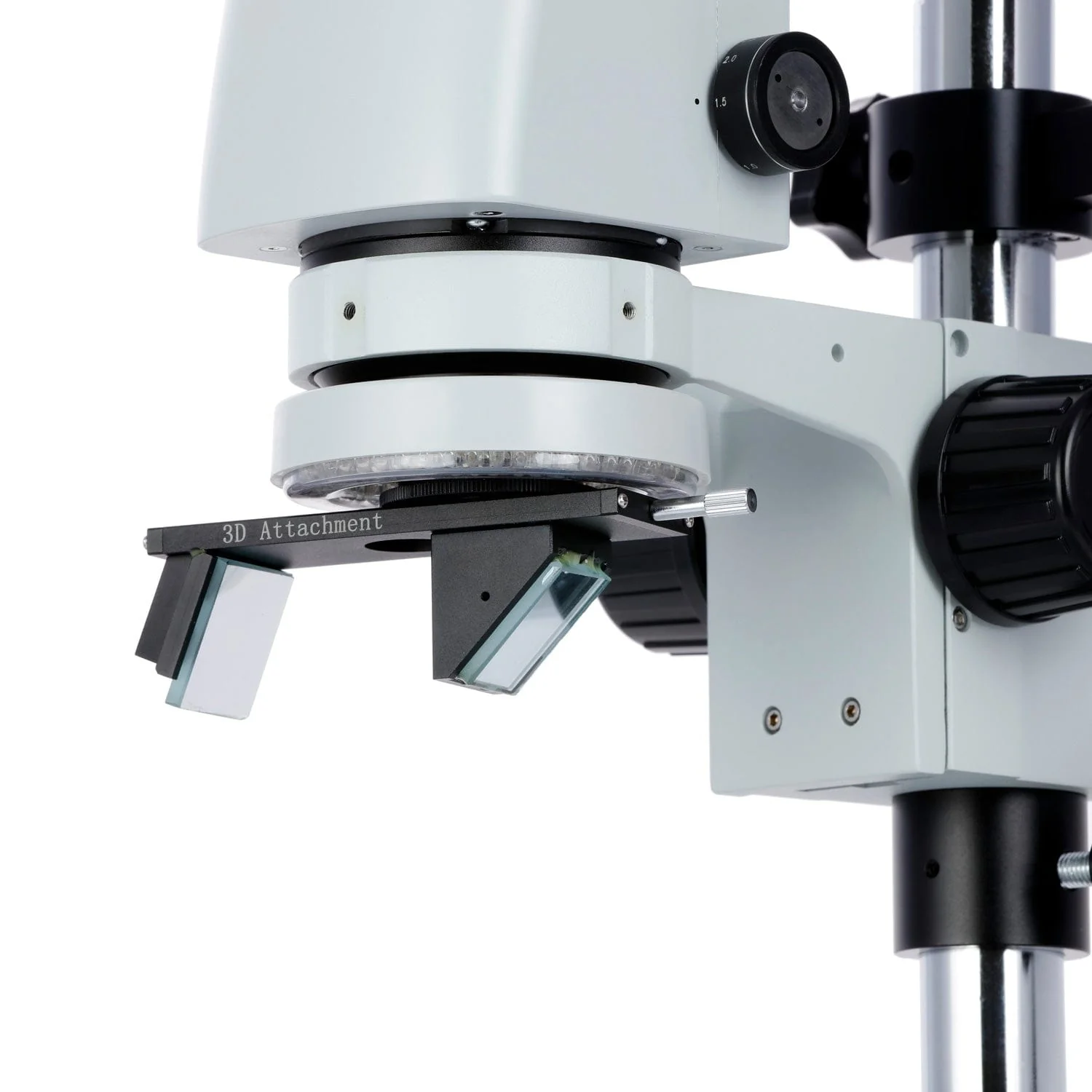

AmScope DM750 Series Zoom Tabletop Video Inspection Digital Microscope System 0.7X-5X Magnification Optional 1080p Monitor & 3D Rotary Viewer

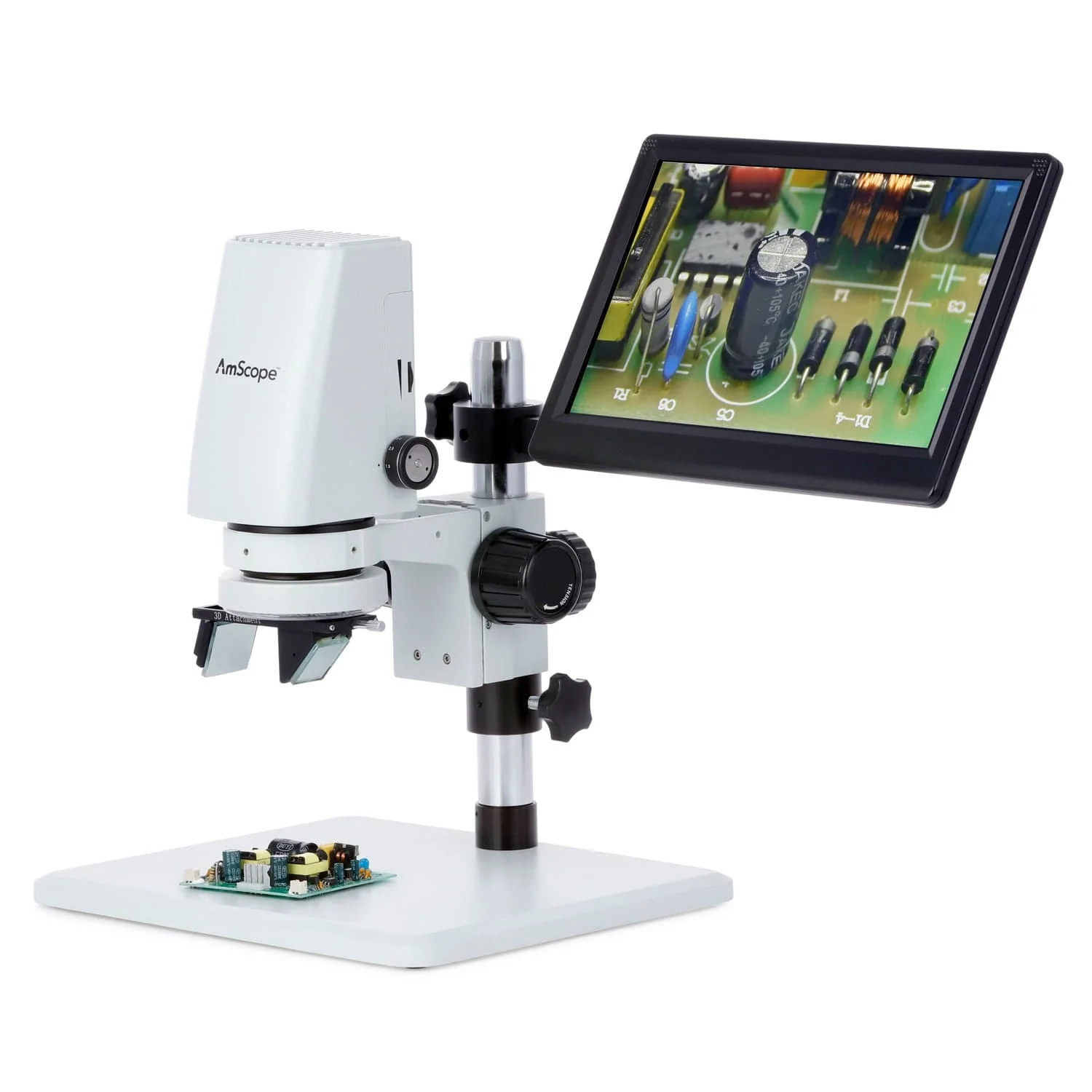

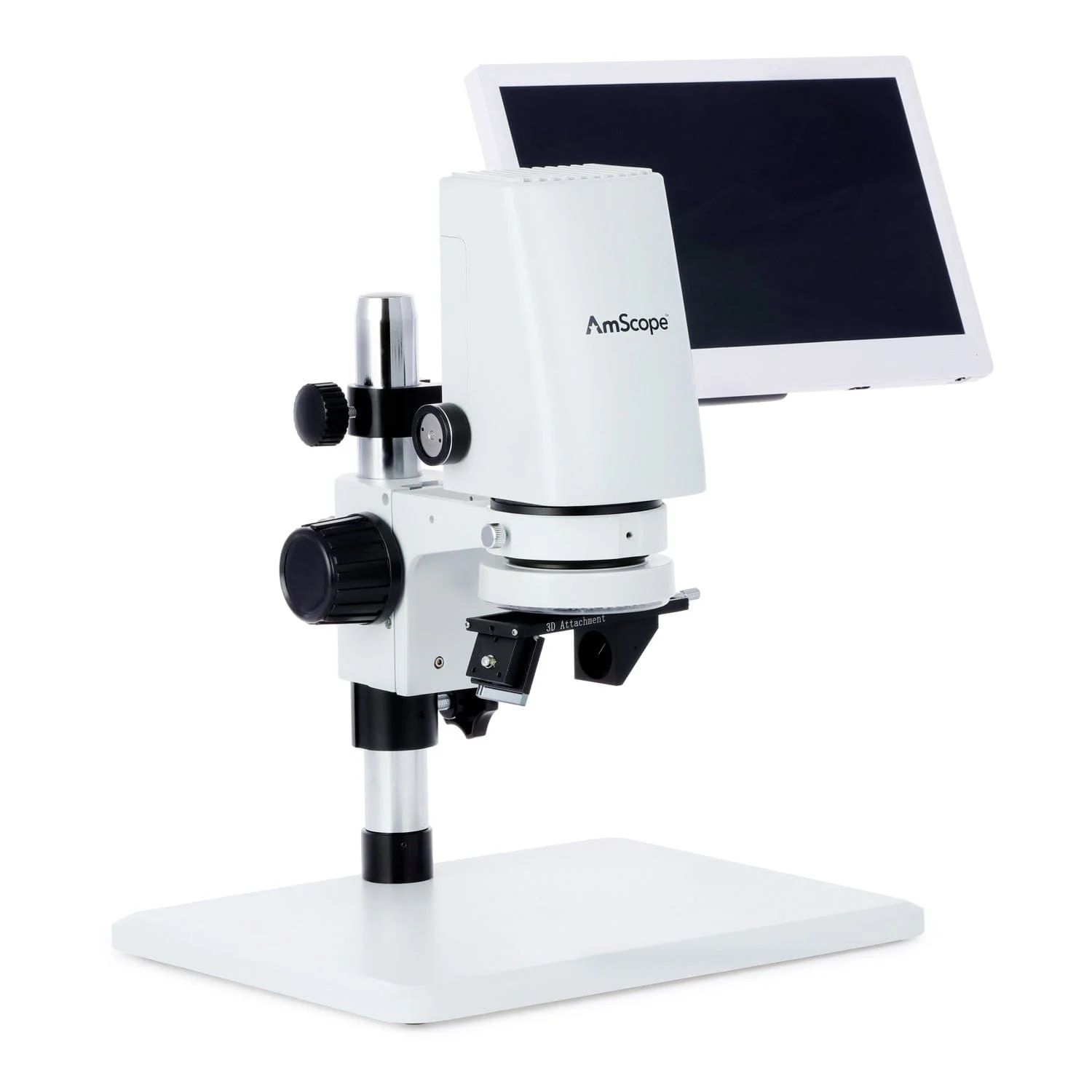

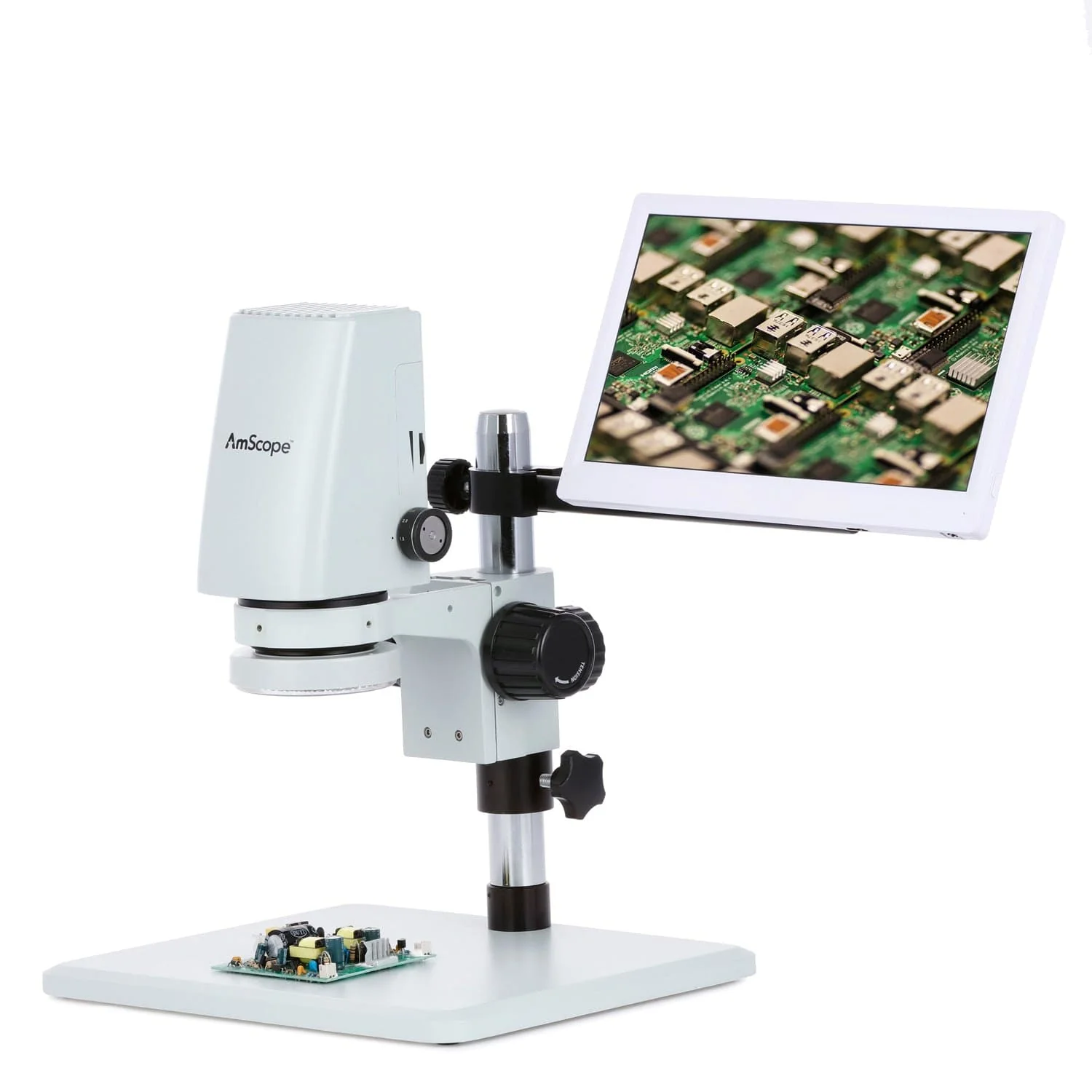

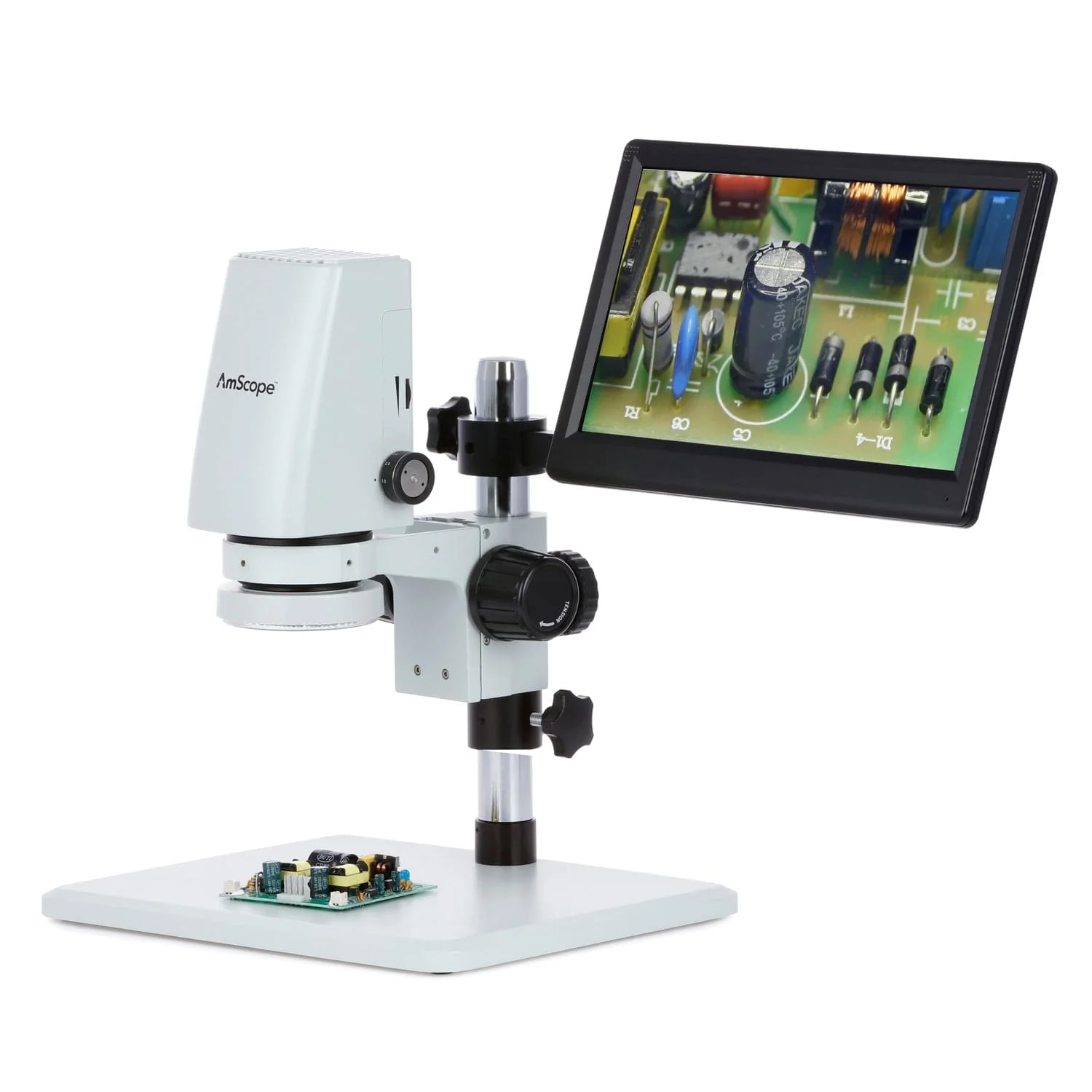

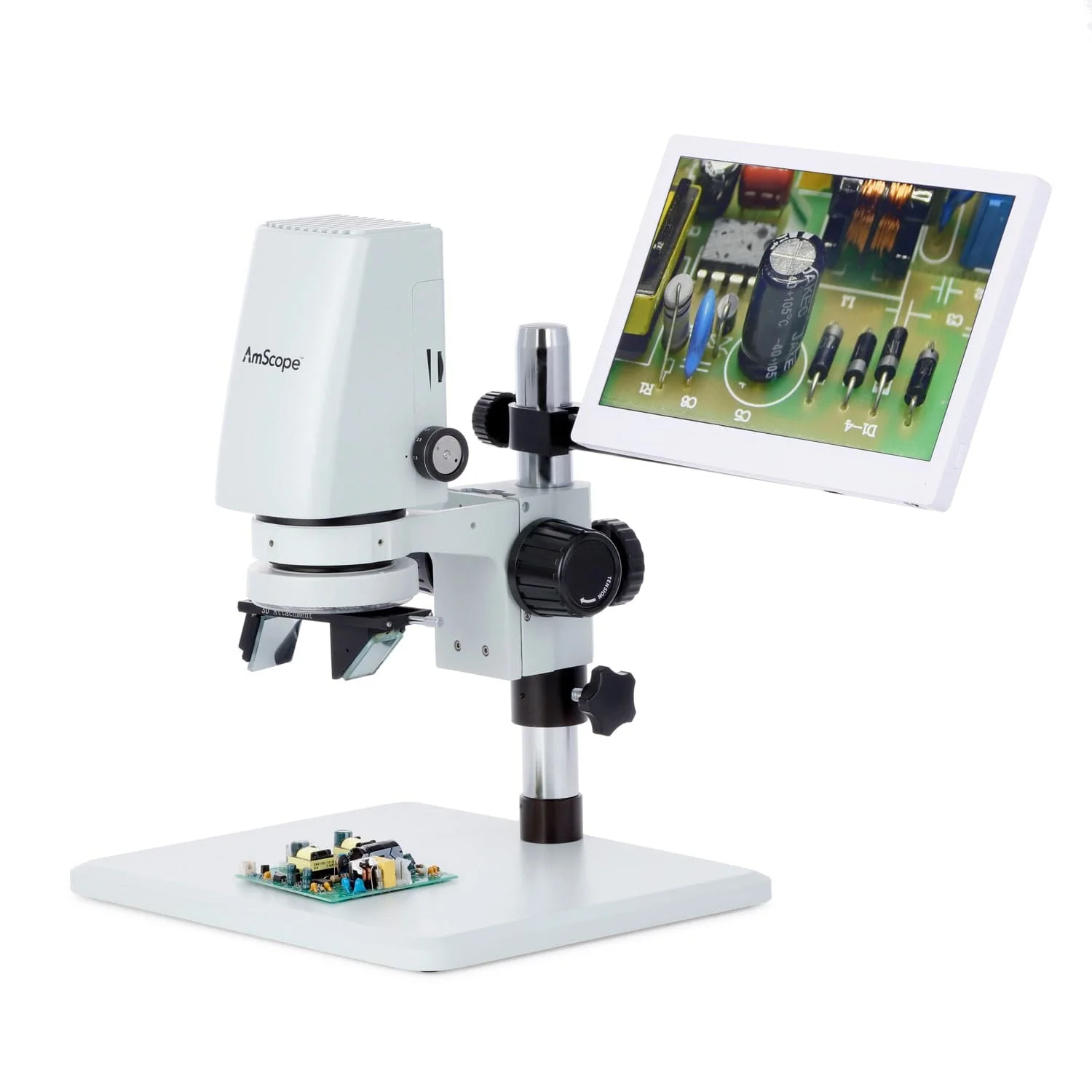

The DM750-2MP-HDM is a complete video-inspection system for use in industrial environments, laboratories, and classrooms. It combines high-quality zoom optics with 1080p digital imaging capable of capturing photos and videos while you work. This tabletop system includes an 11.6” HD monitor for viewing live video and using the on-screen controls and measurement tools. Bright, even illumination is provided by a 144-LED ring light with adjustable intensity. The system simplifies the inspection process, making it ideal for machine shops, PCB assembly, and general quality control.

Zoom Optics

The zoom objective lens provides 0.7X to 5X optical magnification to cover a wide range of subjects and is ideally suited for dissection, soldering, and machining. Using a single objective eliminates the inconsistent focus and distortion caused by lens tilt seen with stereo microscopes. Key magnifications in the zoom range have a detent for improved repeatability, especially when performing measurements.

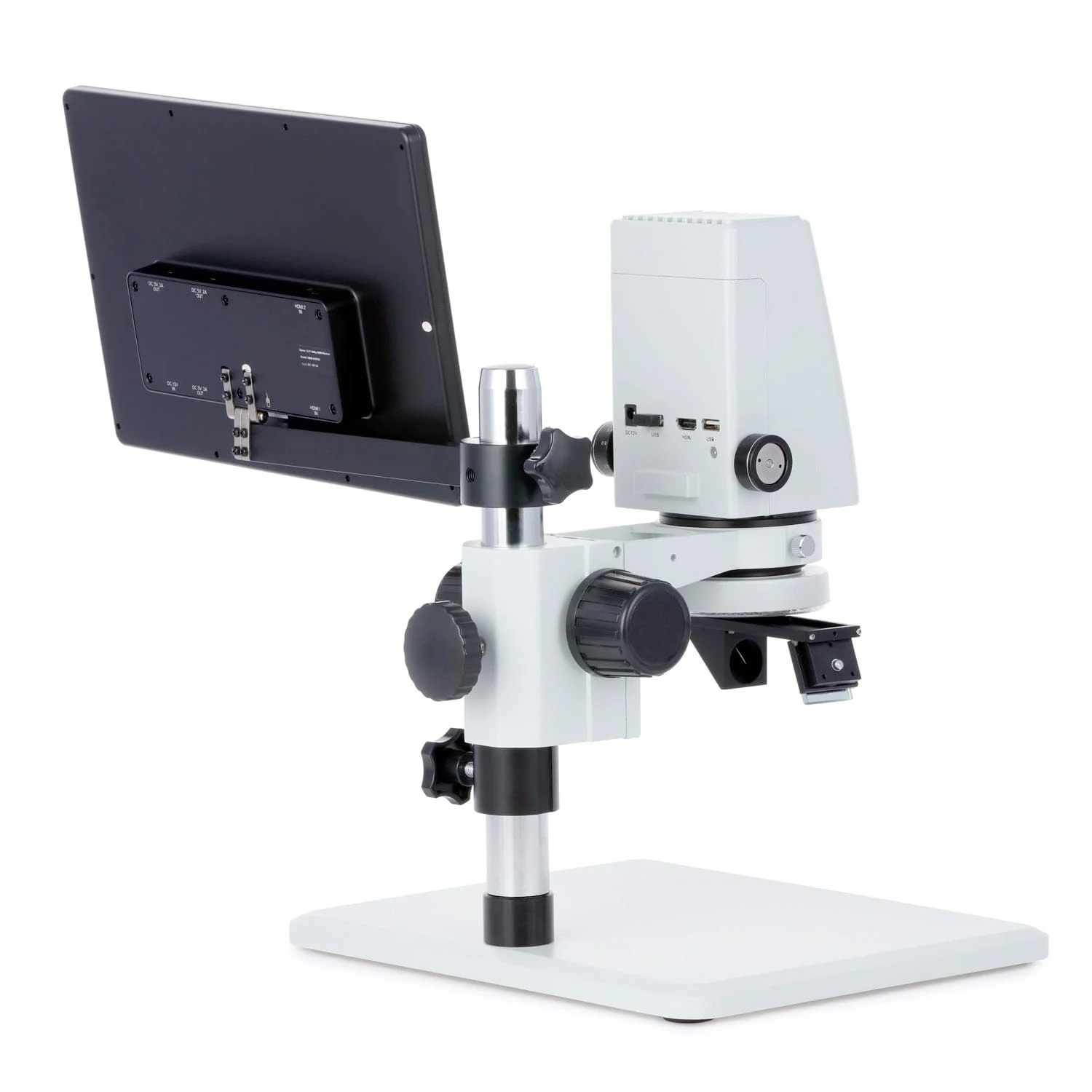

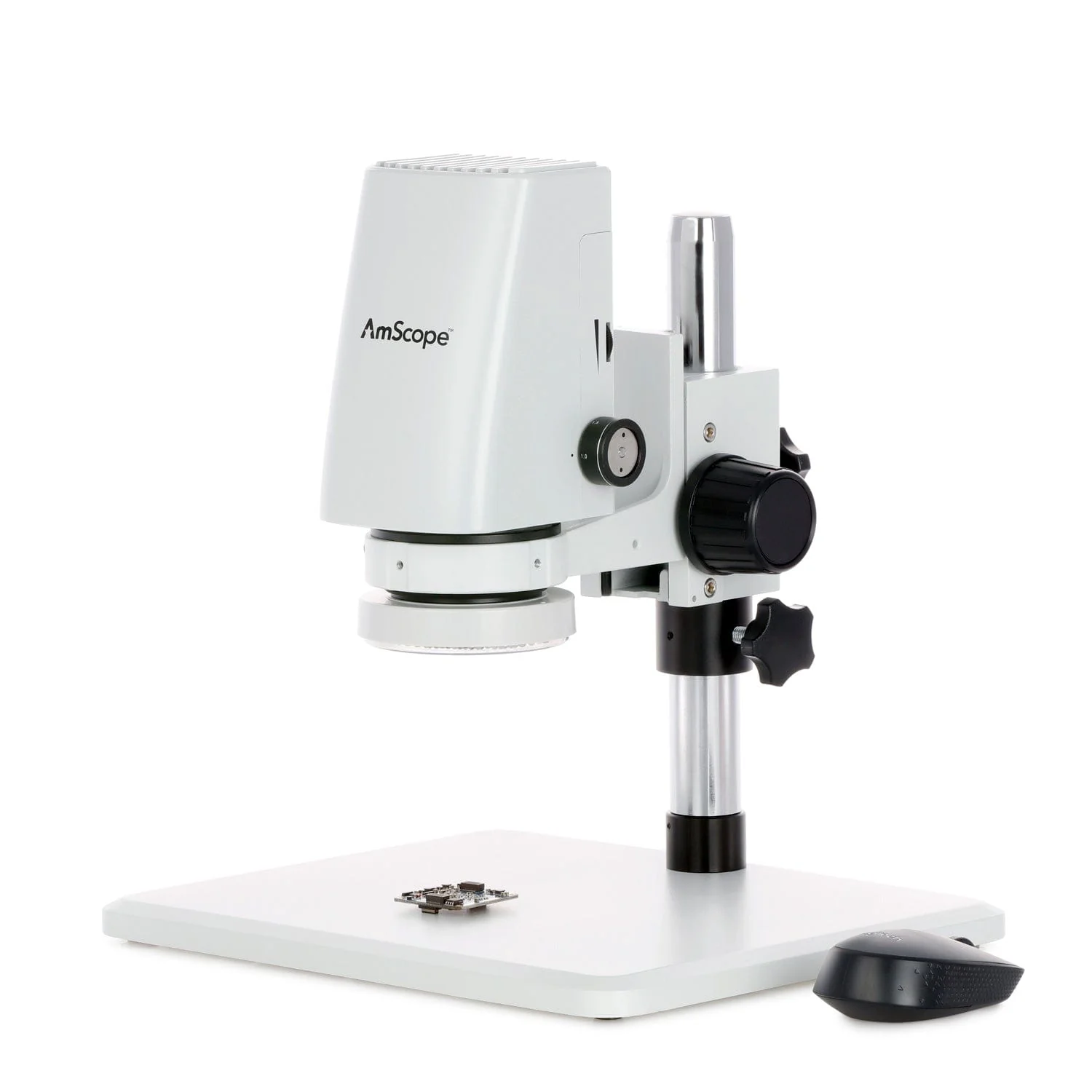

Tabletop Stand

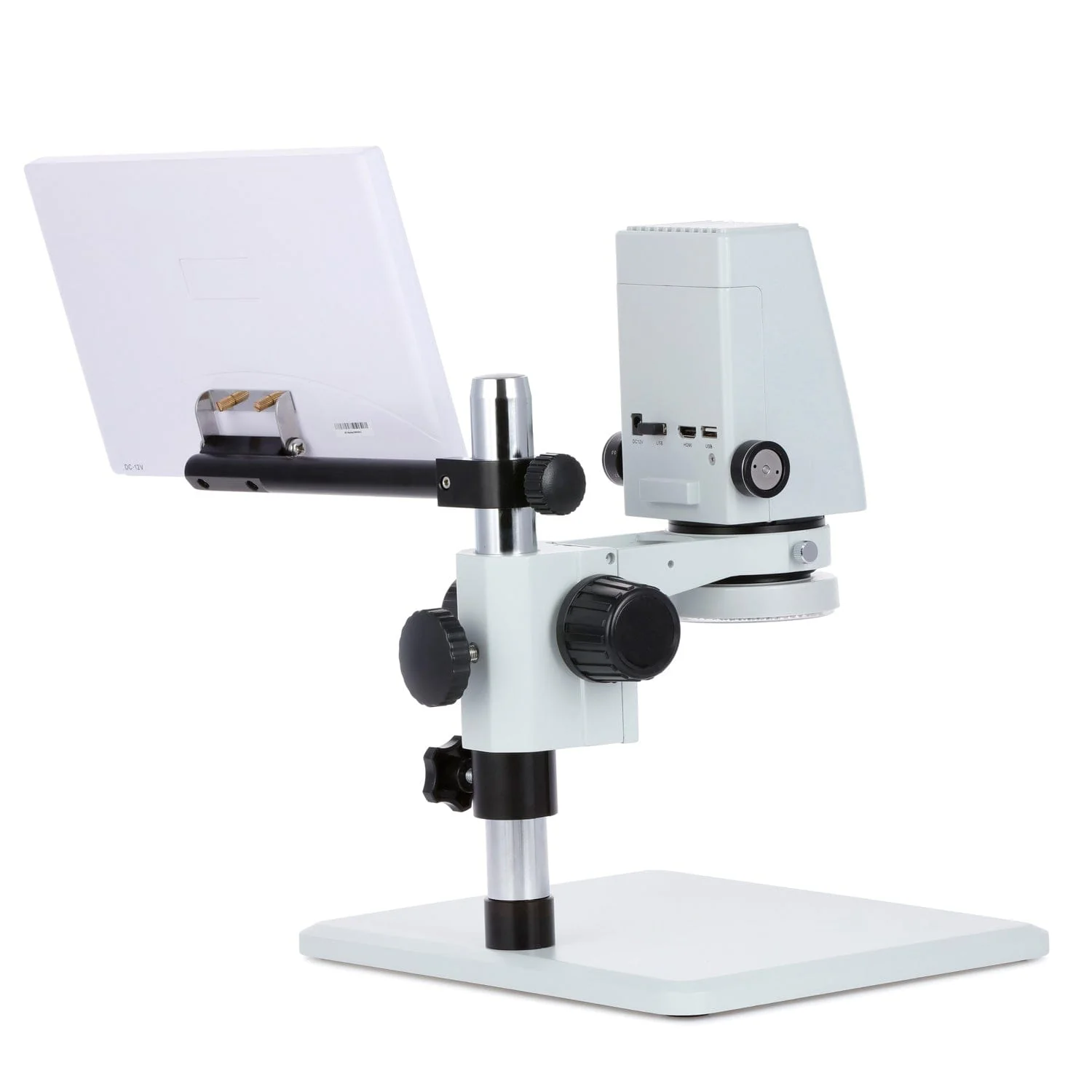

The included table stand provides essential stability with a small footprint. The pillar-type stand allows the focusing block to swing laterally for flexible coverage. The focusing block can be raised and lowered freely for coarse adjustments, while symmetrical focusing knobs with adjustable tension provide precision adjustment. Since the microscope uses the same 76mm mount as our bestselling stereo microscopes, it can be used with a wide range of different support systems including boom arms and articulating arms.

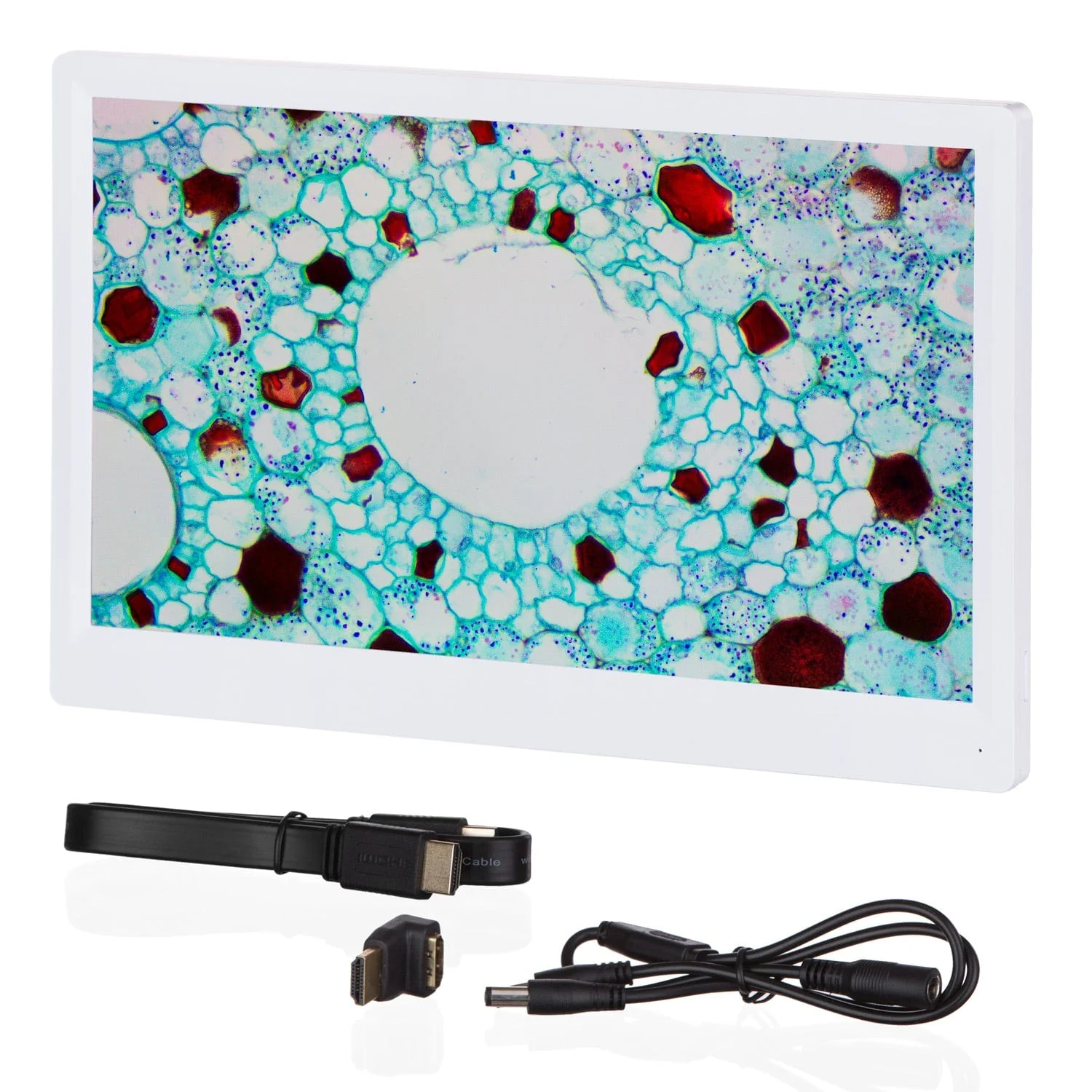

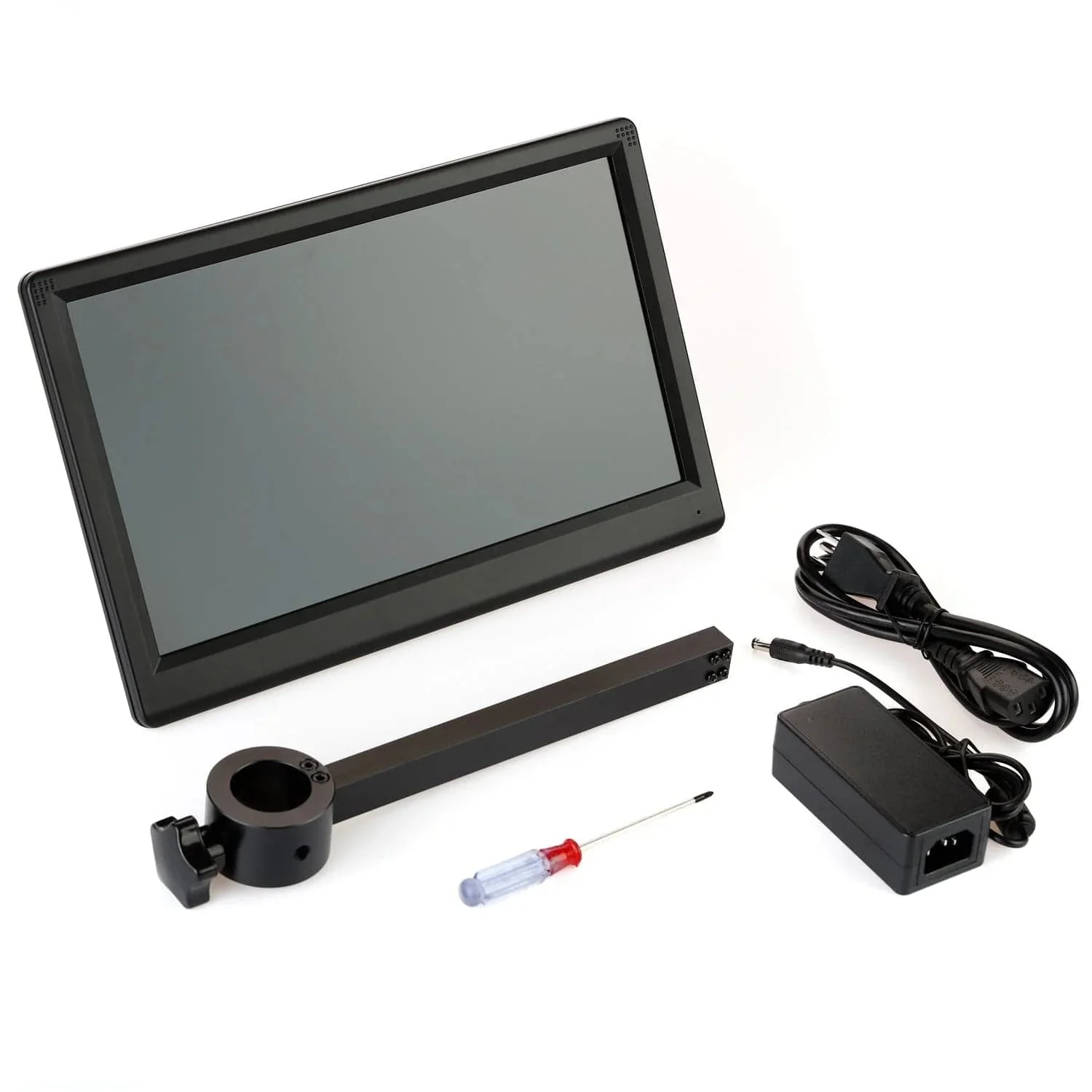

High Definition 11.6” Monitor

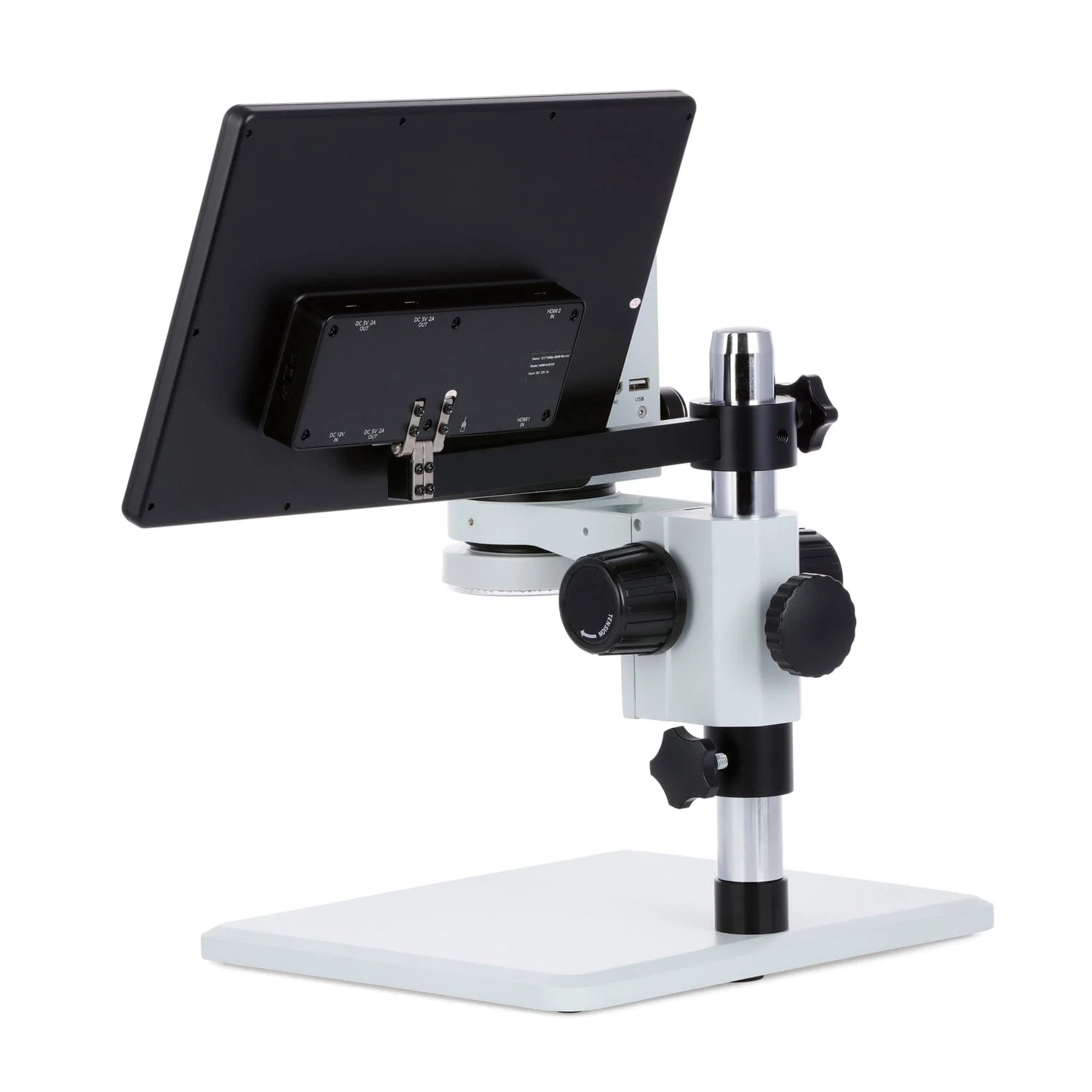

The 11.6” monitor attaches to the table stand’s pillar using a mounting arm which places the monitor conveniently next to the microscope. The screen uses IPS technology to produce accurate colors when viewed from virtually any angle. Using HDMI, the 1080p video is crisp and lag-free.

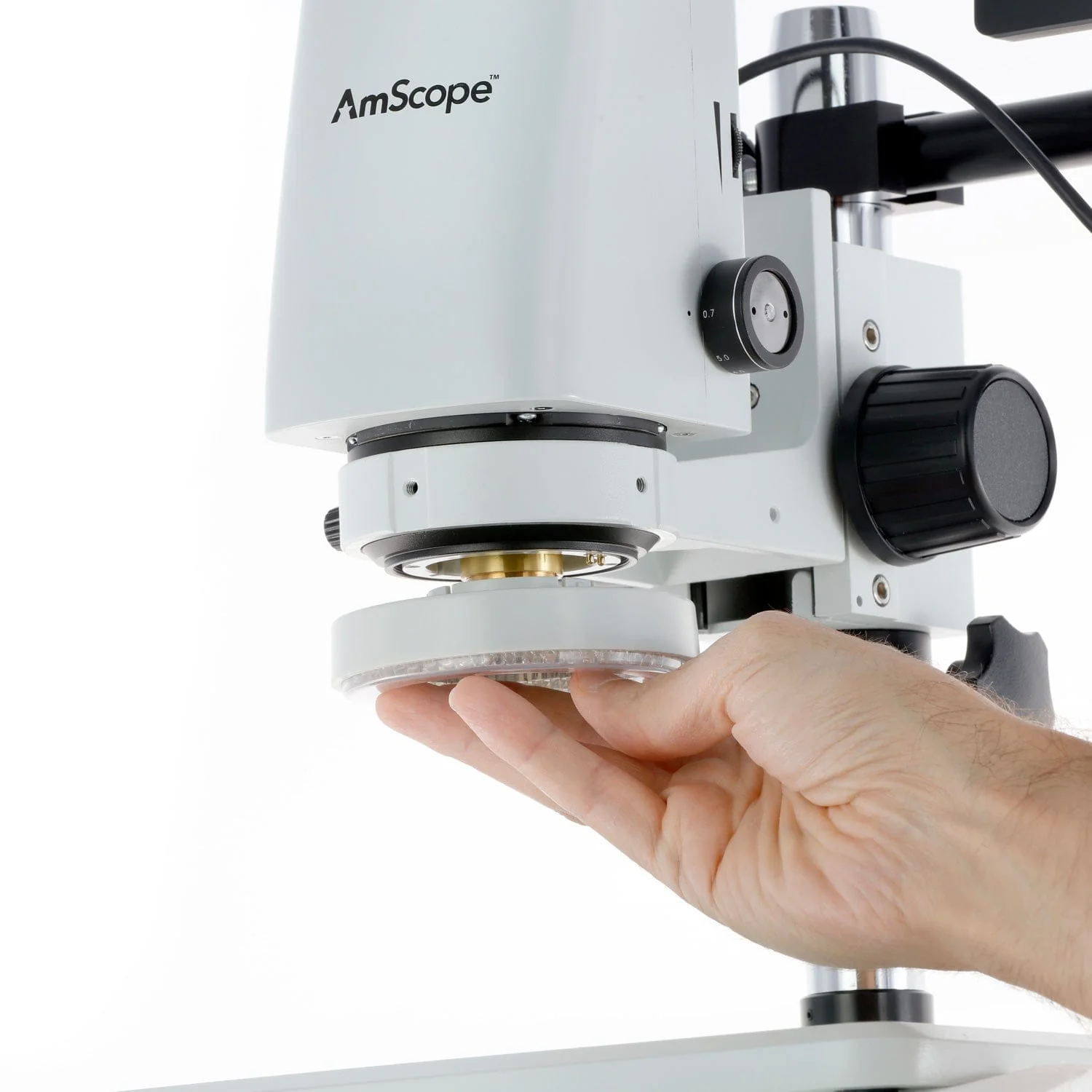

Illumination

A clip-on 144-LED ring light can be detached or attached to the head as needed, providing bright, even, low-heat illumination.

Specifications

Lens
Optical System	Finite-conjugate
Objective Magnification	0.7X-5X zoom with detent
Integrated Reduction	0.4X
Working Distance	100mm
Camera
Sensor	Sony IMX307 (color)
Sensor Type	CMOS
Sensor Optical Format	1/2.8"
Active Pixels	2M (1920 x 1080)
Pixel Size	2.9µm x 2.9µm
Active Sensor Area	5.57mm x 3.13mm
Shutter	electronic rolling shutter
Monitor
Screen Size	11.6"
Screen Type	TFT-LCD
Panel	IPS
Backlight	LED
Screen Display Ratio	16:9
Native Resolution	1920 x 1080
Pixel Pitch	0.1338mm
Brightness	320 nits
Stand
Stand Type	Table stand with pillar
Base Dimensions	320mm x 260mm x 20mm
Illuminator
Illuminator Type	144-LED ring light
General
Power Requirements	12VDC 1A input 110-240VAC, 50-60HZ adapter included

Contents

One microscope

One monitor

One mounting arm

One wireless mouse

Two AC power adapters

One stand base

One stand pillar

One focusing block
