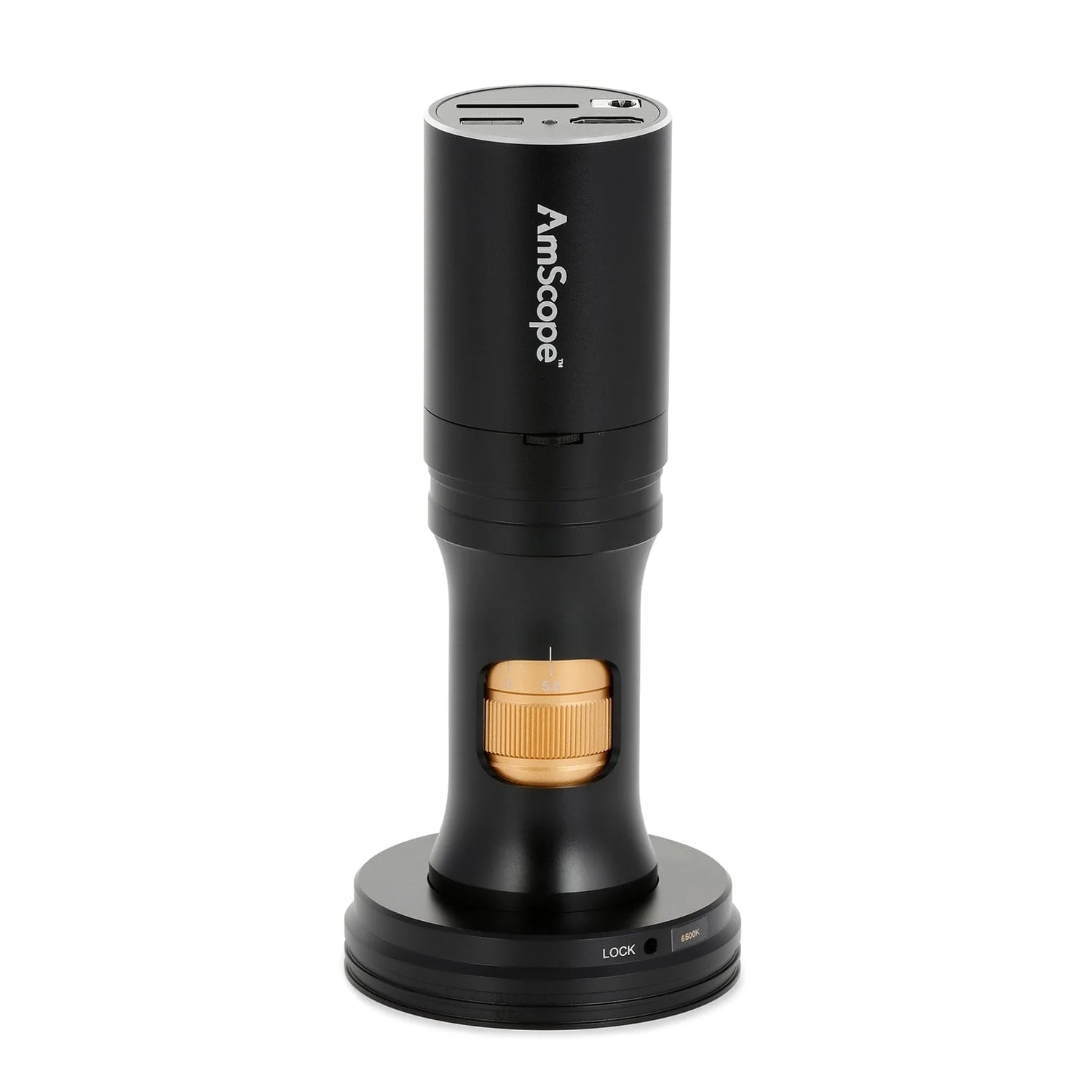

AmScope DM756 1080p HDMI All-in-One Digital Microscope with Zoom Optics + Ring Light

A Revolutionary Design

The DM756 line of digital microscopes offers a new level of functionality and convenience. These all-in-one digital imaging solutions are available with USB, Wi-Fi, or HDMI connectivity to suit any workflow, with the ability to view and capture live video and photos. The sleek design is both attractive and functional, and can be used with our most popular table stands, boom stands, and articulating arms. Best of all, the microscopes use a modular design with multiple magnification and illumination options so you can customize them to suit your needs.

Stand-Alone with HDMI Connectivity

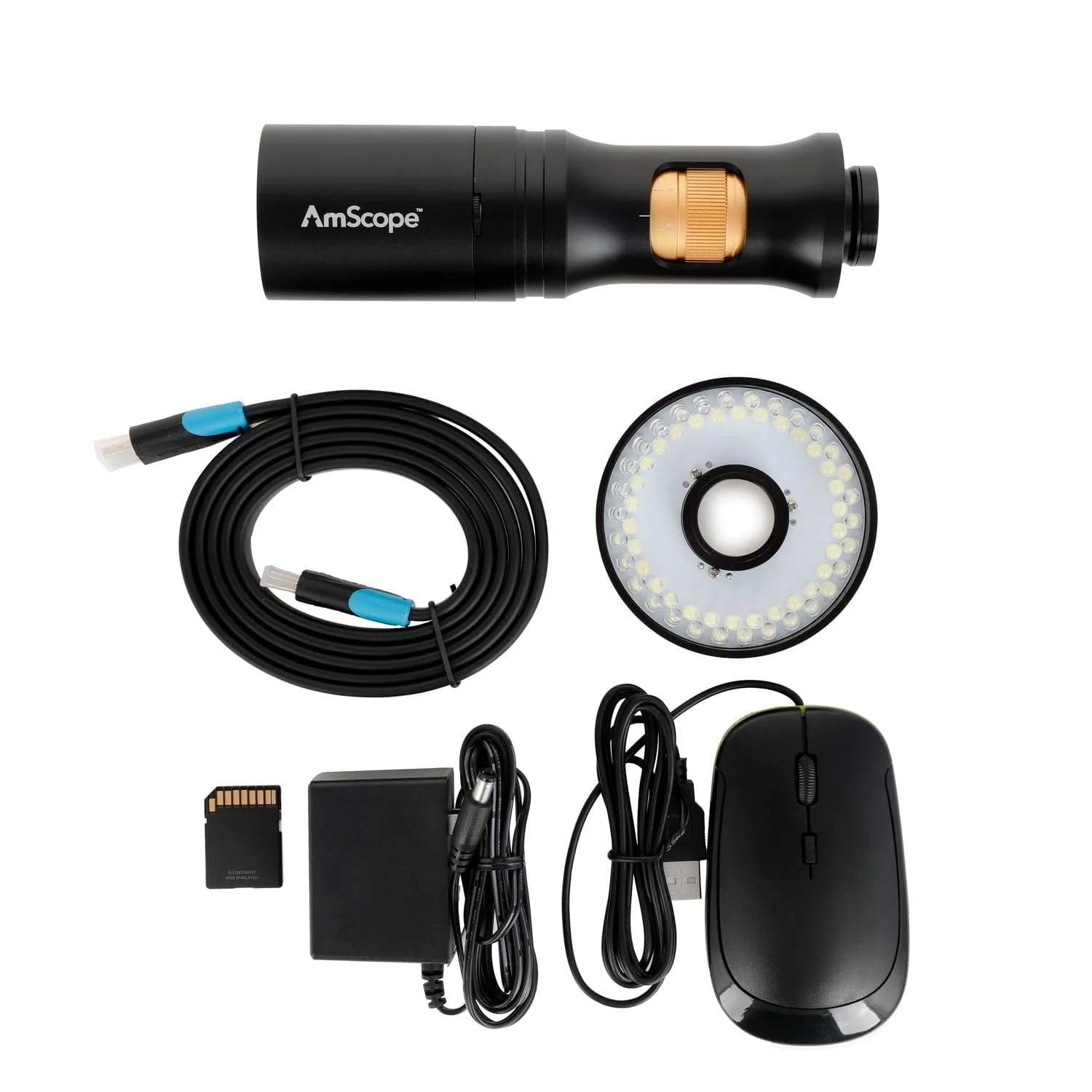

This model is designed for stand-alone use – so no need for a computer. Connect it directly to an HDMI monitor or television for live viewing and recording. You’ll be impressed by the responsiveness of the real-time video, and the smooth 60fps output. As a stand-alone system, the microscope uses internal software to provide on-screen controls for capturing photos and videos, with a built-in Secure Digital reader/writer to store the files. Use the included mouse to navigate the microscope’s settings and its large assortment of editing and measuring tools.

Modular Optics

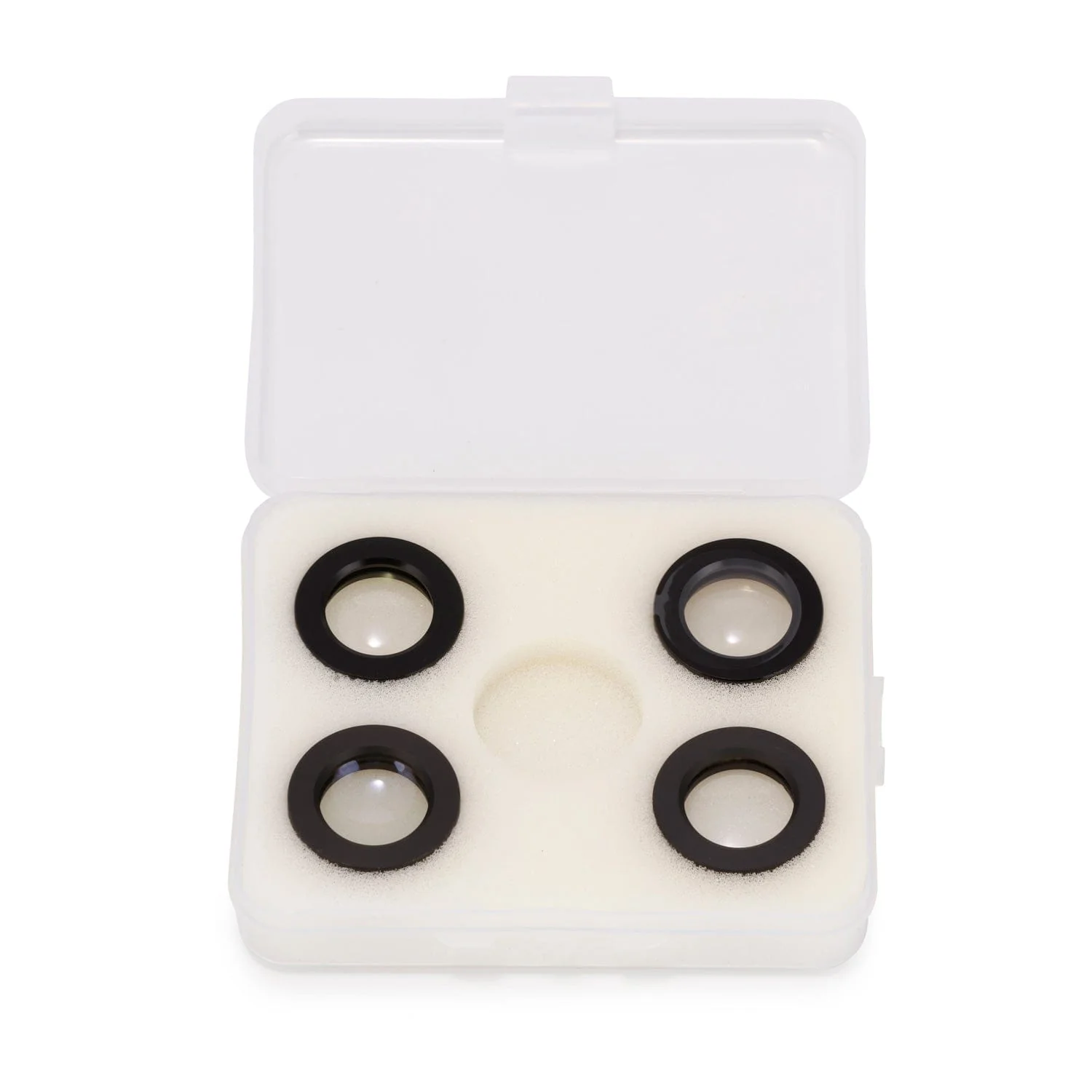

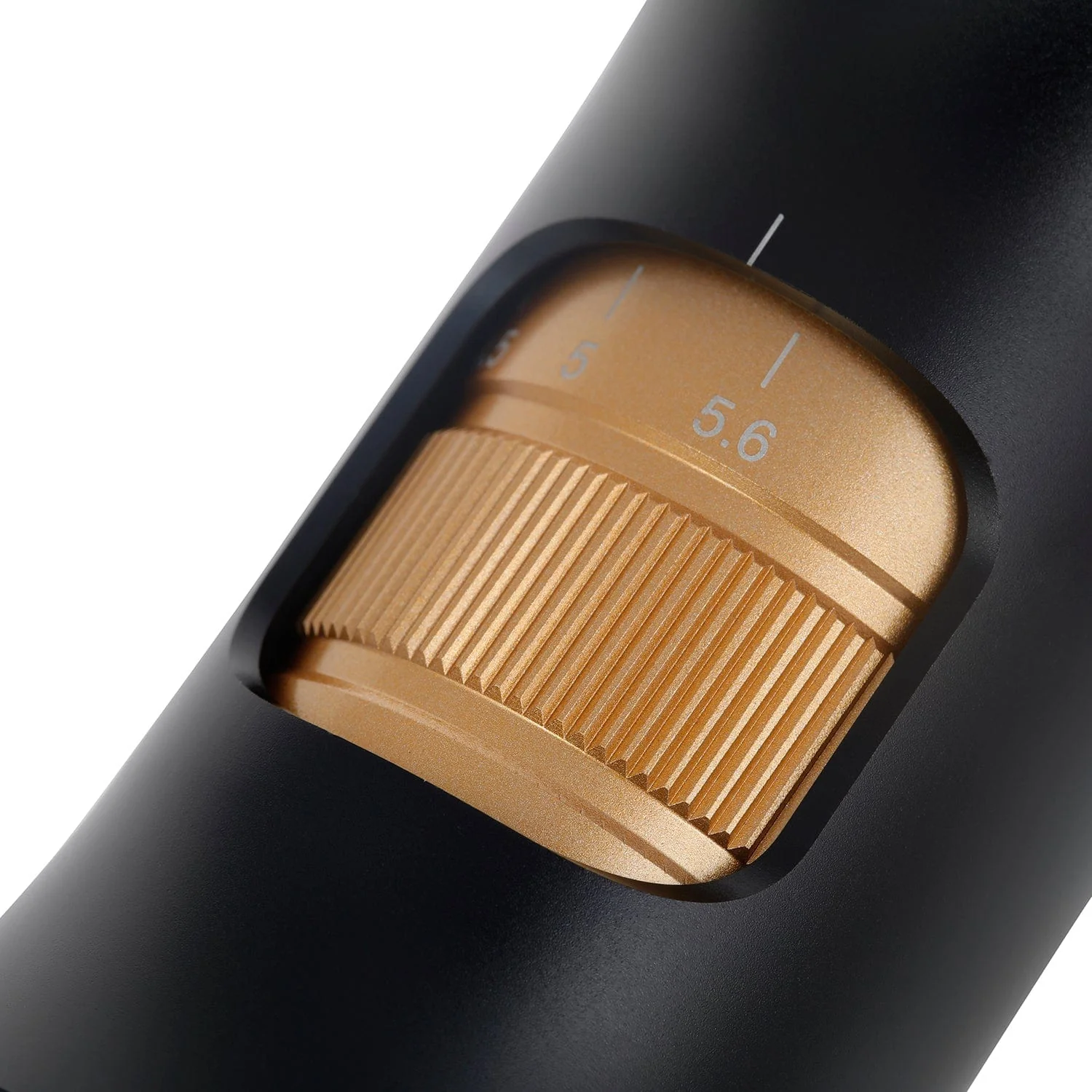

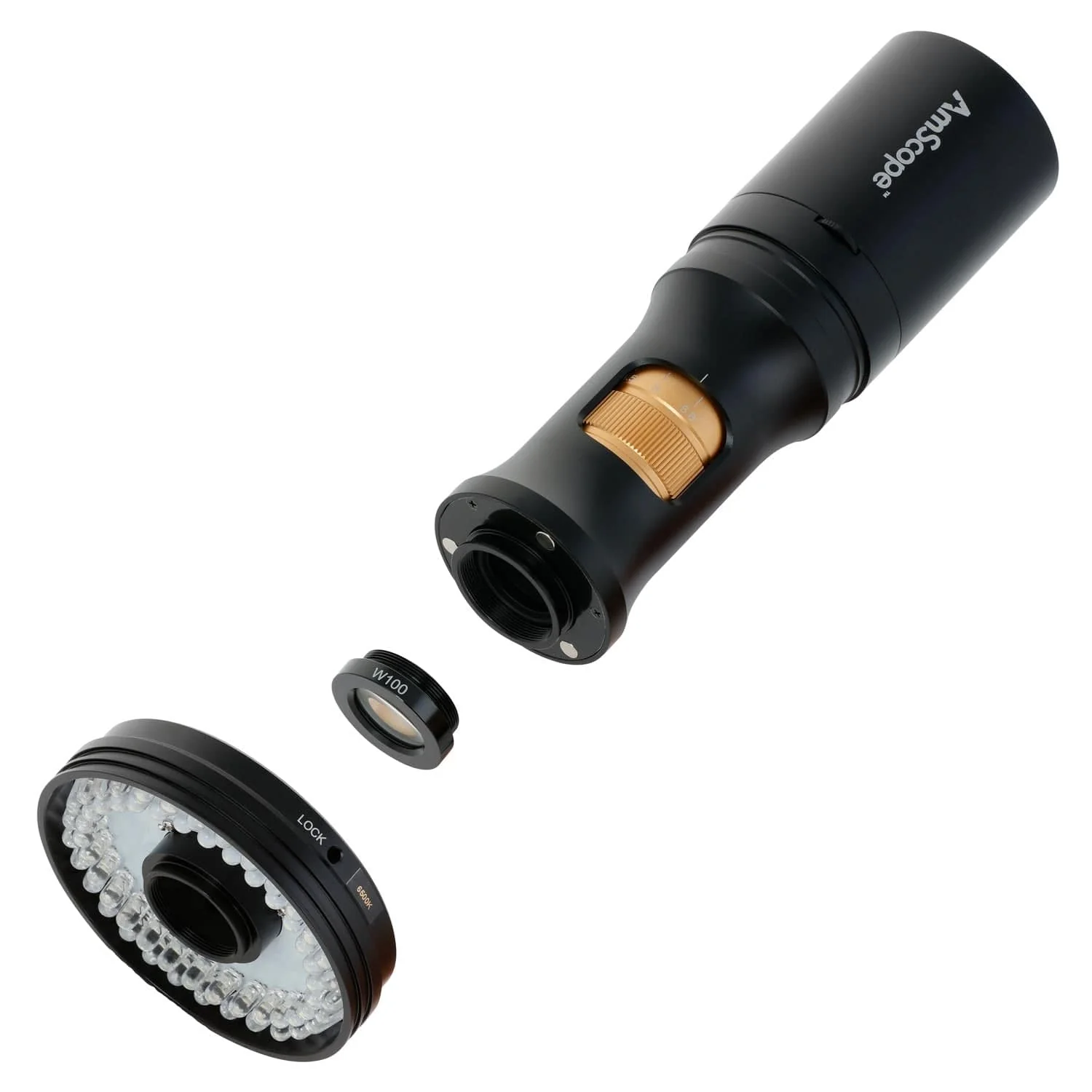

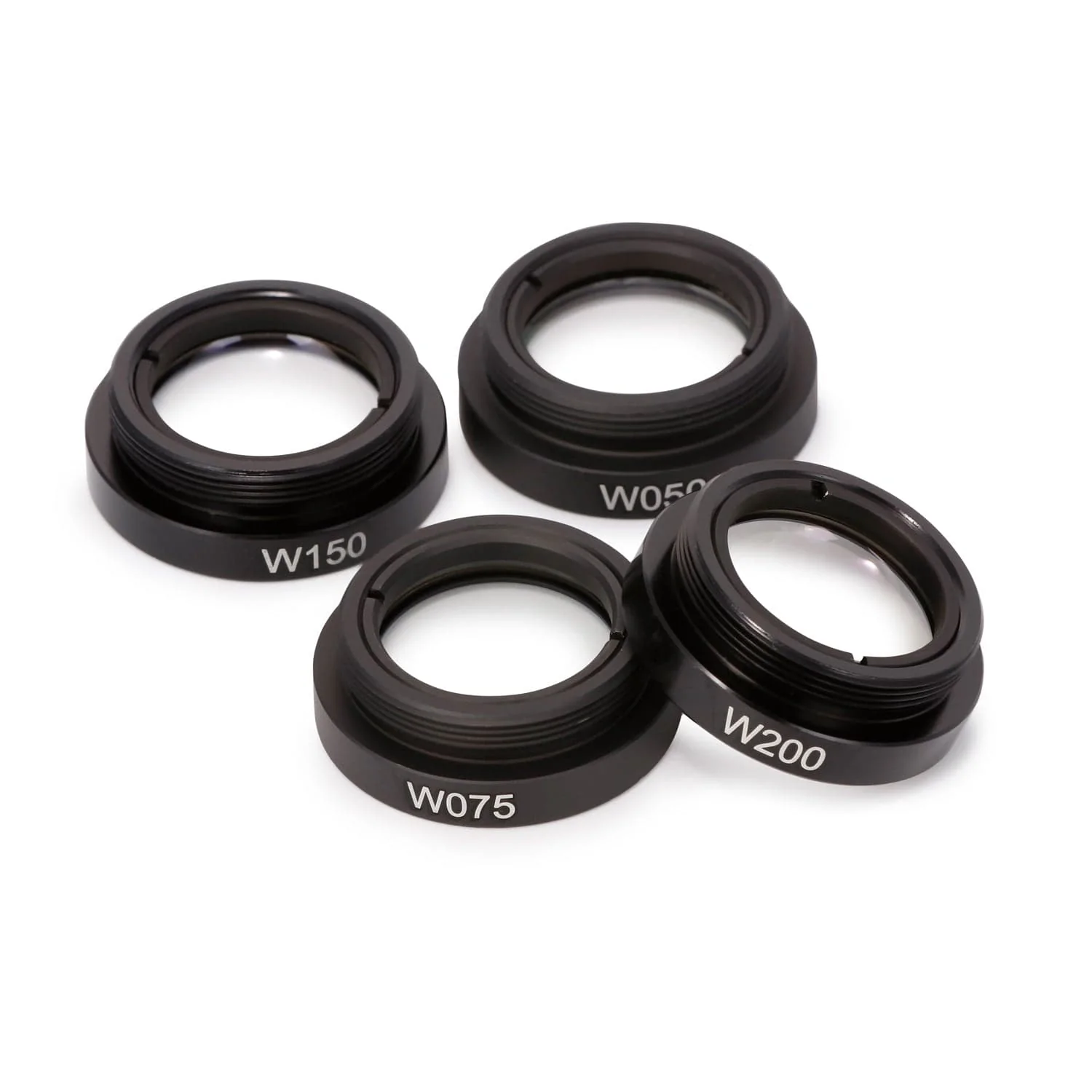

The amazing utility of this microscope begins with its optics. At its core is a 0.7X-5.6X continuous optical zoom. This allows you to quickly adjust the level of detail as needed. By default, the microscope is equipped with a 1X objective lens with a considerable 80mm working distance. A range of additional objective lenses are available to cover different magnifications and working distances. For even greater flexibility, an RMS lens adapter is also available to mount traditional microscope objective lenses.

Illumination

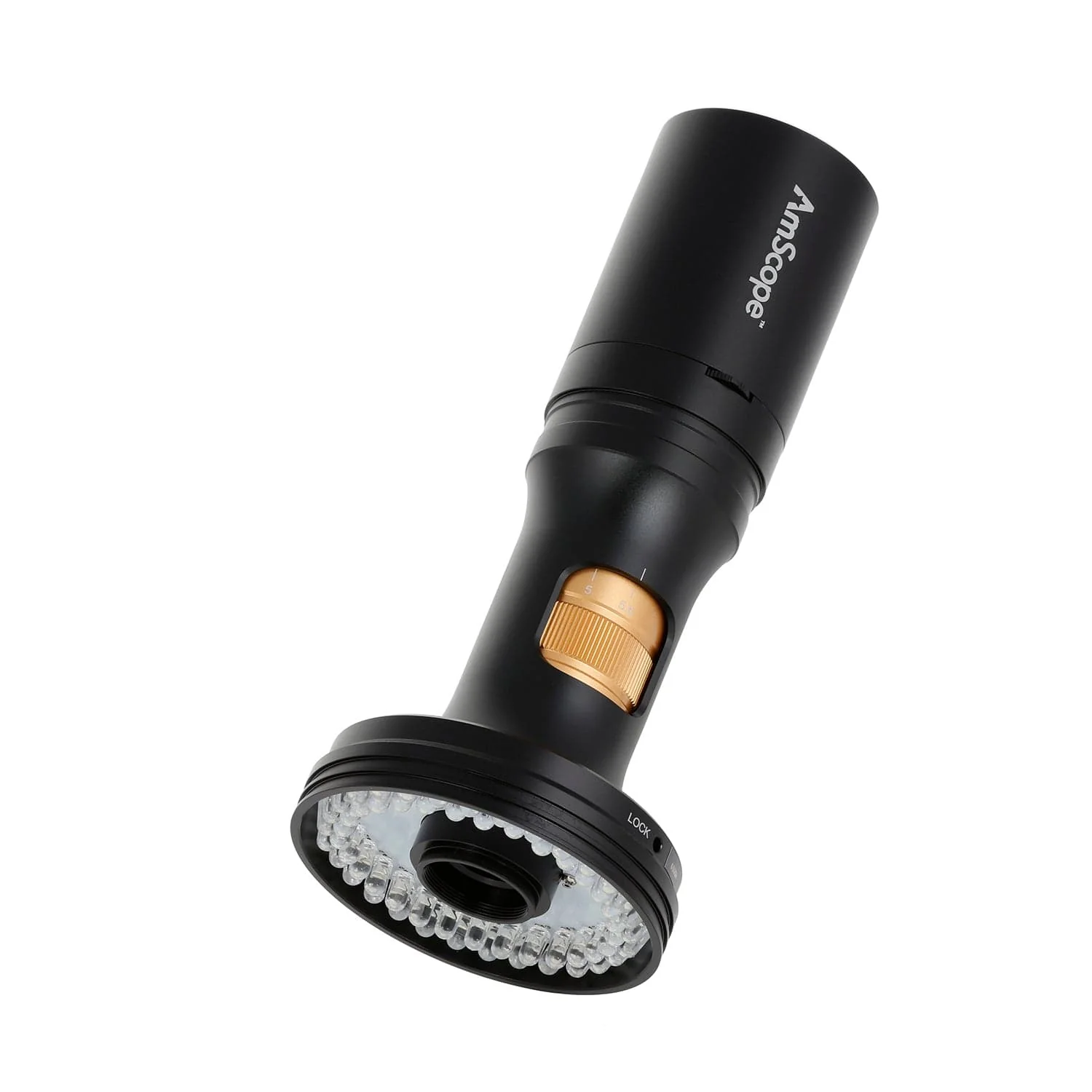

The microscope is equipped with an LED ring-light for cool, even illumination. Since the illuminator is attached to the microscope, the light will always be where you need it. 60 individual LEDs blanket the subject with light, daylight-balanced at 6500K for ideal imaging. Following the theme of modularity, the ring-light uses magnetic coupling so it can be effortlessly removed or attached as needed.

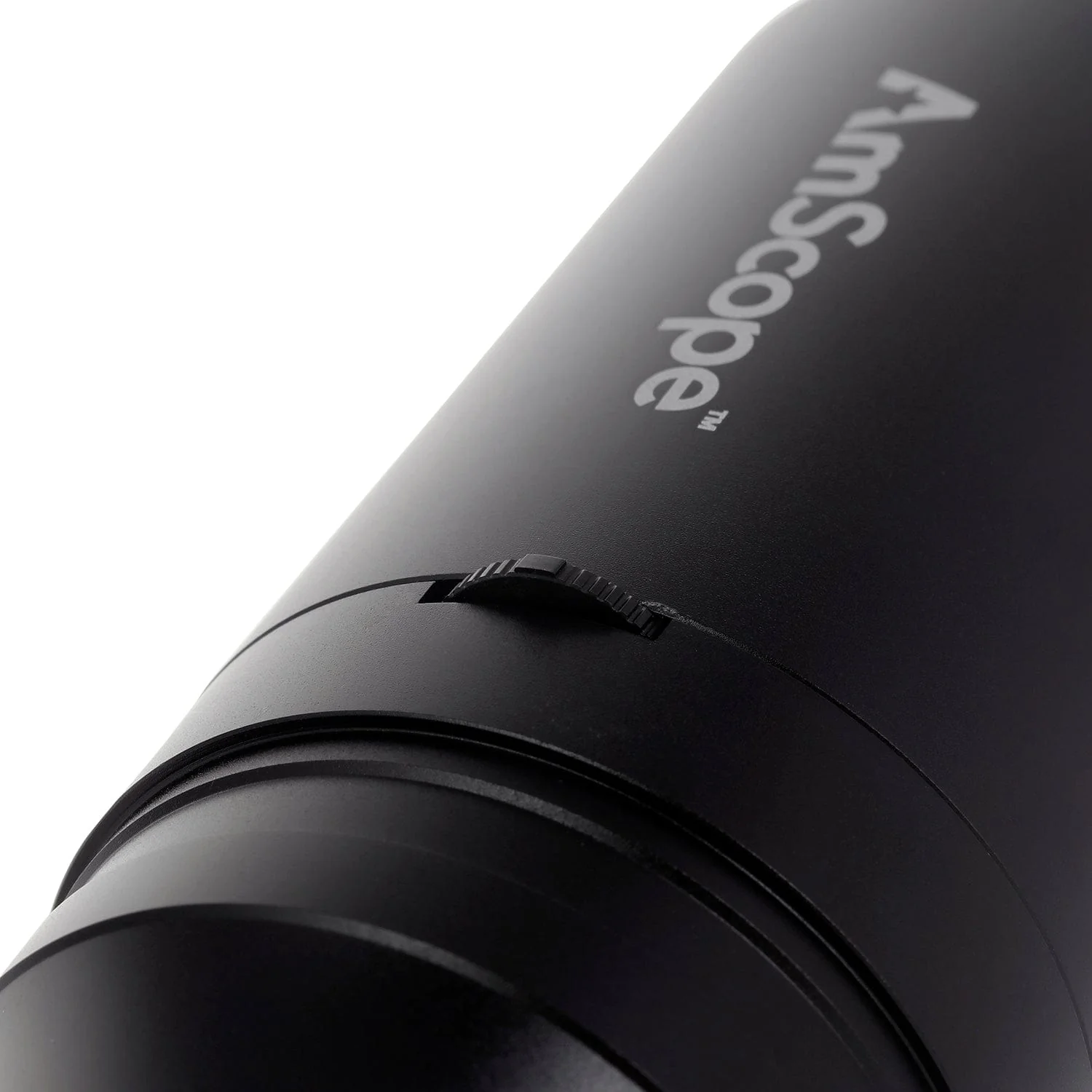

Multi-Function Switch

To simplify your workflow, the microscope has a multi-function switch which can be used to control the brightness of the ring light, as well as to capture images. Moving the switch to the left or right will adjust the ring light’s brightness in stepped graduations. The switch also has a button action which will capture an image in the appropriate software.

Support Options

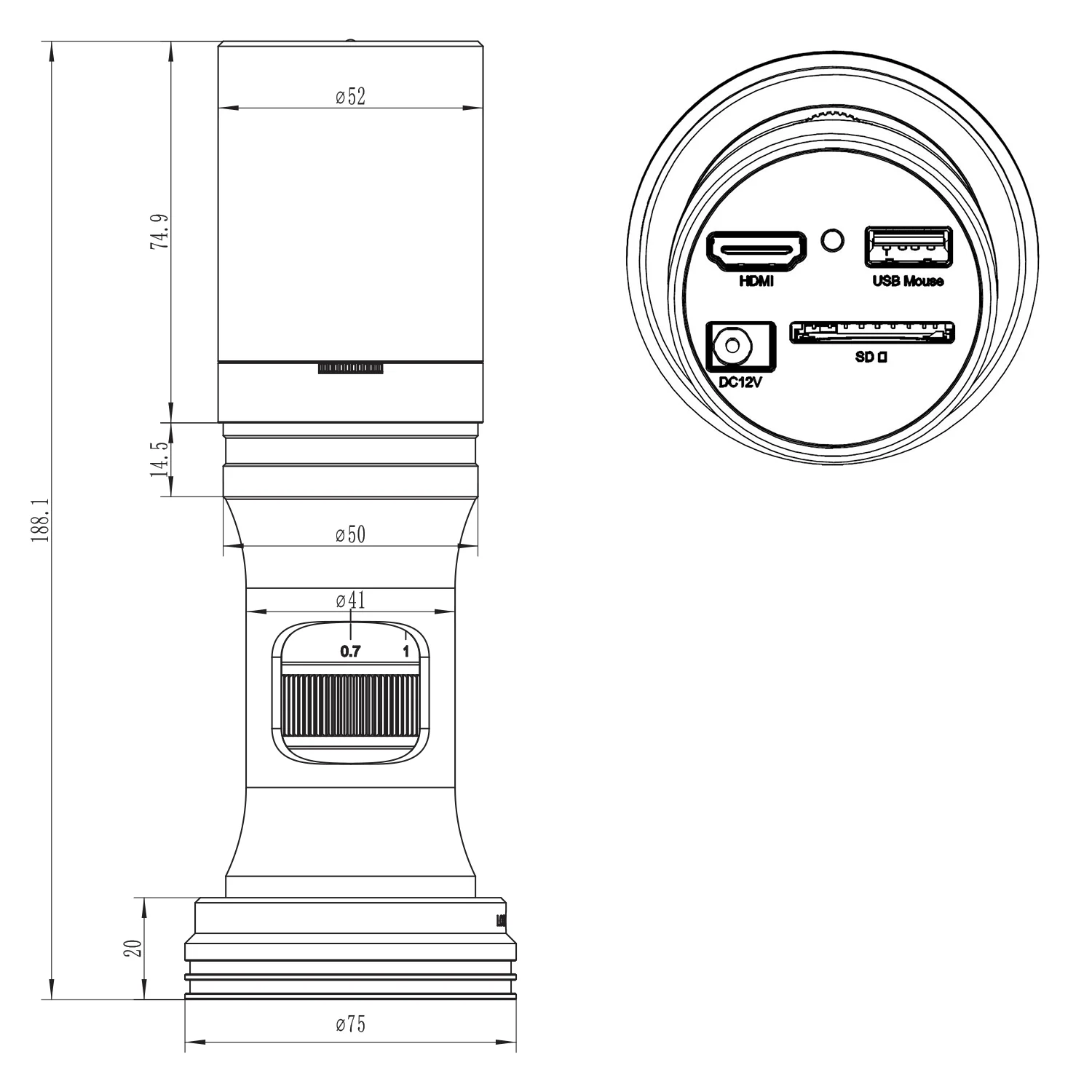

DM756 series microscopes are designed to be used with a range of support systems, including table stands, boom stands, and articulating stands. The microscope can be mounted in 50mm collars, or combined with the AD-SZ76 adapter to fit the 76mm collars used by our most popular stands.
