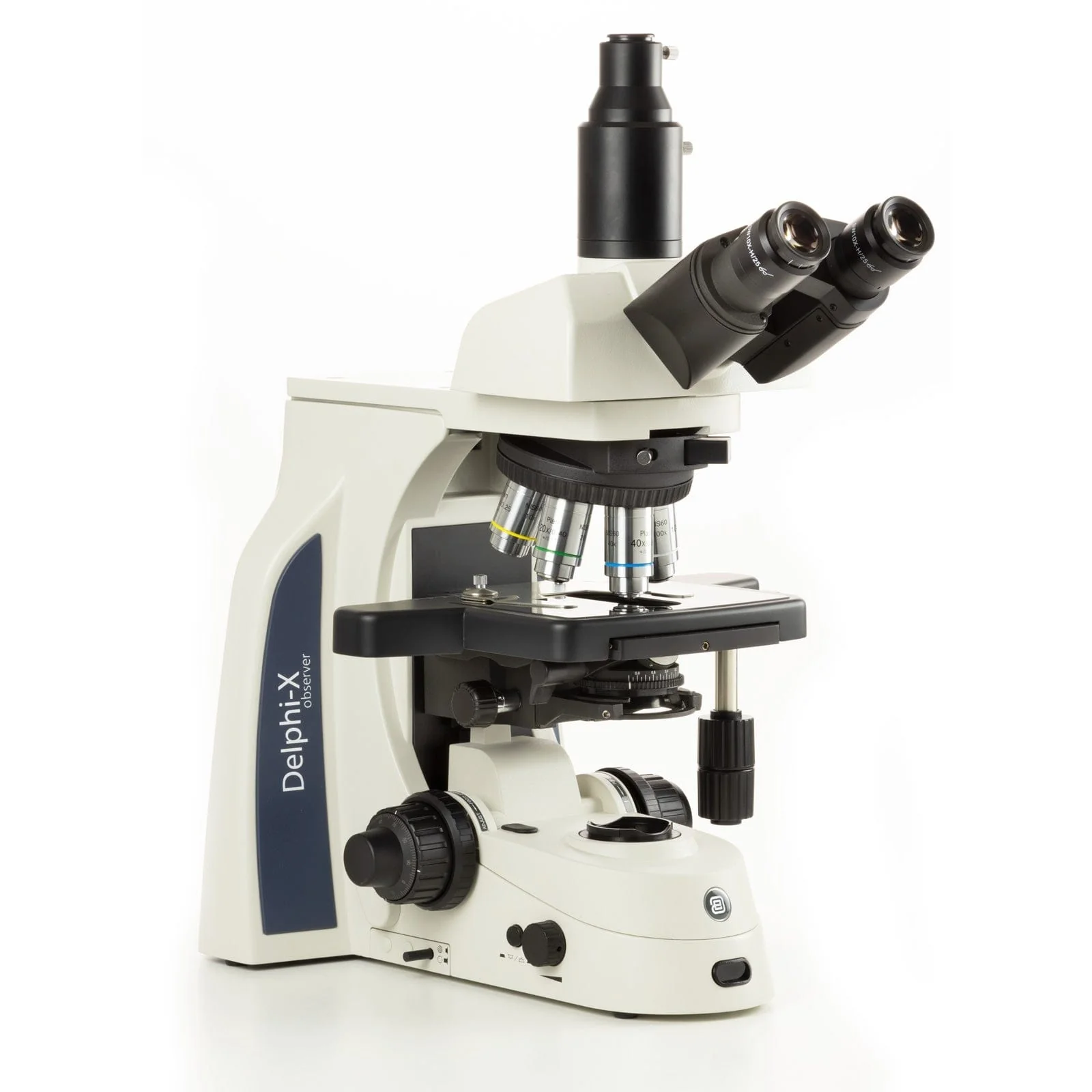

Euromex Delphi-X Series Observer Trinocular Compound Microscope

State-of-the-art microscopes for advanced Life Science applications.

The outstanding optical performance of the Delphi-X Observer DX1153-Pli with 25mm fields of view and high numerical aperture of the Plan 60mm parafocal EIS objectives enables perfect observations and color rendering at high resolving power. This is the perfect microscope for anatomo-pathologists.

Features:

Trinocular head

Super Wide field SWF 10x/25mm eyepieces

3W NeoLED illumination

Sextuple reversed nosepiece

60mm parafocal Plan EIS objectives

M25mm objective thread mounting

iCare Sensor - Illumination of the microscope automatically switches off shortly after microscopists step away from their position

Specifications:/

EYEPIECES

Super Wide Field SWF 10x/25mm

STANDARD HEAD

Siedentopf trinocular with 30 degree inclined tubes. Interpupillary distance adjustable between 47 and 78mm. The trinocular standard head has an optical path selector (100:0 / 80:20 / 0:100). Diopter adjustment on both eyepieces

NOSEPIECE

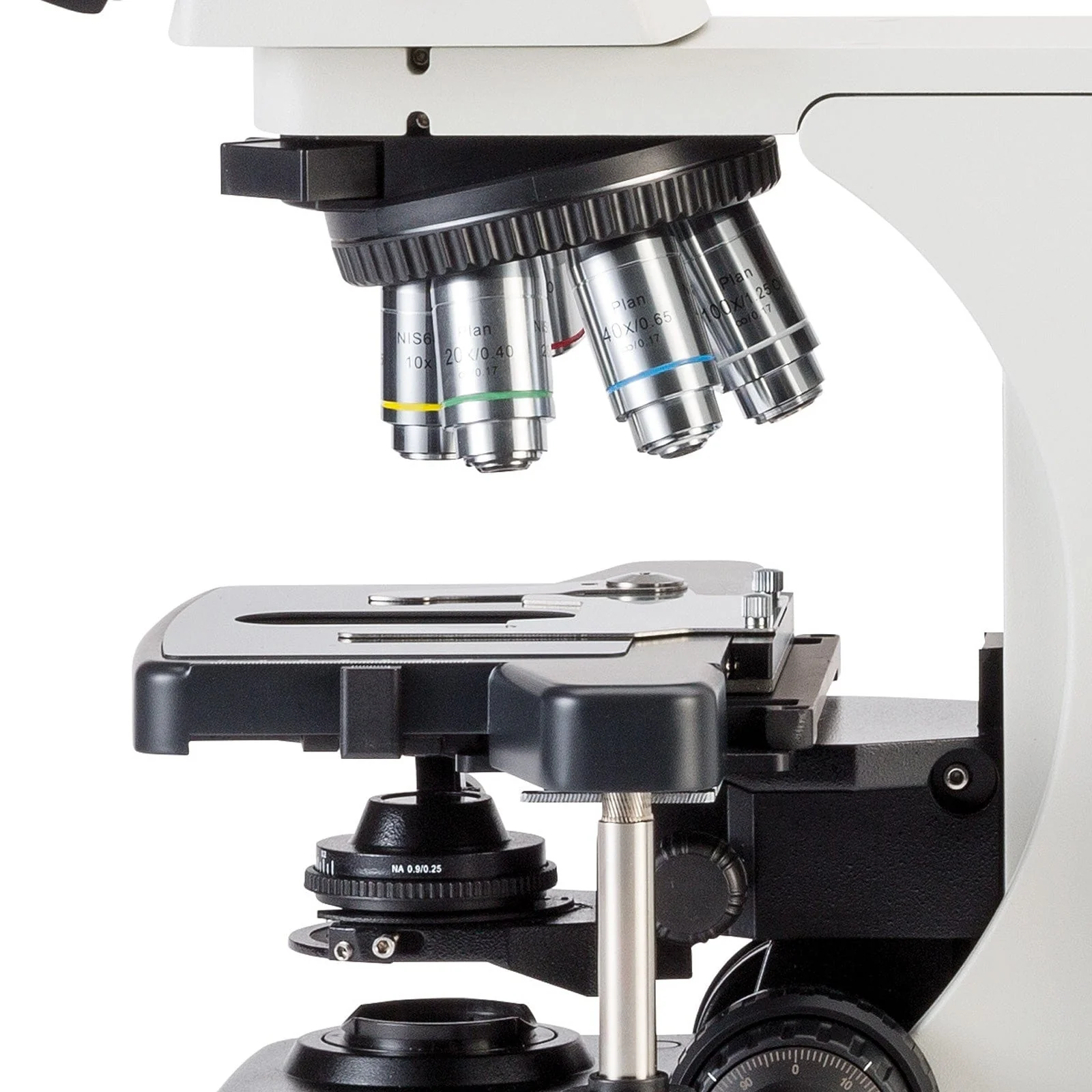

Revolving sextuple reversed nosepiece on ball-bearings with M25 objectives mounting threads

PLAN ACHROMATIC OBJECTIVES (clinical routine laboratories)

The Delphi-X Observer is standard supplied with Plan Achromatic 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion infinity corrected EIS objectives

S40x and S100x oil immersion objectives are spring loaded

STAGE

90 x 152mm stage with 78 x 32mm integrated right-handed mechanical stage

Comes with robust and scratch-resistant Gorilla glass

FOCUSING

Coaxial coarse and fine adjustment, 100 graduations, 1 µm precision, 100 μm per rotation, total travel range is approximately 35mm

Supplied with an adjustable rack stop to prevent damage to sample and objectives

The coarse adjustments are equipped with friction control

The focusing knobs can be switched from left to right according to the user’s preference

CONDENSER (for brightfield)

In height adjustable N.A. 0.90/1.25 Abbe swing-out condenser with numerical aperture identification marks

CONDENSER (for phase contrast)

In height adjustable N.A. 1.25 Zernike phase contrast condenser with phase annuli for 10/20/40x and S100x-oil objectives. To be used with the phase contrast objectives

DIASCOPIC ILLUMINATIONS

Diascopic intensity adjustable 3 W NeoLED Kohler illumination with internal 100-240 V power supply

NeoLED

The innovative NeoLED design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain three main benefits:

More oblique light from the LED lightsource can be captured, which increases the light output significantly

Less energy is required to achieve this level of light intensity

The larger aperture of NeoLED allows the optical systems of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics

ICARE SENSOR

Unique iCare Sensor is developed to avoid unnecessary loss of energy

Illumination of the microscope automatically switches off shortly after microscopists step away from their position

CARRYING GRIP

The carrying grip at the back of the microscope ensures safe transportation of the microscope and the integrated tool & holder makes sure the right tool is always available

PACKAGE CONTENT

Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil. All packed in a polystyrene box
