AmScope HD Series 10.5" Touchscreen 8.0MP Imaging System with Android OS, Wi-Fi and HDMI for Microscopes
HomeStore

AmScope HD Series 10.5" Touchscreen 8.0MP Imaging System with Android OS, Wi-Fi and HDMI for Microscopes

AmScope HD Series 10.5" Touchscreen 8.0MP Imaging System with Android OS, Wi-Fi and HDMI for Microscopes

$297.15

Original: $848.99

-65%
AmScope HD Series 10.5" Touchscreen 8.0MP Imaging System with Android OS, Wi-Fi and HDMI for Microscopes

$848.99

$297.15

The Story

This all-in-one digital imaging solution combines the technologies of an 8MP microscope camera with an Android tablet to provide a feature-rich experience like no other. The high-resolution 10.5” screen brings your microscopic subjects to life in vivid color. Touchscreen navigation allows you to capture photos and videos with ease using the built-in software, as well as performing measurement functions. With all of the functionality you would expect from a cutting-edge tablet, the possibilities are endless.

The HDTP108 is designed for use with most professional optical-microscopy systems. The industry-standard C-mount interface can be attached directly to C-mount photo ports, or to a range of other ports including 23mm tubes using optional reduction lenses. Once mounted, you can view live video of your subjects on-screen with stunning clarity. With 90° tilt and 360° swivel, you can set the screen to a comfortable angle while standing or sitting.

When flexibility is needed, the tablet delivers. An HDMI output allows you to expand your display to a larger format when needed, such as a television or monitor. You can capture images and save them on the internal storage, and share them using USB devices over your LAN/Wi-Fi network.

Tablet Specifications
OS Android 11
CPU RK3568
Memory 2GB
Internal Storage 32GB
External Storage USB
Display Type Touchscreen LCD
Screen Size (diagonal) 10.5"
Display Resolution 1920 x 1280
Display Mount 360° rotation, 90° tilt
Sensor Type CMOS
Sensor Optical Format 1/2"
Active Pixels 8M (16:9)
Pixel Size 2.2µm x 2.2µm
Active Sensor Area 7.74mm x 4.38mm
Shutter electronic rolling shutter
Photo Capture Resolution 3840 x 2160
Video Capture Resolution and Maximum Framerate 30fps @3840 x 2160
Connectivity HDMI
USB 3.0
LAN/WLAN
Output Ports 1X USB Mouse port, 2x USB port,
1x HDMI Port, 1x LAN Port
Lens-mount C-mount
Power 12V/1A, 110-220VAC


Packing List:

  • One tablet imaging system
  • One power adapter
AmScope HD Series 10.5" Touchscreen 8.0MP Imaging System with Android OS, Wi-Fi and HDMI for Microscopes - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

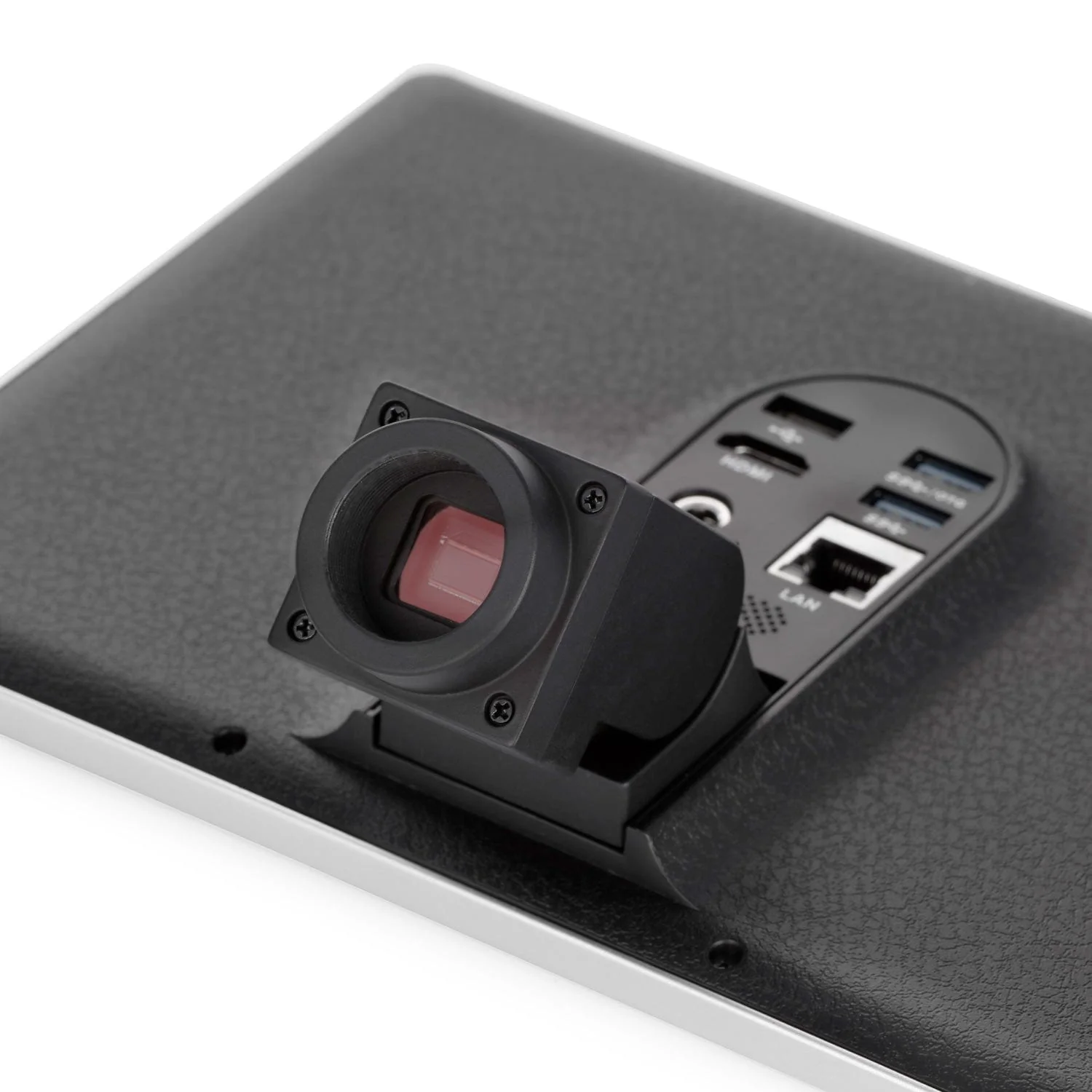

AmScope HD Series 10.5" Touchscreen 8.0MP Imaging System with Android OS, Wi-Fi and HDMI for Microscopes - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

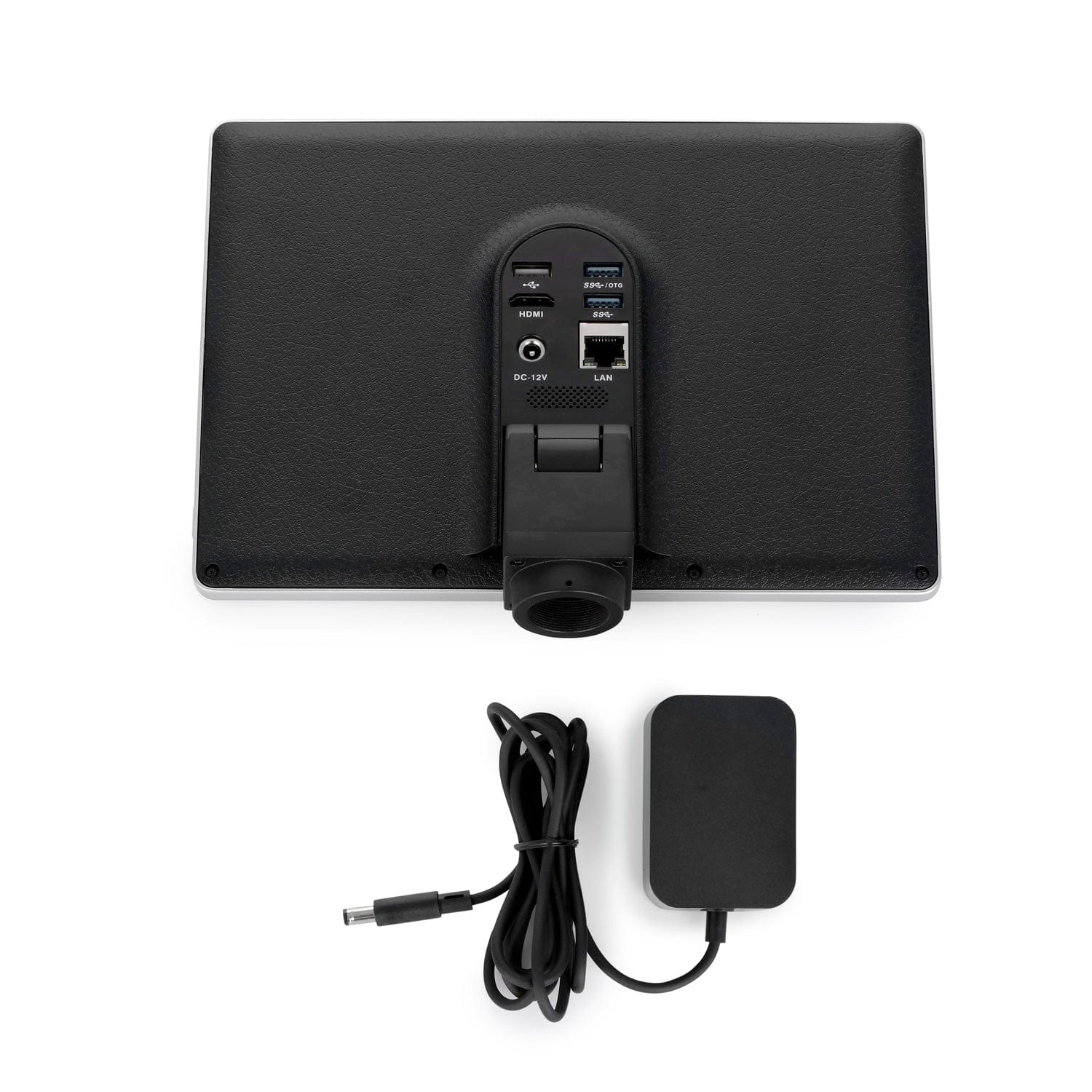

AmScope HD Series 10.5" Touchscreen 8.0MP Imaging System with Android OS, Wi-Fi and HDMI for Microscopes - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

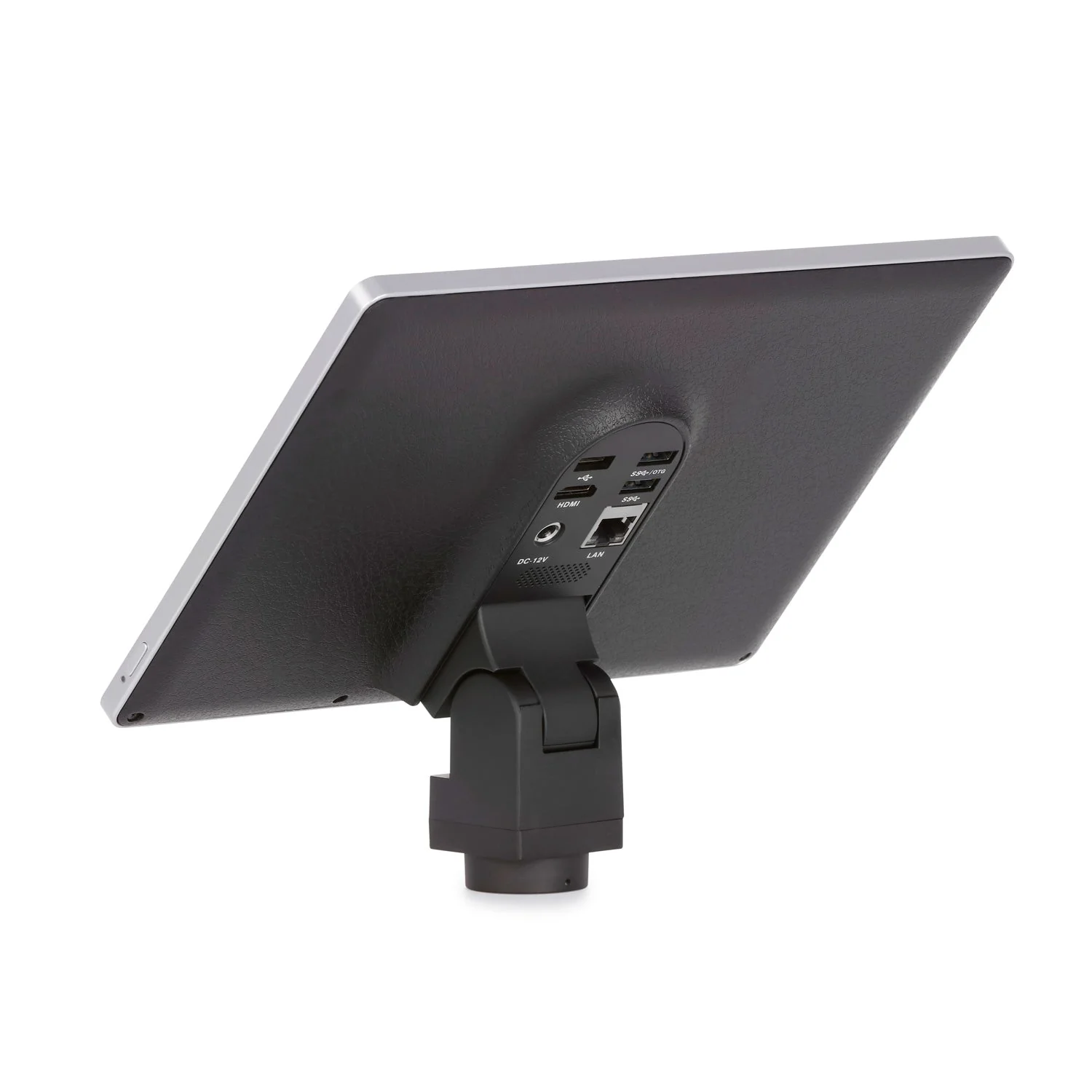

AmScope HD Series 10.5" Touchscreen 8.0MP Imaging System with Android OS, Wi-Fi and HDMI for Microscopes - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

AmScope HD Series 10.5" Touchscreen 8.0MP Imaging System with Android OS, Wi-Fi and HDMI for Microscopes - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

This all-in-one digital imaging solution combines the technologies of an 8MP microscope camera with an Android tablet to provide a feature-rich experience like no other. The high-resolution 10.5” screen brings your microscopic subjects to life in vivid color. Touchscreen navigation allows you to capture photos and videos with ease using the built-in software, as well as performing measurement functions. With all of the functionality you would expect from a cutting-edge tablet, the possibilities are endless.

The HDTP108 is designed for use with most professional optical-microscopy systems. The industry-standard C-mount interface can be attached directly to C-mount photo ports, or to a range of other ports including 23mm tubes using optional reduction lenses. Once mounted, you can view live video of your subjects on-screen with stunning clarity. With 90° tilt and 360° swivel, you can set the screen to a comfortable angle while standing or sitting.

When flexibility is needed, the tablet delivers. An HDMI output allows you to expand your display to a larger format when needed, such as a television or monitor. You can capture images and save them on the internal storage, and share them using USB devices over your LAN/Wi-Fi network.

Tablet Specifications
OS Android 11
CPU RK3568
Memory 2GB
Internal Storage 32GB
External Storage USB
Display Type Touchscreen LCD
Screen Size (diagonal) 10.5"
Display Resolution 1920 x 1280
Display Mount 360° rotation, 90° tilt
Sensor Type CMOS
Sensor Optical Format 1/2"
Active Pixels 8M (16:9)
Pixel Size 2.2µm x 2.2µm
Active Sensor Area 7.74mm x 4.38mm
Shutter electronic rolling shutter
Photo Capture Resolution 3840 x 2160
Video Capture Resolution and Maximum Framerate 30fps @3840 x 2160
Connectivity HDMI
USB 3.0
LAN/WLAN
Output Ports 1X USB Mouse port, 2x USB port,
1x HDMI Port, 1x LAN Port
Lens-mount C-mount
Power 12V/1A, 110-220VAC


Packing List:

  • One tablet imaging system
  • One power adapter
