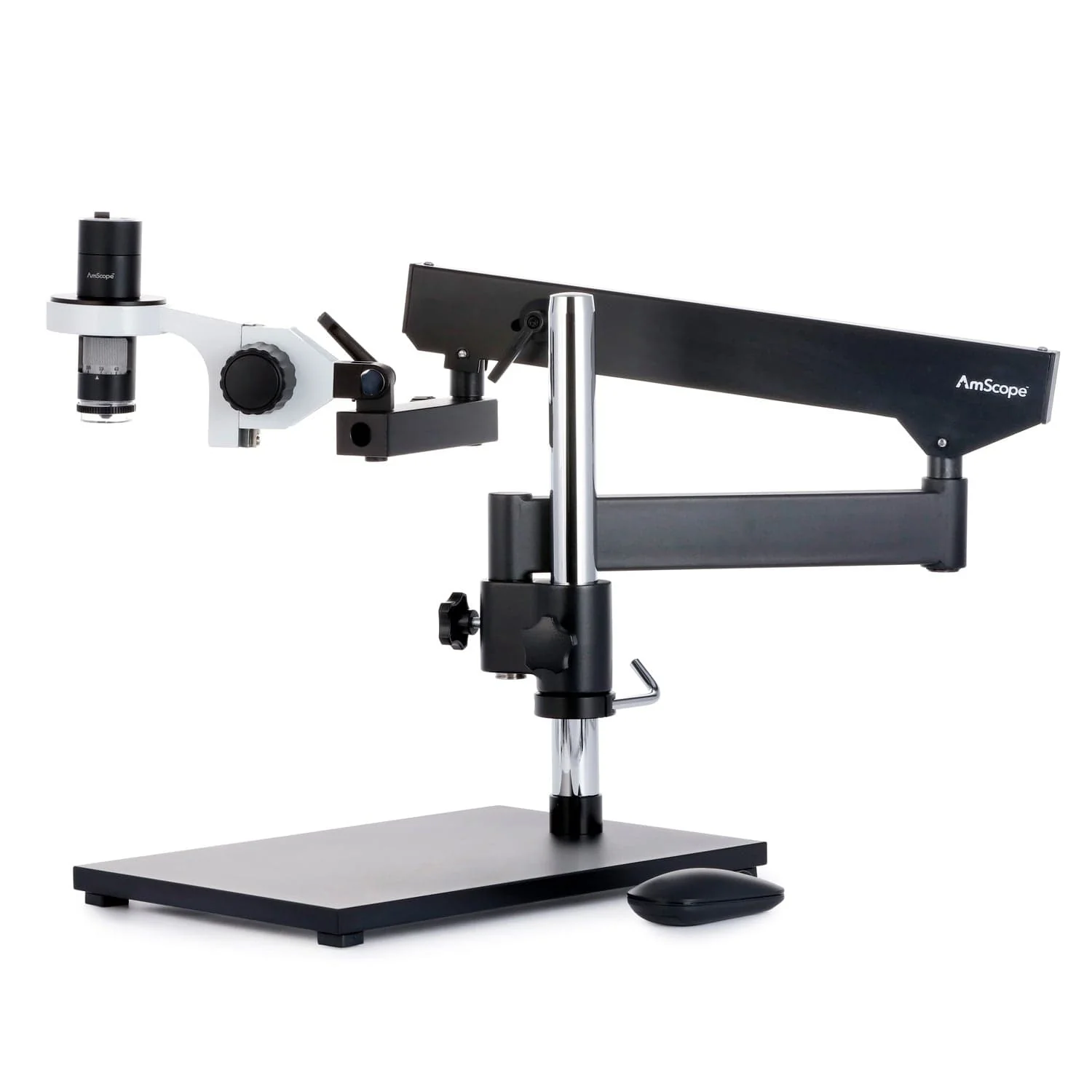

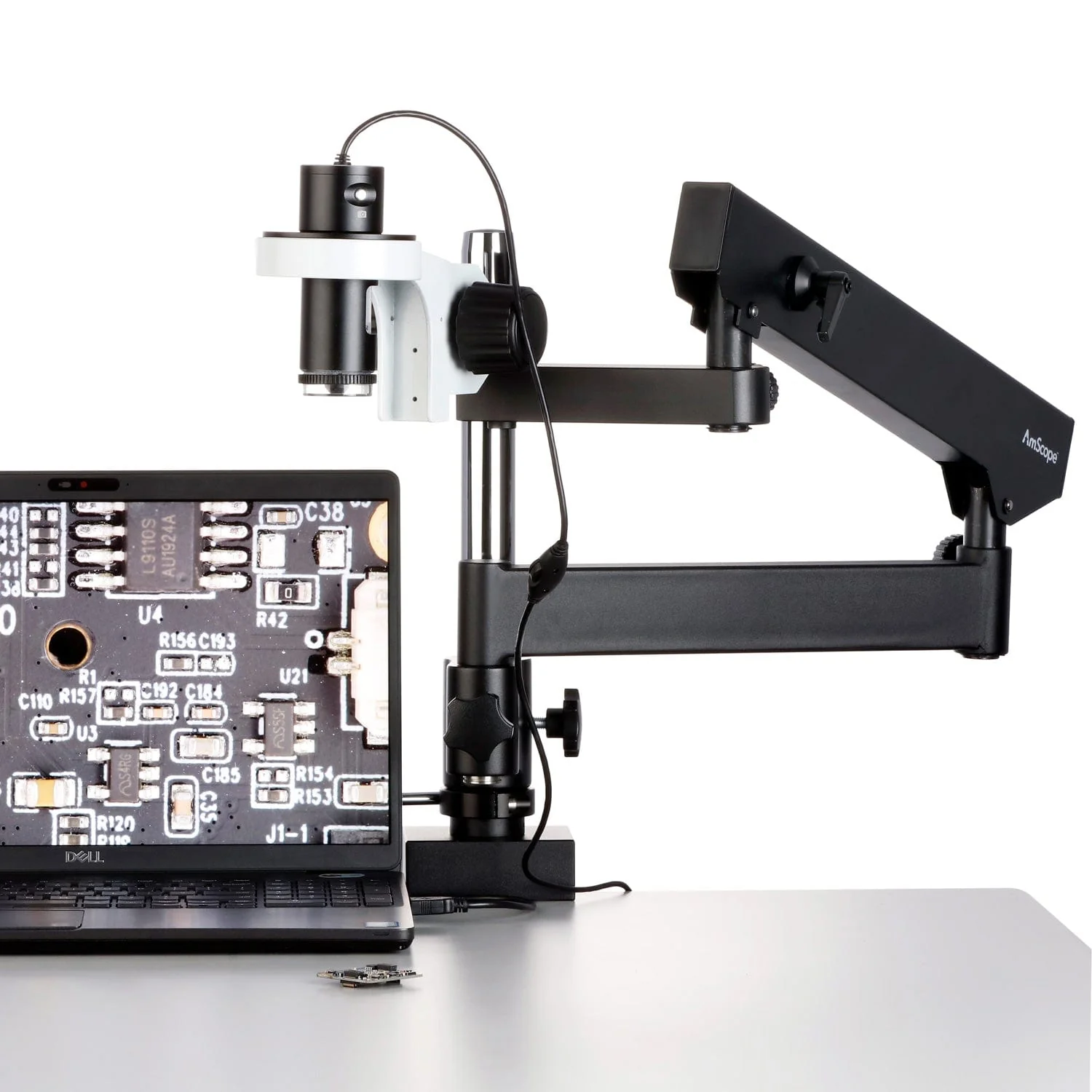

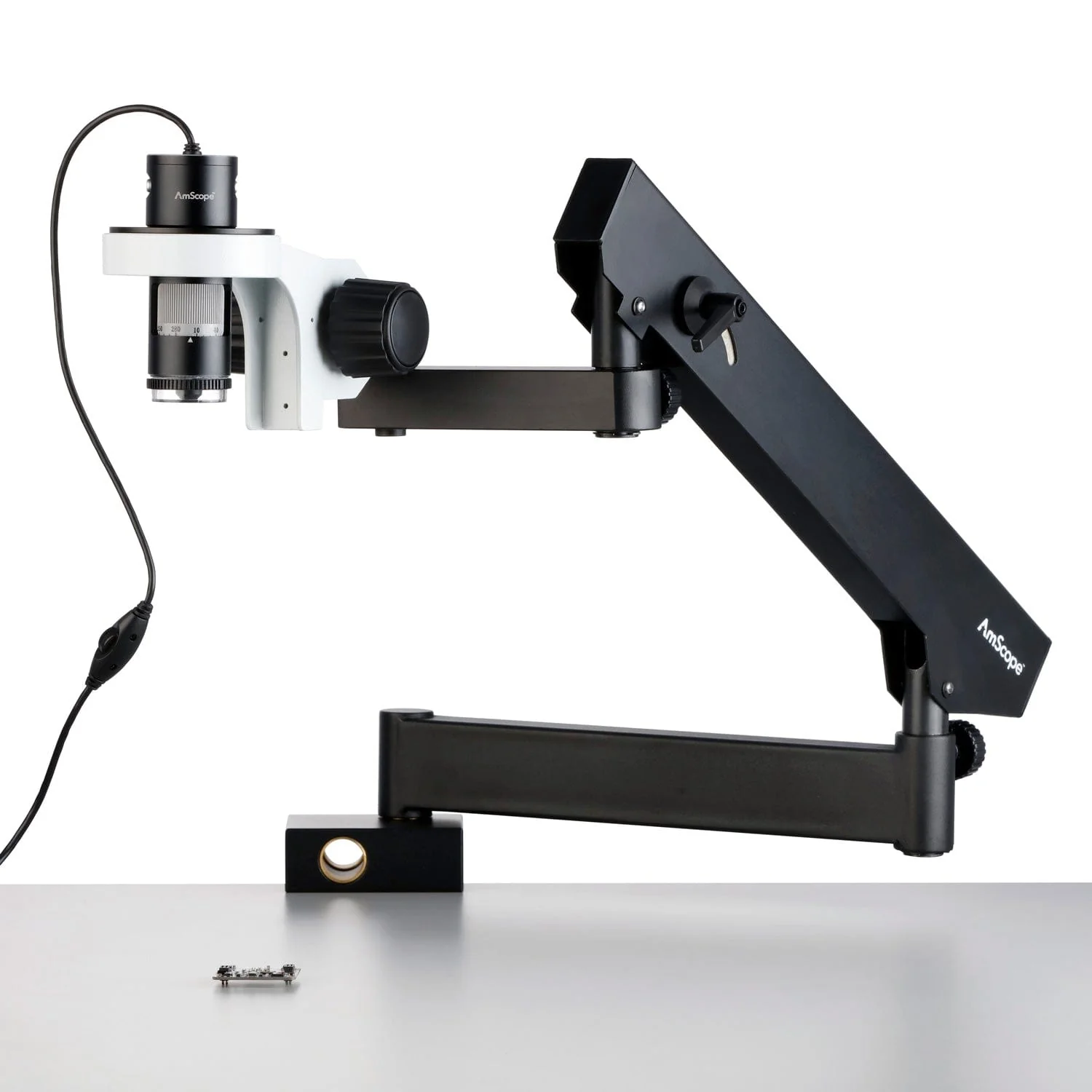

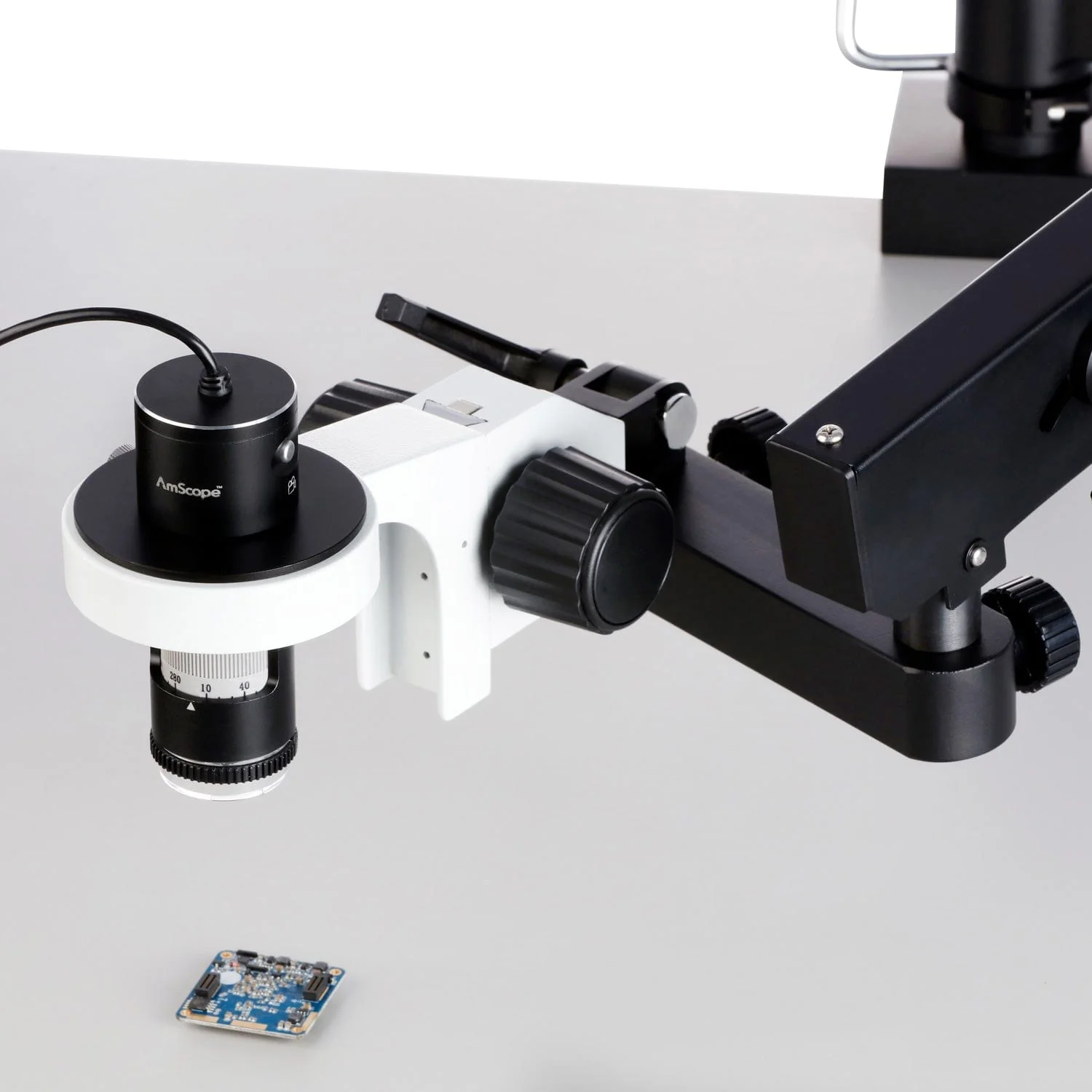

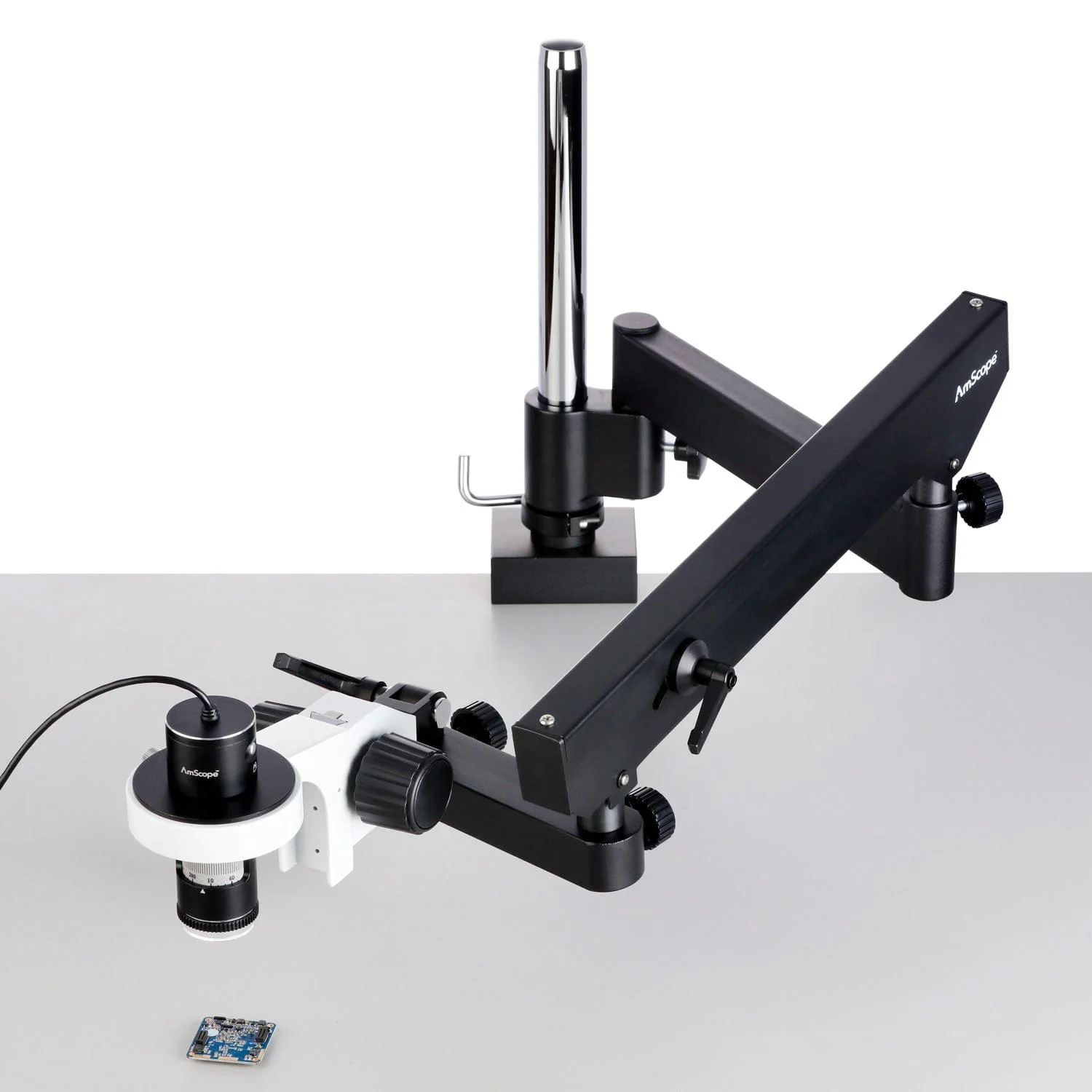

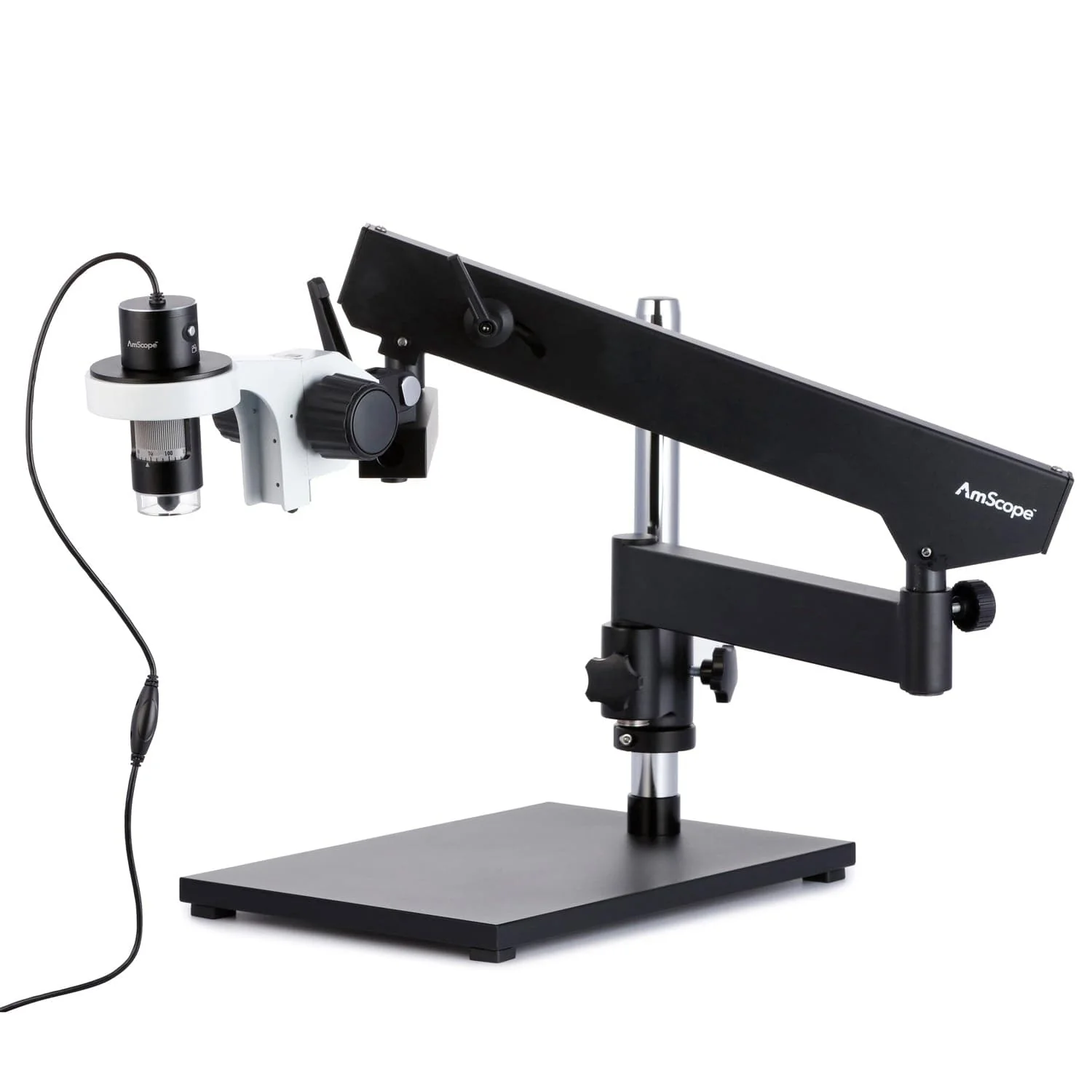

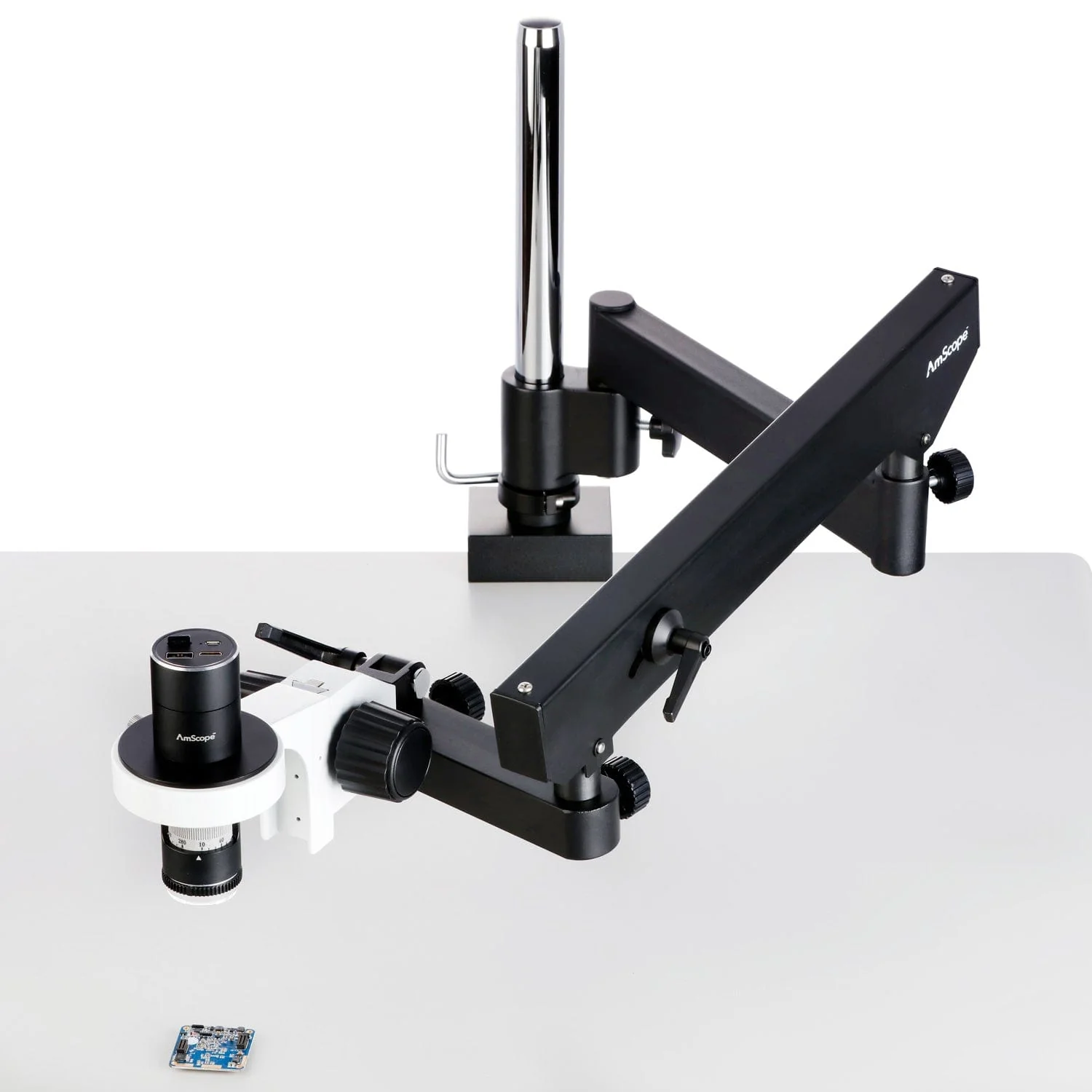

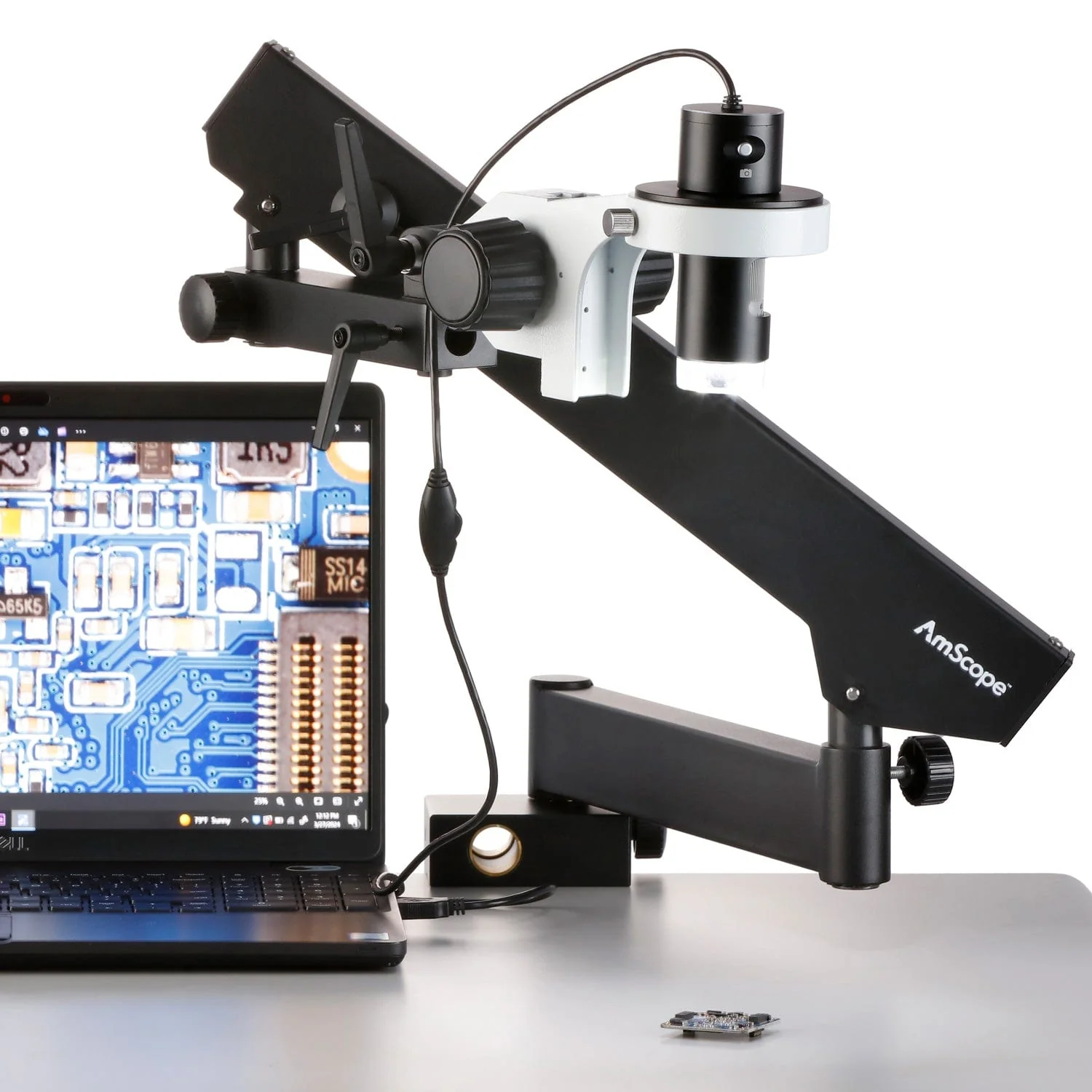

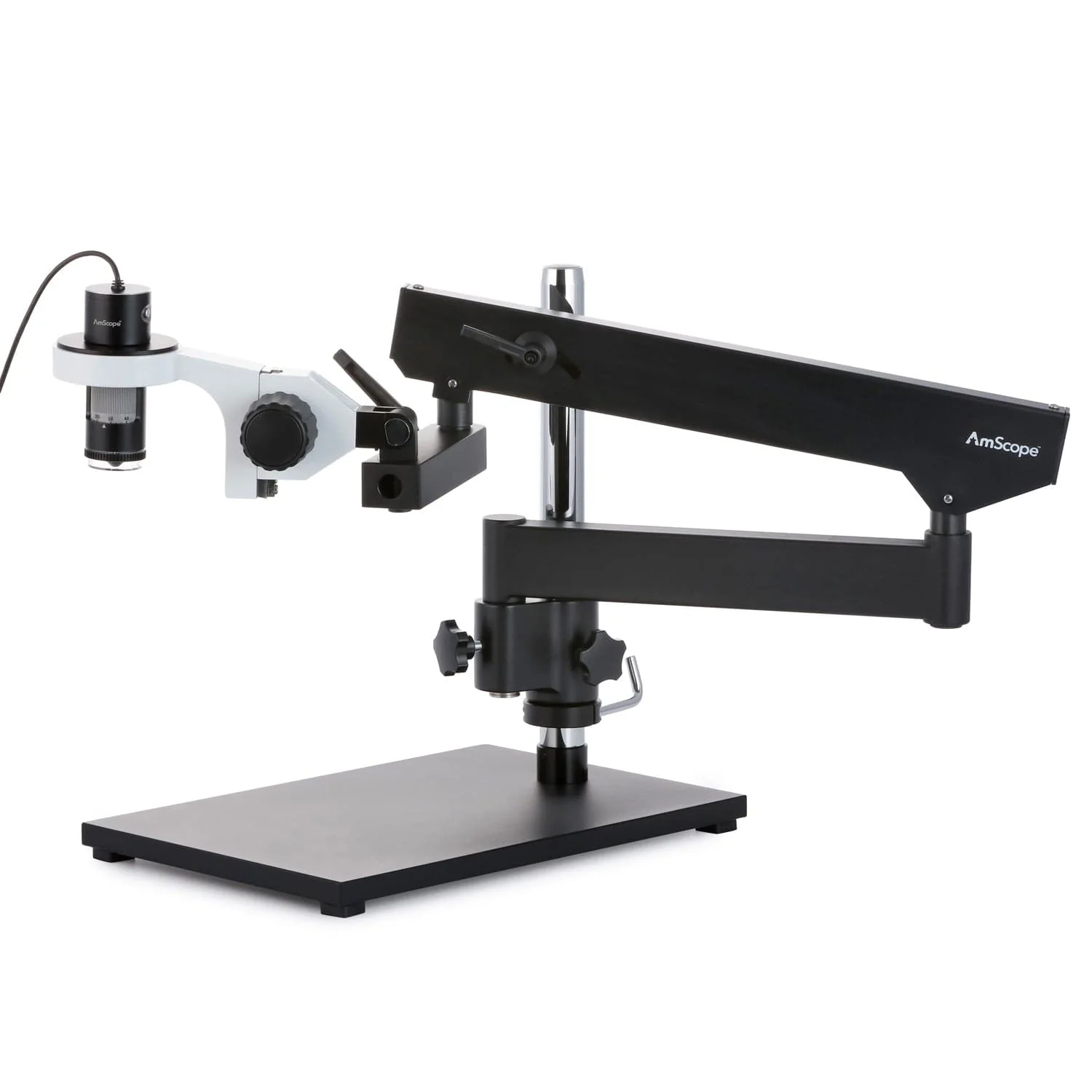

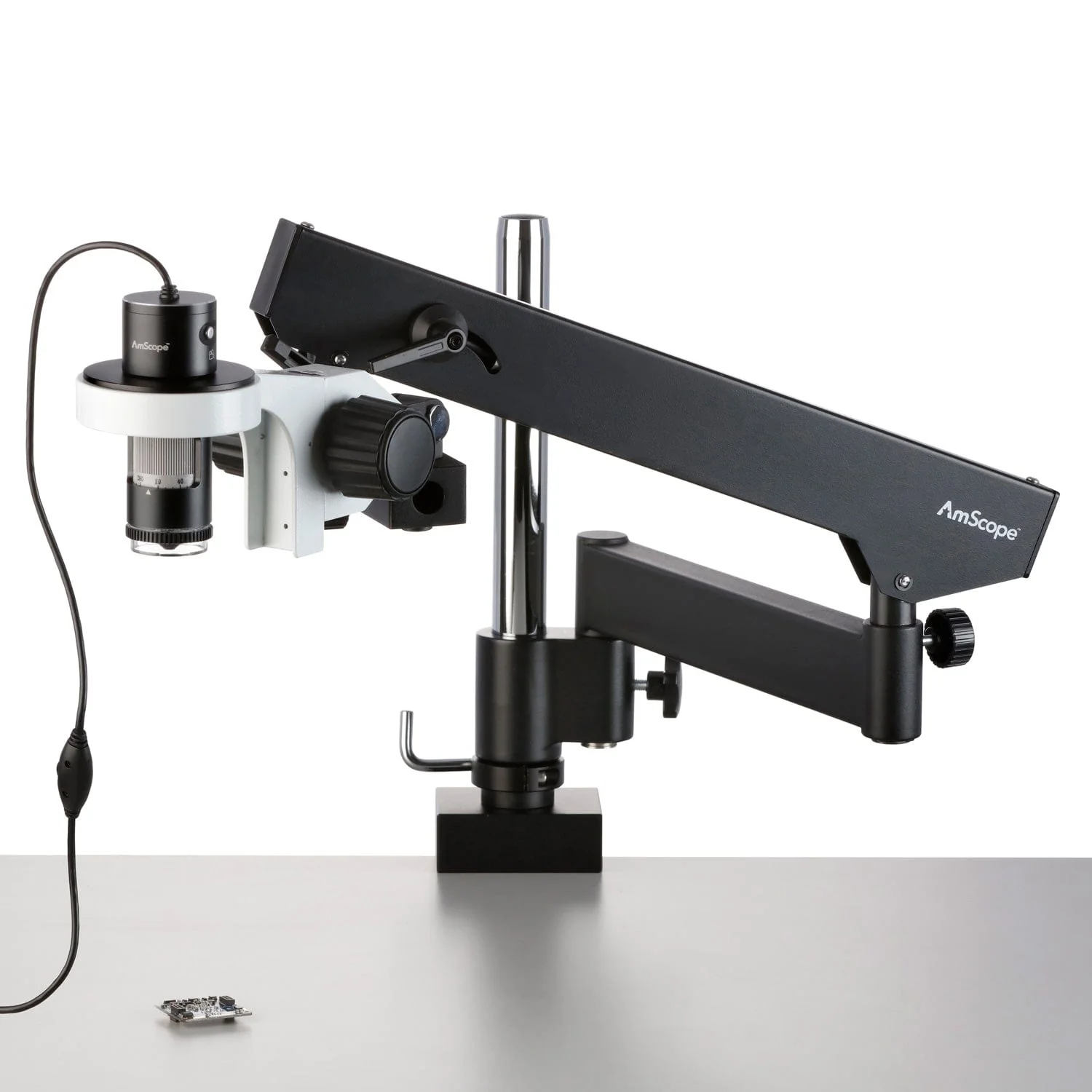

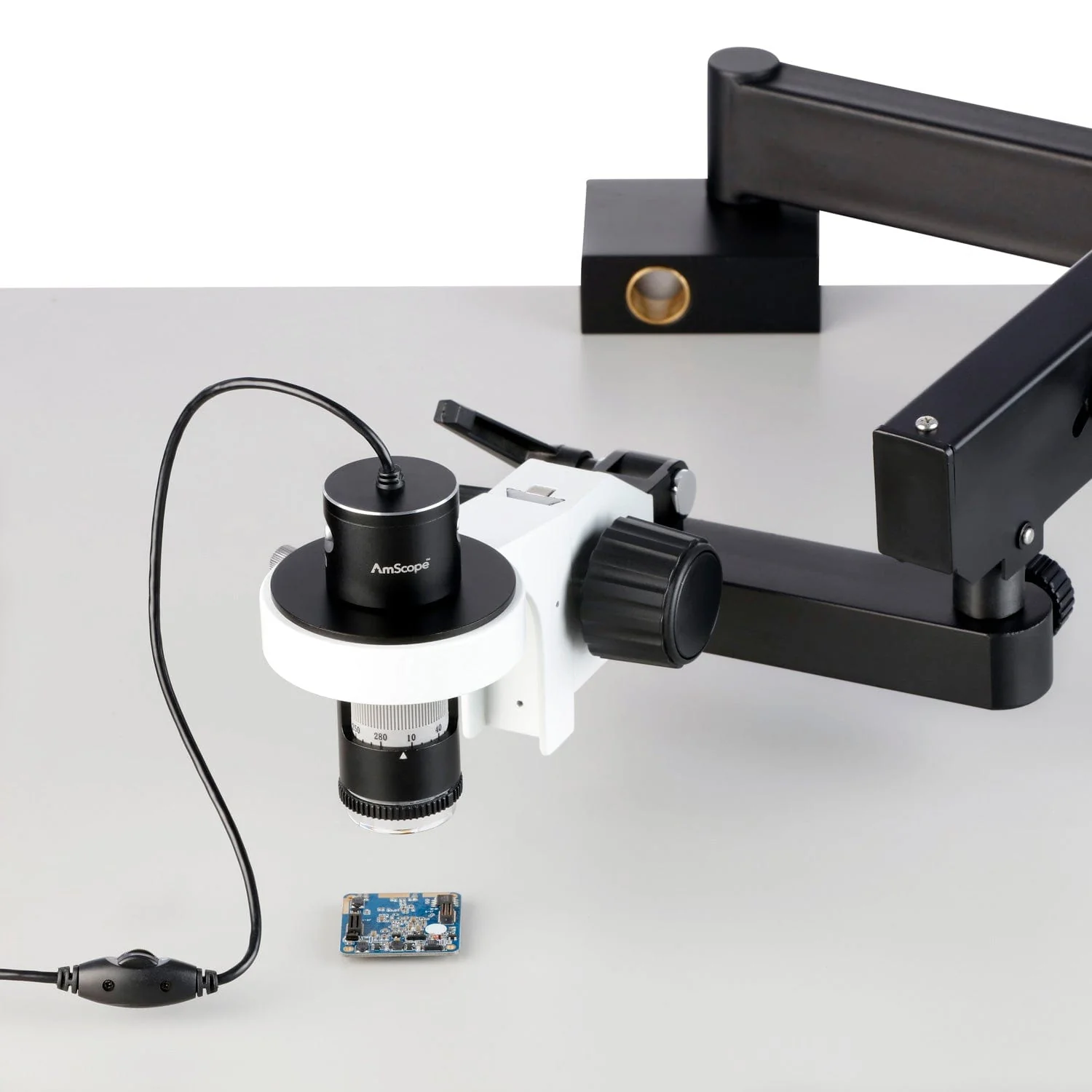

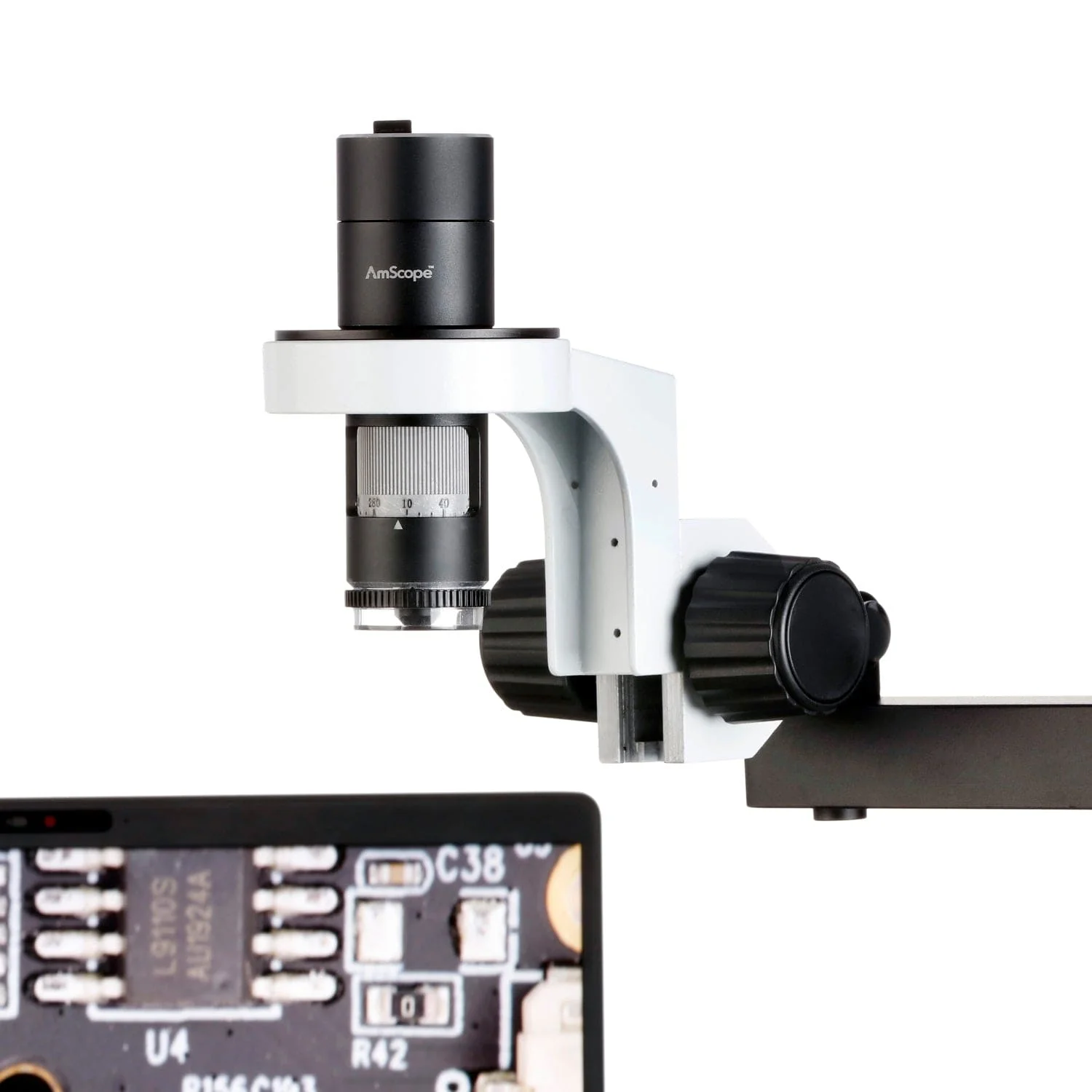

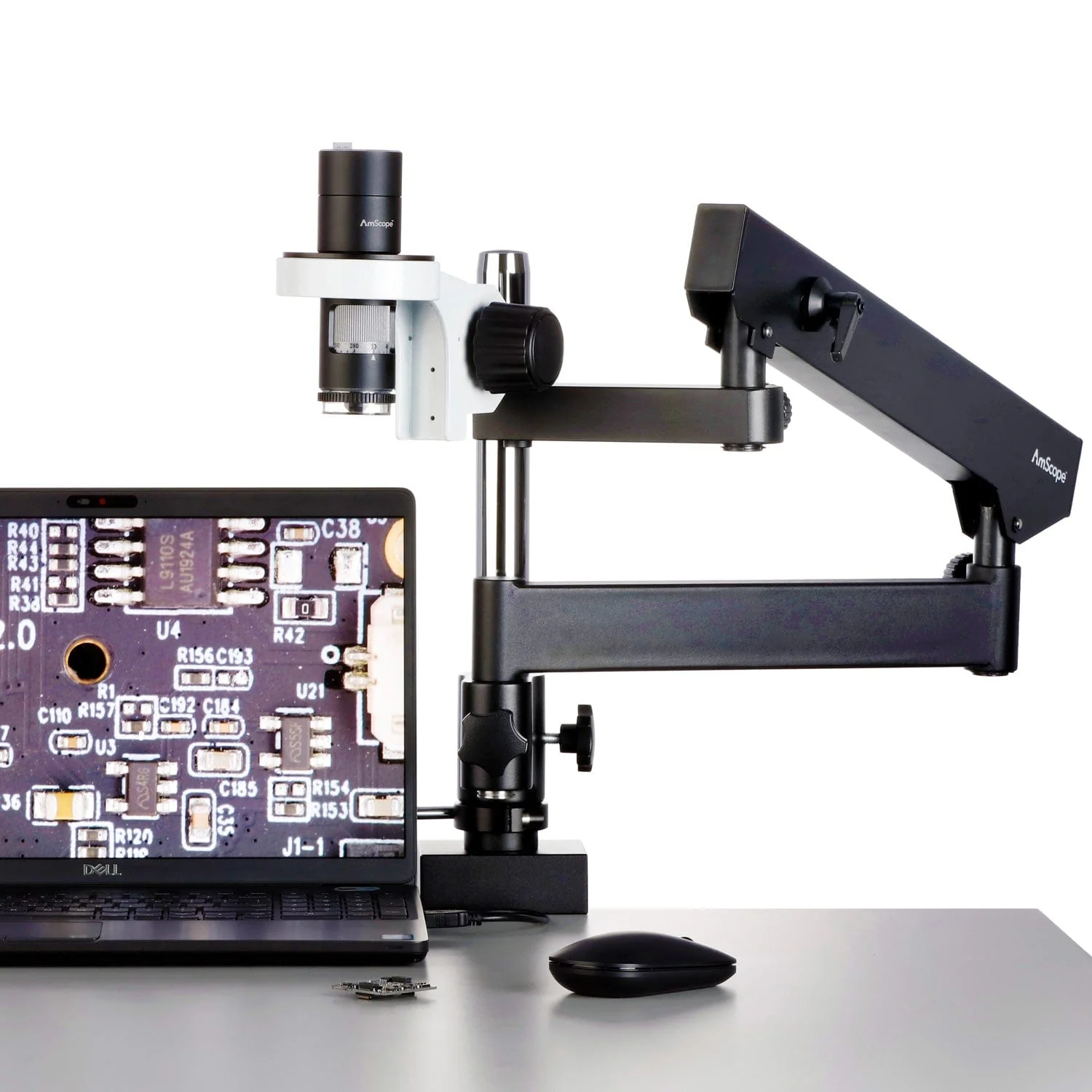

AmScope HHD Series All-In-One Professional Polarizing Handheld Digital HDMI / USB Microscopes 10X-280X Magnification + LED Ring Illuminator + Articulating Arm Stand
AmScope HHD Series All-In-One Professional Polarizing Handheld Digital HDMI / USB Microscopes 10X-280X Magnification + LED Ring Illuminator + Articulating Arm Stand
Original: $591.99
-65%$591.99
$207.20The Story
The HHD Professional Series Portable Microscopes are easy to use, high power scopes. With continuous magnifications from 10x to 280x, it's ideal for quality control inspectors, medical professionals, and scientific researchers in addition to hobbyists and beginners for viewing stamps, coins, bugs, plants, rocks, skin, gems, circuit boards, and more. With the higher power magnifications, you can even view traditional microscope slides under transmitted illumination.
HDMI Model

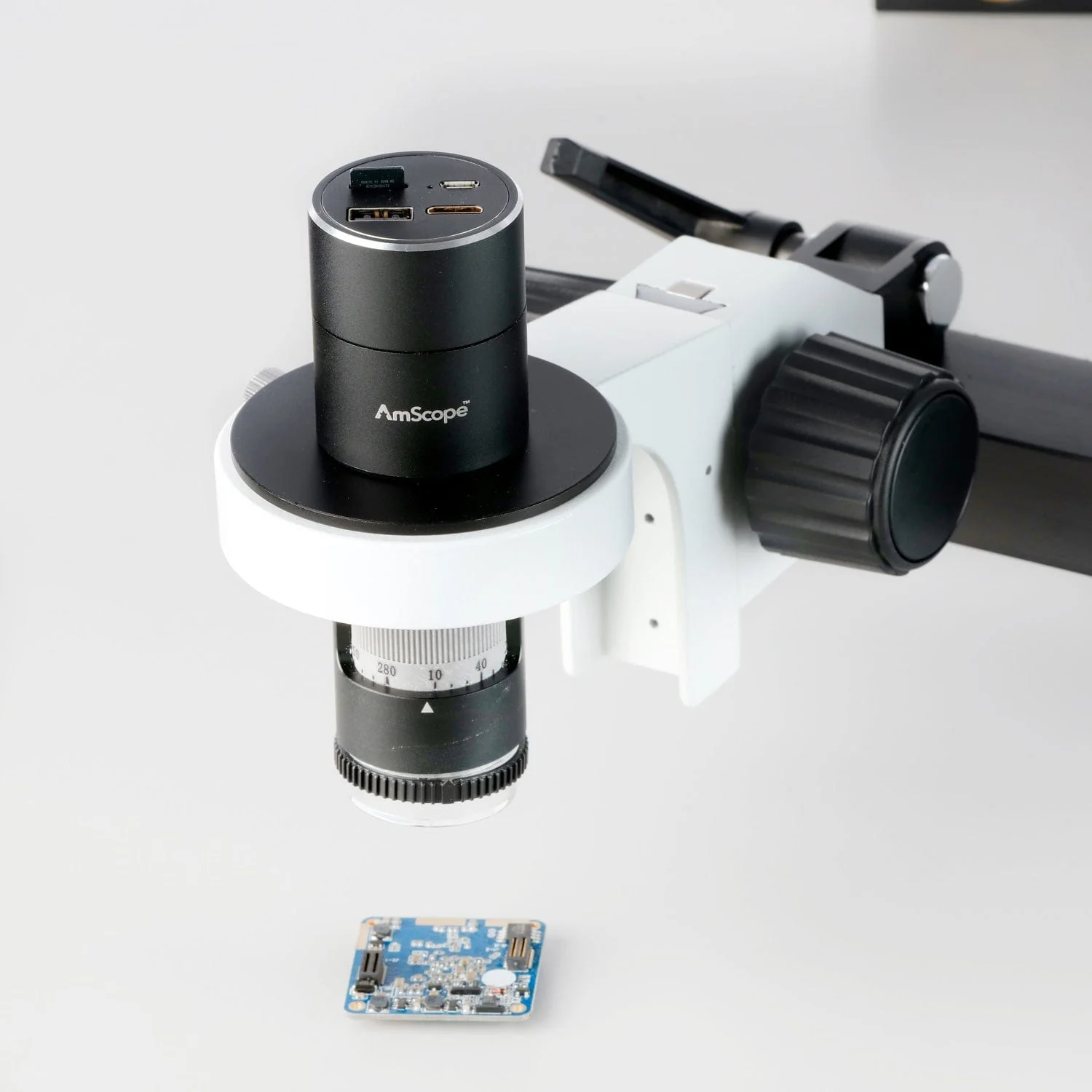

The HHD2100HD-P portable HDMI interface digital microscopic all-in-one machine consists of 5G high-definition optical lenses, a 1080P HDMI camera, and an 8 LED polarization ring light source module. This model is designed for stand-alone use – so no need for a computer. Connect it directly to an HDMI monitor or television for live viewing and recording. You’ll be impressed by the responsiveness of the real-time video, and the smooth 60fps output.
As a stand-alone system, the microscope uses internal software to provide on-screen controls for capturing photos and videos, with a built-in Secure Digital reader/writer to store the files. Use the included mouse to navigate the microscope’s settings and its large assortment of editing and measuring tools. The 8 LED illuminator ensures your specimens are clear and bright and can be adjusted via the software. An included metal stand allows for steady shots and comes in handy when viewing at higher magnifications, minimizing shaking and keeping your specimen in sharp focus.
Polarizer
The integrated polarizing filter adds the unique ability to reduce glare for improved visibility of skin blemishes, metal fatigue, and much more. The filter can be adjusted for intensity, and will prove to be indispensable.
| Camera Specifications |
||||||
| Model Number |
Sensor |
Size (mm) |
Dark Signal Sensitivity |
FPS/Resolution |
Binning | Exposure |
|---|---|---|---|---|---|---|
| HHD2100 | 2.1M/IMX307(C) 1/2.8“(5.56x3.13) |
2.9x2.9 | 1300mv with 1/30s, 0.15mv with 1/30s |
60@1920*1080(HDMI) |
1 X 1 |
0.1-2000 ms |
| Technical Specifications |
| Hardware Specs | |
| Spectral Range | 380-650nm (with IR-cut Filter) |
| White Balance | Auto White Balance |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Image and Video |
| Cooling System* | Natural |
| Operating Environment | |
| Operating Temperature (in Celsius) | -10 ~ 50 |
| Storage Temperature (in Celsius) | -20 ~ 60 |
| Operating Humidity | 30-80%RH |
| Storage Humidity | 10-60%RH |
| Power Supply | USB 5V/2A |
| Optical Specs | |
| Optical Lens | 5G High Grade Optical Glass with Multi-layer Anti-reflection Coating |
| Optical Magnification | 0.1x~3.3x(33x) |
| Illumination | 8 LEDs |
| Magnification, Working Distance, Field of View |
|||
| Magnification | Working Distance |
Field of View (X) |
Field of View (Y) |
|---|---|---|---|
| 10 |
134.63mm |
48.09mm |
27.07mm |
| 50 |
33.51mm |
9.62mm |
5.41mm |
| 100 |
20.32mm | 4.81mm |
2.71mm |
| 150 | 15.97mm | 3.21mm | 1.80mm |
| 200 | 13.75mm | 2.40mm | 1.35mm |
| 250 | 12.42mm | 1.92mm | 1.08mm |
| 280 | 11.85mm | 1.72mm | 0.97mm |
| Software |
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | ||||||||||||||||||
| Features |
|
Packing List:
- Handheld Digital Microscope
- Removable Grip
- Mini HDMI to HDMI
- Power Adapter & USB Cable
- USB Wireless Mouse
- MicroSD Card (64gb)
- Metal Stand
