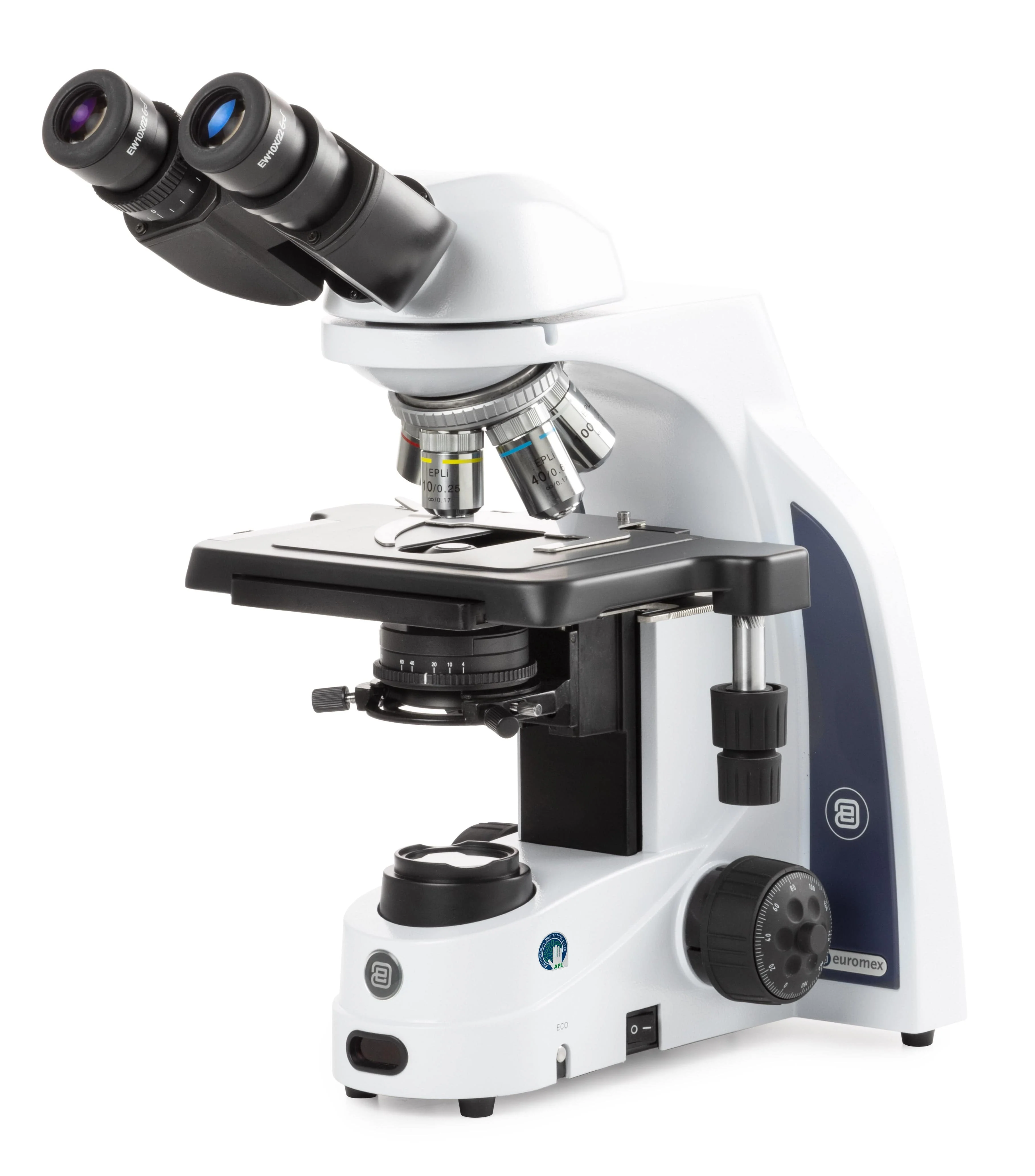

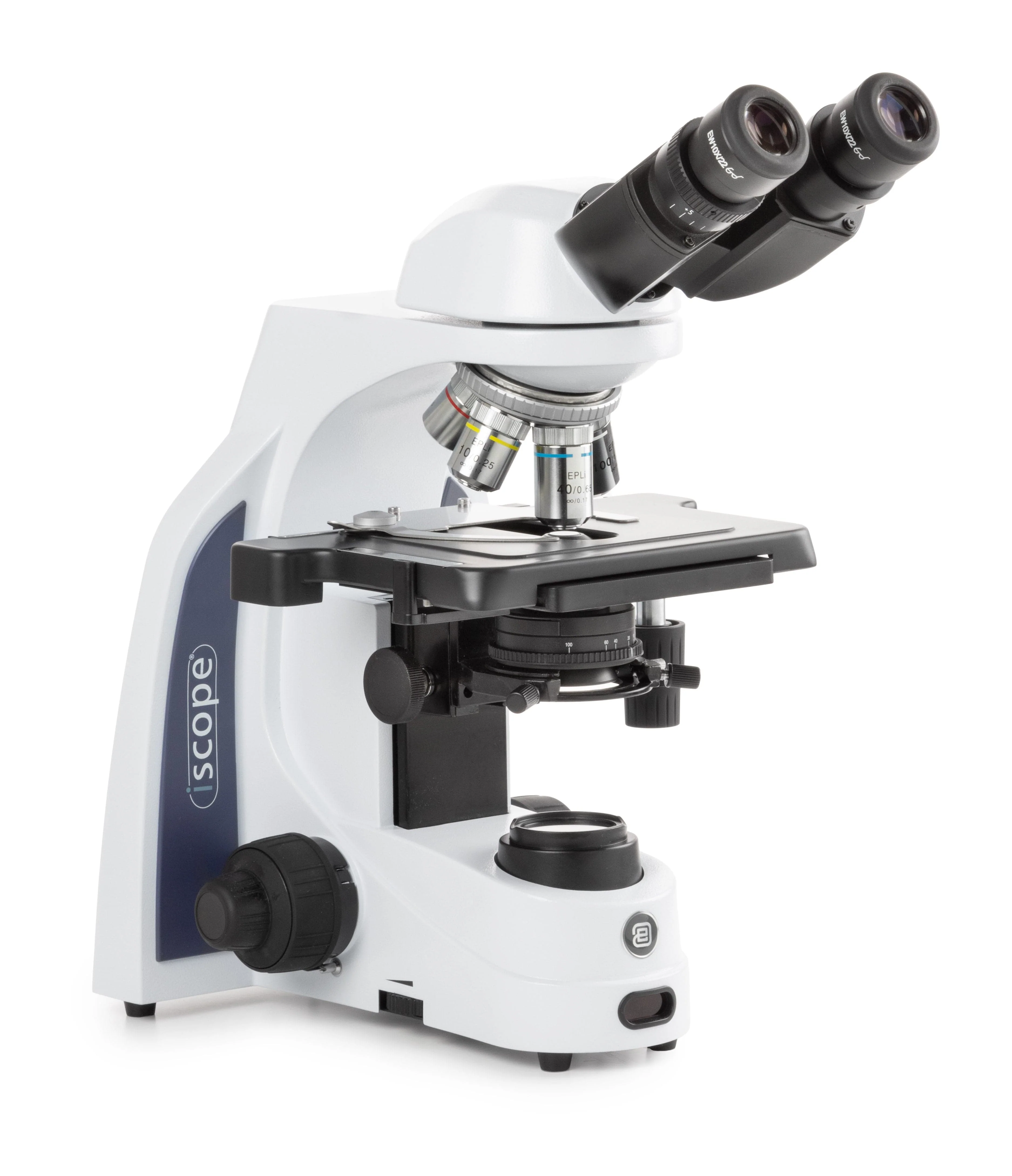

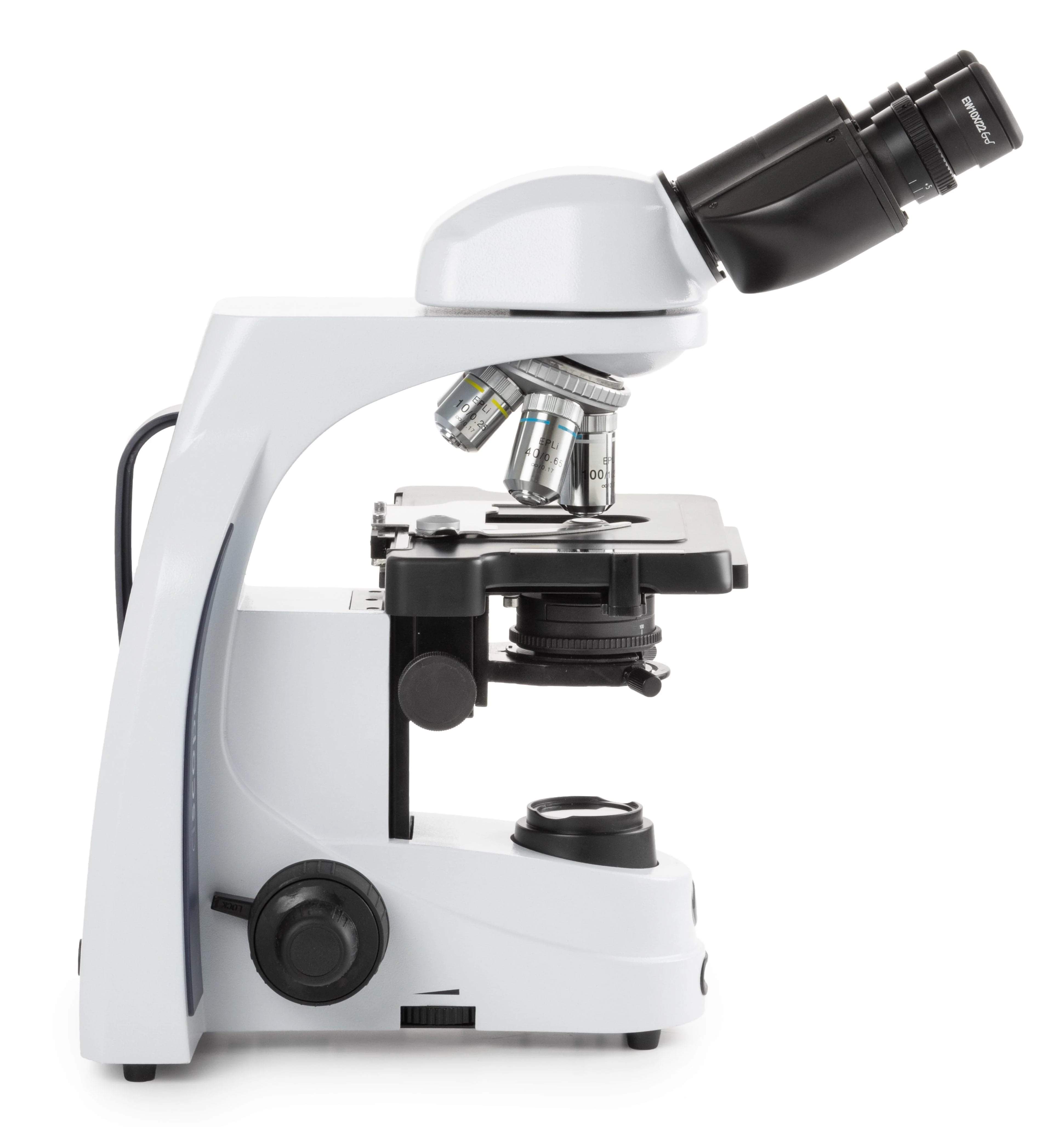

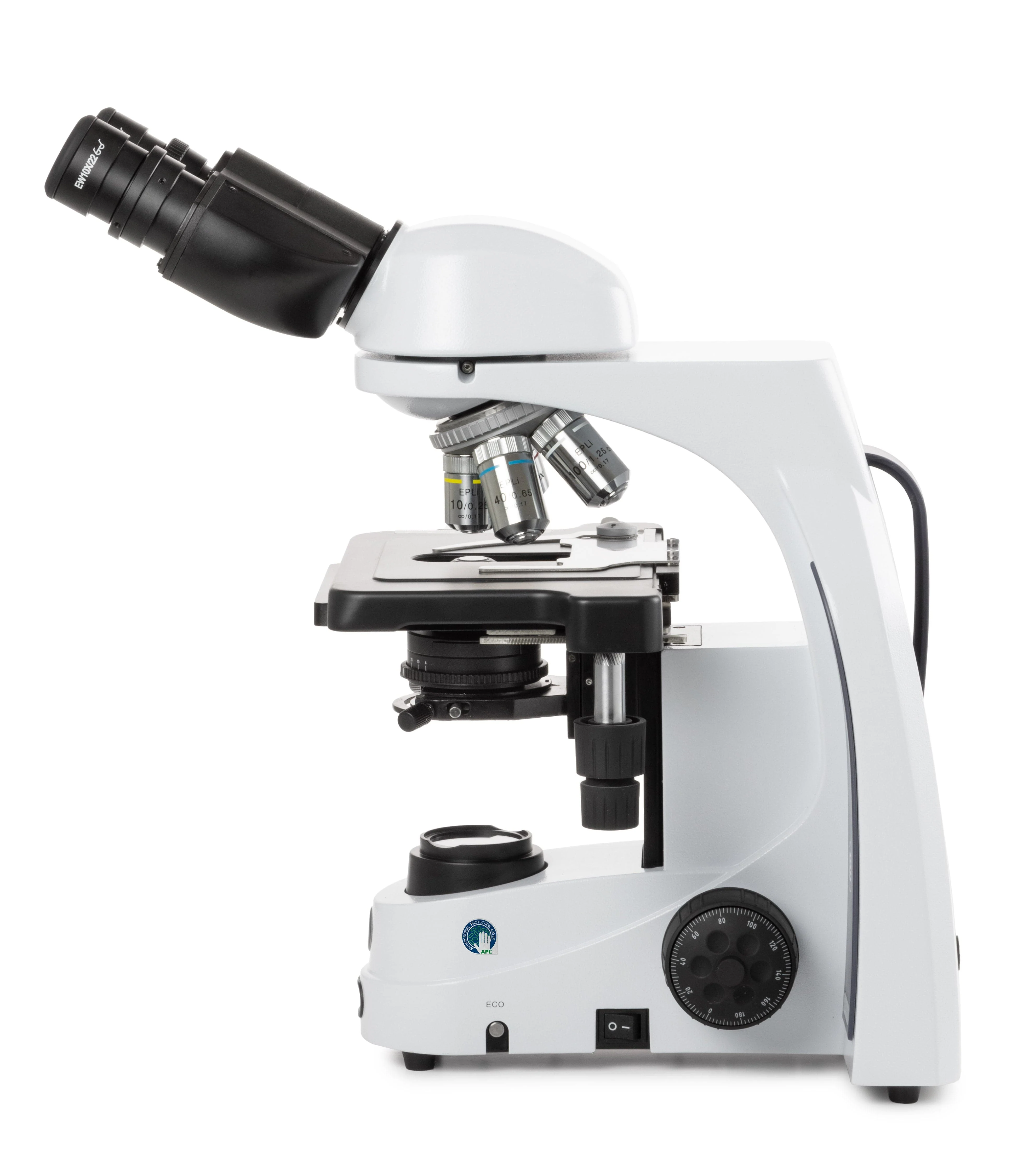

Euromex iScope Series Binocular Compound Microscope w/ EWF 10x/22 mm Eyepieces, E-plan EPLi 4/10/S40/S100x Oil IOS Objectives, Rackless Stage and 3W NeoLED™ Illumination

iScope - A masterpiece in microscopy

The iScope IS1152-EPLI is highly suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications. Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epi- illumination sources for fluorescence applications can be used.

Features:

• EWF 10x/22mm eyepieces
• Binocular model
• Quintuple reversed nosepiece
• 187/230 x 140 mm rackless with mechanical stage
• 3W NeoLED Kohler illumination
• iCare sensor for energy saving
• CSS - Cable Storage System
• APL, antimicrobial

EYEPIECES

Extended Wide Field EWF plan 10x/22 mm field of view and adjustable diopter on the left tube (Ø 30 mm tube).

HEAD

Binocular Siedentopf type head with 30° inclined tubes. Interpupillary distance from 48 to 76 mm

A unique rotating system allows the ergonomic positioning of both tubes in a high (431 mm) and in a low position (397 mm)

OBJECTIVES

• E-plan infinite IOS 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil
• The S40x and S100x objectives are spring loaded.
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.

NOSEPIECE

Revolving quintuple reversed nosepiece for max. five objectives.

STAGE

187/230 x 140 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm X-Y mechanical stage. The iScope rackless stage has no protruding parts, enables more smooth movements and is safer.

CONDENSER

Height adjustable Abbe N.A. 1.25 condenser for brightfield with slot for sliders.

FOCUSING

Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control.

ILLUMINATION

3 W adjustable NeoLED diascopic illumination with internal 100-240 V power supply.

The innovative NeoLED design offers larger apertures, allowing the optical system of the iScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED are the low energy consumption, no heating and a long operating lifetime.

ICARE SENSOR

The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position.

CSS - CABLE STORAGE SYSTEM

iScope allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope.

APL (ANTIMICROBIAL PROTECTION LAYER)

APL is a revolutionary paint treatment applied to the most critical parts of our products. A microscope with APL will restrict the growth of micro-organisms, including bacteria and mold.

PACKAGE CONTENT

Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil. All packed in polystyrene boxes
