Euromex iScope Series Trinocular Compound Microscope with E-plan Objectives

iScope - A masterpiece in microscopy

The iScope IS1153-EPL is highly suitable for Life and Biomedical Sciences, high schools, universities but also for routine medical applications. Besides the brightfield contrast method, configurations for phase contrast, cardioid mirror darkfield, basic polarization and several epi- illumination sources for fluorescence applications can be used.

Features:

EWF 10x/20mm eyepieces

Trinocular model

Quintuple reversed nosepiece

156 x 138mm mechanical stage

3 W NeoLED Kohler illumination

iCare sensor for energy saving

CSS - Cable Storage System

Specifications:

EYEPIECES

Extended Wide Field EWF plan 10x eyepieces with 20mm field of view and adjustable diopter on the left eyepiece

HEAD

Trinocular Siedentopf type heads with 30 ° inclined tubes. Interpupillary distance from 48 to 76mm

A unique rotating system allows the ergonomic positioning of both tubes in a high (431mm) and in a low position (397mm)

NOSEPIECE

Revolving quintuple reversed nosepiece for max. five objectives

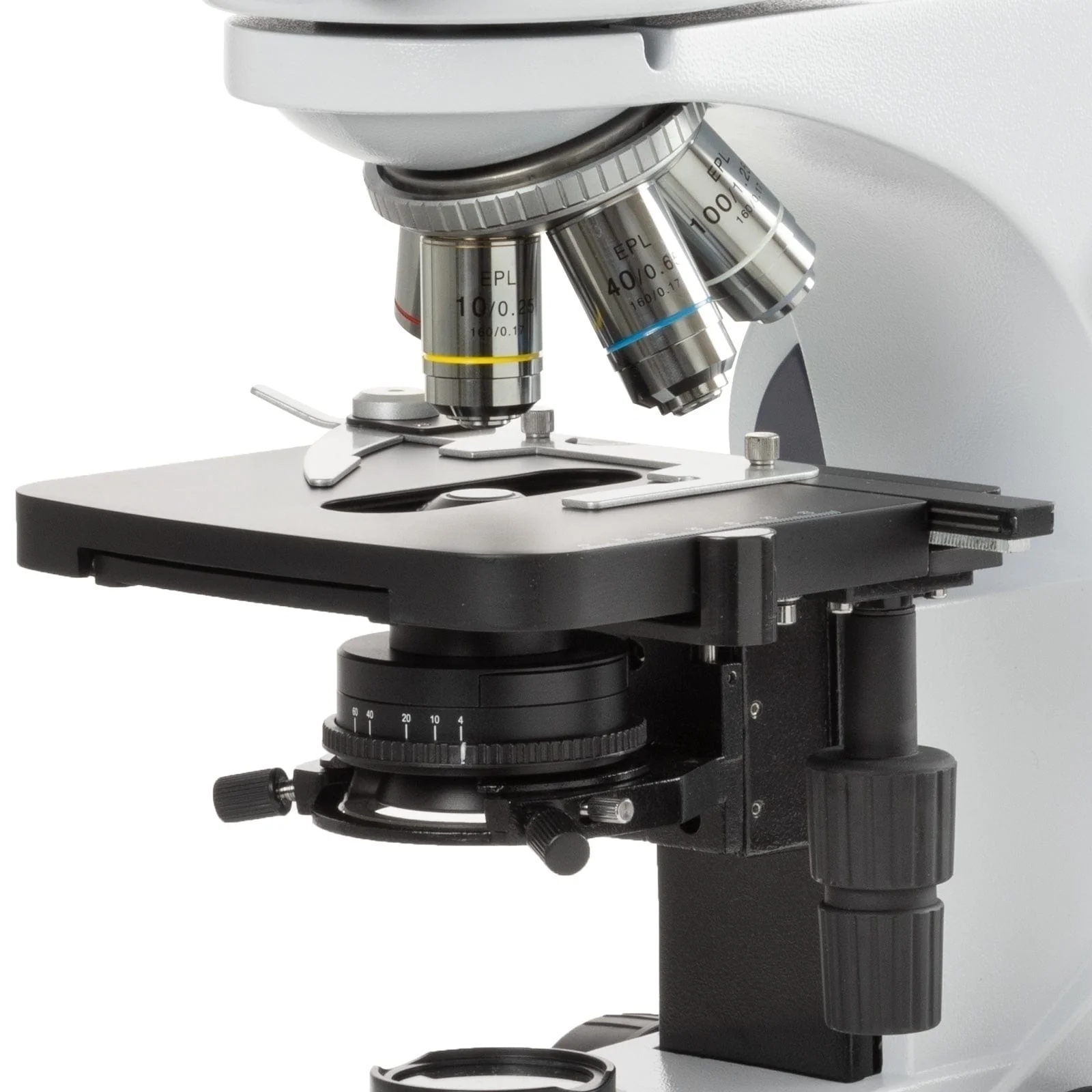

STAGE

156 x 138mm stage equipped with integrated 79 x 52mm X-Y mechanical stage

CONDENSER FOR BRIGHTFIELD

The standard height adjustable Abbe N.A. 1.25 condenser for brightfield accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/S100x oil immersion IOS objectives for economical phase contrast. With magnification indication.

FOCUSING

Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control.

ILLUMINATION

The innovative NeoLED design offer larger apertures, allowing the optical system of the iScope microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime.

ICARE SENSOR

The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position.

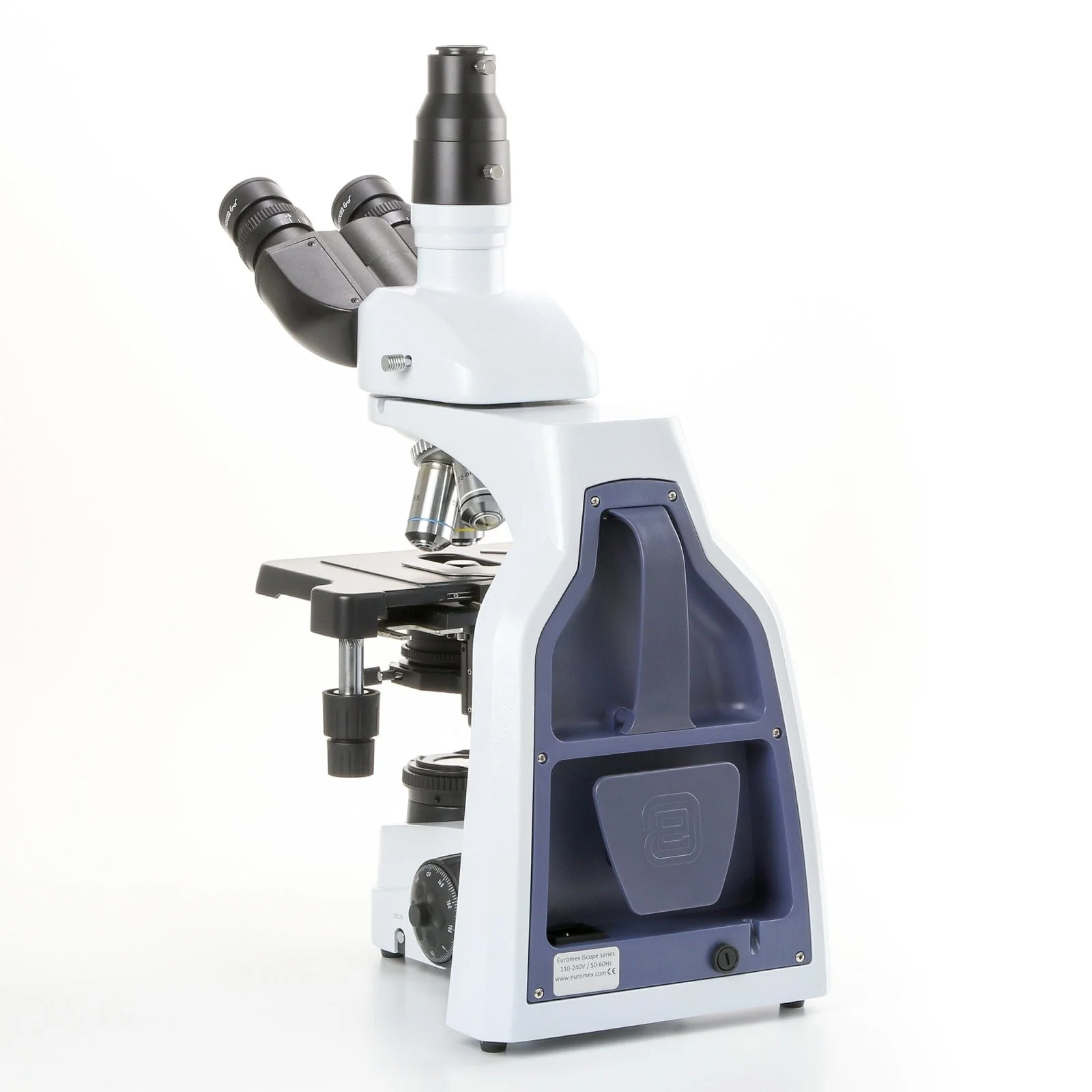

CSS - CABLE STORAGE SYSTEM

iScope allows users to easily insert the power cable into the back of the instrument, which enables easy storage. The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope.

PACKAGE CONTENT

Supplied with power cord, dust cover, a spare fuse and user manual. All packed in polystyrene boxes.
