Original: $399.00
-65%$399.00
$139.65The Story
EYEPIECE(S)
• Wide field WF 10x/18 mm eyepiece(s).
• Secured and with a pointer for monocular versions.
HEAD
• Monocular models with 45° inclined tubes.
• All heads are 360° rotatable and secured.

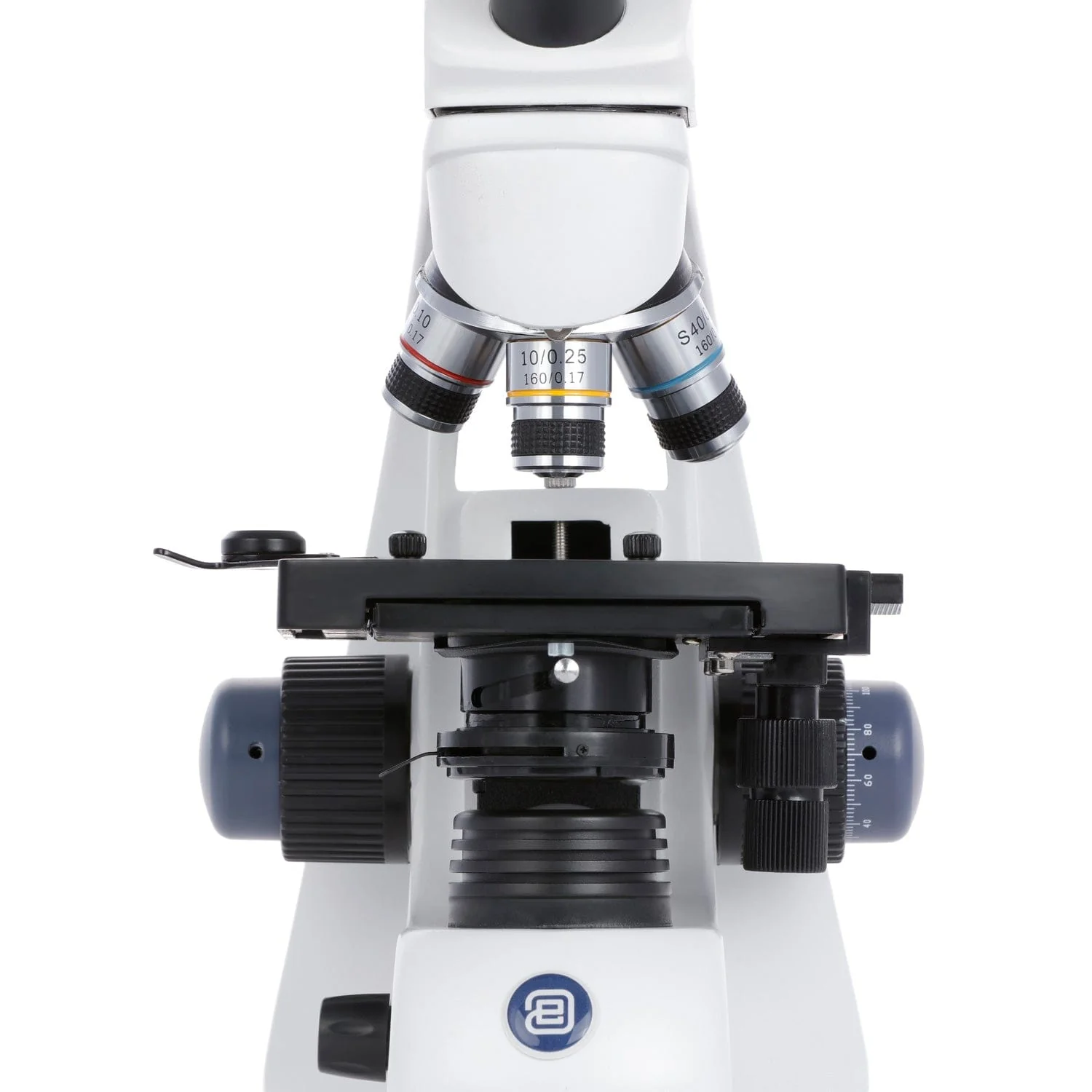

NOSEPIECE
Revolving nosepiece for four reversed objectives on ball bearings.

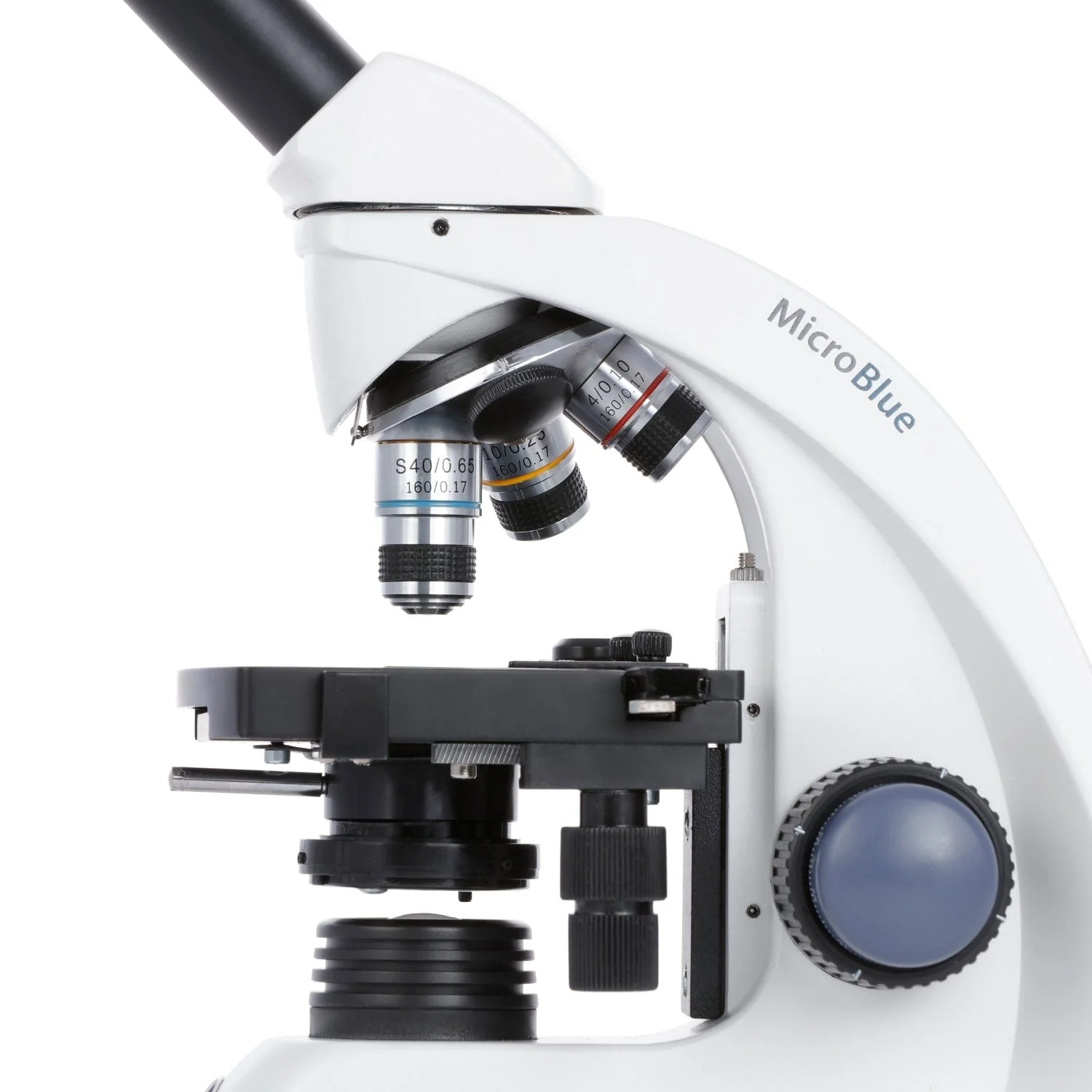

OBJECTIVES 35 MM PARFOCAL
• Achromatic 4x/0.10, 10x/0.25 and S40x/0.65.
• The S40x oil immersion objectives are spring-loaded.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 15 µm per graduation, 3 mm per rotation, total travel approximately 15 mm.
• Supplied with an adjustable rack stop to prevent damage to the sample and objectives.
STAGE
All models have a 115 x 100 mm stage and an integrated 55 x 20 mm X-Y mechanical stage.
CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder.
ILLUMINATION
• All monocular versions are supplied with an adjustable 1W LED illumination.
• All models are supplied with rechargeable batteries and with an external 100-240 V battery charger/mains adapter.
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
STORAGE AND TRANSPORTATION
from left to right: EMB-9900 - EAE-9918 - EAE-9912

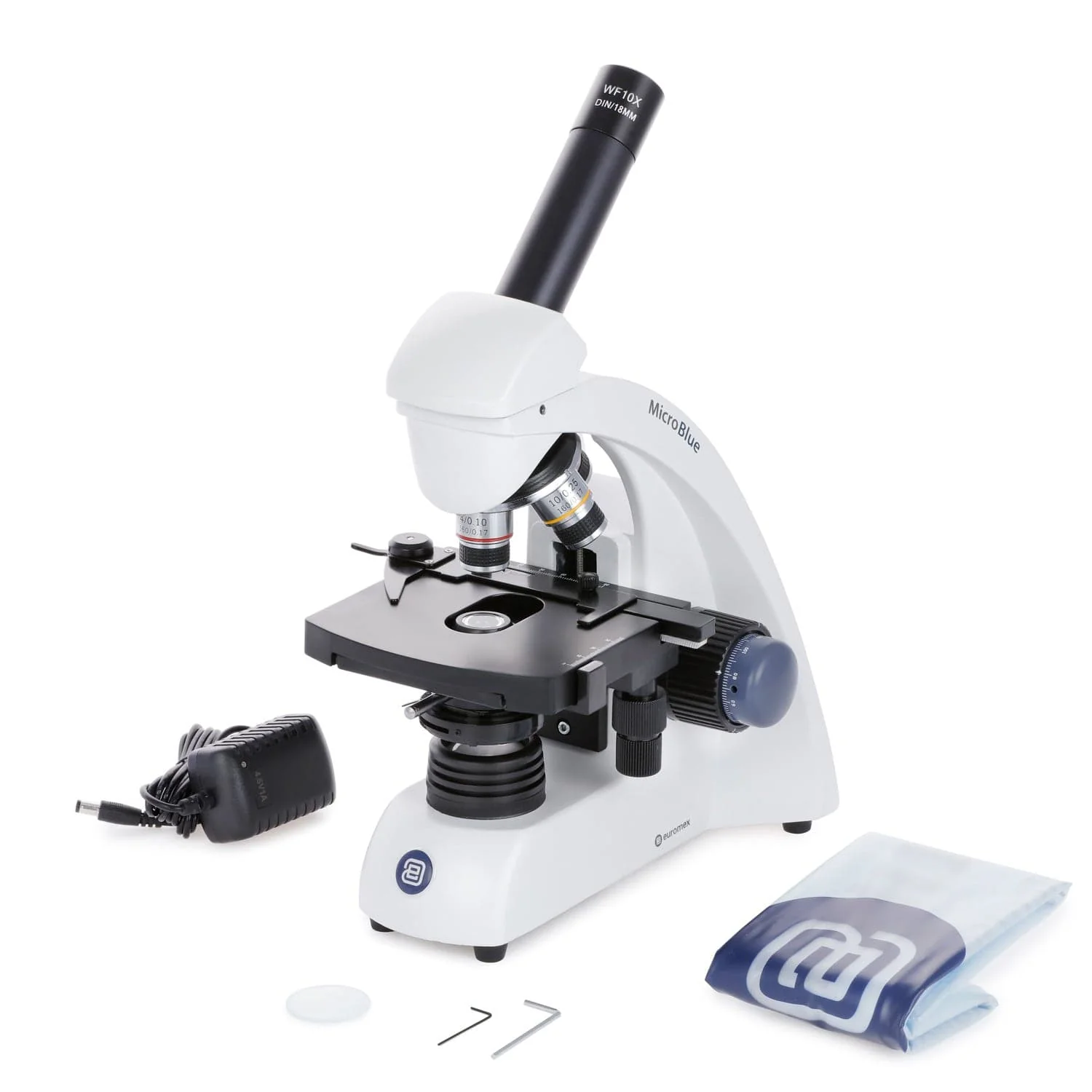

PACKAGE CONTENT
• Supplied with mains adapter-charger, three rechargeable AA batteries, white filter, dust cover, and user manual. objective. Software included for digital models.
• All packed in a polystyrene box.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
EYEPIECE(S)
• Wide field WF 10x/18 mm eyepiece(s).
• Secured and with a pointer for monocular versions.
HEAD
• Monocular models with 45° inclined tubes.
• All heads are 360° rotatable and secured.
NOSEPIECE
Revolving nosepiece for four reversed objectives on ball bearings.
OBJECTIVES 35 MM PARFOCAL
• Achromatic 4x/0.10, 10x/0.25 and S40x/0.65.
• The S40x oil immersion objectives are spring-loaded.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 15 µm per graduation, 3 mm per rotation, total travel approximately 15 mm.
• Supplied with an adjustable rack stop to prevent damage to the sample and objectives.
STAGE
All models have a 115 x 100 mm stage and an integrated 55 x 20 mm X-Y mechanical stage.
CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder.
ILLUMINATION
• All monocular versions are supplied with an adjustable 1W LED illumination.
• All models are supplied with rechargeable batteries and with an external 100-240 V battery charger/mains adapter.
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
STORAGE AND TRANSPORTATION
from left to right: EMB-9900 - EAE-9918 - EAE-9912
PACKAGE CONTENT
• Supplied with mains adapter-charger, three rechargeable AA batteries, white filter, dust cover, and user manual. objective. Software included for digital models.
• All packed in a polystyrene box.
