The Story

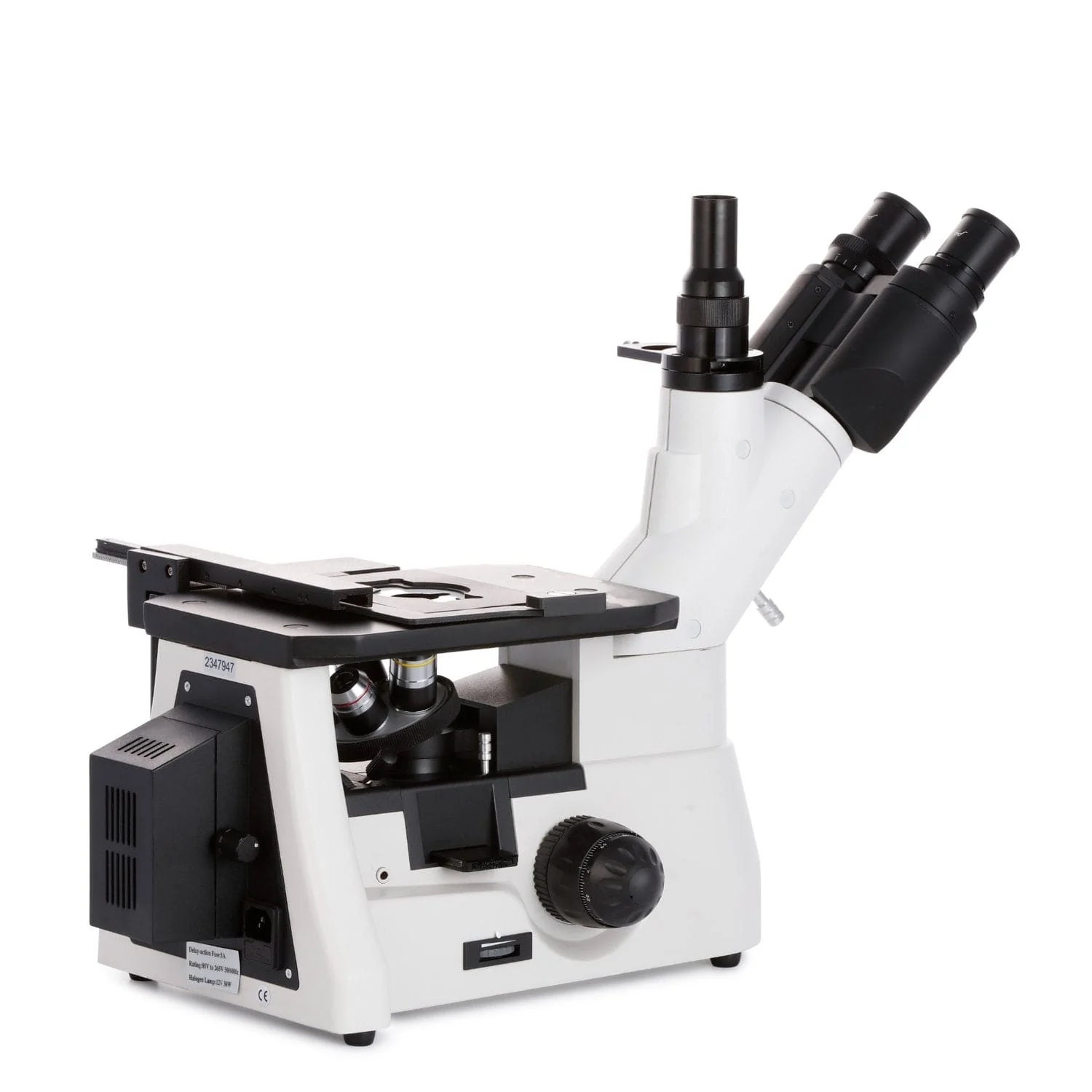

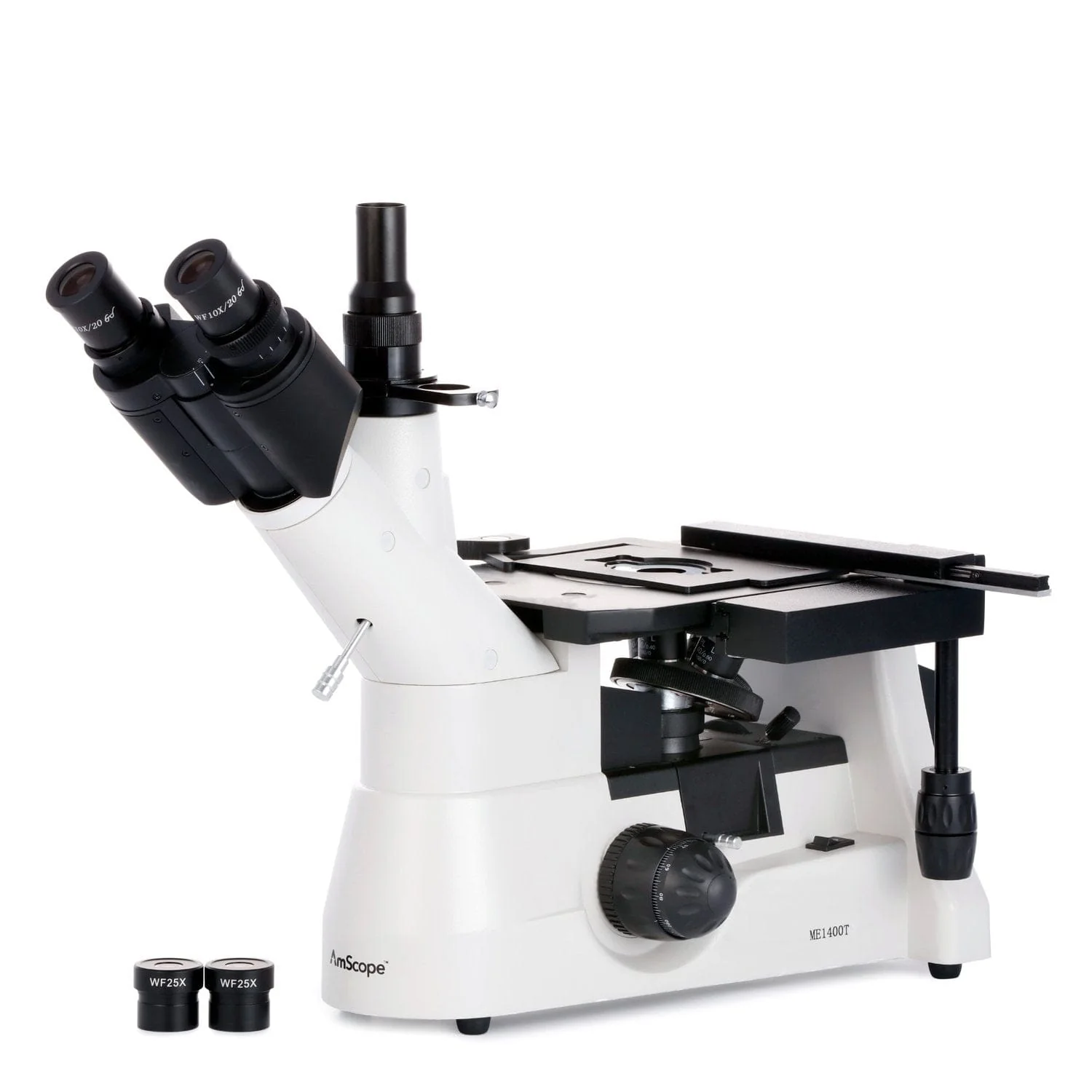

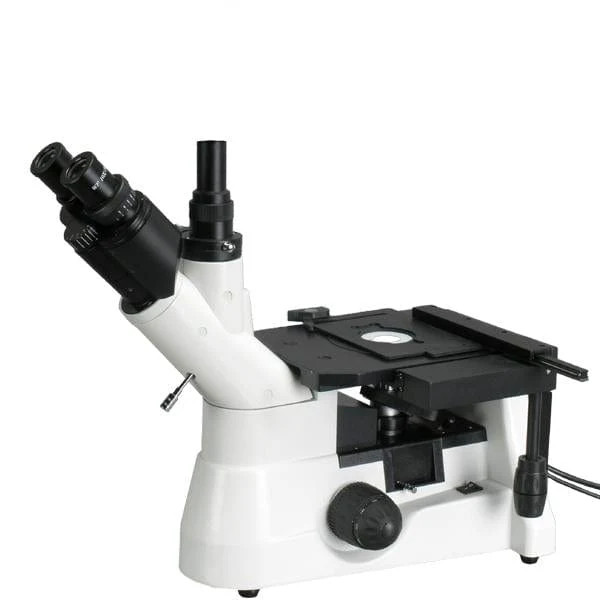

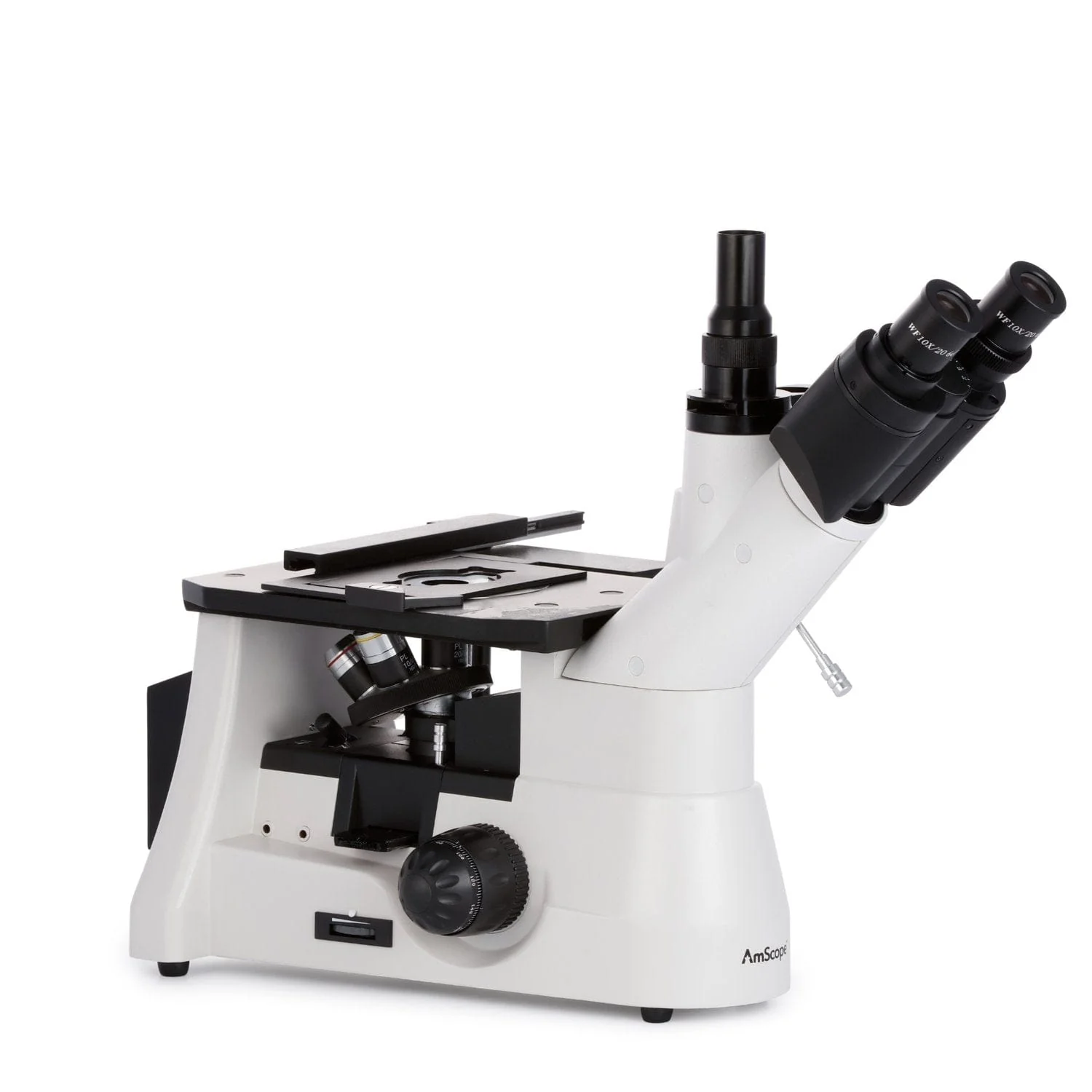

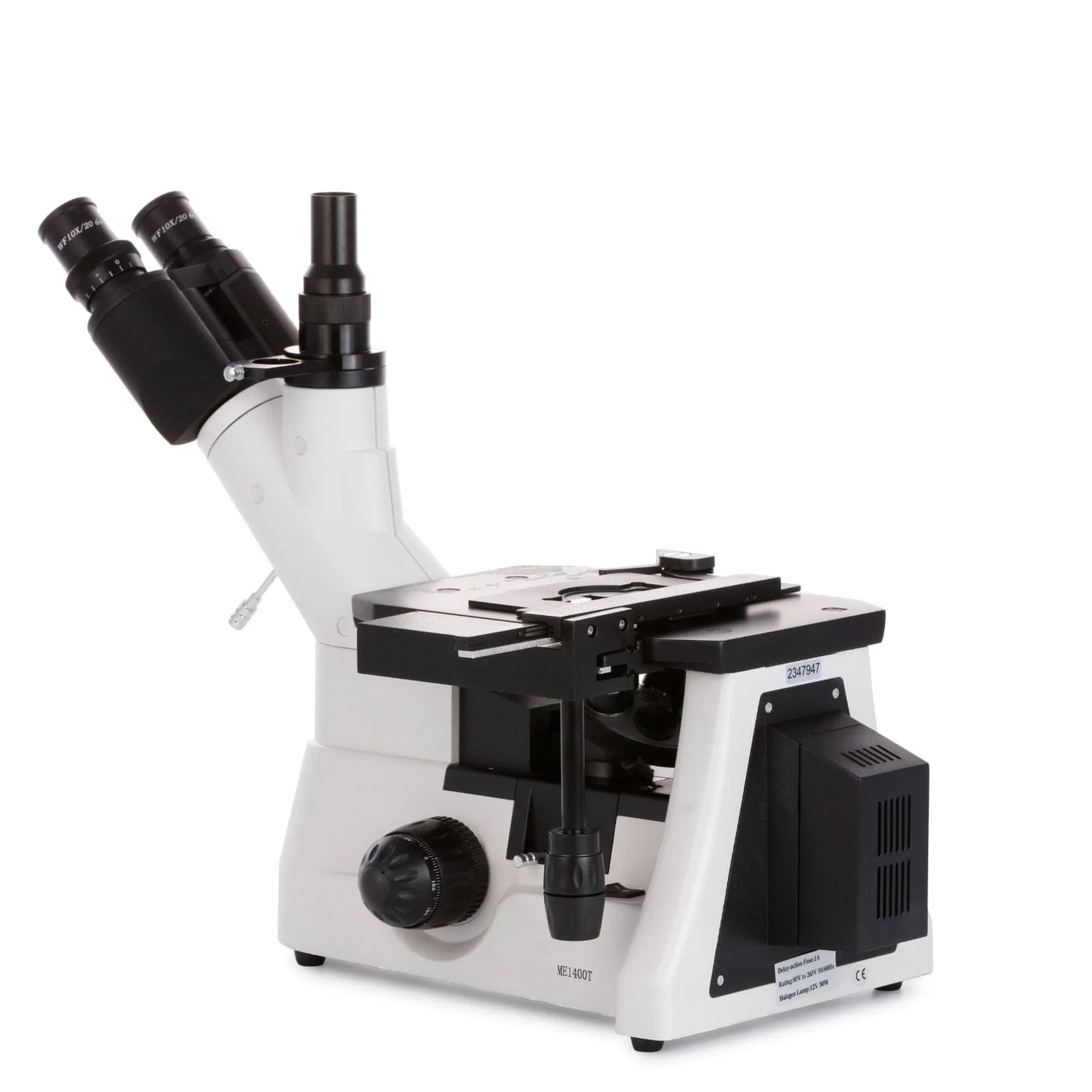

This is a brand new professional trinocular inverted polarizing metallurgical microscope with Epi-Kohler illumination. It offers a range of magnifications designed to observe, identify and analyze the structures of metals and alloys. It comes with super widefield optics, polarizer & Analyzer, quintuple nosepiece, 30W wide band voltage (85V-230V) EPI-Kohler illumination, and double-layer mechanical stage with coaxial coarse & fine focusing. This microscope is ideal for studying metallography, heat treatment and metal physics. It is widely used in the inspection of crystal structures, integrated circuits, semiconductor chips, micro-electronics, and etc.

Using four plan-achromatic objective lenses from 4X to 40X, a broad range of magnifications can be covered. These highly corrected lenses produce sharp, flat images from 40X to 400X when used with the included 10X eyepieces.

Features :

A professional super widefield polarizing metallurgical inverted microscope!

30W wide band (85V-230V) EPI-Kohler illumination with variable brightness

Polarizer & Analyzer included

Super widefield eyepiece with reticle

Fully coated optical system with high resolution

Sharp clear metallurgical microscopy images

Upright photo port for photographic/video capability

Diopter adjustment on ocular

Extra large 3-D double layer mechanical stage with stain resistant finish

Low position coaxial stage movement control knobs

Coaxial coarse & fine focusing with CA knob tension control

Top light house with filters

Dual side mounted focusing controls

Full optical glass elements

Precise ground glass lenses

All metal mechanical components

Adjustable interpupillary distance

Rugged cast alloy frame and stand with stain resistant enamel finish

Specification :

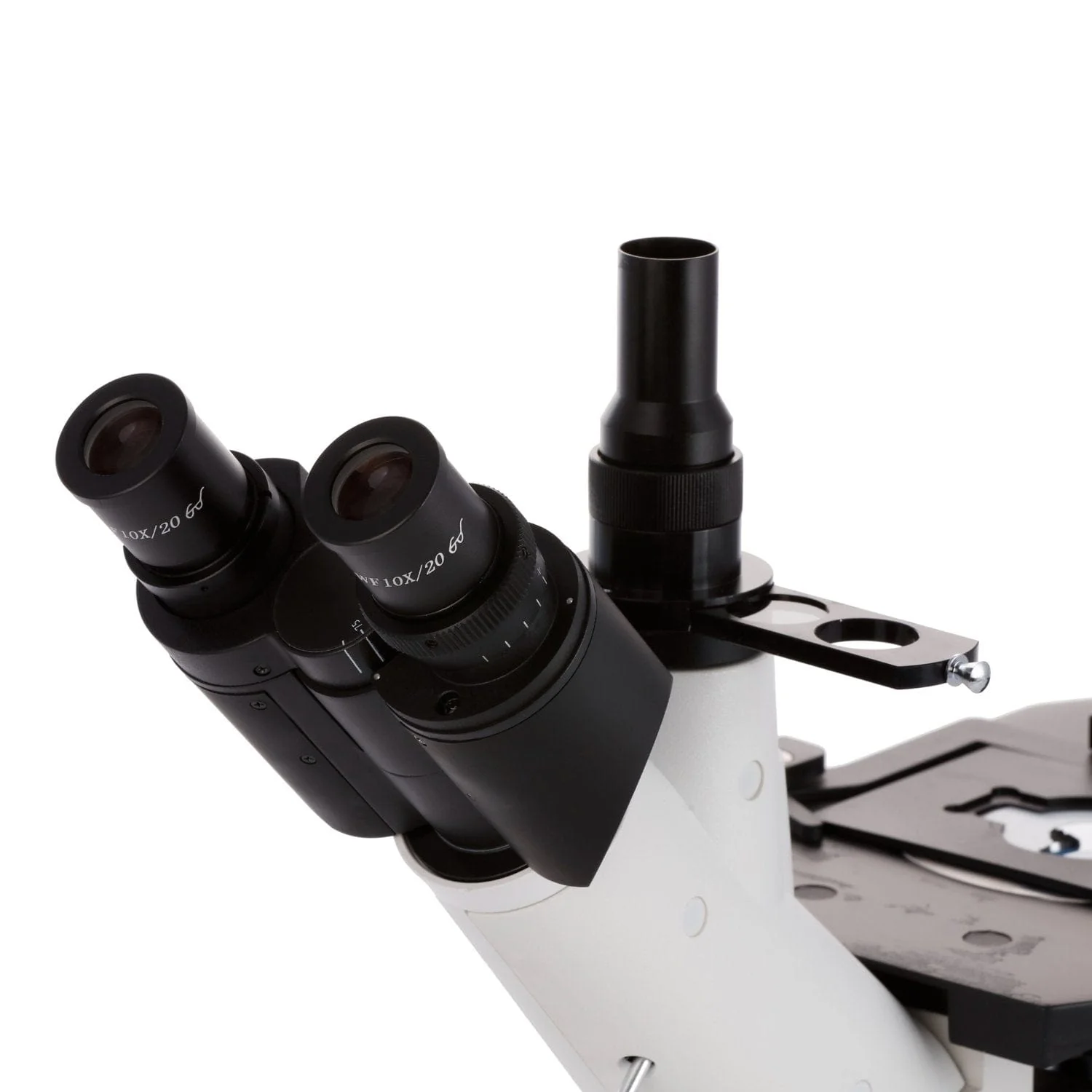

Head: Compensation Free Trinocular Head, Inclined 45°

Eyepiece: 10X

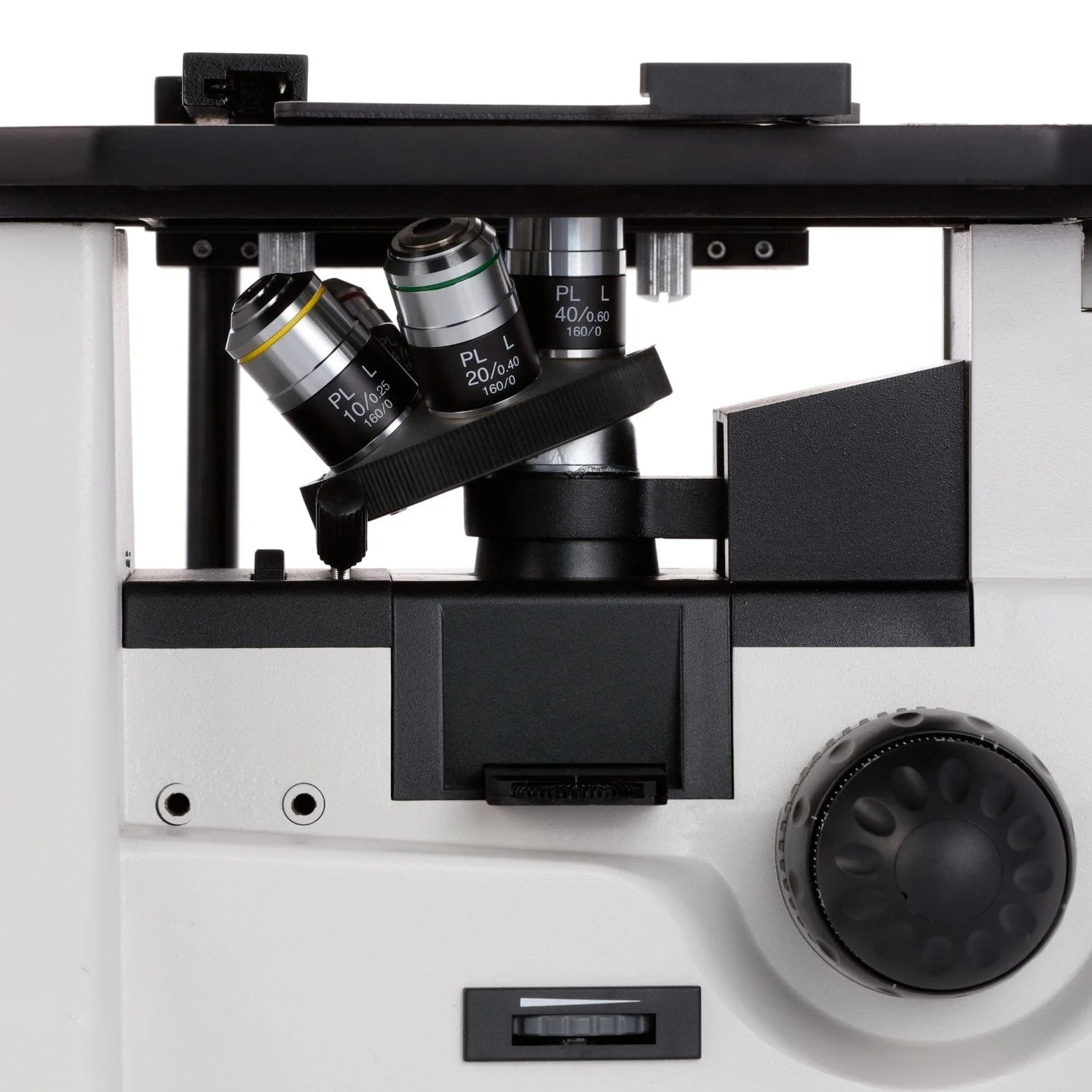

Objective: 195 metallurgical objectives, 4X/0.1 (W.D .25mm), 10x/0.25 (W.D .11mm), 20X/0.4 (W.D .9mm) and 40X/0.6 (W.D. 3.8mm)

Nosepiece: quintuple

Interpupillary Distance: 2"-3" (50mm-75mm)

Mechanical Stage: two-layer; size: 9.53"x6.77" (242x172mm); traveling range: 3"x1.97" (75x50mm)

Central Stage: 4.33" (110mm) in diameter

Condenser: NA 0.3 Abbe with iris diaphragm, working distance: 3" (75mm)

Focus: coaxial coarse & fine focusing system rack and pinion with tension control; fine focusing scale value 0.000079" (0.002mm)

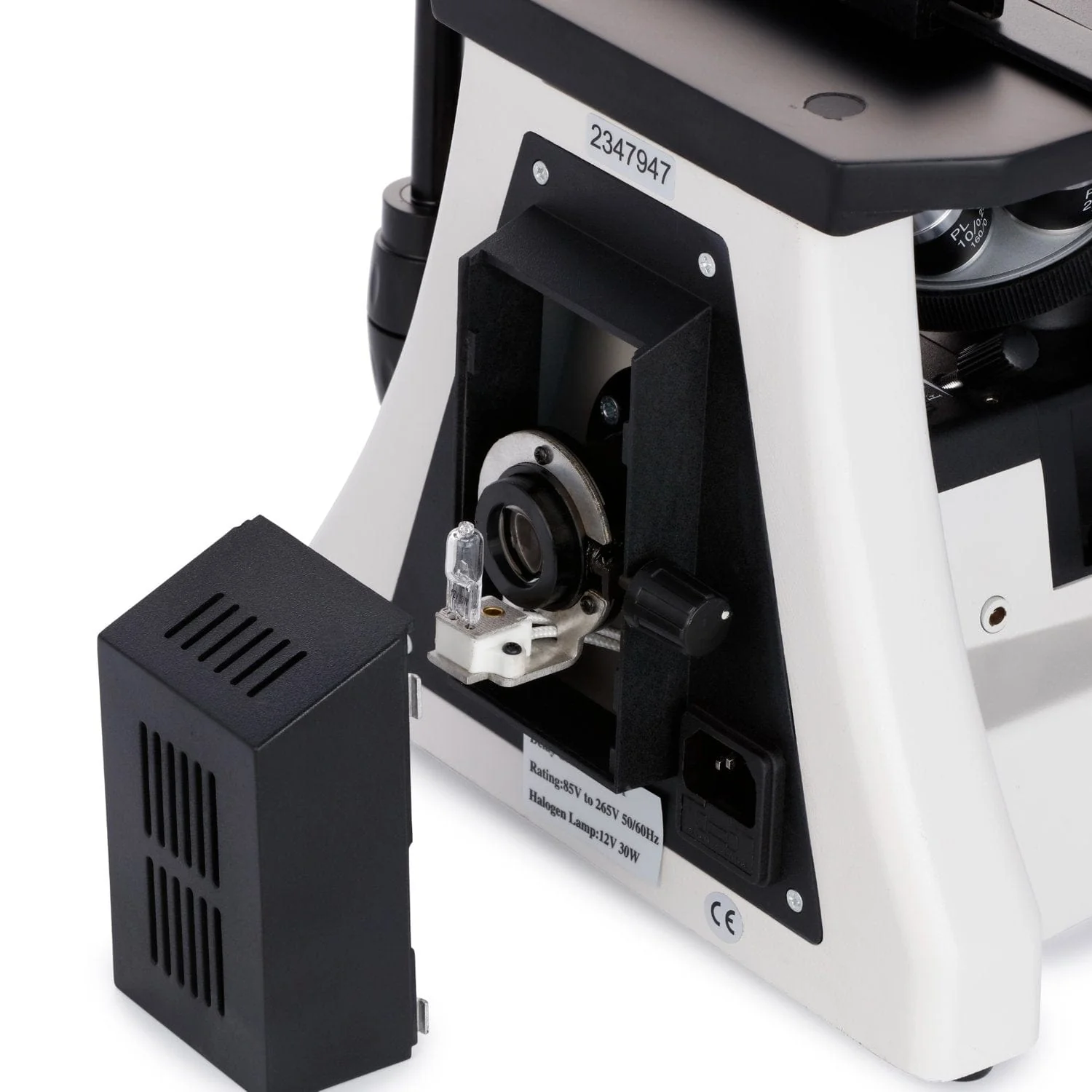

lllumination: Epi-Kohler 12V/30W, with aperture iris diaphragm and field iris diaphragm

Power Supply: AC 85V-230V

Filter: blue, green, yellow

Polarizing Outfit: analyzer 360 degree rotatable, polarizer & analyzer can be slided in/out of the optical path

Packing List:

One trinocular inverted microscope

Four metallurgical objectives: 4X, 10X, 20X, 40X

One pair 10X eyepieces

One super widefield 10X eyepiece with reticle

One 30W halogen bulb

One dust cover

color filters

One power cord (North America standard)
