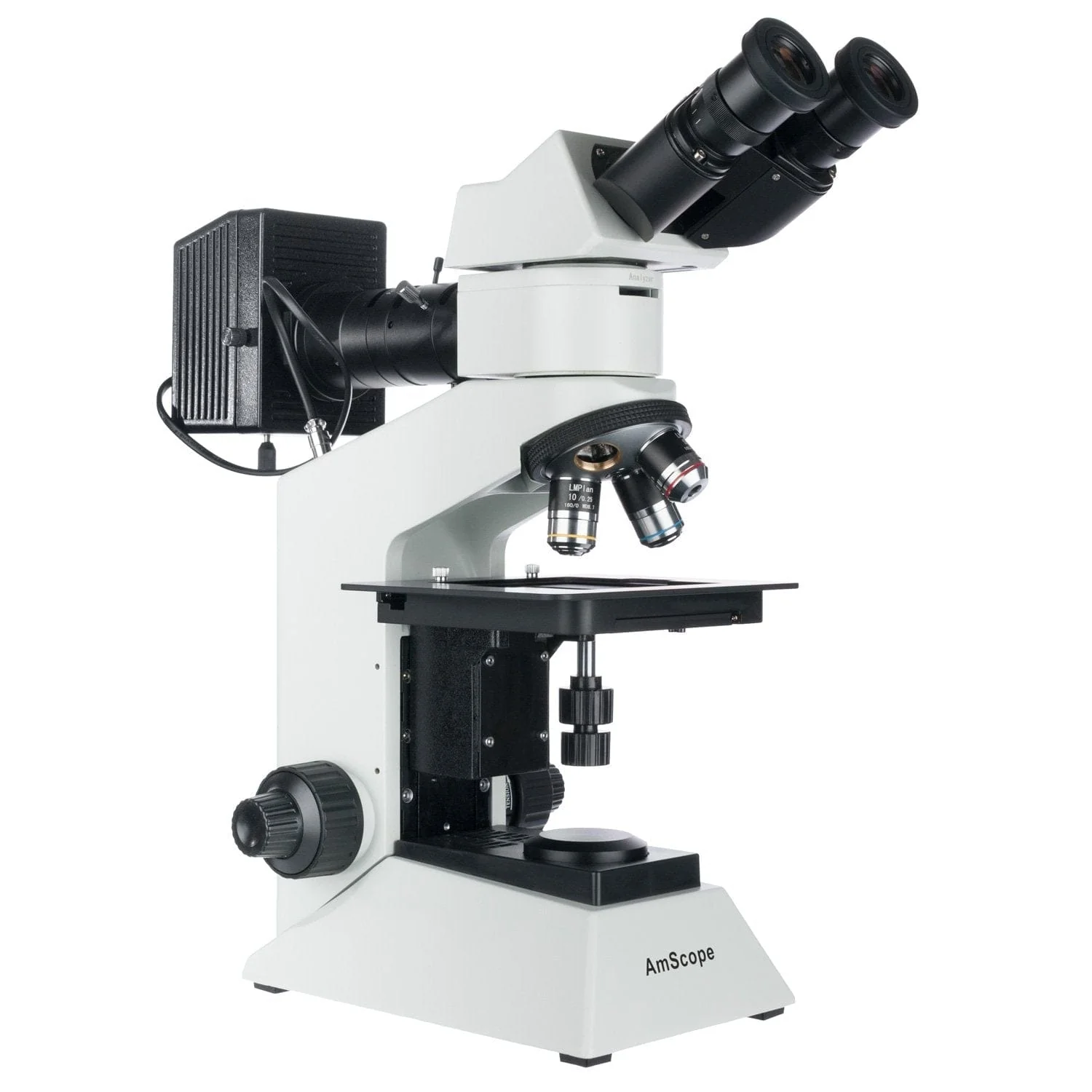

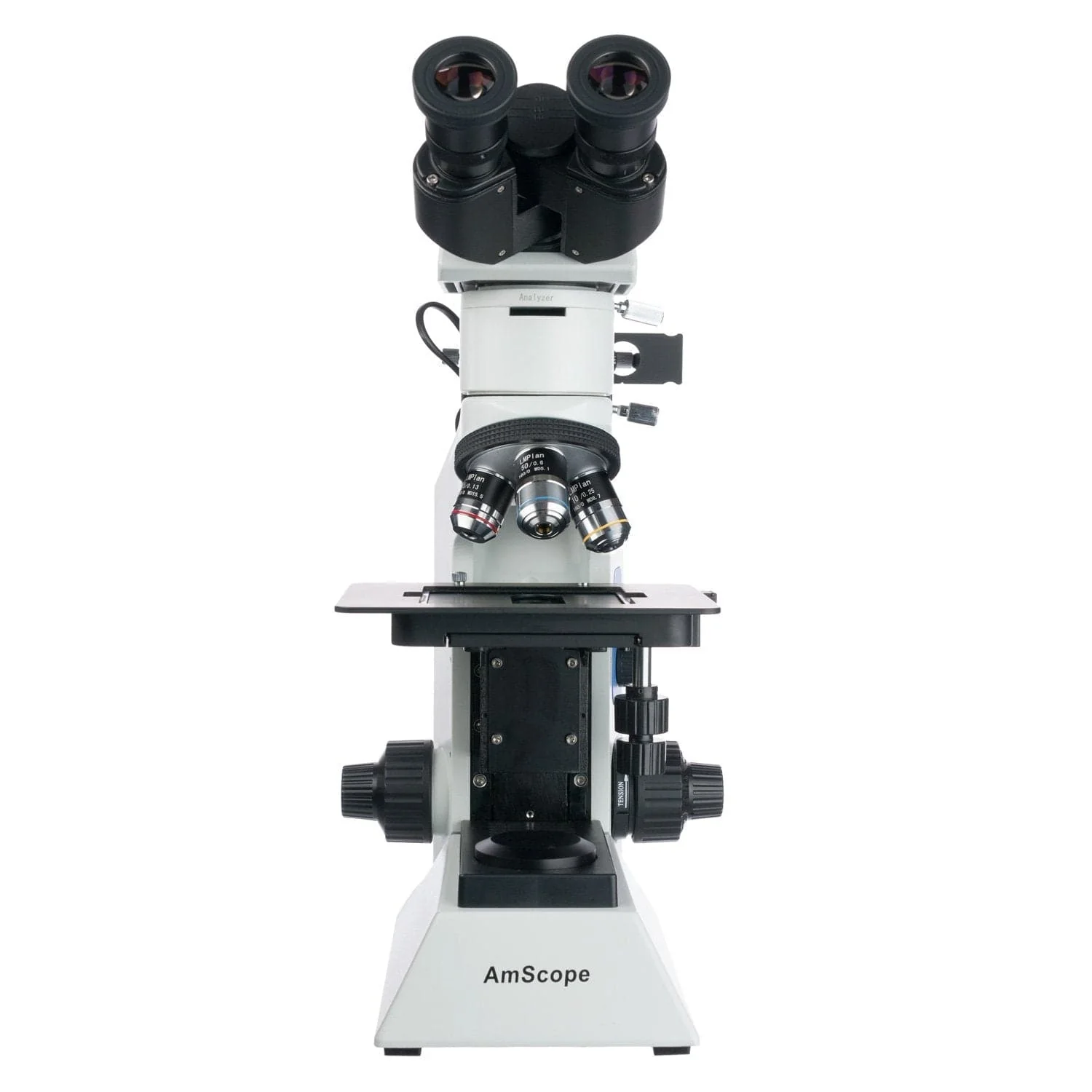

AmScope ME580 Series Metallurgical Uprigh Binocular Compound Microscope with Polarized Light and Optional Digital Camera

This is a feature-packed, economical metallurgical microscope with an upright design, and 30W polarized-light reflected illumination. The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction. The Siedentopf head with dual diopters and high-eyepoint eyepieces provide a comfortable and adjustable viewing platform.

Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces, the magnification range spans from 50X to 500X with three unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.

Features:

An advanced metallurgical microscopy system with reflected illumination

Polarized lighting for structural analysis

Includes a range of filters for lighting manipulation

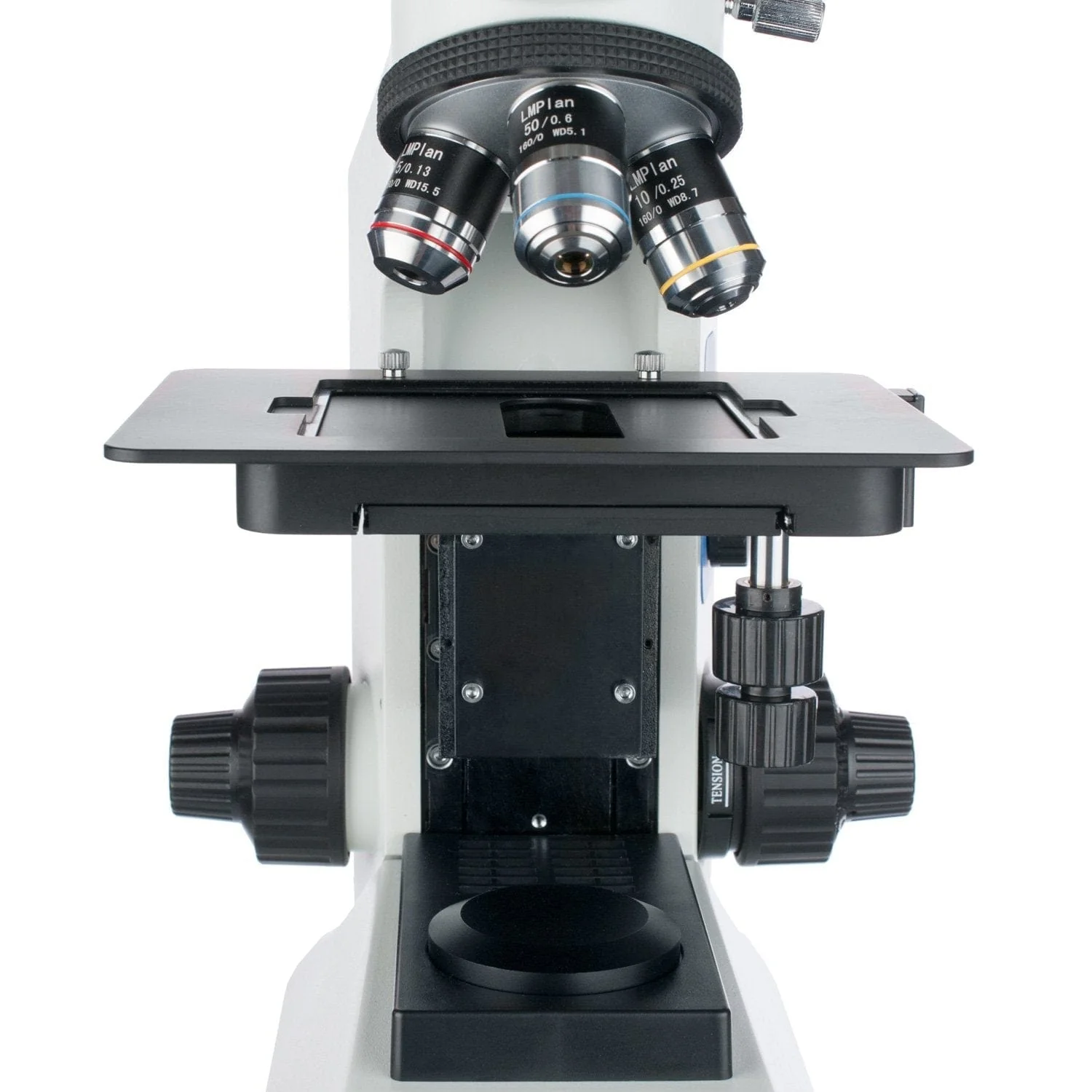

5X, 10X, and 50X long-working-distance metallurgy objectives

Co-axial coarse & fine focusing system

30 degree inclined 360 degree rotatable binocular head

Coaxial coarse and fine focusing

Dual focusing control knobs

Focusing tension control mechanism

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Solid metal frame construction with stain resistant enamel finish

Packing List:

One microscope with binocular Siedentopf head

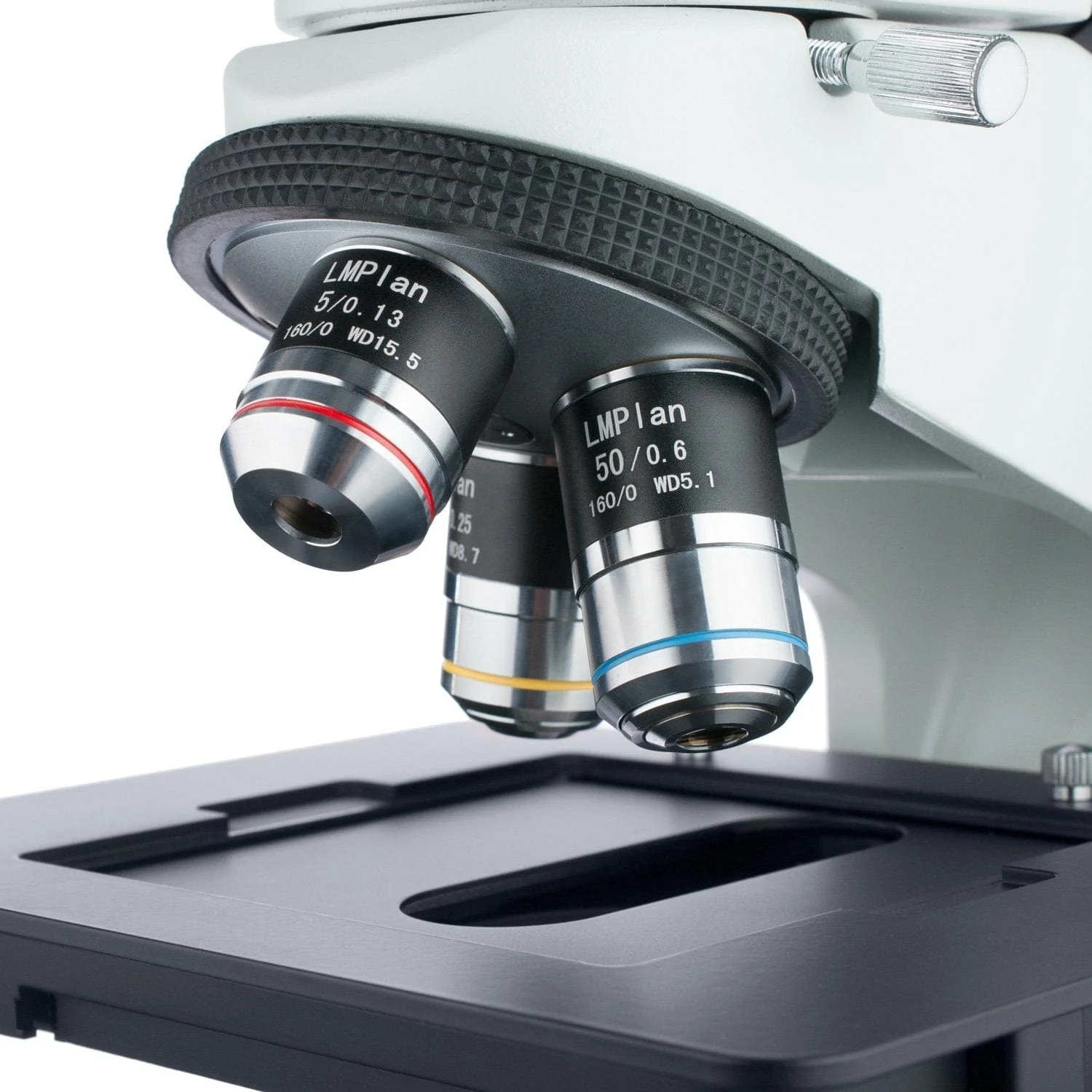

Three LM Plan achromatic objectives (5X, 10X, 50X)

One pair 10X eyepieces

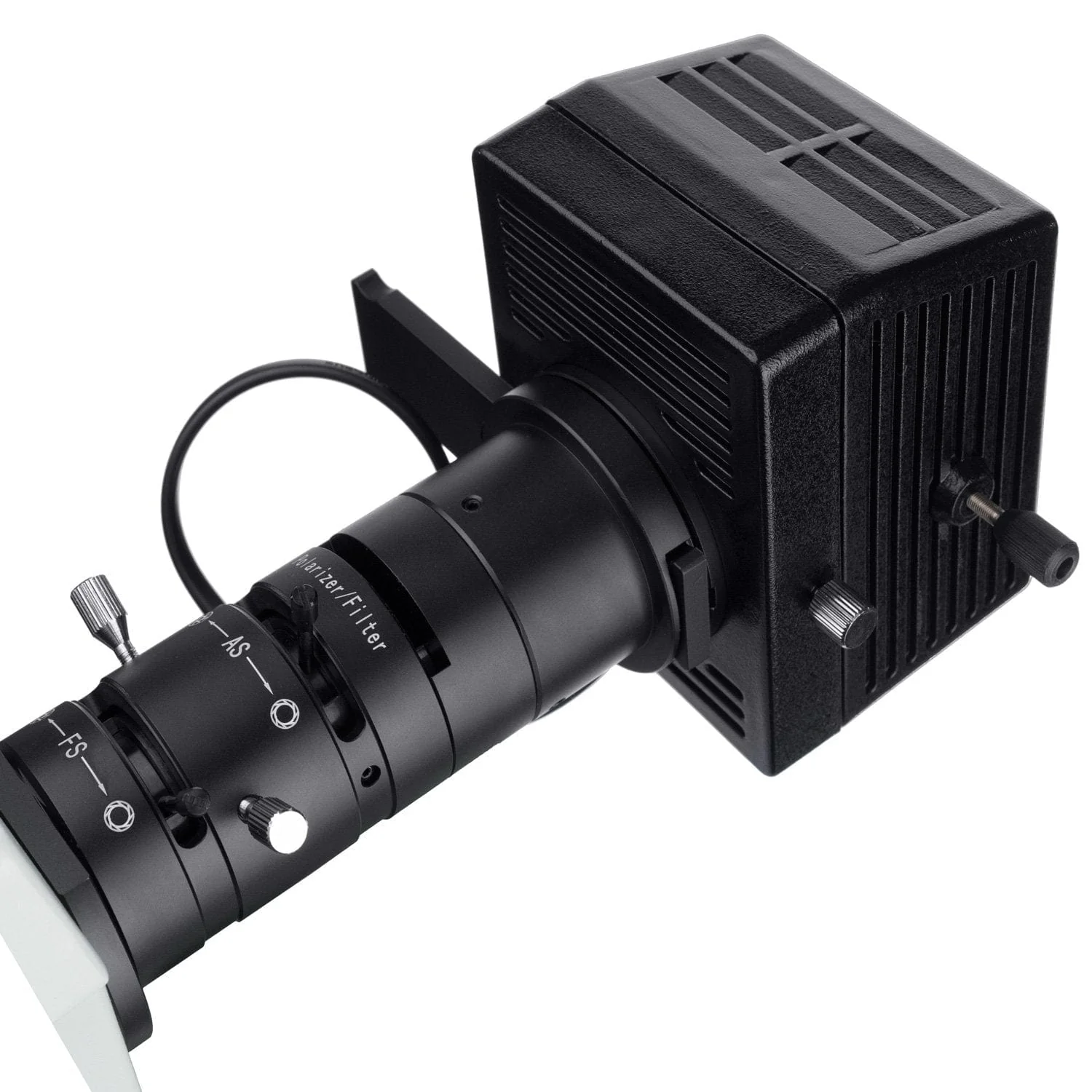

One Halogen episcopic illuminator module

One 6V 30W G4 halogen bulb

Six filters (polarizer, analyzer, green, blue, yellow, diffuser)

One AC cord

One dust cover

One tension wrench
