The Story

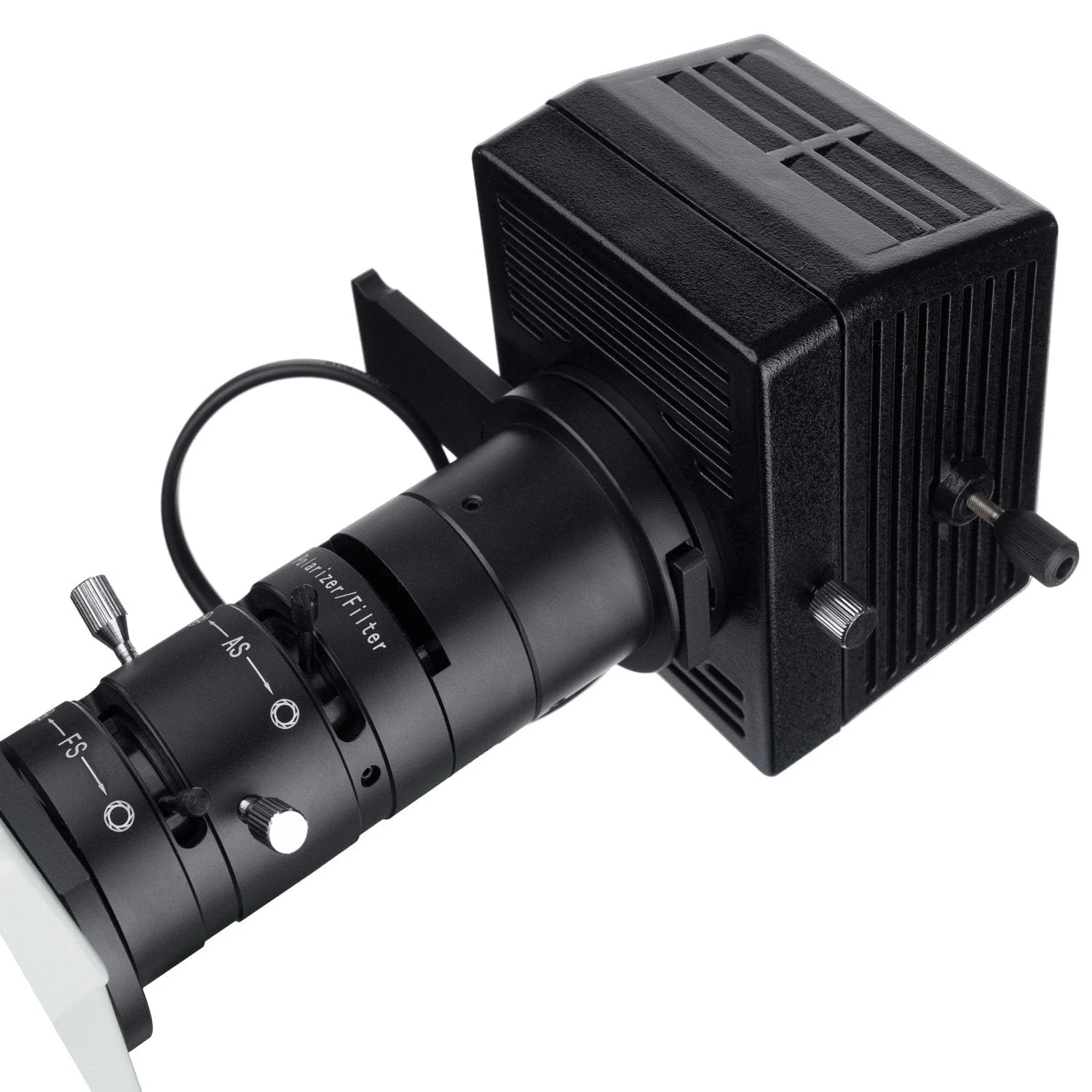

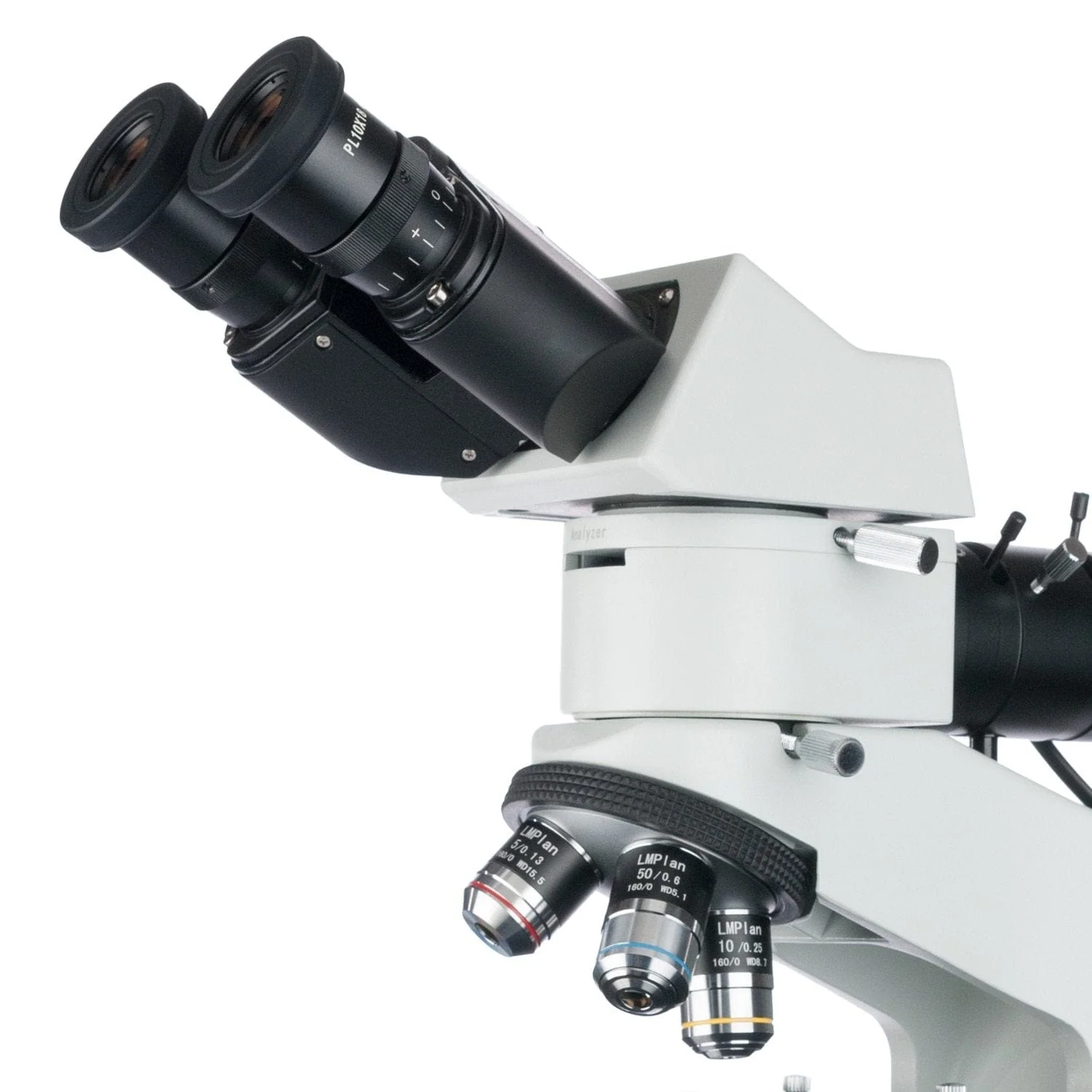

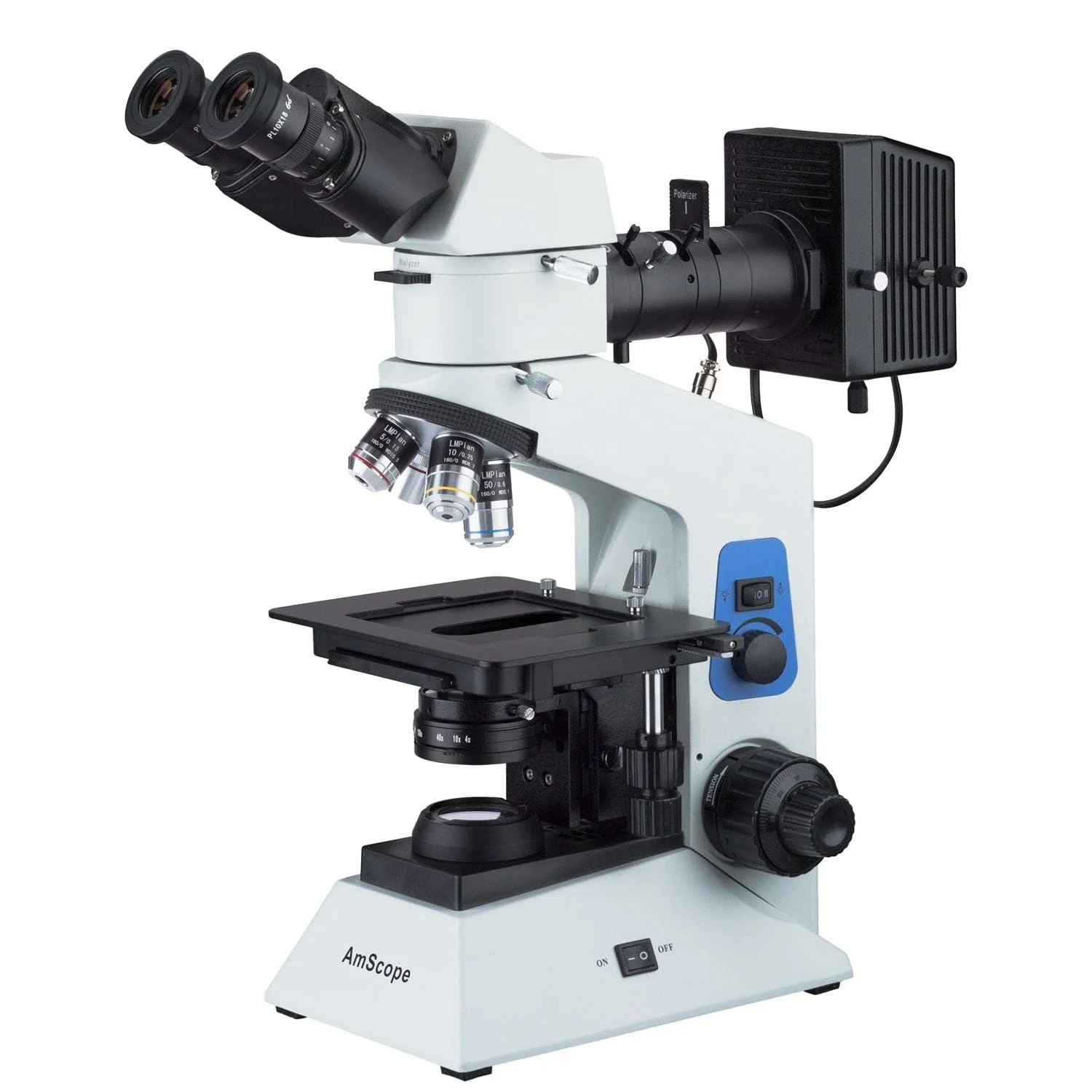

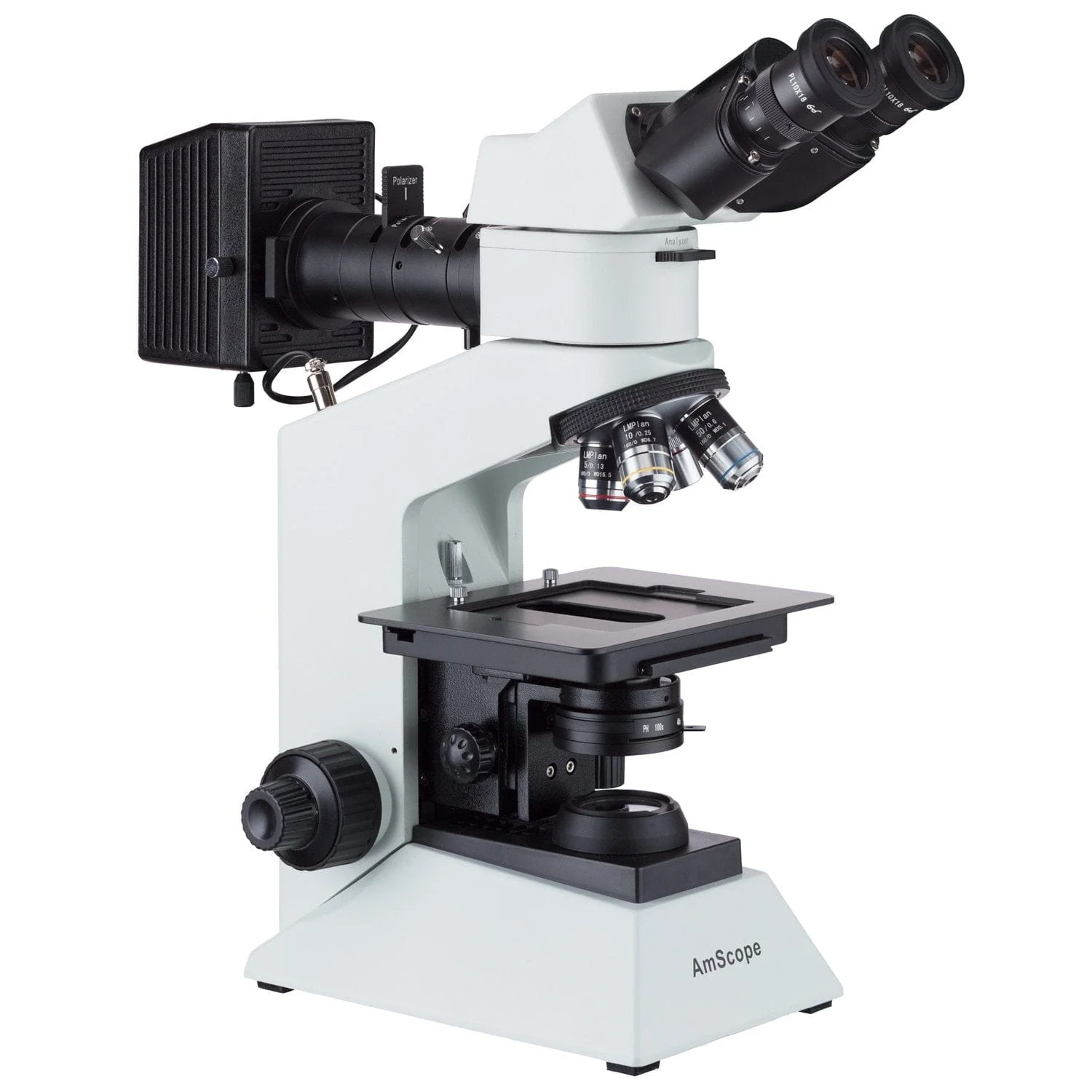

This is a feature-packed, economical metallurgical microscope with an upright design, and both trasmitted and reflected illumination. The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction. The Siedentopf head with dual diopters and high-eyepoint eyepieces provides a comfortable and adjustable viewing platform.

Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces and a combination of metallurgical and biological objective lenses, the magnification range spans from 40X to 500X with five unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.

Features:

An advanced metallurgical microscopy system with incident and transmitted illumination

Polarized lighting for structural analysis

Includes a range of filters for lighting manipulation

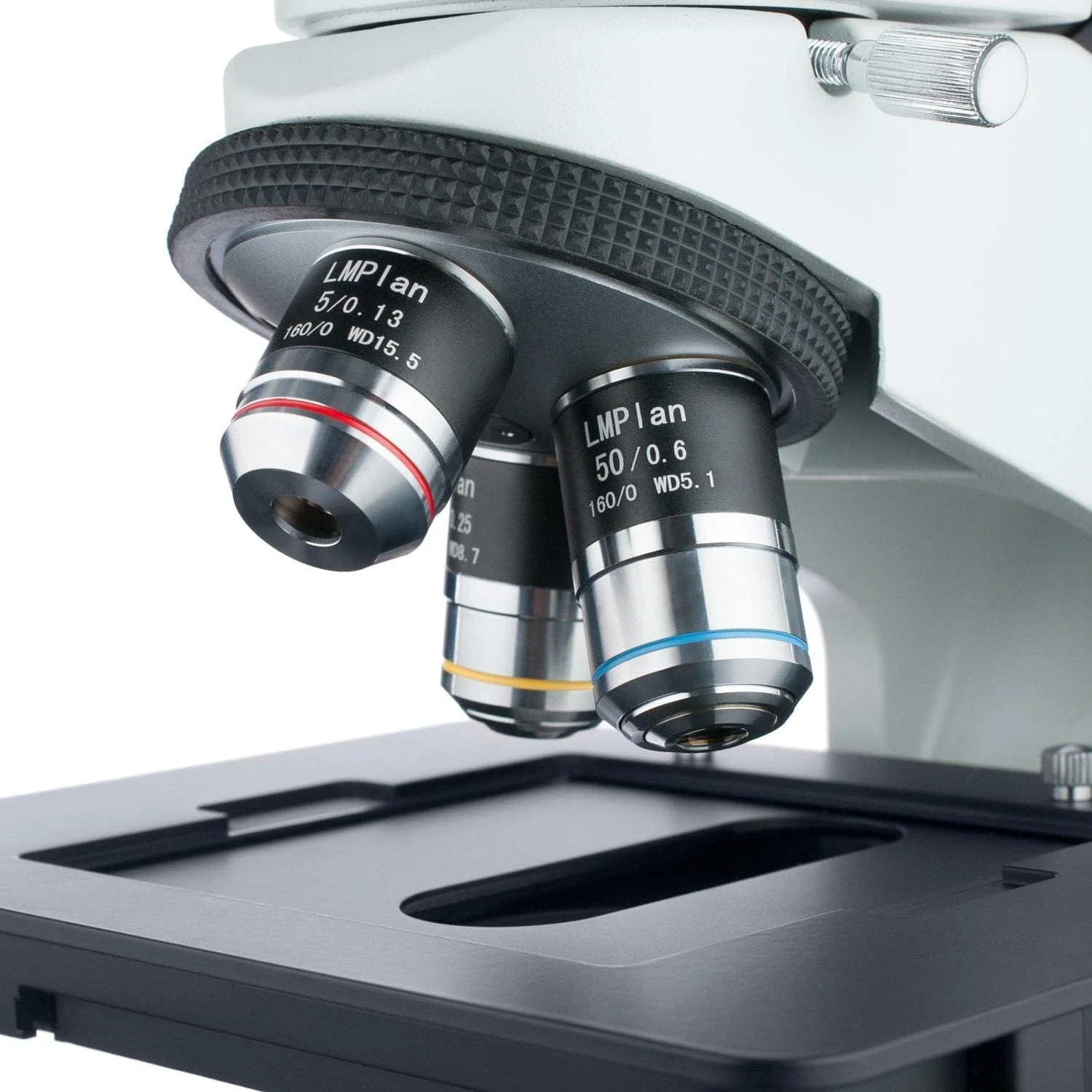

5X, 10X, and 50X long-working-distance metallurgy plan achromat objectives

4X, 10X, 40X achromat objectives

10X plan eyepieces for flat-field viewing

Co-axial coarse & fine focusing system

30 degree inclined 360 degree rotatable binocular head

Coaxial coarse and fine focusing

Dual focusing control knobs

Focusing tension control mechanism

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Solid metal frame construction with stain resistant enamel finish

Specifications:

Head: 30 degree inclined binocular

Eyepieces: 10X

Interpupillary Adjustment: Siedentopf

Nosepiece: forward quadruple RMS thread

Tube length: 160mm

Metallurgical Objectives: 5X/0.13, 10X/0.25, 50X/0.6 long-working-distance plan achromatic DIN

Bright-field Objectives: 4X/0.1, 10X/0.25, 40X/0.65 achromatic DIN

Polarization System: removable analyzer/polarizer filters for episcopic lighting with +/- 25° adjustment

Focus System: coaxial coarse/fine focus

Focus Travel Range: 25mm

Fine-focus Precision: 0.002mm

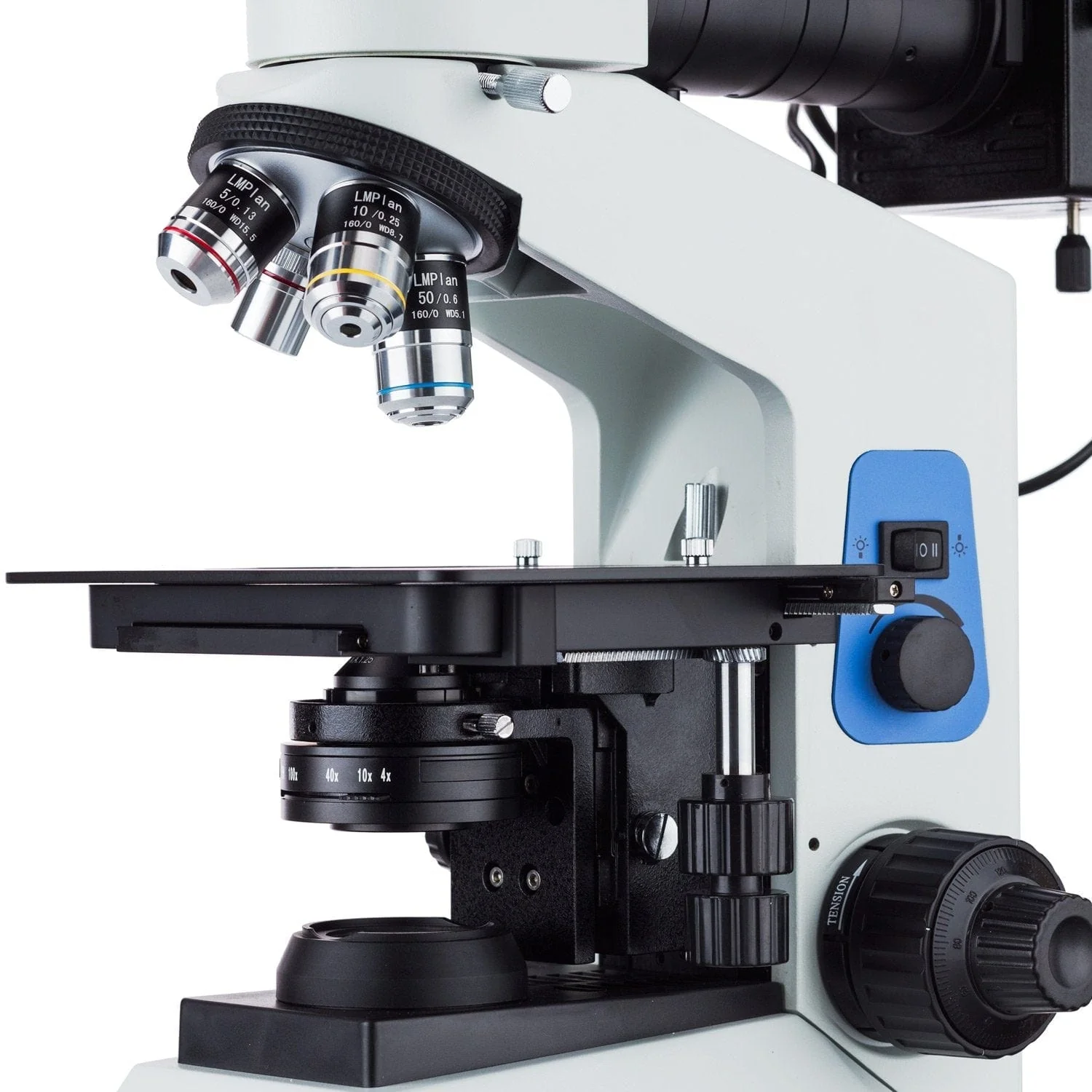

Stage: 140mm x 132mm mechanical stage

Stage X-Y Movement: 75x50mm

Illumination: 30W reflected, 20W transmitted

Power: 90-240VAC 50/60Hz wide-band

Magnification	Corrections	NA	Working Distance	Cover-glass Thickness
Metallurgical Objective Lenses

5X	Plan-achromatic	0.13	15.5mm	0
10X	Plan-achromatic	0.25	8.7mm	0
50X	Plan-achromatic	0.60	5.1mm	0

Magnification	Corrections	NA	Cover-glass Thickness
Biological Objective Lenses

4X	Achromatic	0.10	—
10X	Achromatic	0.25	0.17
40X	Achromatic	0.60	0.17

Packing List:

One microscope with binocular Siedentopf head

Three LM Plan achromatic objectives (5X, 10X, 50X)

Three achromatic objectives (4X, 10X, 40X)

One pair 10X eyepieces

One sub-stage condenser

One Halogen episcopic illuminator module

One 6V 30W G4 halogen bulb

One 6V 20W G4 halogen bulb

Six filters (polarizer, analyzer, green, blue, yellow, diffuser)

One AC cord

One pack of lens tissues

One dust cover

One tension wrench
