Original: $1,197.99
-65%$1,197.99
$419.30The Story

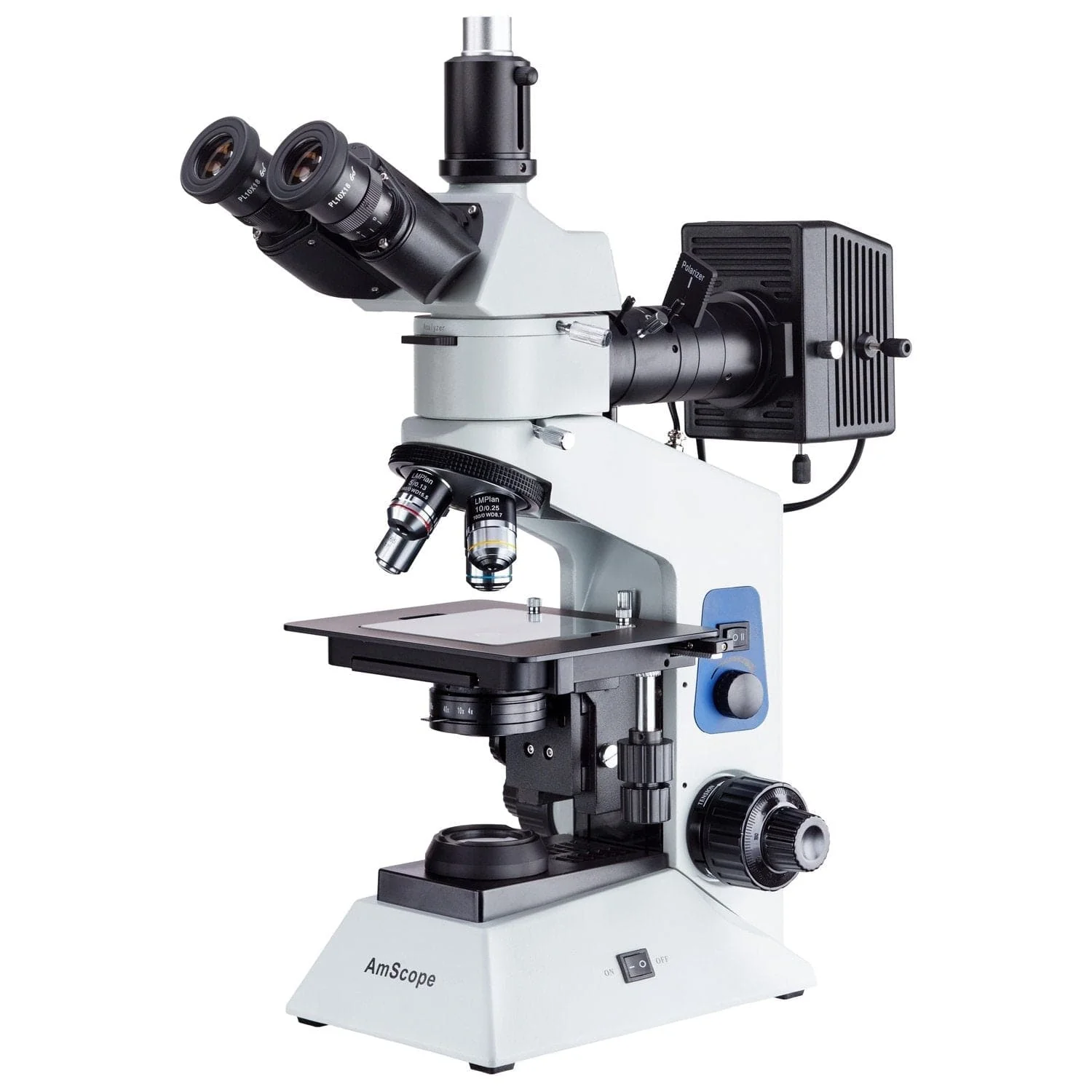

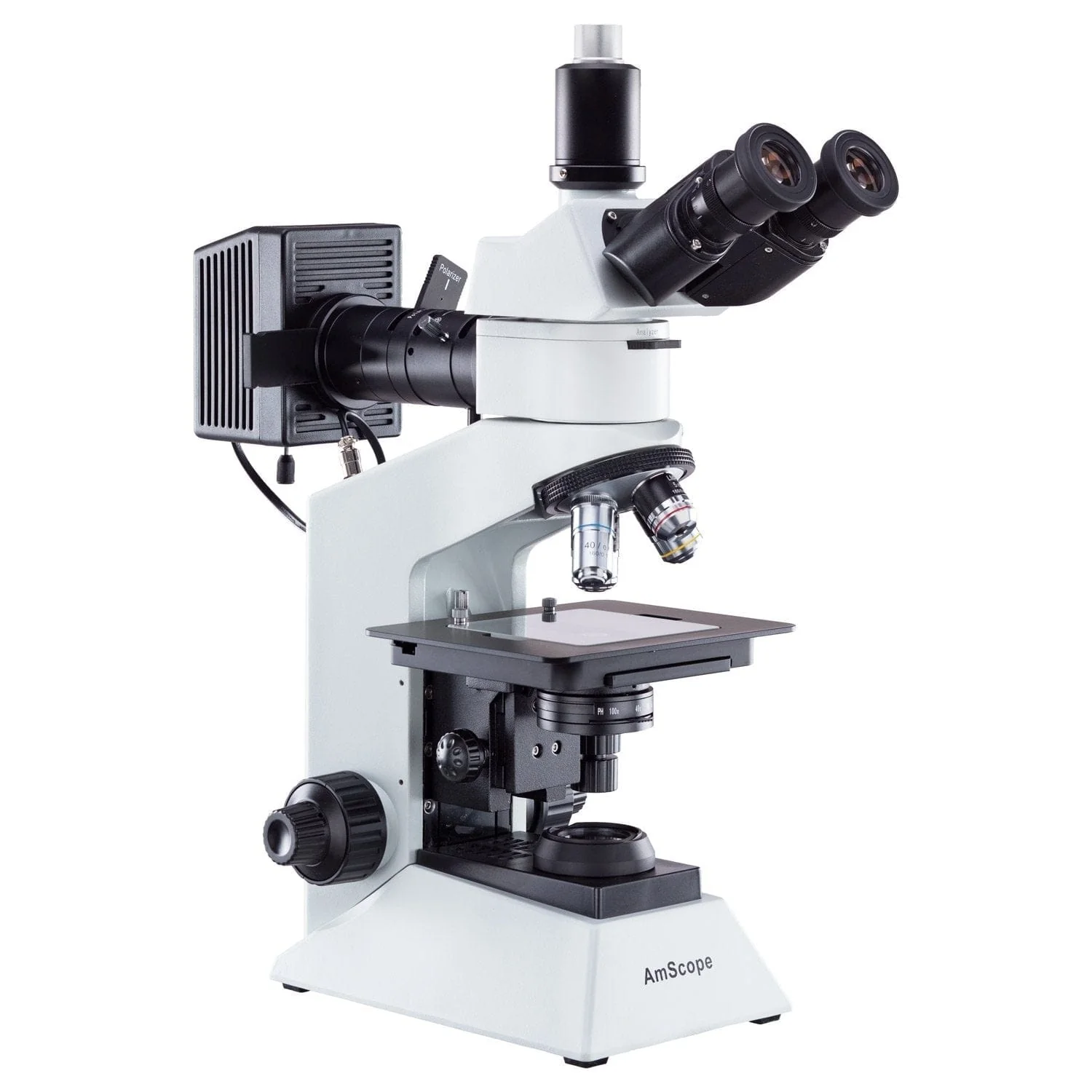

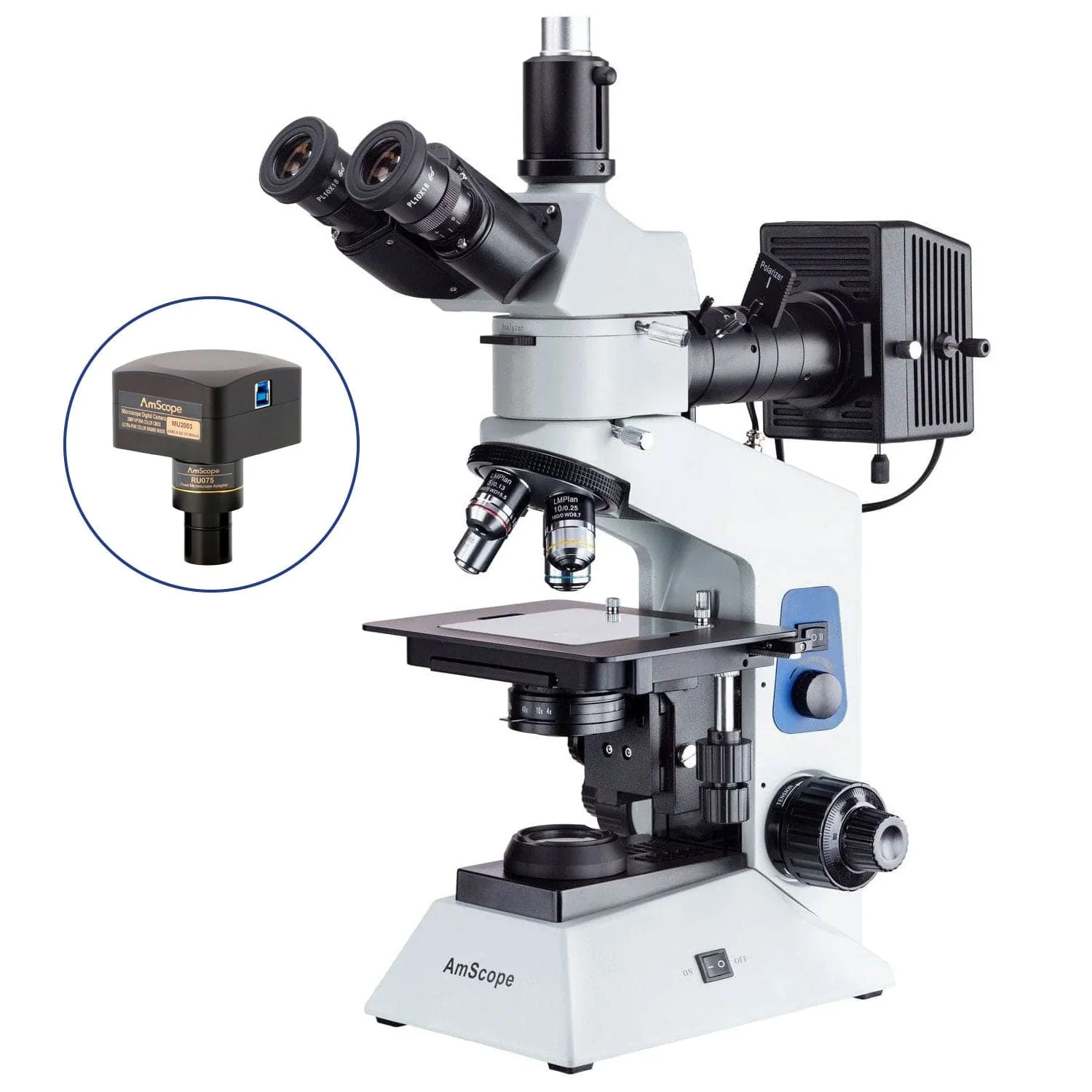

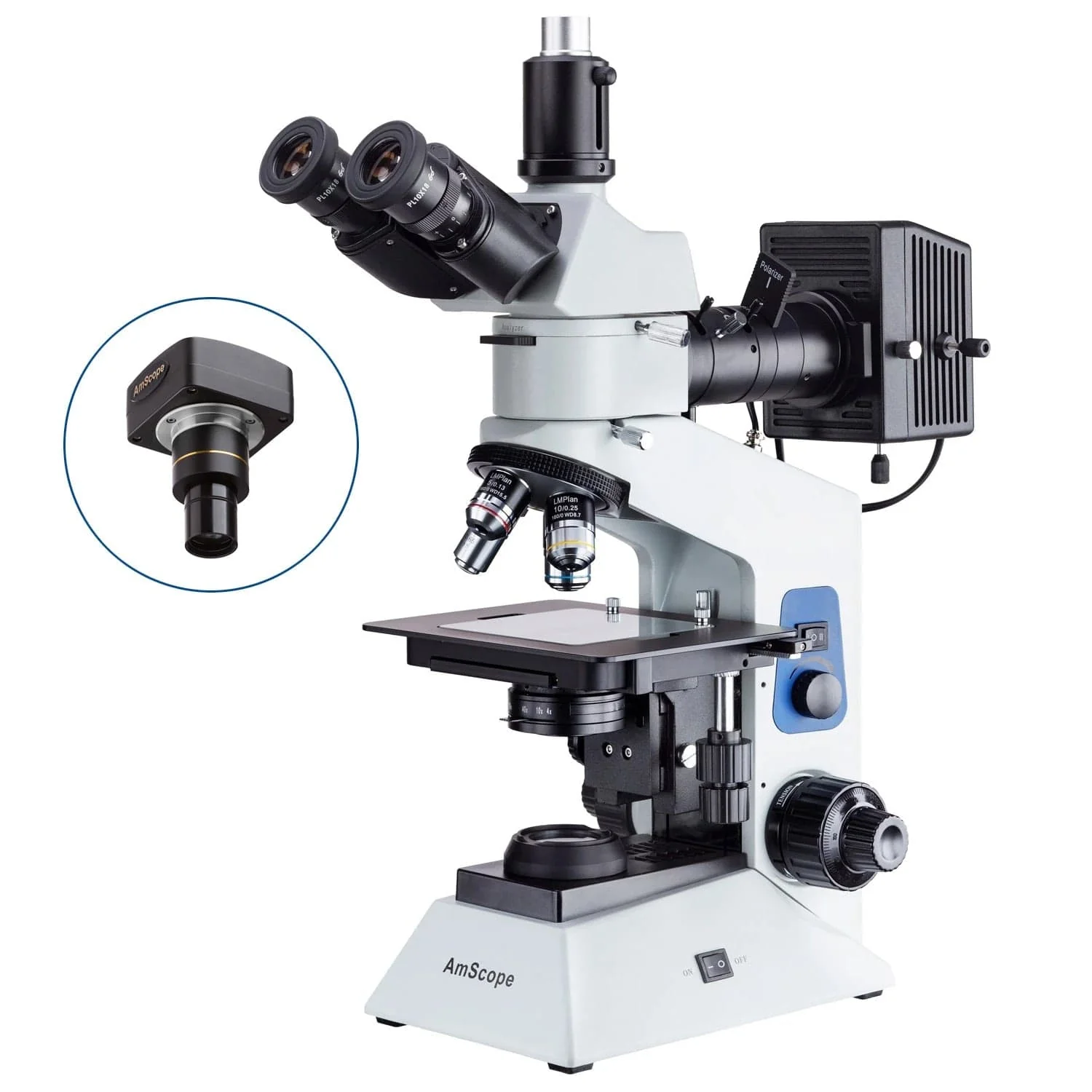

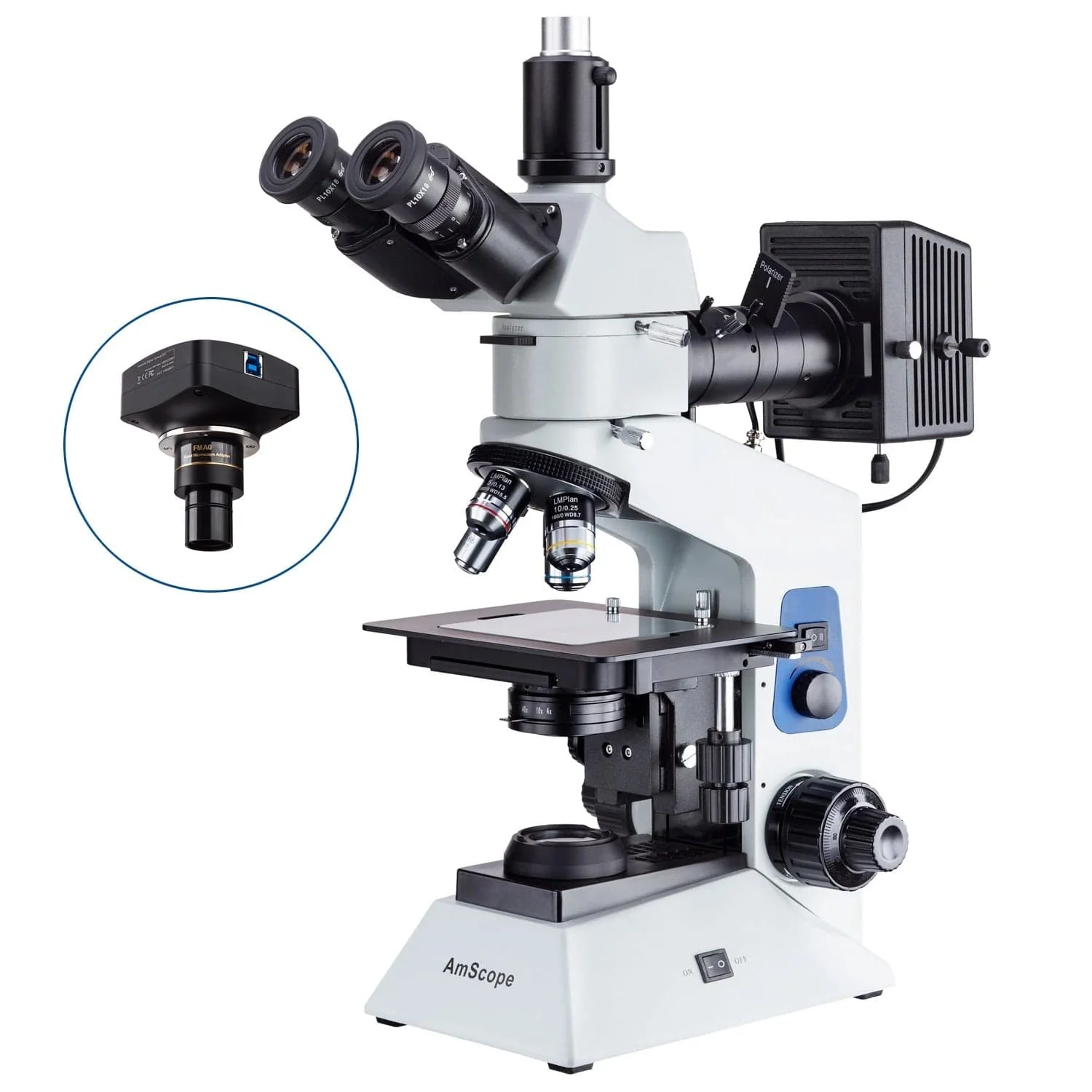

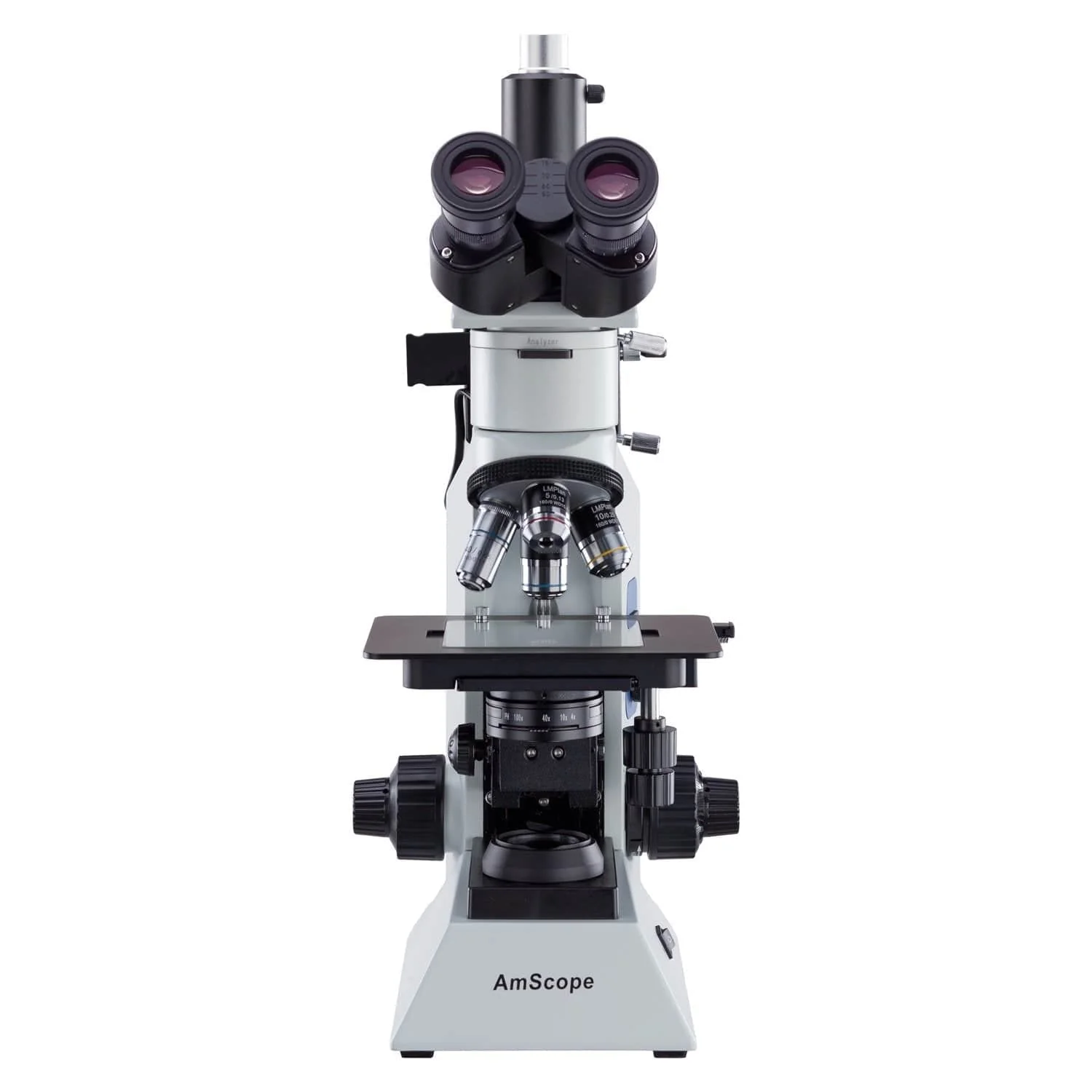

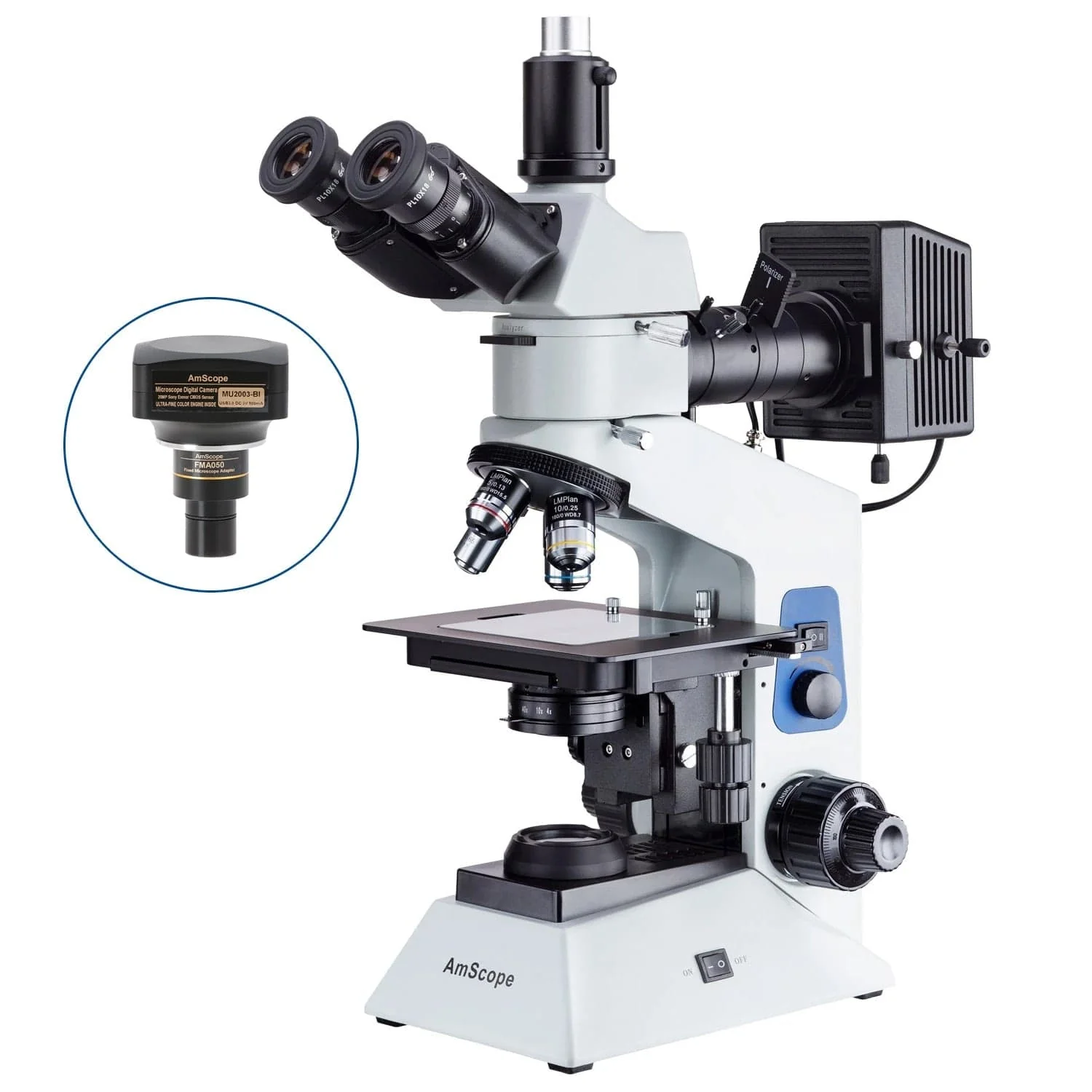

This is a feature-packed, economical metallurgical microscope with an upright design, and both trasmitted and incident illumination. The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction. The Siedentopf head with dual diopters and high-eyepoint eyepieces provides a comfortable and adjustable viewing platform. There is also a dedicated photo port for simultaneous viewing and imaging.
Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces and a combination of metallurgical and biological objective lenses, the magnification range spans from 40X to 500X with five unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.
Features:
- An advanced metallurgical microscopy system with incident and transmitted illumination
- Polarized lighting for structural analysis
- Includes a range of filters for lighting manipulation

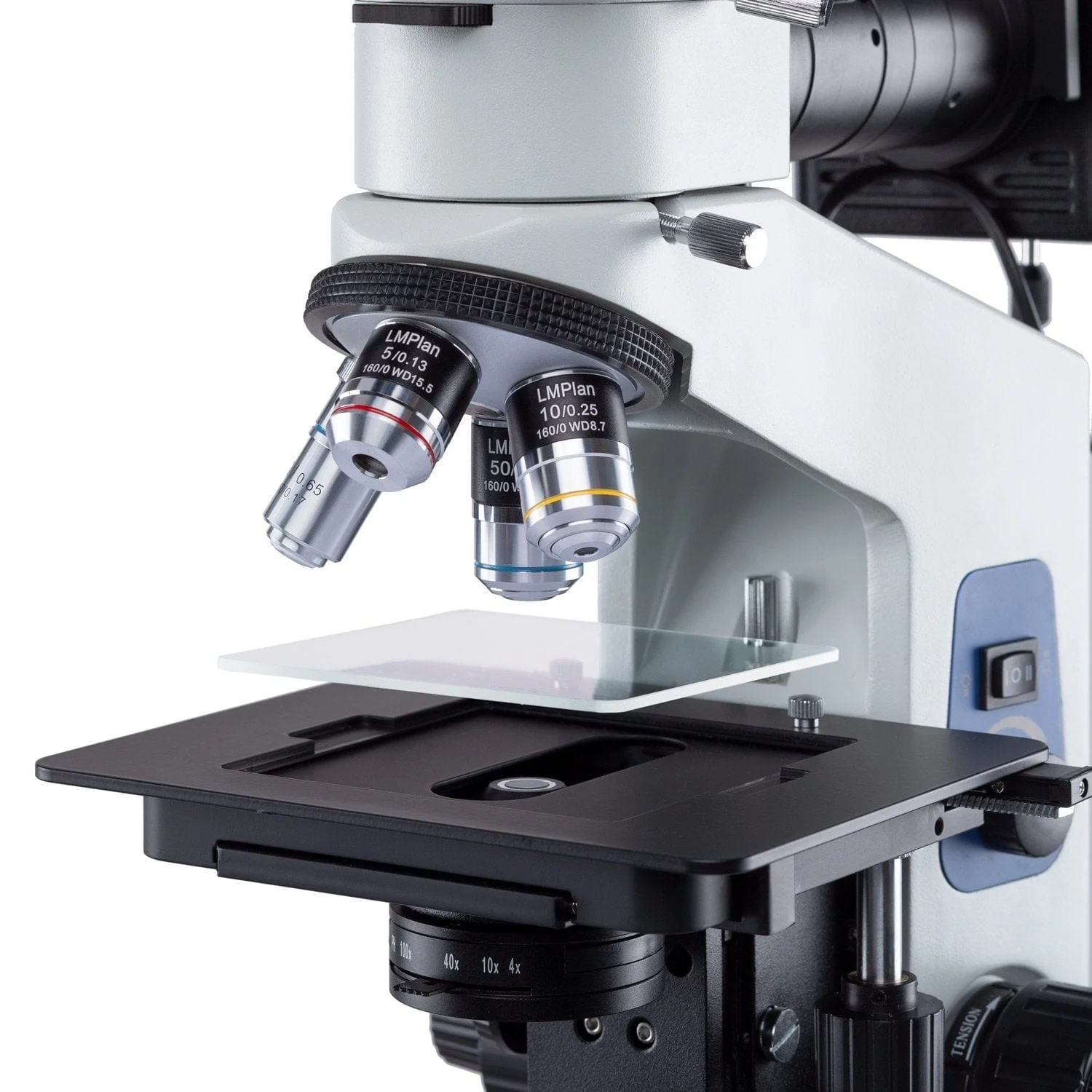

- 5X, 10X, and 50X long-working-distance metallurgy plan achromat objectives
- 4X, 10X, 40X achromat objectives
- 10X plan eyepieces for flat-field viewing
- Co-axial coarse & fine focusing system
- 30 degree inclined 360 degree rotatable trinocular head
- Coaxial coarse and fine focusing
- Dual focusing control knobs
- Focusing tension control mechanism
- Adjustable interpupillary distance
- Adjustable diopters on both eye tubes
- Solid metal frame construction with stain resistant enamel finish
Specifications:
Head: 30 degree inclined trinocularPhoto Port: CX type height-adjustable 23mmEyepieces: 10XInterpupillary Adjustment: SiedentopfNosepiece: forward quadruple RMS threadTube length: 160mmMetallurgical Objectives: 5X/0.13, 10X/0.25, 50X/0.6 long-working-distance plan achromatic DINBright-field Objectives: 4X/0.1, 10X/0.25, 40X/0.65 achromatic DINPolarization System: removable analyzer/polarizer filters for episcopic lighting with +/- 25° adjustmentFocus System: coaxial coarse/fine focusFocus Travel Range: 25mmFine-focus Precision: 0.002mmStage: 140mm x 132mm mechanical stageStage X-Y Movement: 75x50mmIllumination: 30W reflected, 20W transmittedPower: 90-240VAC 50/60Hz wide-band| Metallurgical Objective Lenses | ||||
| Magnification | Corrections | NA | Working Distance | Cover-glass Thickness |
|---|---|---|---|---|
| 5X | Plan-achromatic | 0.13 | 15.5mm | 0 |
| 10X | Plan-achromatic | 0.25 | 8.7mm | 0 |
| 50X | Plan-achromatic | 0.60 | 5.1mm | 0 |
| Biological Objective Lenses | |||
| Magnification | Corrections | NA | Cover-glass Thickness |
|---|---|---|---|
| 4X | Achromatic | 0.10 | — |
| 10X | Achromatic | 0.25 | 0.17 |
| 40X | Achromatic | 0.60 | 0.17 |
Packing List:
- One microscope with trinocular Siedentopf head
- One photo tube
- Three LM Plan achromatic objectives (5X, 10X, 50X)
- Three achromatic objectives (4X, 10X, 40X)
- One pair 10X eyepieces
- One sub-stage condenser

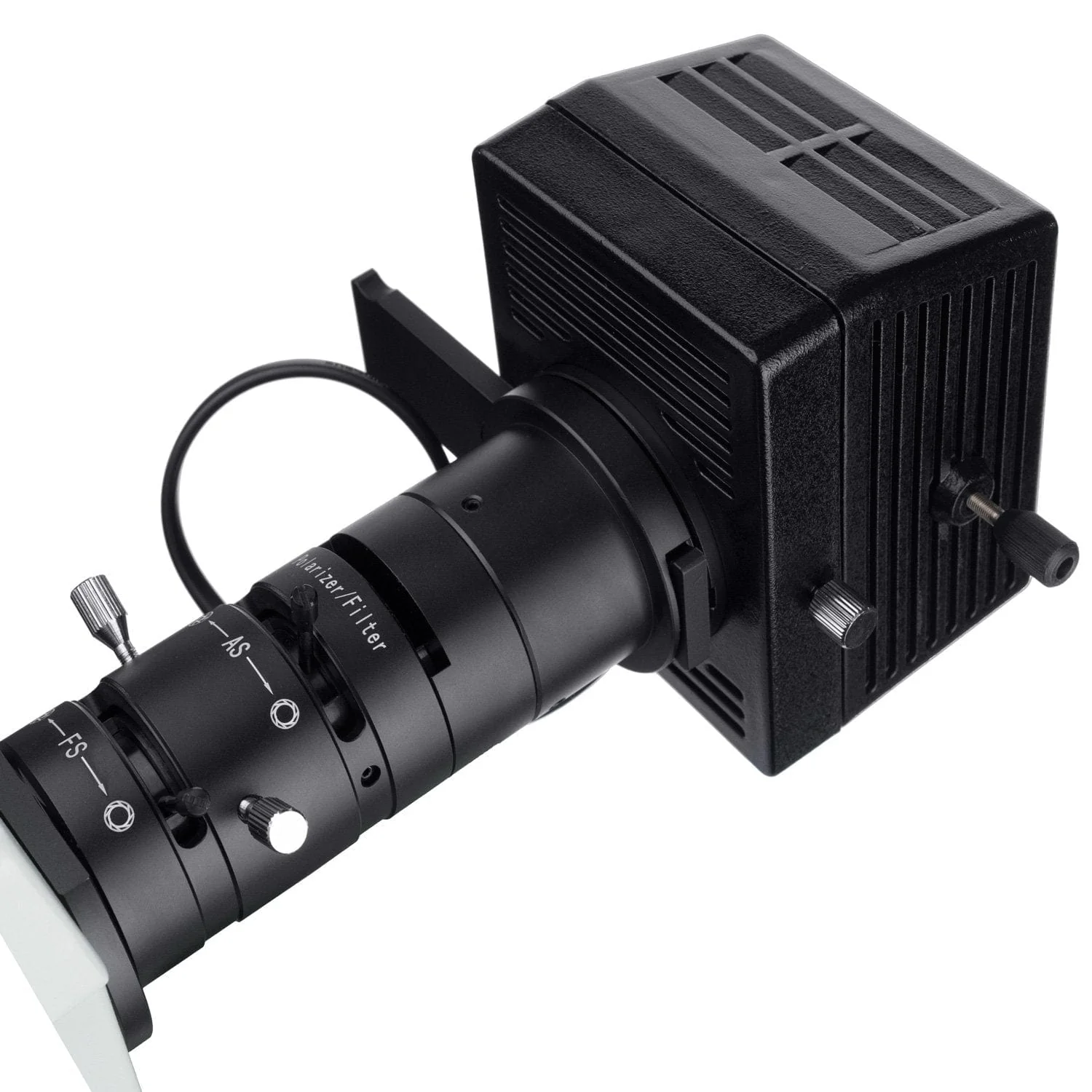

- One Halogen episcopic illuminator module
- One 6V 30W G4 halogen bulb
- One 6V 20W G4 halogen bulb
- Six filters (polarizer, analyzer, green, blue, yellow, diffuser)
- One AC cord
- One pack of lens tissues
- One dust cover
- One tension wrench
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This is a feature-packed, economical metallurgical microscope with an upright design, and both trasmitted and incident illumination. The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction. The Siedentopf head with dual diopters and high-eyepoint eyepieces provides a comfortable and adjustable viewing platform. There is also a dedicated photo port for simultaneous viewing and imaging.
Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces and a combination of metallurgical and biological objective lenses, the magnification range spans from 40X to 500X with five unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.
Features:
- An advanced metallurgical microscopy system with incident and transmitted illumination
- Polarized lighting for structural analysis
- Includes a range of filters for lighting manipulation
- 5X, 10X, and 50X long-working-distance metallurgy plan achromat objectives
- 4X, 10X, 40X achromat objectives
- 10X plan eyepieces for flat-field viewing
- Co-axial coarse & fine focusing system
- 30 degree inclined 360 degree rotatable trinocular head
- Coaxial coarse and fine focusing
- Dual focusing control knobs
- Focusing tension control mechanism
- Adjustable interpupillary distance
- Adjustable diopters on both eye tubes
- Solid metal frame construction with stain resistant enamel finish
Specifications:
Head: 30 degree inclined trinocularPhoto Port: CX type height-adjustable 23mmEyepieces: 10XInterpupillary Adjustment: SiedentopfNosepiece: forward quadruple RMS threadTube length: 160mmMetallurgical Objectives: 5X/0.13, 10X/0.25, 50X/0.6 long-working-distance plan achromatic DINBright-field Objectives: 4X/0.1, 10X/0.25, 40X/0.65 achromatic DINPolarization System: removable analyzer/polarizer filters for episcopic lighting with +/- 25° adjustmentFocus System: coaxial coarse/fine focusFocus Travel Range: 25mmFine-focus Precision: 0.002mmStage: 140mm x 132mm mechanical stageStage X-Y Movement: 75x50mmIllumination: 30W reflected, 20W transmittedPower: 90-240VAC 50/60Hz wide-band| Metallurgical Objective Lenses | ||||
| Magnification | Corrections | NA | Working Distance | Cover-glass Thickness |
|---|---|---|---|---|
| 5X | Plan-achromatic | 0.13 | 15.5mm | 0 |
| 10X | Plan-achromatic | 0.25 | 8.7mm | 0 |
| 50X | Plan-achromatic | 0.60 | 5.1mm | 0 |
| Biological Objective Lenses | |||
| Magnification | Corrections | NA | Cover-glass Thickness |
|---|---|---|---|
| 4X | Achromatic | 0.10 | — |
| 10X | Achromatic | 0.25 | 0.17 |
| 40X | Achromatic | 0.60 | 0.17 |
Packing List:
- One microscope with trinocular Siedentopf head
- One photo tube
- Three LM Plan achromatic objectives (5X, 10X, 50X)
- Three achromatic objectives (4X, 10X, 40X)
- One pair 10X eyepieces
- One sub-stage condenser
- One Halogen episcopic illuminator module
- One 6V 30W G4 halogen bulb
- One 6V 20W G4 halogen bulb
- Six filters (polarizer, analyzer, green, blue, yellow, diffuser)
- One AC cord
- One pack of lens tissues
- One dust cover
- One tension wrench
