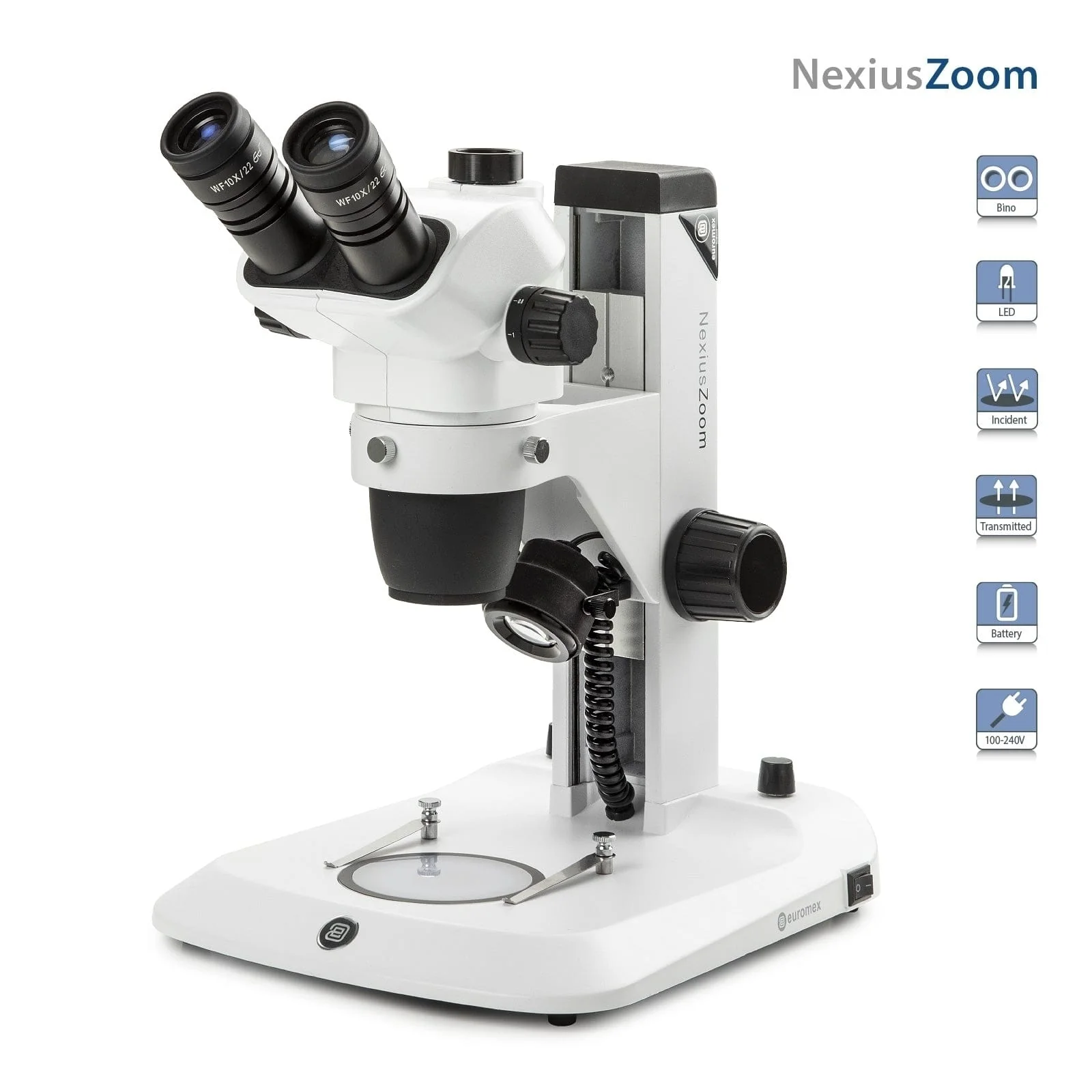

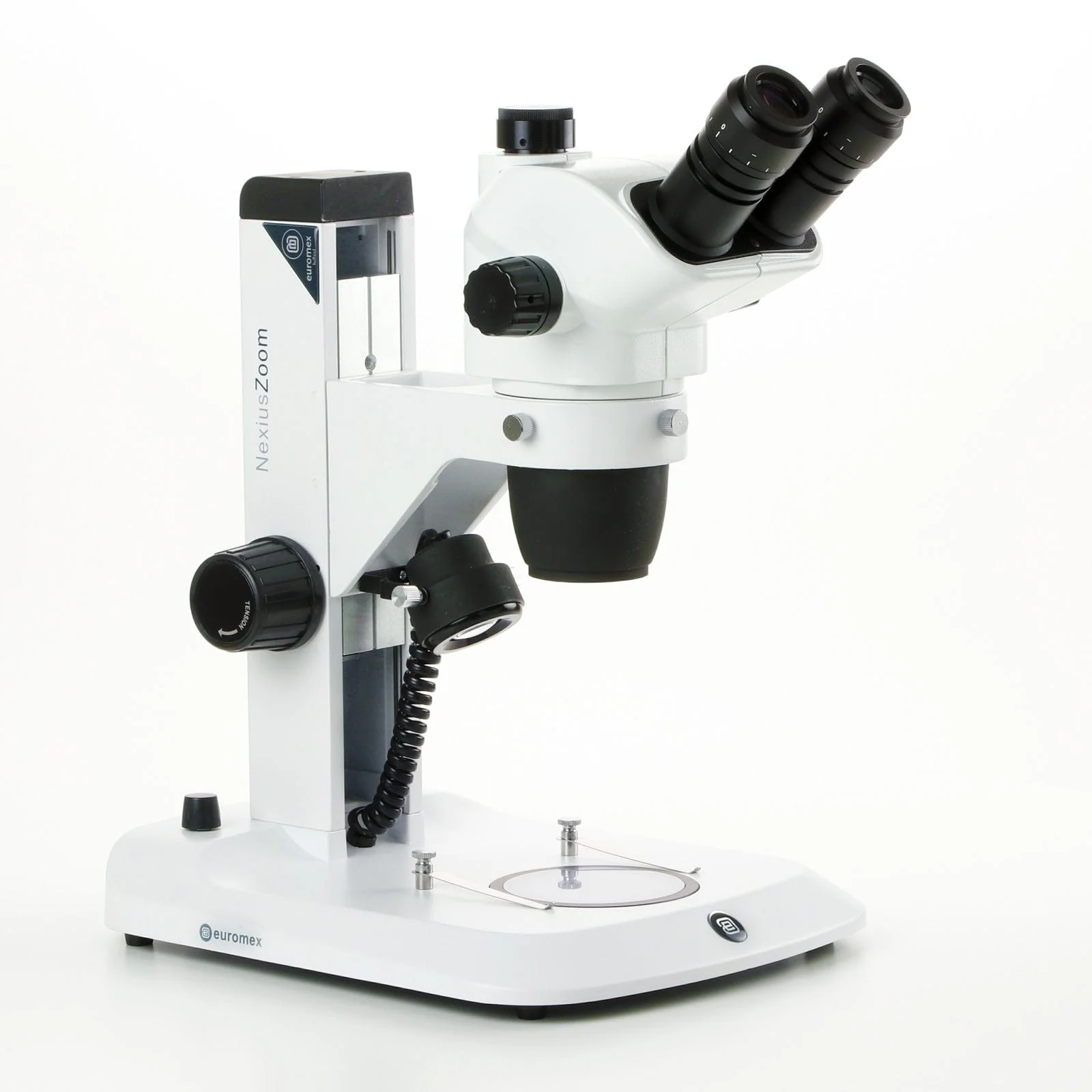

Euromex NexiusZoom Series High-Precision Zoom Trinocular Stereo Microscope on Rack and Pinion Track Stand

The NexiusZoom stereo microscopes enable examining your specimen with high-performance precision and generate three-dimensional images allowing observation for your highest demanding microscopy applications. These top level zoom microscopes are perfect for analyzing all kinds of material surfaces or to observe and prepare biological samples

The NexiusZoom NZ1903-S microscope is supplied with a rack & pinion stand, with LED illumination. Ideal for a wide variety of educational and laboratories applications.

Features:

Trinocular head with HWF 10x/22mm

Zoom ratio 1: 6.7, 6.7x to 45x

Ergonomic rack & pinion stand

Double 3 W LED illumination

Large working distance

Specifications:

EYEPIECES

Supplied with a pair of HWF 10x/22mm eyepieces

HEAD

Trinocular head with 45 degree inclined tubes. Both eyepieces with ± 5 diopter adjustments Interpupillary distance adjustable between 54mm and 75mm.

Supplied with a fixed light path beamsplitter (50:50)

OBJECTIVES

Supplied with a 1:6.7 zoom objective with 0.67x to 4.5x magnifications, a field of view from 33mm to 4.9mm. Working distance 110mm

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

STAND

Ergonomically designed rack & pinion stand with 3W incident and 3W transmitted LED illuminations

All rack & pinion stands are supplied with two object clamps. Alloy metal cast, hardened coating

STAGE

180 x 155mm X-Y mechanical stage with 76 x 55mm translation stage and transparent glass plate for NexiusZoom, fixed on stage of microscope

ILLUMINATION

The 3 W transmitted and incident LED illuminators with internal power supply 100-240 V operation. Both illuminators can be used simultaneously and the light intensities can be adjusted separately

PACKAGE CONTENT

Supplied with power cord, dust cover, a spare fuse, user manual. All packed in a polystyrene box
