EYEPIECES
Pair of WF10x/21 mm eyepieces supplied with eyecups.
HEAD
• Binocular 45° inclined tubes.
• Diopter adjustment on one eyepiece.
• Interpupillary distance adjustable between 55 mm and 75 mm.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
DUAL MAGNIFICATION MODELS

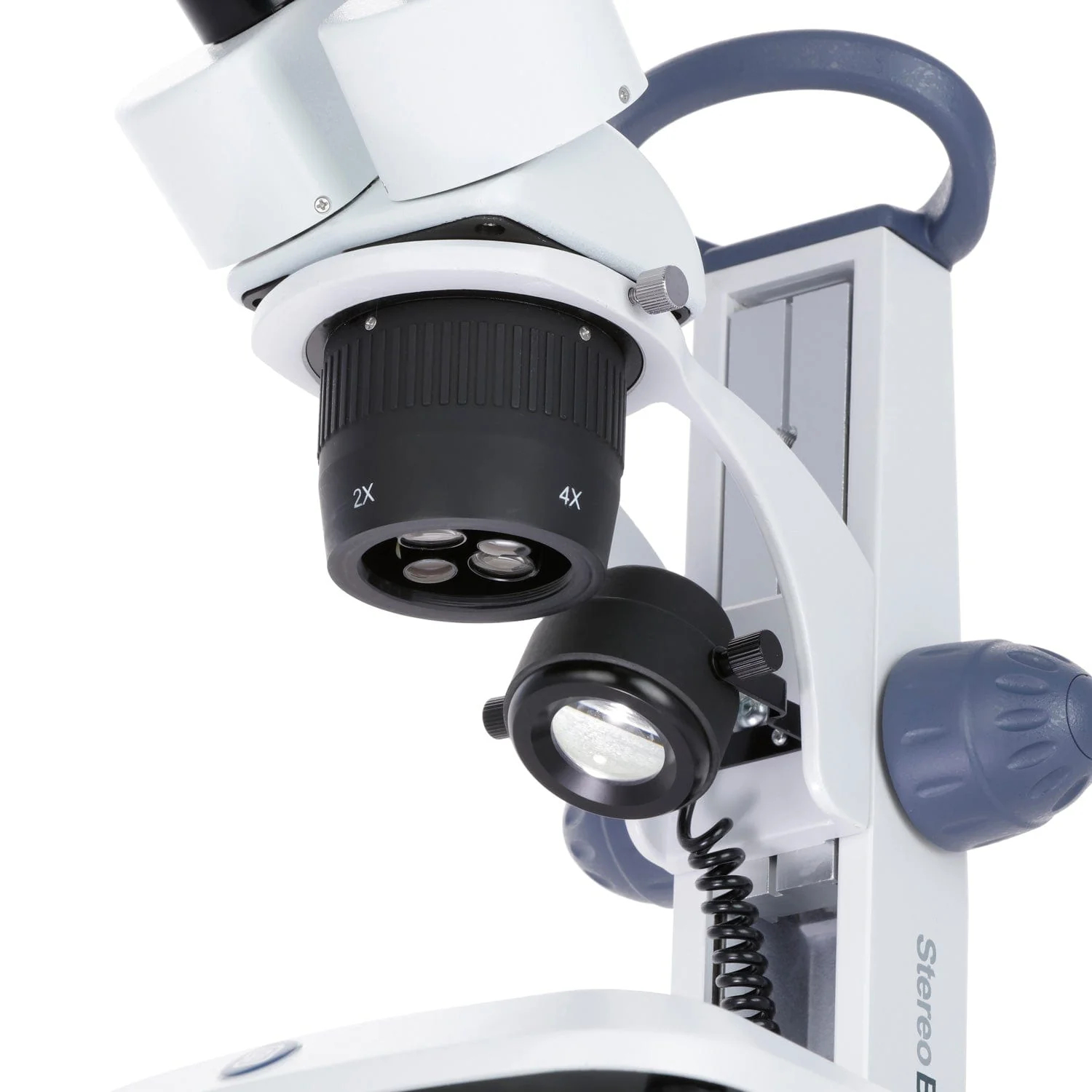

• Nosepiece with dual 2x/4x revolving objectives.
• Magnifications 20x/40x (can be enlarged to 135x).
• Working distance 100 mm.
MAGNIFICATIONS
Working distance and field of view specifications.
|
EYEPIECES - 10x/21 mm |
|||||
|
Magnification |
Working |
Minimum |
Maximum |
Maximum |
Minimum |
|
0.5 |
170.0 |
3.5 |
22.5 |
59.9 |
9.3 |
|
0.75 |
114.0 |
5.3 |
33.8 |
40.0 |
6.2 |
|
Standard |
100.0 |
7.0 |
45.0 |
30.0 |
4.6 |
|
1.5 |
48.0 |
10.5 |
67.5 |
19.9 |
3.1 |
|
EYEPIECES - 20x/10 mm |
|||||
|
Magnification additional lens |
Working |
Minimum |
Maximum |
Maximum |
Minimum |
|
0.5 |
170.0 |
7.0 |
45.0 |
28.6 |
4.4 |
|
0.75 |
114.0 |
10.5 |
67.5 |
19.0 |
3.0 |
|
Standard |
100.0 |
14.0 |
90.0 |
14.3 |
2.2 |
|
1.5 |
48.0 |
21.0 |
135.0 |
9.5 |
1.5 |
STANDS

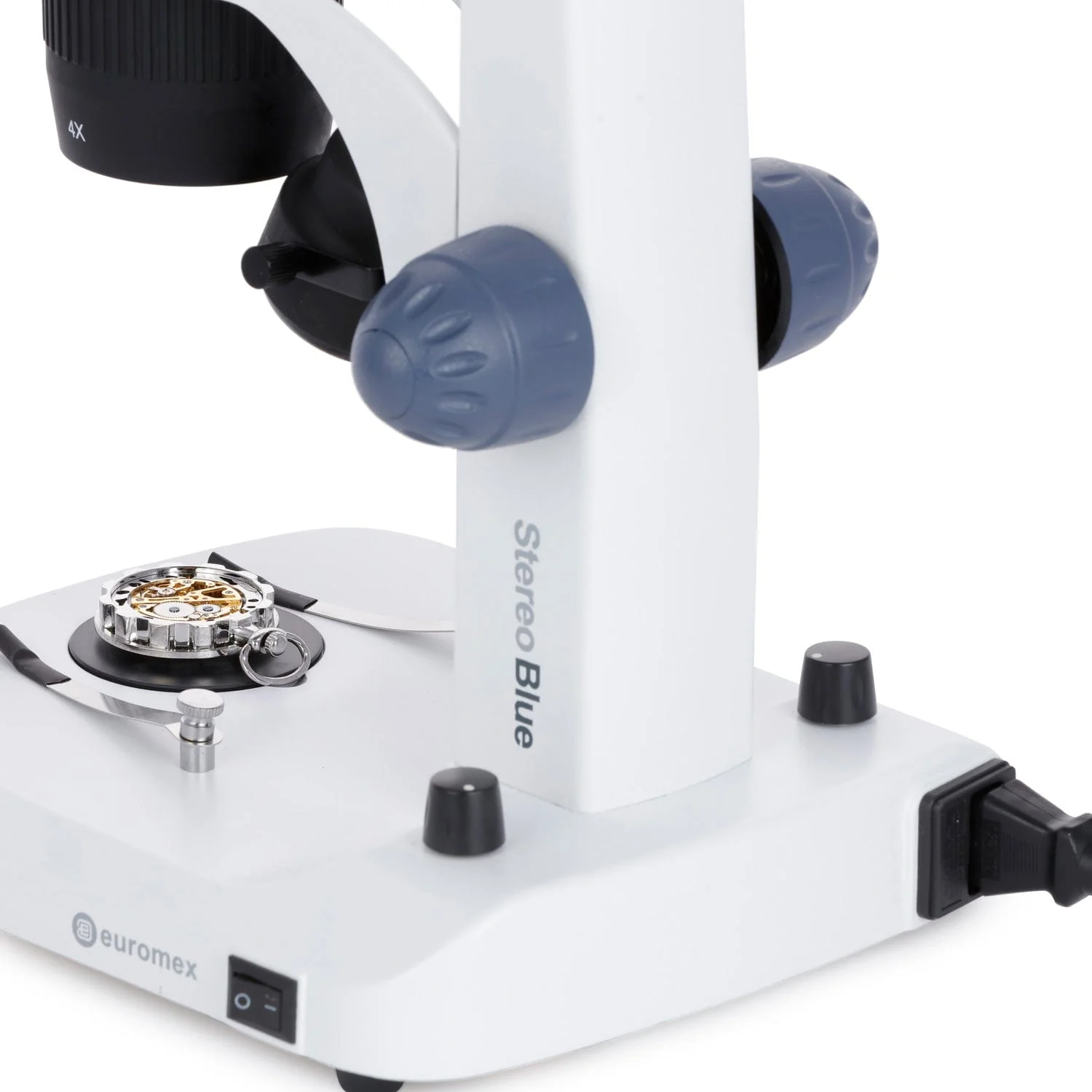

• The rack & pinion stand of the StereoBlue is equipped with an ergonomically designed flat base, complete with two object clamps and Ø 60 mm transparent and black/white stage plate.
• The coarse adjustment is equipped with tension control.
• The stands are alloy metal cast with hardened coating.
ILLUMINATION
• With 3W transmitted and incident LED illuminators which can be used simultaneously or adjusted separately.

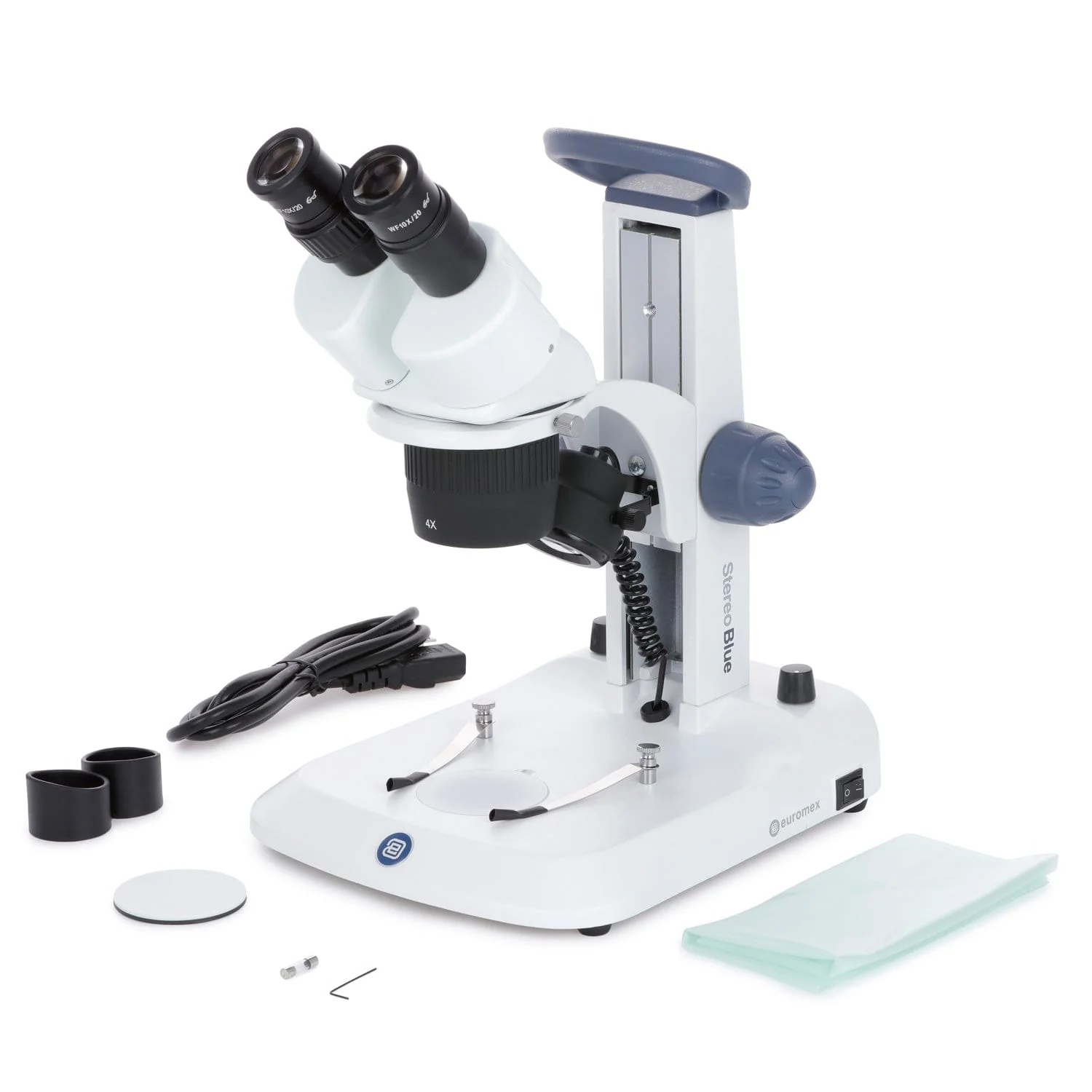

Supplied with power cord, dust cover, eyecups, a spare fuse, Ø 60 mm transparent and black/ white stage plates, and user manual. All packed in a polystyrene box
The spare fuse, Ø 60 mm transparent, and black/ white stage plates are not applicable for -U and -B models
