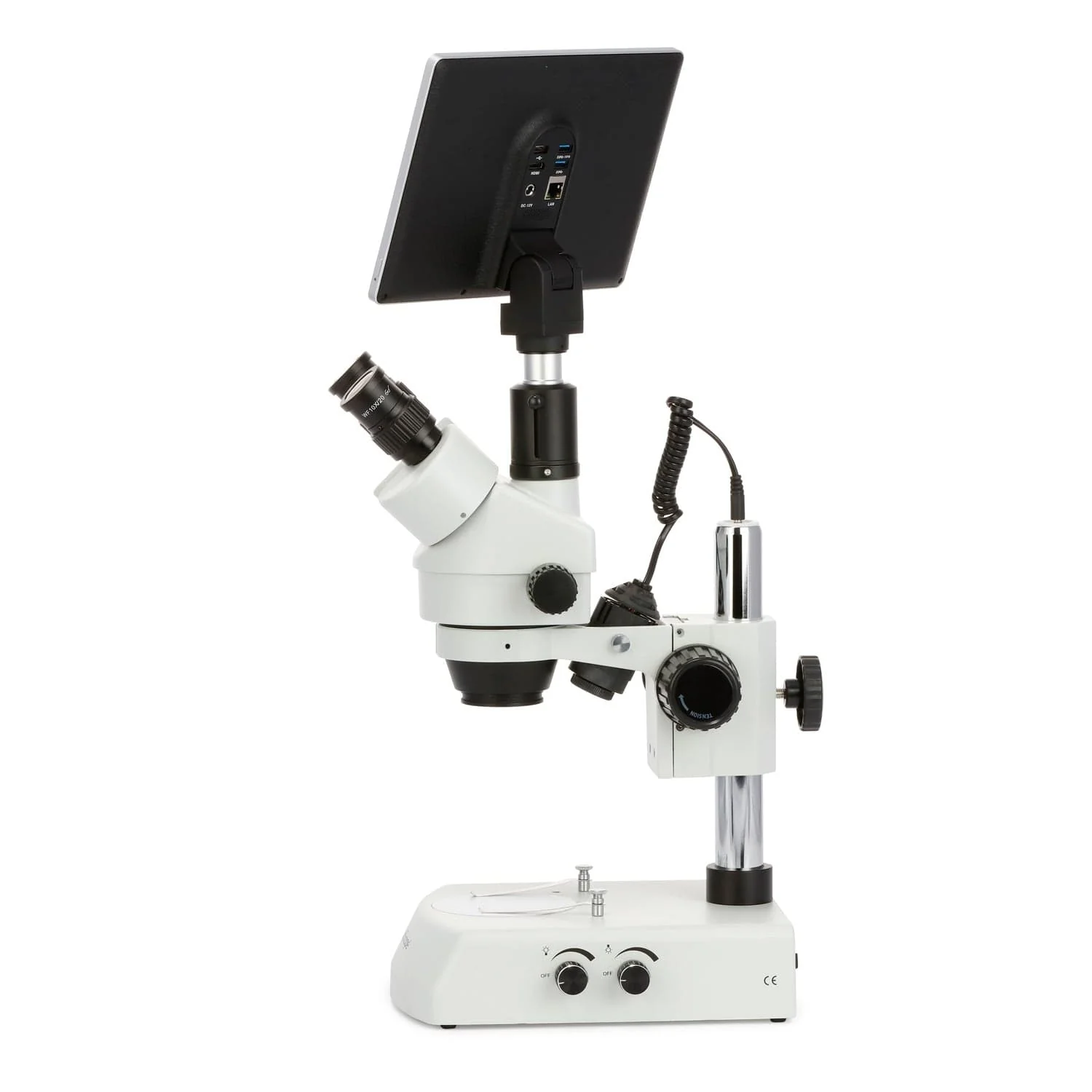

AmScope SM-2 Series Trinocular Zoom Stereo Microscope 7X-45X Magnification on Pillar Stand with LED Illumination + 10.5" Touchscreen 8MP Imaging System

This is a first-class 7X-45X trinocular stereo zoom microscope with LED cool illumination and a touchscreen imaging system. Designed to meet the demands of the modern microscopy applications that are temperature-sensitive, like dissecting live tissues or observing live creatures, this scope exceeds all expectations. It incorporates all the most excellent features of a high quality laboratory instrument. This microscope comes with SUPER widefield optics and versatile LED illumination system that provides both incident (top) cool lighting and transmitted (bottom) cool illumination. You can choose between incident illumination shining down onto the object or transmitted illumination through the frosted stage plate. The first is used for the observation of three-dimensional objects and the second for the inspection of the objects that allow light to get through them. This microscope offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images, wide zoom magnification range, and large working distance. Its 45 degree inclined 360 degree swiveling trinocular head ensures an easy observation and rubber eyeguards provide further comfort. This microscope is especially useful for the applications that need cool illumination. It can be used in biology, forestry, archaeology, and agriculture. It is appropriate for educational purposes in hospitals and schools. It is perfect for the examination of insects, plants, or virtually any three dimensional temperature-sensitive objects.

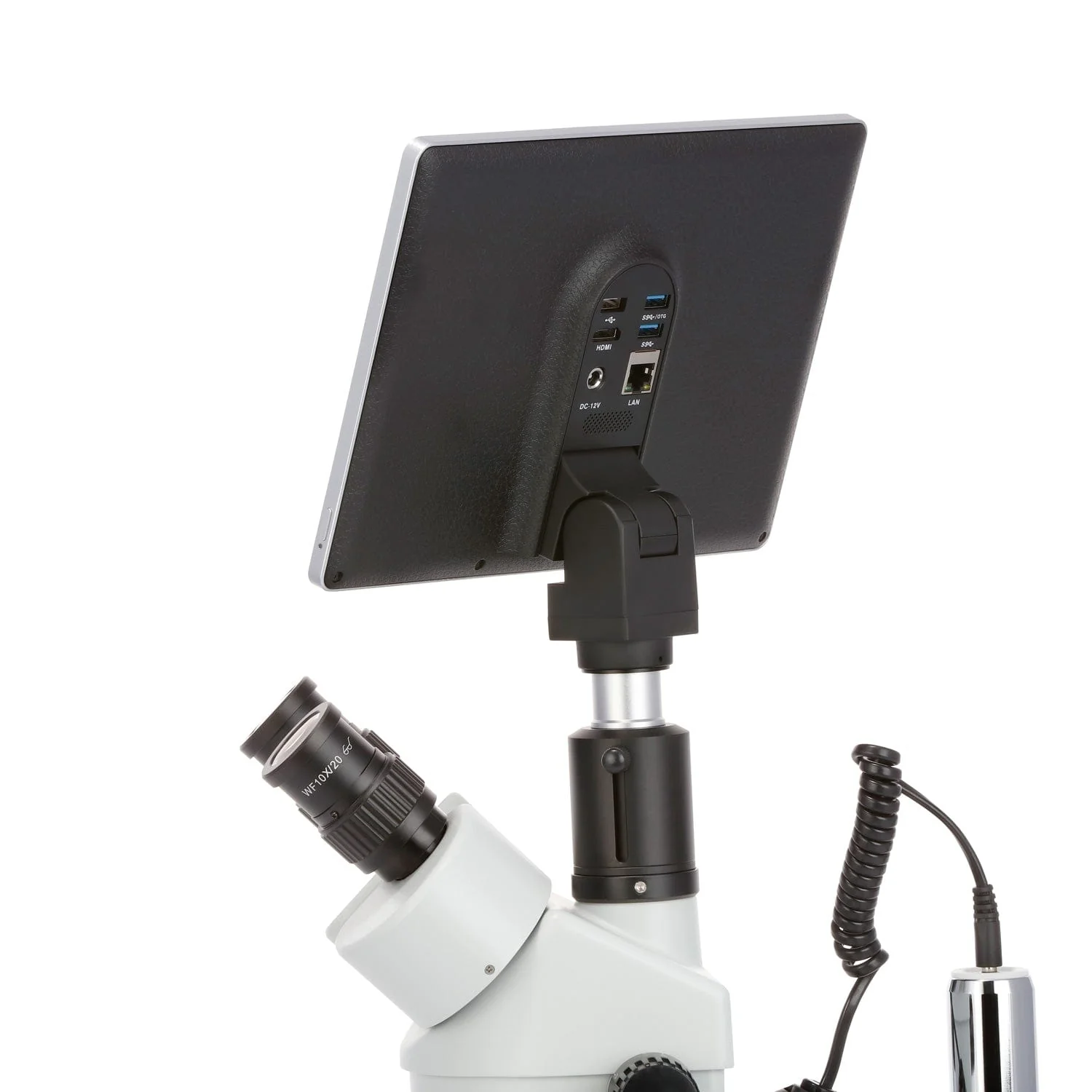

The 10.5" color touchscreen imaging system offers great color, smooth images, and a multi-touch screen, this system is ideal for educational and industrial applications. It reduces eye fatigue and can be used for multiple users of the same microscope, demonstrations, and teaching purposes with ease. You can adjust white balance, exposure time, and other features easily. You can save your pictures to internal memory or an external storage device like a USB Flash Drive or Hard Drive (optional accessories). This system has an integrated 8MP camera which allows for high-speed, high-quality image-capture. You can also focus through the screen instead of the microscope eyepieces when needed. The TouchPad also utilizes a specially-designed image-processing chip which allows for dynamic-range improvement and high image-detail quality. It provides solid results for microscopy imaging applications.

Features:

• A great microscopy system for temperature-sensitive applications
• 7X-45X large zoom range continuous magnification
• LED incident (top) cool lighting and transmitted (bottom) cool illumination
• Includes a 9.7" tablet with an integrated camera for digital imaging
• 4" (100mm) Large working distance
• 45 degree inclined trinocular head with SUPER widefield eyepieces
• High-eyepoint design for easy observation including eyeglass wearers
• 23 mm upright tube for photo or video accessories
• 30mm SUPER widefield eyepieces (see the difference in the above picture) included
• High resolution with great flatness and contrast
• Sharp stereo erect images over a SUPER widefield of view
• Crystal clear original true color images
• Both ocular-tubes with adjustable diopter
• Metal pillar stand finished with stain resistant enamel
• Accurate alignment ensuring a fatigue-free long time view
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical components
• Adjustable interpupillary distance
• Rubber eyeguards included
• CE approval electric apparatus
• Manufactured under restrict ISO 9001 quality control standards
• Five (5) year manufacturer warranty



Microscope Specifications:

• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepiece: 30mm super wide field high-eyepoint WF10X/20
• Objective: 0.7X-4.5X
• Zoom Range: 6.5:1
• Maximum Field of View: 1-1/4" (31.75mm)
• Minimum Field of View: 3/16" (4.75mm)
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55mm-75mm)
• Working Distance: 4" (100mm)
• Frosted Glass Plate: 3-3/4" (95mm) in diameter
• White/Black Plastic Plate: 3-3/4" (95mm) in diameter
• Incident (Top) Illumination: LED
• Transmitted (Bottom) Illumination: LED
• Power Supply: 100-240VAC 50/60Hz wide-band
• Accessories: dust cover, eye-guards and clips

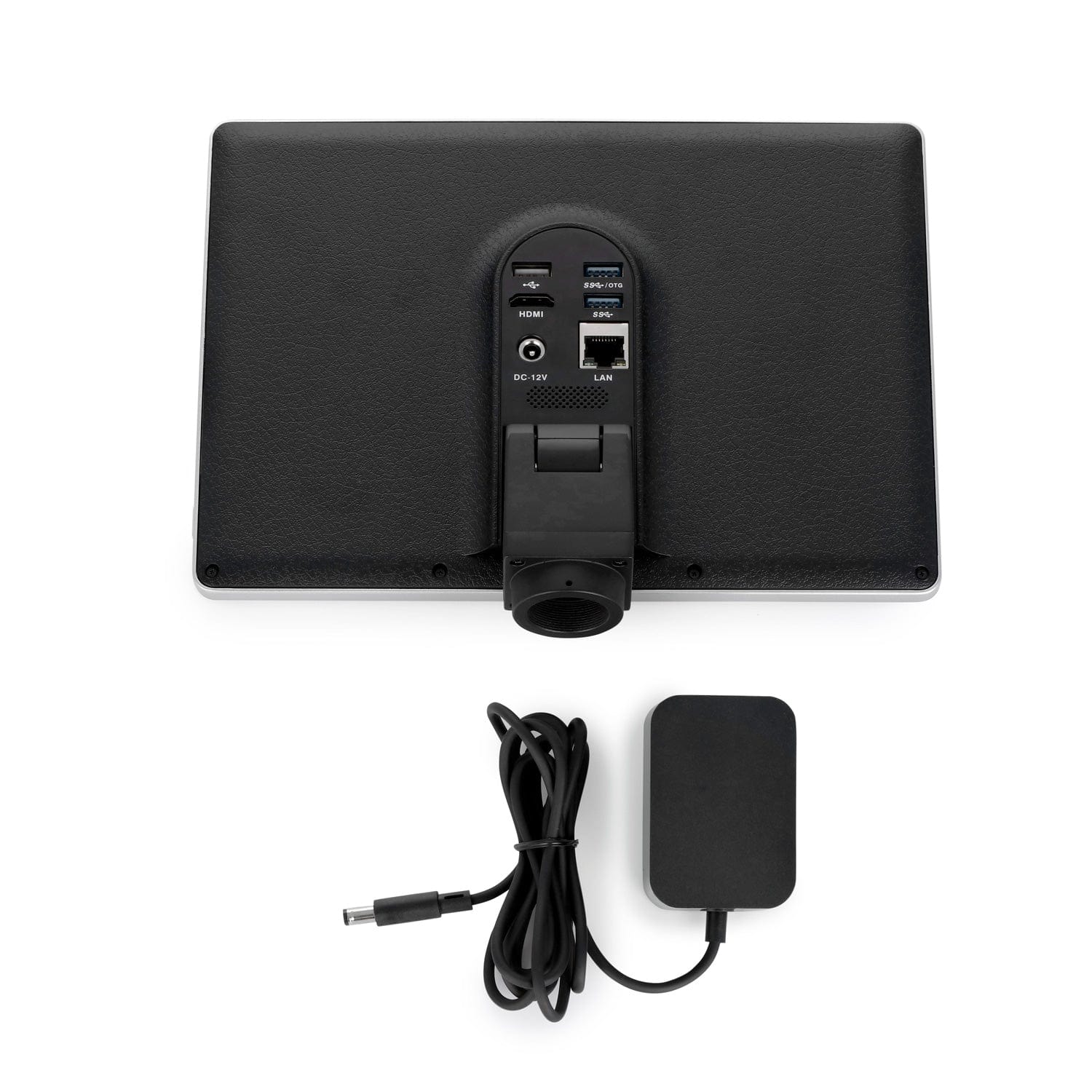

Tablet Imager Specifications:

• Display: 10.5" 1920 x 1280 Color LCD Touch Screen
• Built-in Camera: 8.0 Megapixel Color Camera
• Still Image Capture: 3840 x 2160
• Video Capture: 30fps @3840 x 2160
• Built-in Software: Capture/Measurement App
• Mechanical Structure: LCD Screen 360° horizontal rotatable; LCD Screen 90° vertical rotatable
• Operating System: Android 11
• CPU: RK3568
• Memory: 2G
• Storage: Internal 32GB or External Drive
• HDMI Display: Yes
• Output Ports: 1X USB Mouse port, 2x USB port, 1x HDMI Port, 1x LAN Port
• Power Supply: 12V/1A, 110-220VAC



Packing List:

• One Trinocular Stereo Zoom Head
• One Pair of Super Widefield High-Eyepoint 10X Eyepieces
• One LED Top Light

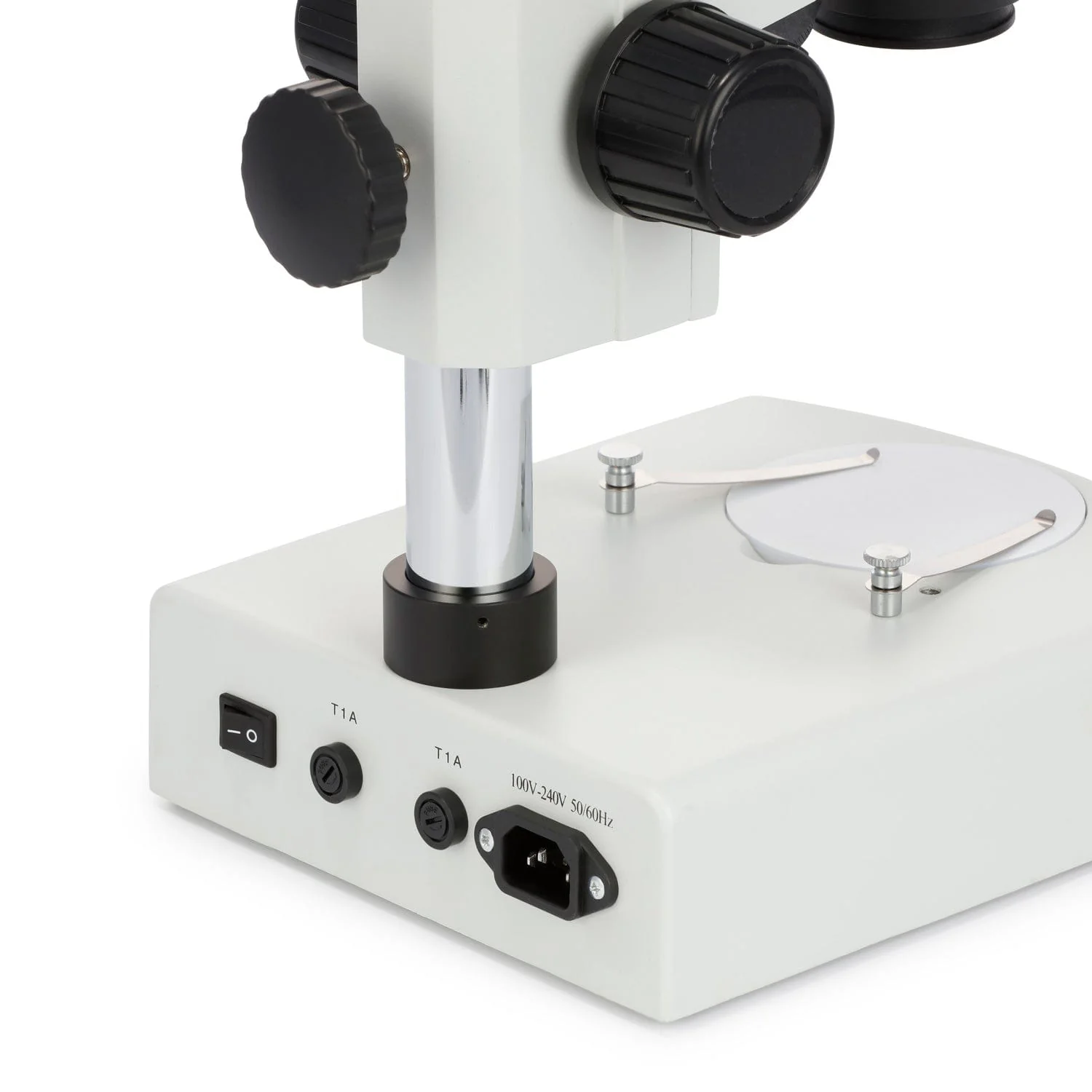

• One Pillar Base with LED Bottom Light
• One Focusing Rack
• One Frosted Round Glass Plate
• One White/Black Round Working Plate
• One Power Cord
• One Pair of Clips and One Pair of Eye-guards
• One Dust Cover
• One Touchscreen Imaging System
