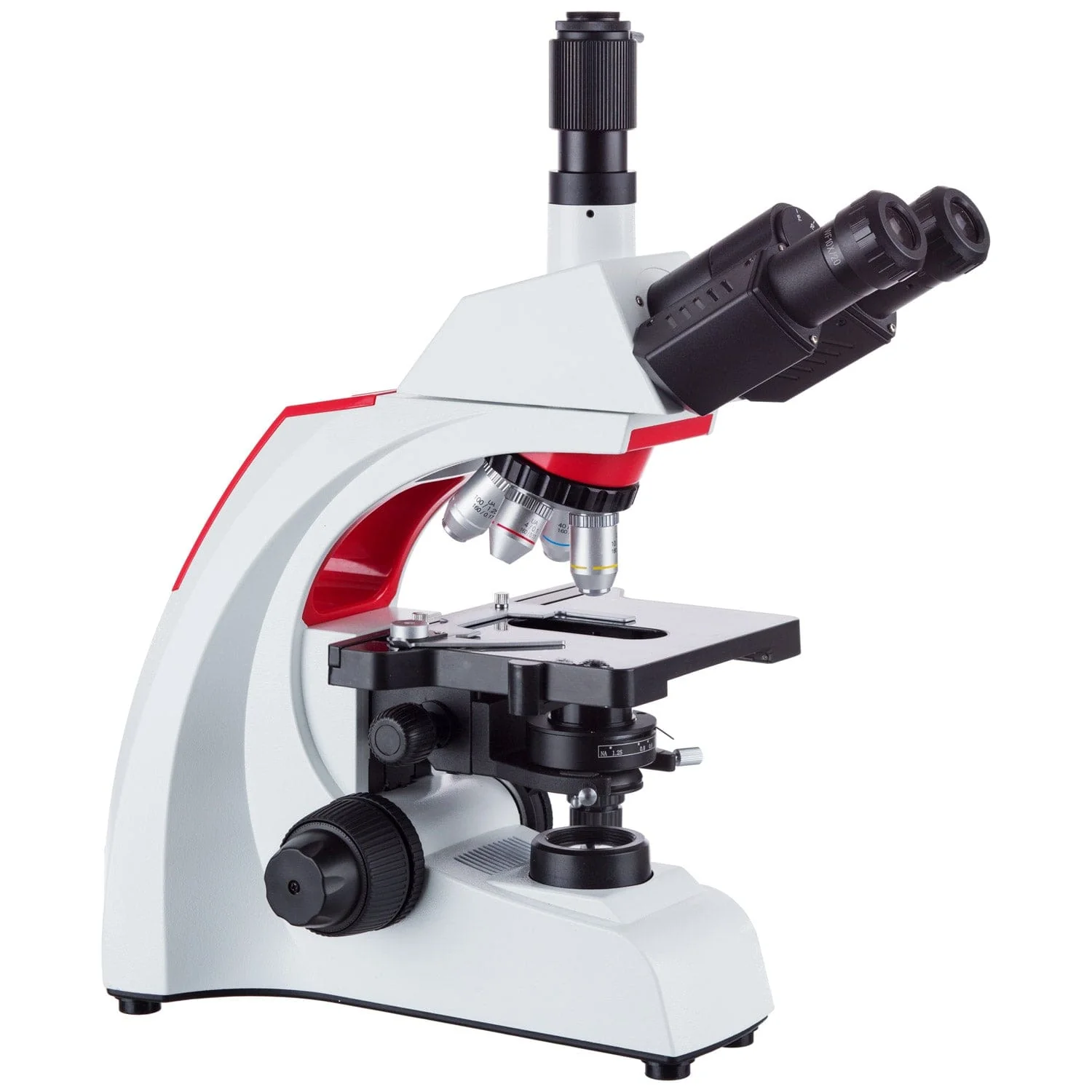

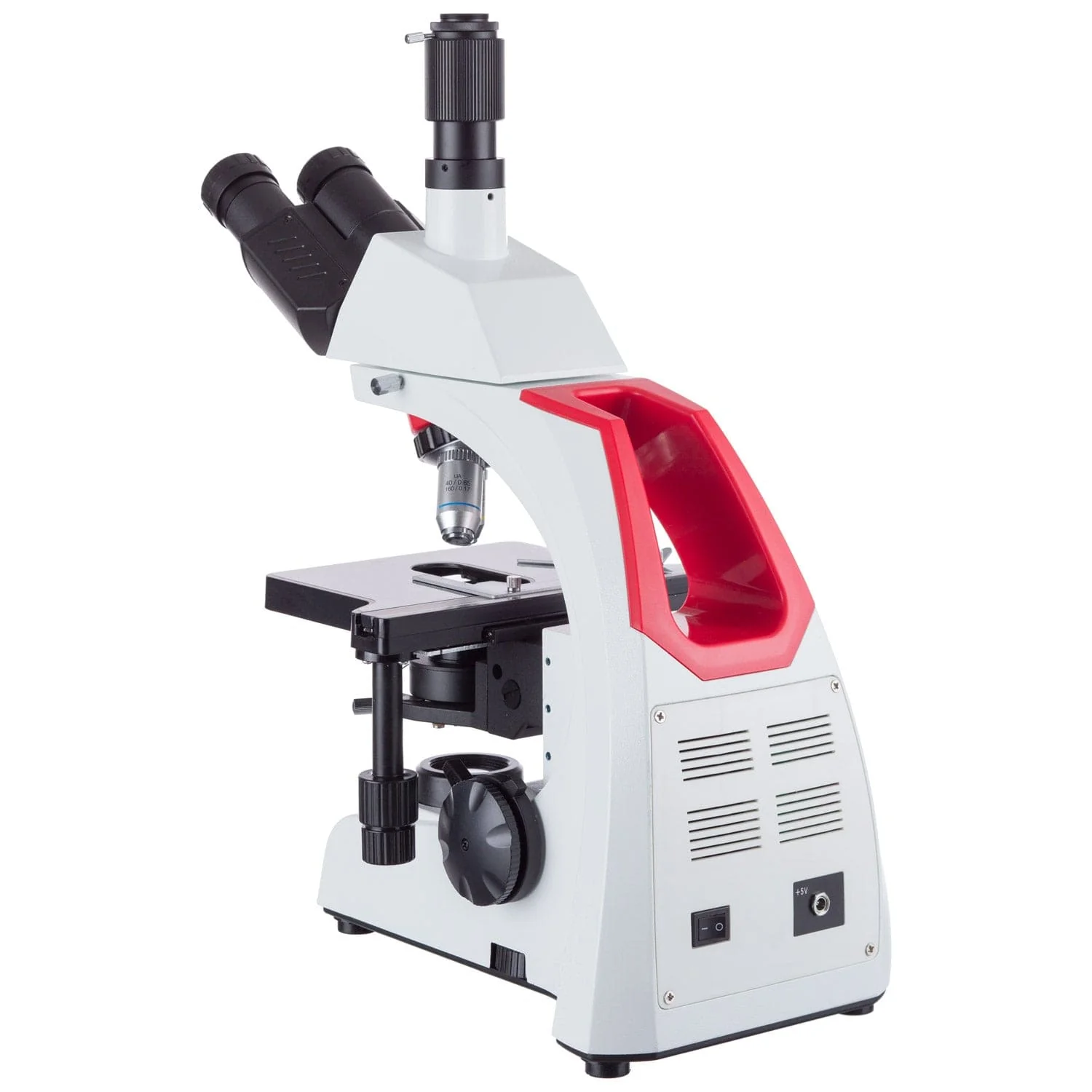

AmScope T430 Series Student and Professional Biological Trinocular Compound Microscope with port for Digital Cameras

This is a trinocular compound microscope designed for biological applications. Ideally suited for classrooms, clinics, and entry-level research, the microscope features high-grade achromatic optics, including 4 objective lenses (4X, 10X, 40X, 100X) and a pair of eyepieces (10X). The expansive 40X to 1000X magnification covers a good range of biological subjects.

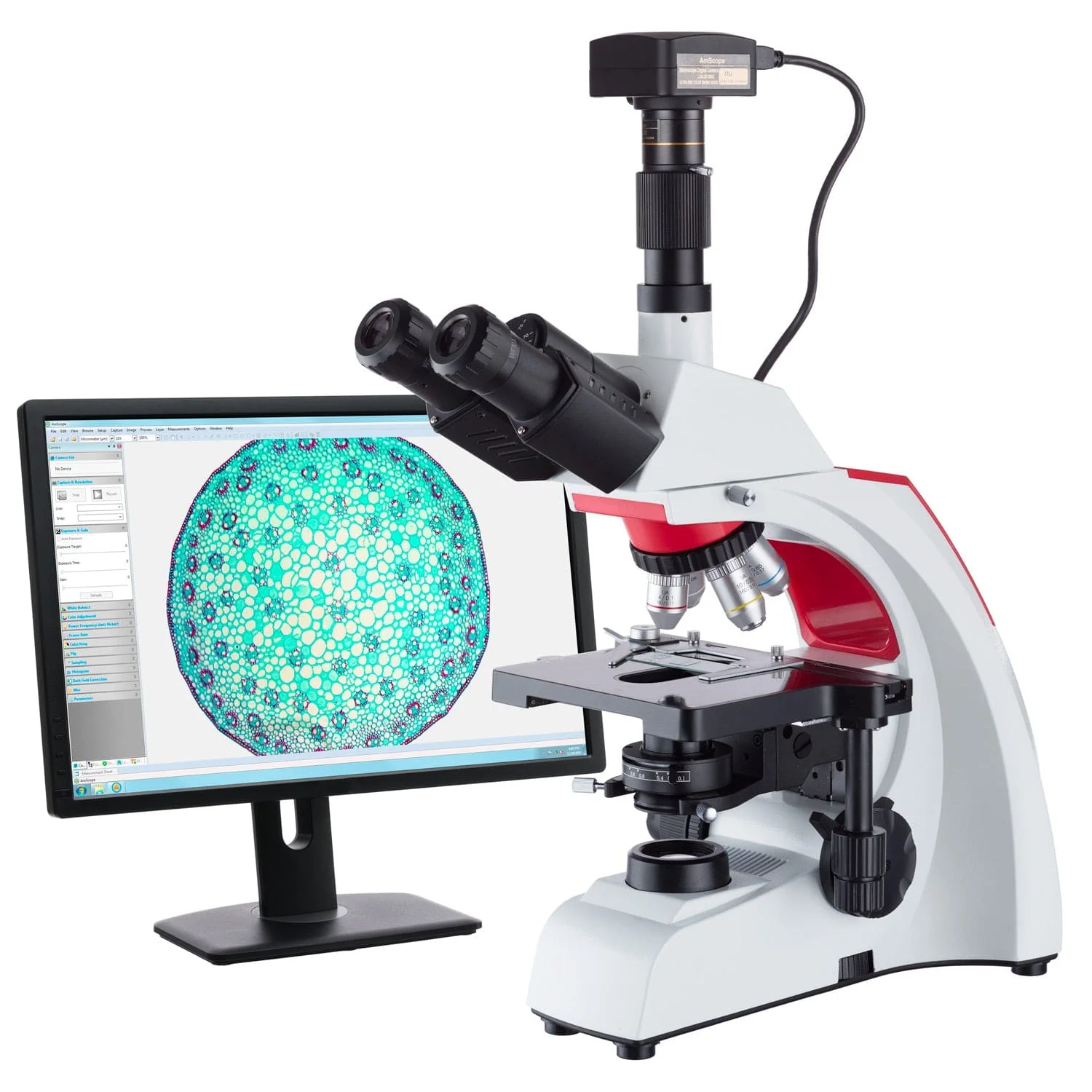

The Siedentopf head provides compensation-free interpupillary adjustment, and a diopter allows for the correction of ocular disparity. The trinocular photo-port is designed for both 23mm ocular or reduction lenses, and direct C-mount coupling. The port is height-adjustable to aid in parfocal adjustments.

Features:

30-degree inclined, 360-degree swiveling Siedentopf trinocular head

High quality precise optical glass elements

Four magnification settings: 40X,100X,400X,1000X,

Adjustable interpupillary distance

Variable intensity illumination

Coaxial coarse and fine focus adjustment

Centerable NA 1.25 Abbe condenser with iris diaphragm

Manufactured under ISO 9001 Quality Control Standard

Excellent Five (5) Year Manufacturer Warranty



Specifications:

Eyepieces: widefield, 10X/FN18mm

Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

Head: 30-degree inclined 360-degree swiveling Siedentopf trinocular

Interpupillary distance: 2-1/4"" - 3-1/8"" (55mm - 77mm)

Adjustable left ocular diopter

Nosepiece: reversed quadruple

Mechanical Stage: 3-D double layer

- Size: 120mm x 115mm

- Travel Range (X-Y): 50mm x 35mm

Condenser: Centerable NA1.25 Abbe condenser with iris diaphragm

Illumination: LED light, transmitted, adjustable intensity

Focusing: coaxial coarse & fine knobs on both sides

Power Supply: AC/DC adapter (UL approved) Included

- 100-240VAC, 50/60Hz to 5VDV 2A



Packing List:

One Siedentopf trinocular microscope head

One microscope body frame with double layer mechanical stage and LED illumination

Four DIN standard achromatic objectives, 4X, 10X, 40X and 100X

Two 10X eyepieces

One dust cover

One sample immersion oil

Three glass filters: frosted, yellow, blue

One tension-adjustment wrench

One power adapter
