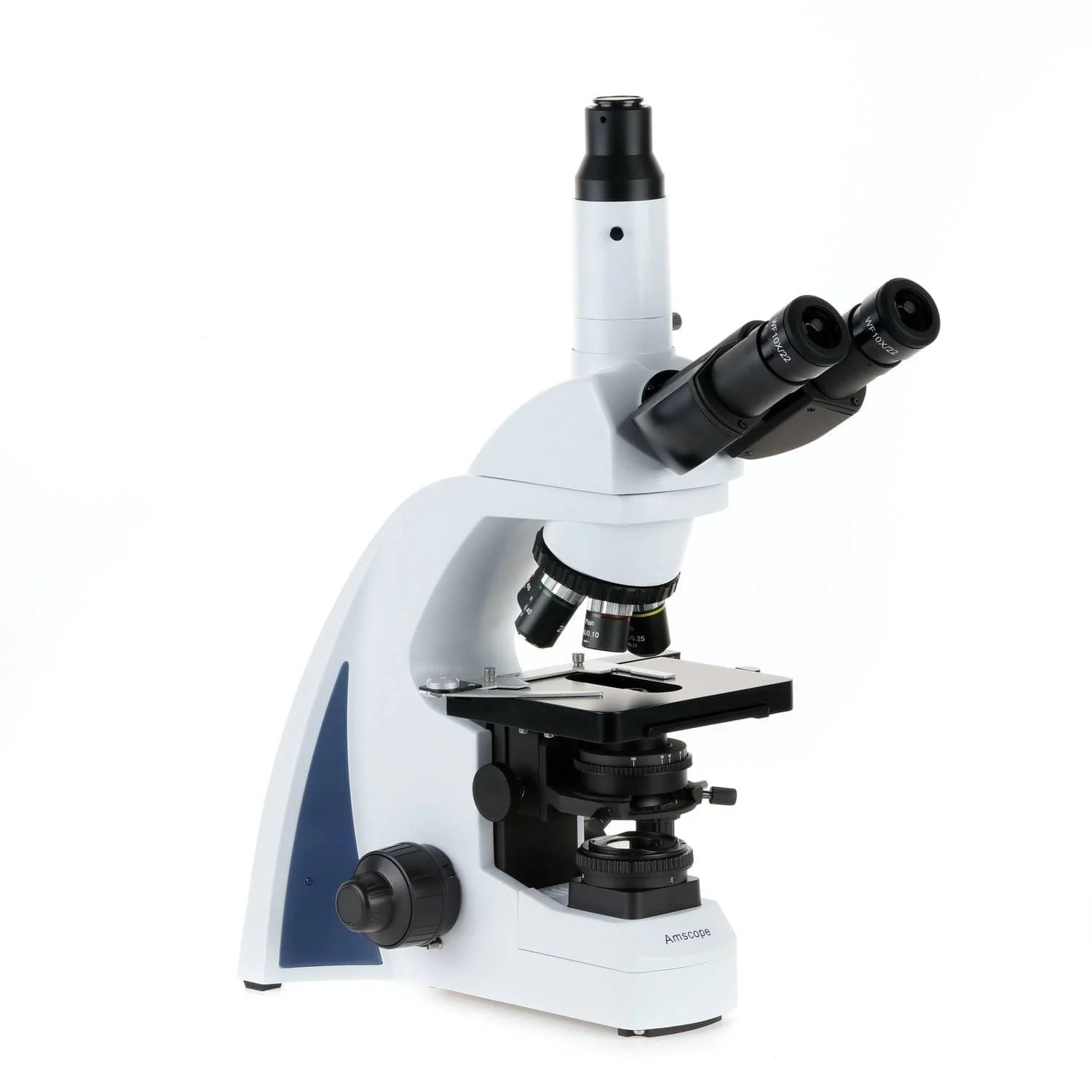

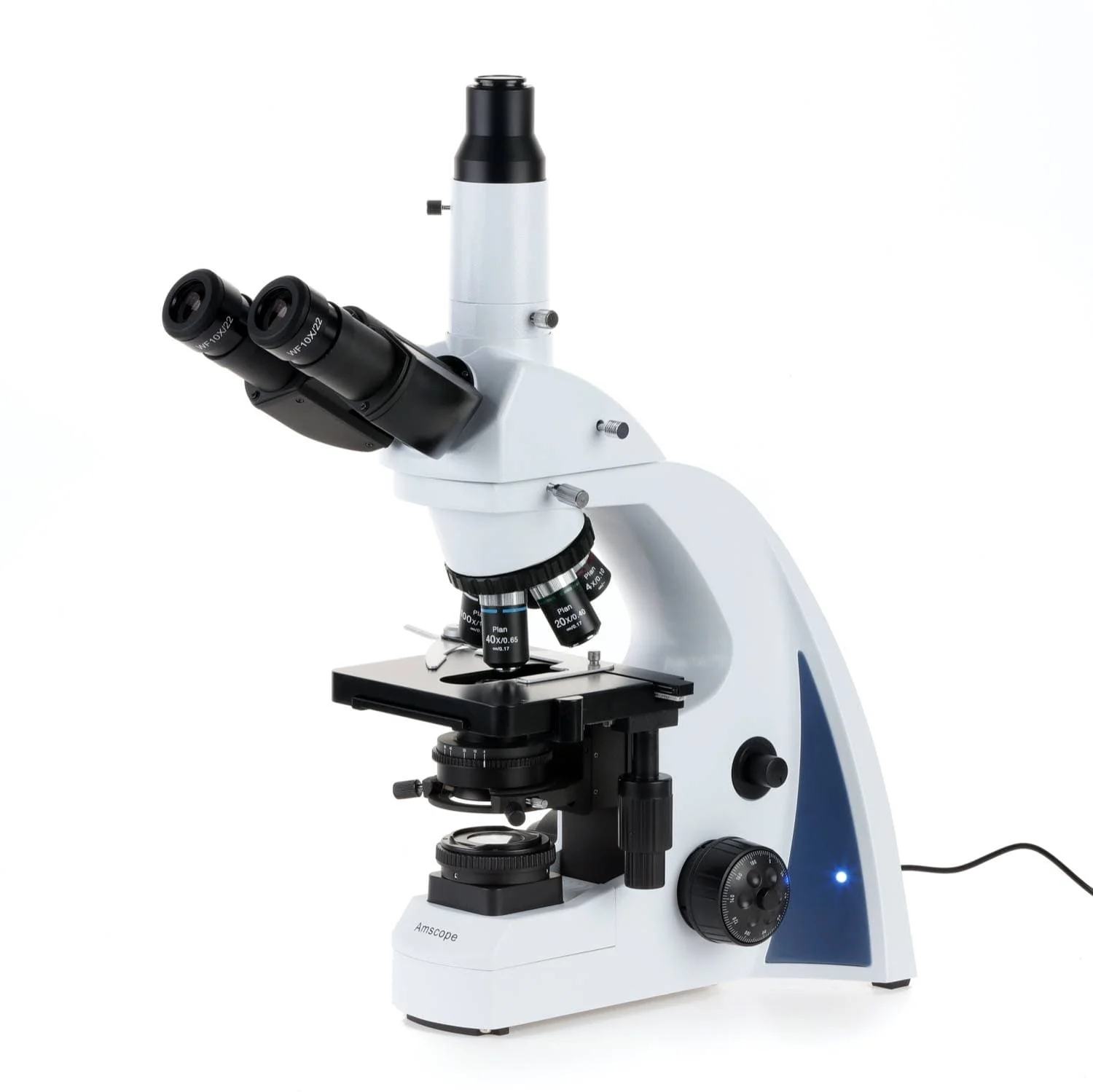

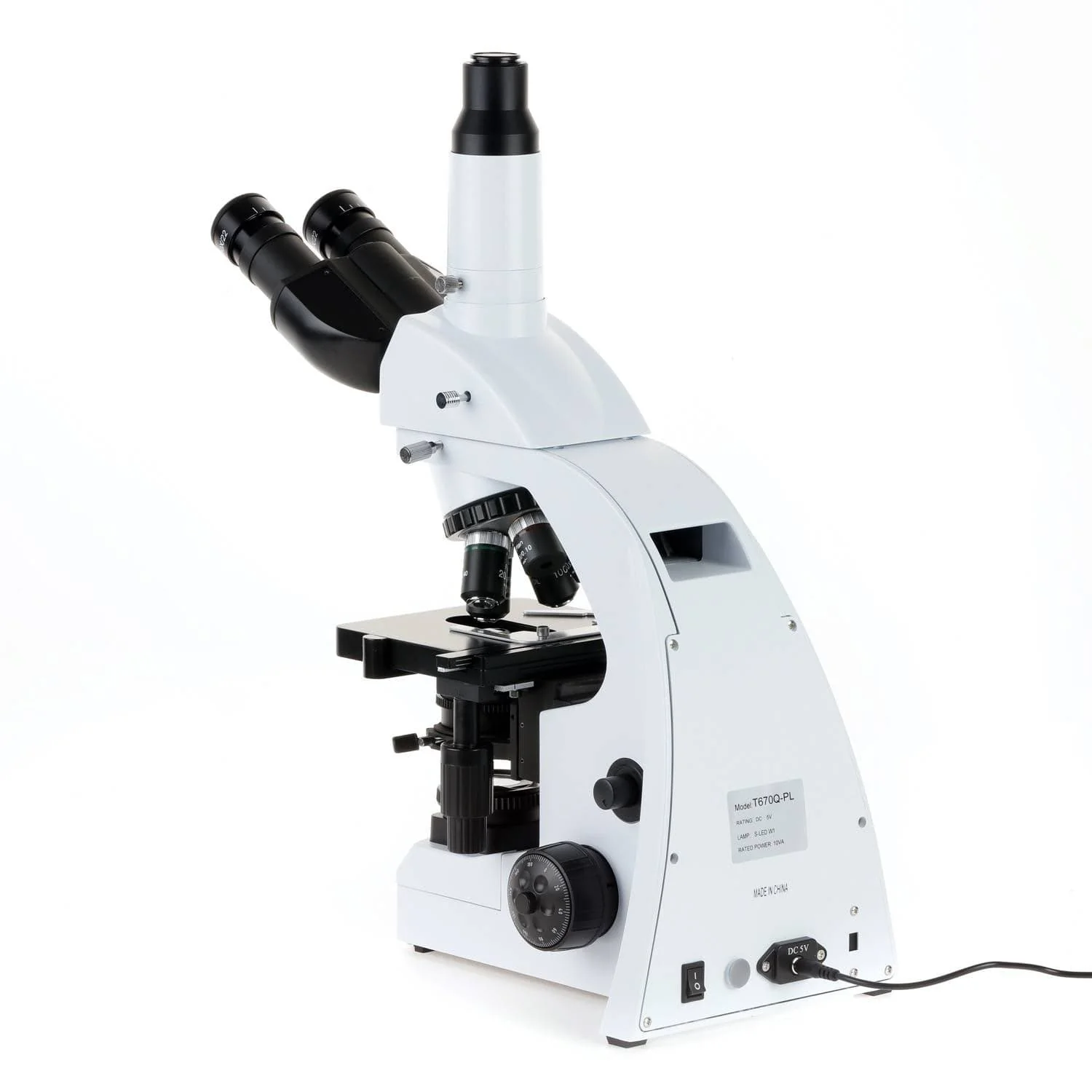

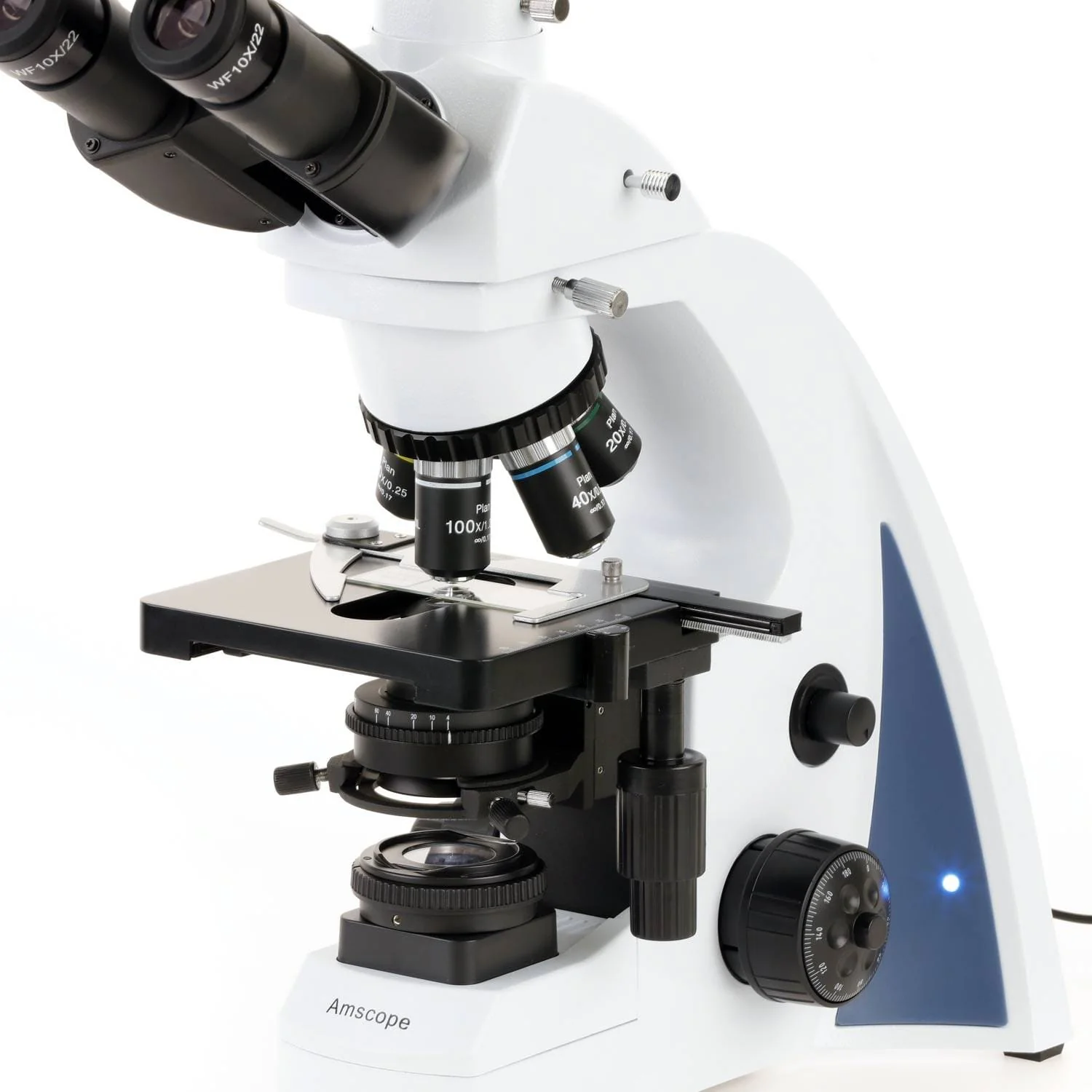

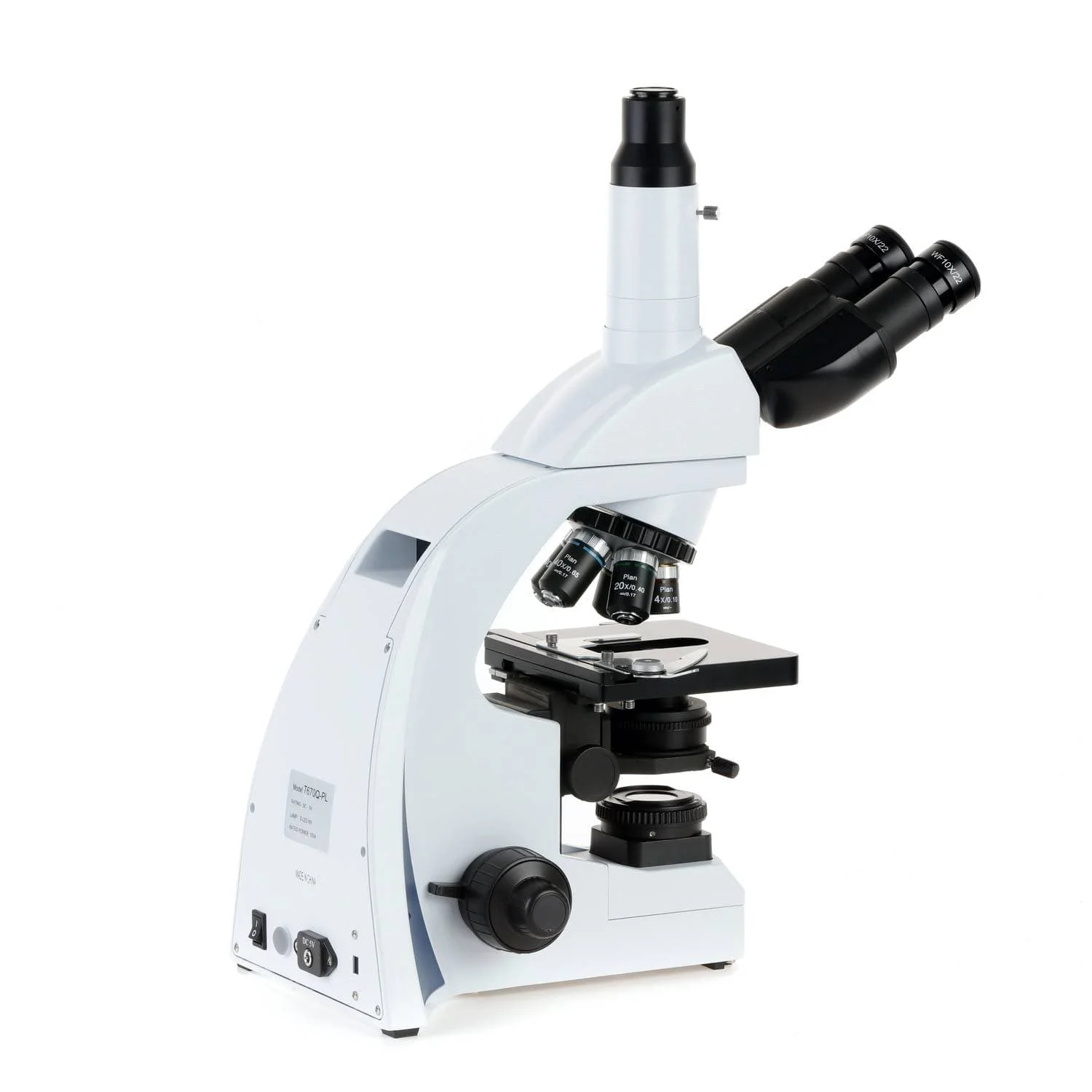

AmScope T670 Series Infinity-corrected Darkfield Trinocular Compound Microscope with LED Koehler Illumination, Quintuple Nosepiece and Optional Digital Camera

This is an infinity-corrected biological compound microscope with LED-based, Koehler-brightfield and darkfield illumination. The infinity-corrected optical system allows for introduction of inline-components without the limits of a finite tube-length. This includes episcopic illuminators, such as a fluorescence kit. The quintuple nosepiece provides quick access to five objective lenses (4X,10X,20X,40X,100X). The Plan achromatic objectives provide excellent correction for both chromatic abberation and field geometry. With the 10X wide-field eyepieces, the magnification ranges from 40X to 1000X. The Siedentopf head-design allows for compensation-free interpupillary-adjustment. Following Koehler illumination principles, the LED light-source provides bright, even illumination with a field-diaphragm for precision control.

The addition of dry and oil darkfield condensers expands the versatility of this microscope by providing a means to view translucent and transparent specimens. This is an ideal instrument for clinics and labs, particularly in the field of blood-analysis.

Features:

Infinity-corrected optical system with Koehler illumination

Includes dry and oil darkfield condensers

Reversed quintuple nosepiece

Precision mechanical stage with slide clamp

Ergonomic design

Front-loaded light-housing for easy maintenance

Fully-coated, high-resolution optical system

Variable-intensity LED Koehler illumination system for efficient, even lighting

30°-inclined, 360°-swiveling, trinocular head

Compensation-free Siedentopf interpupillary-adjustment

Five Plan objective lenses: 4X, 10X, 20X, 40X, 100X(oil)

Five magnification levels: 40X, 100X, 200X, 400X, 1000X

Abbe condenser with iris-diaphragm and swing-out filter-holder

Rack-and-pinion height-adjustment for condenser

Large, double-layer, mechanical stage with stain-resistant finish

Upper-limit stop on stage

Low-position coaxial stage-movement control-knobs

Dual-side coaxial coarse and fine focusing control

Durable cast-alloy frame & with stain-resistant enamel finish

Compatible with a wide range of optional accessories, including phase-contrast, dark-field, and fluorescence kits

Manufactured under ISO 9001 quality-control standards

Excellent five (5) year factory warranty

Specifications:

Optical System: infinity-corrected

Nosepiece: reversed, ball bearing quintuple

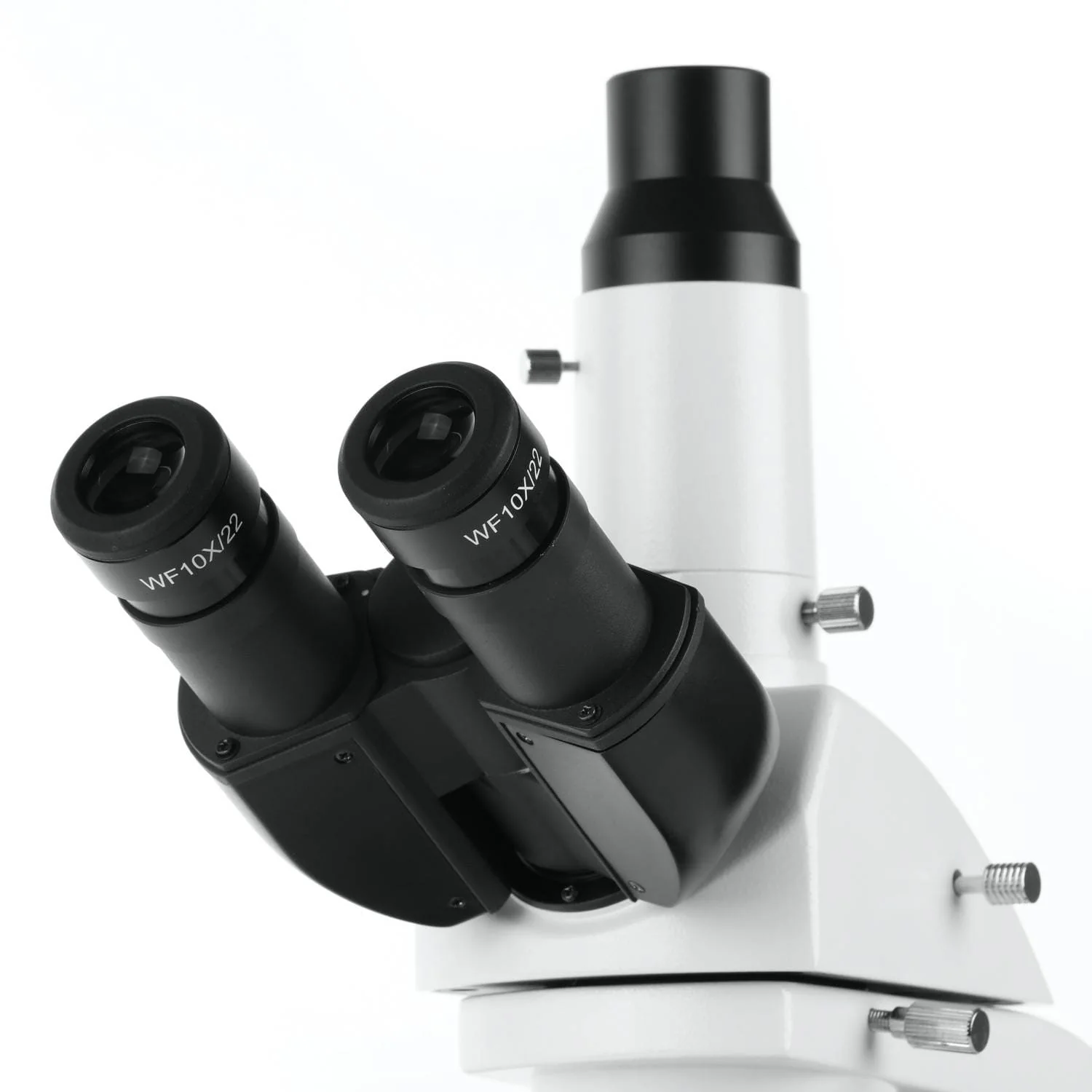

Head: Siedentopf trinocular head, 30-degree inclined

Eyepiece: 10X(FN22mm) focusable

Objectives: Plan 4X, 10X, 20X, 40X (spring), 100X (spring, oil)

Focusing: low position coaxial focus system

Interpupillary Adjustment: 2-3/16" - 3-0" (55 - 75mm)

Mechanical Stage: 7.1"x5.9" (180mm × 150mm)

Stage Travel Range: 3"x 2" (75x50mm)

Division of Fine Focusing: 0.0000787" (0.002mm)

Condenser Mount: front-loading with flange

Mounting Diameter: 37mm

Brightfield Condenser: N.A. 1.25 with iris diaphragm & filter

Darkfield Condensers: N.A. 0.7-0.9 (dry), 1.25-1.36 (oil)

Illumination: Koehler, LED

Power Supply: 85V-230V wide voltage, CE certified

Contents:

One Trinocular Siedentopf Head

One Microscope Body with Koehler Illumination System

Five High Quality Plan Infinity Objectives: 4X, 20X, 10X, 40X and 100X

One Pair of Extreme Widefield 10X Eyepieces

One oil darkfield condenser

One dry darkfield condenser

One Power Cord

One Dust Cover

Immersion Oil
