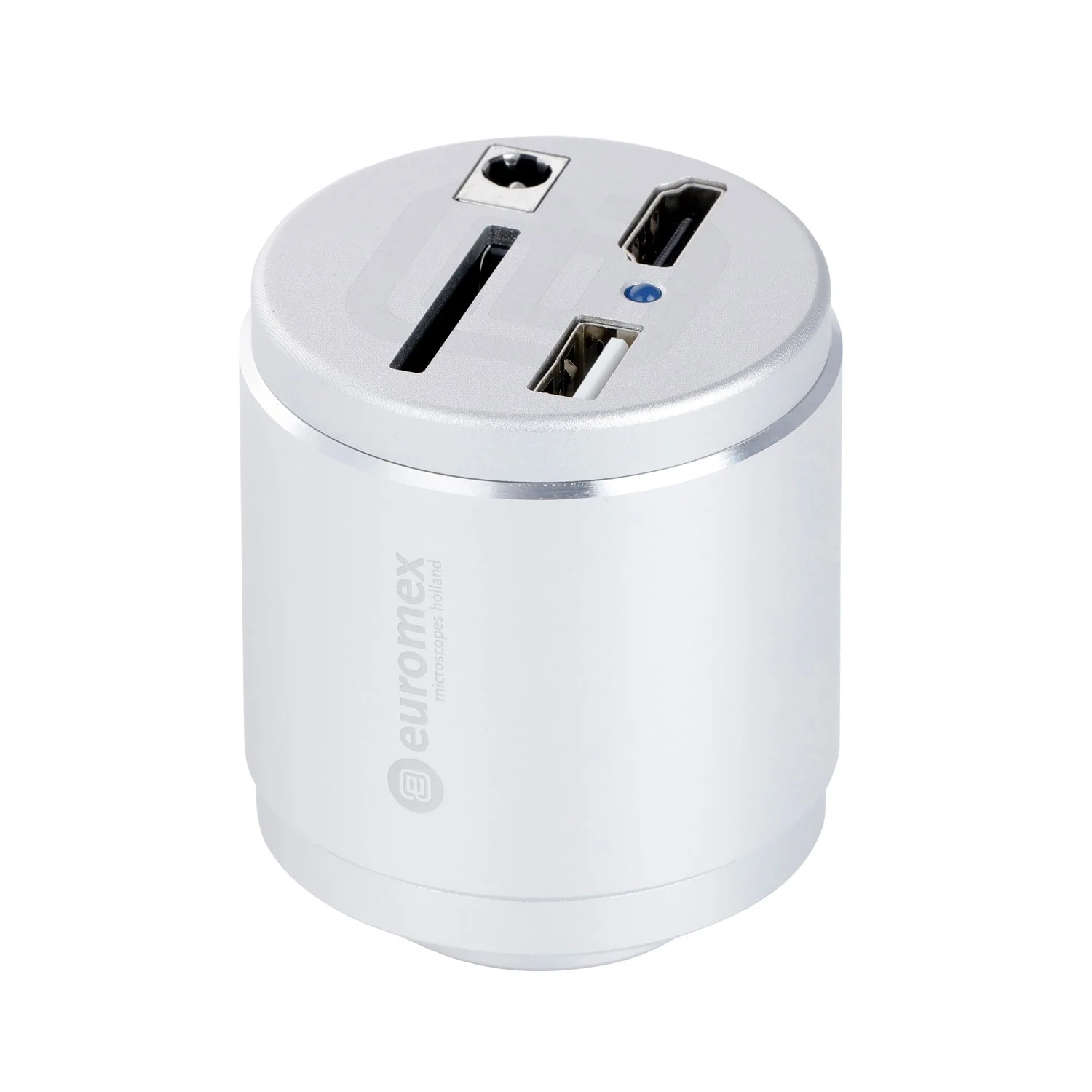

Euromex VC Series HD-Mini HD1080p 2.0MP Color Camera - 1/2.8" Aptina CMOS Sensor with HDMI and USB-2 interfaces

The real-time images generated with these cameras provide excellent color rendering with high frame rates

STAND-ALONE
No need to open or start a computer or any computer knowledge to use this camera. Most camera settings are done automatically and therefore these cameras are very user-friendly. This results in faster, more flexible, and compact working conditions

Simply connect the camera to a high-definition HD screen, TV HD, or HD beamer with an HDMI input, and the system is ready to go. The mouse-driven built-in software of the cameras enables capturing 1920 x 1080 pixels jpg images on the integrated SD memory card

The embedded software of the cameras features functions like
• image and video capture
• white balance
• auto/manual exposure
• zoom in/out
• horizontal/vertical flip
• video freeze/cancel video freeze
• grid
• display/hide the camera control panel
• color adjustment (sharpness/de-noise/saturation/gamma/contrast)
• Wide array of measurement functions

These key properties make the cameras ideal for real-time inspections, educational purposes, and live demonstrations.

TECHNICAL SPECIFICATIONS
Sensor
HDMI 2.0 Megapixels CMOS high sensitive sensor (Sony)

Format
1/2.8 inch, HDTV 1080p

Pixels
1920 x 1080 pixels (capture mode)
1920 x 1080 pixels (live mode)
HDMI 60 fps

Scan mode
Progressive scan

Pixel size
2.9 x 2.9 μm

Noise
3D Noise reduction function

Sensitivity
1300mv/lux-sec

Color rendering
12 Bits

Signal/Noise (db)
42

Dynamic (db)
69

White balance
Automatic/manual/ROI

Interface
HDMI

Storage
Images are saved to a standard high-speed 32 Gb SD memory card (Recommend using an SD card of class 4 or higher and ≤128 Gb).

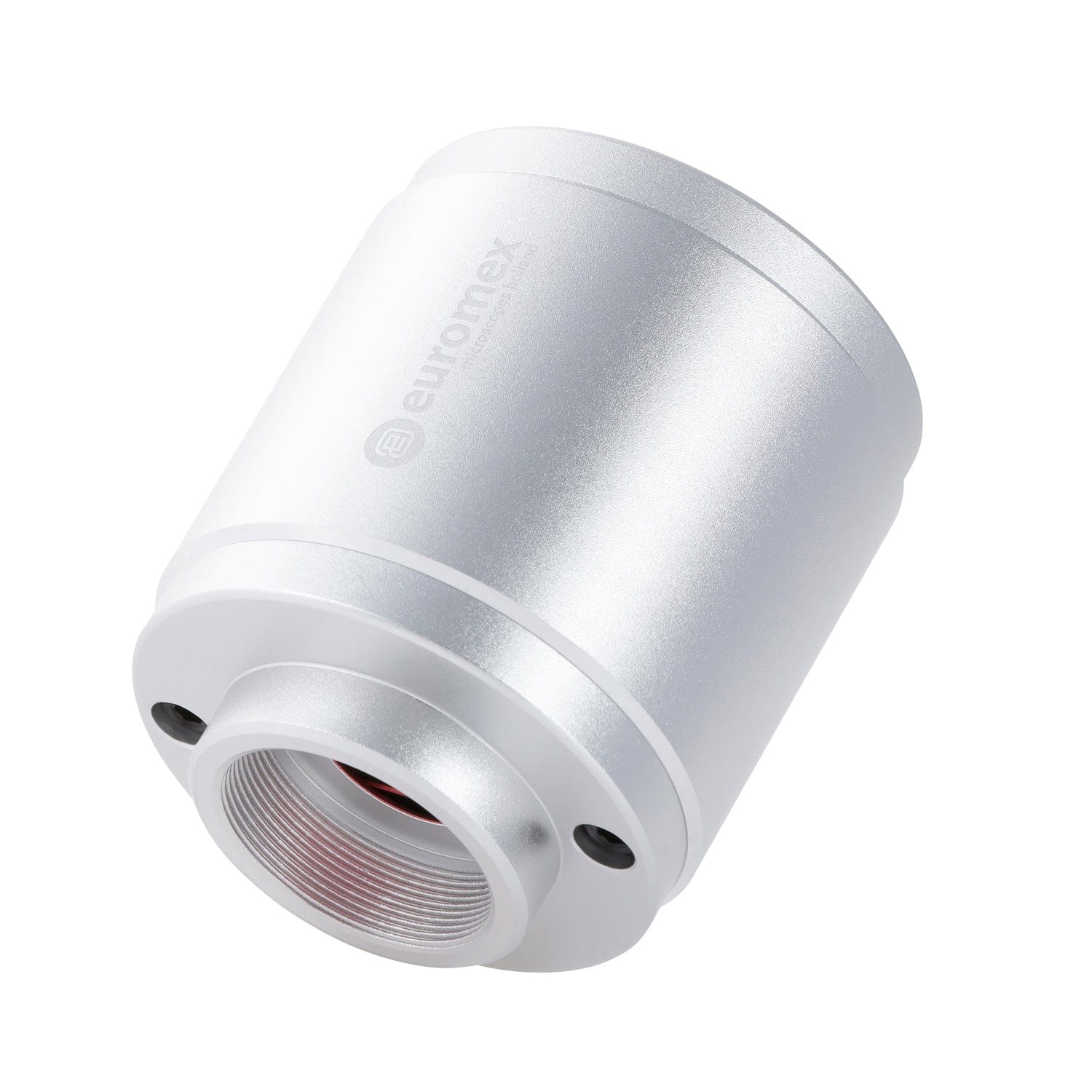

Mounting
C-mount interface

Power supply
DC 12V/ 1A adapter

Operation
-10~ 50 Celsius, 30~80%RH

Storage
-20~ 60 Celsius, 10~60%RH

Supplied with
HDMI cable, DC 12V/ 1A power supply, 32 GB SD Card, USB mouse, 0.5x c-mount adapter, 23.2~30.0/ 30.5mm adapter rings.

Power supply
DC 12V/ 1A adapter

Features included in the on-screen software
Image and Video Capture, White balance, Auto/ Manual exposure, Zoom In/ Out, Horizontal/ Vertical Flip, Video Freeze/ Cancel Video Freeze, Grid, Display/ Hide Camera Control Panel, Color Adjustment (Sharpness/ Denoise/ Saturation/ Gamma/ Contrast), measurement functions.

Compatibility
Suitable for all HDMI screens, monitors, and beamers.

PACKAGING

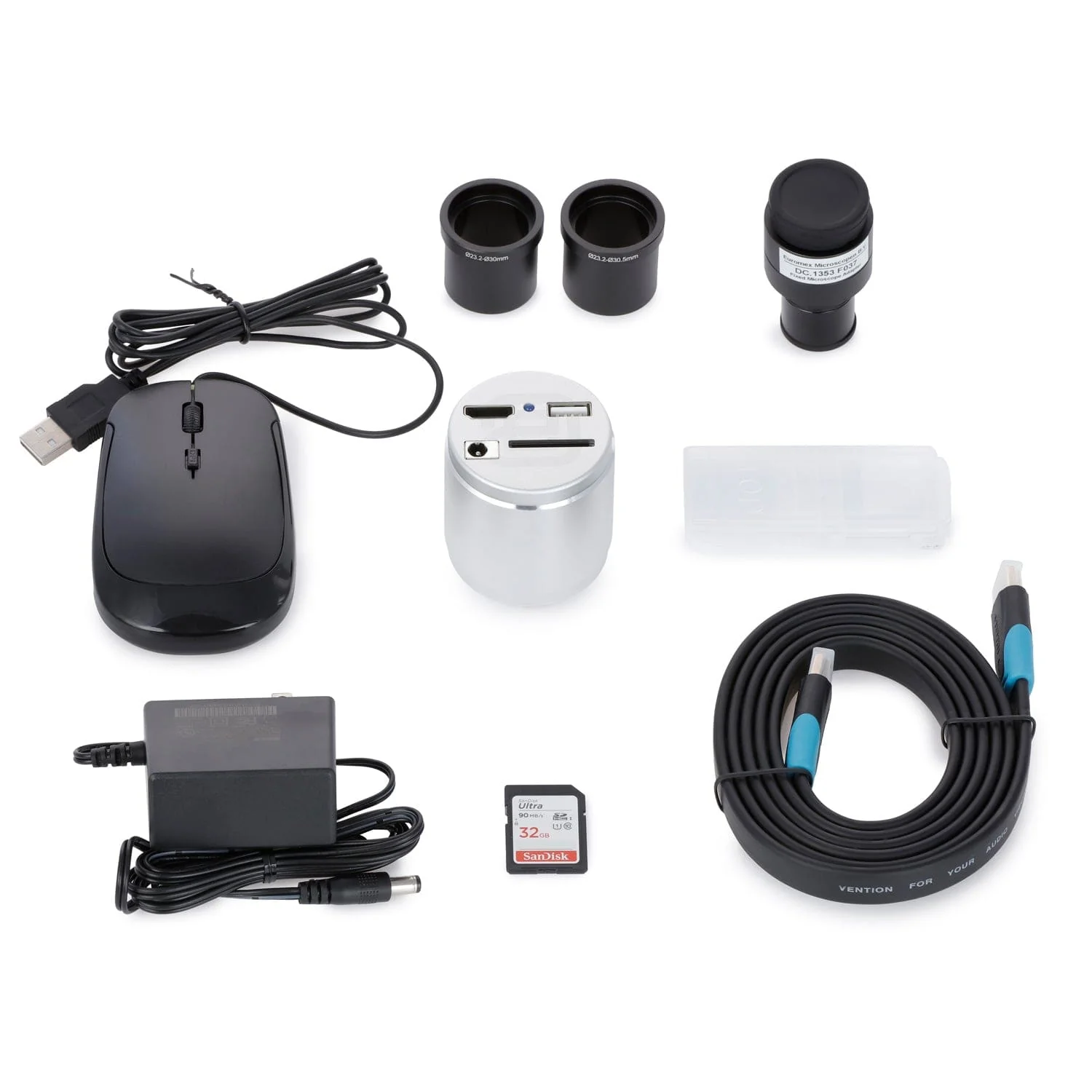

The HD-Mini EVC-3023 1080p camera is supplied with a mouse, a 0.5x C-mount adapter for 23.2 mm tubes, 30.0 and 30.5 mm conversion adapters (for use with stereo microscopes), external 12V /1A power supply, 10/100 calibration slide, a 32 GB SD-card, HDMI cable, and product manual.
