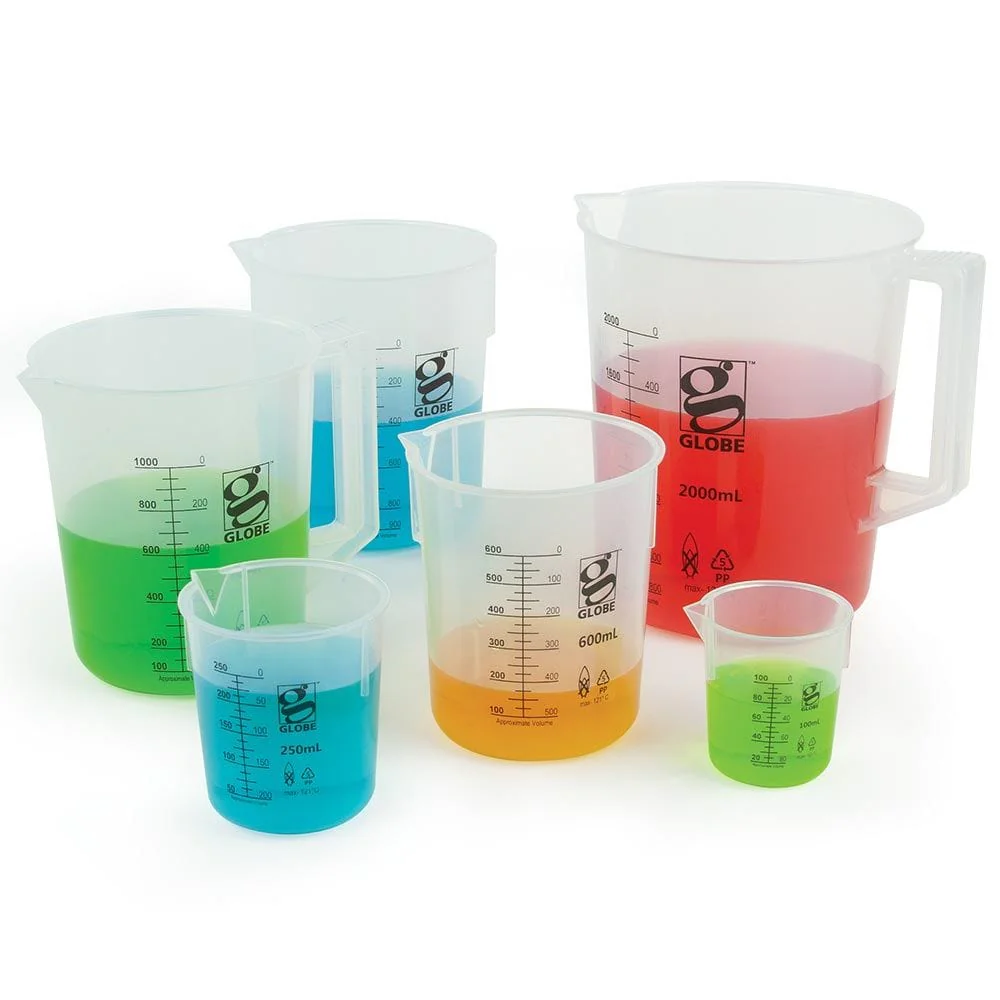

Globe Scientific Diamond Essentials Low Form Griffin Style Beaker w/Printed Graduations

Diamond® Essentials™ Griffin Style Beakers meet the demands for mixing, pouring, stirring, and measuring solutions in many laboratory operations. Available in economic polypropylene (PP) or crystal clear polymethylpentene (PMP), these beakers are the safe, shatterproof alternative to glass in operations where plastic is suitable. Value, quality, and performance
are ensured by precision molding in an automated manufacturing process. The beakers are designed with a single, no drip spout and the beakers with handles facilitate easy pouring.

• Manufactured from virgin, USP Class VI resins
• Complies with FDA 21-CFR and European Pharmacopeia
• Bold, printed, dual scale graduations
• Single non-drip spout
• Autoclavable at 121ºC
• Chemically resistant to most acids, bases, and many common solvents
• Beakers without handles stack to save storage space

Item #	Capacity	Overflow Volume	Graduation Range (mL)	Graduation Intervals (mL)	Top OD	Bottom OD	Height (mm)
3650-50	50mL	75ml	10 - 50	2.5	50	41	60
3650-100	100mL	150mL	20 - 100	5	63	52	72
3650-250	250mL	300mL	50 - 250	12.5	83	68	93
3650-600	600mL	830mL	100 - 600	25	110	92	128
3650-1M	1000mL	1360mL	100 - 1000	50	130	108	150
3650-2M	2000mL	2700mL	200 - 2000	100	150	132	191
3650-5M	5000mL	6350mL	1000 - 5000	250	200	162	262
3650-10M	10000mL	12000mL	2000-10000	500	250	200	328
