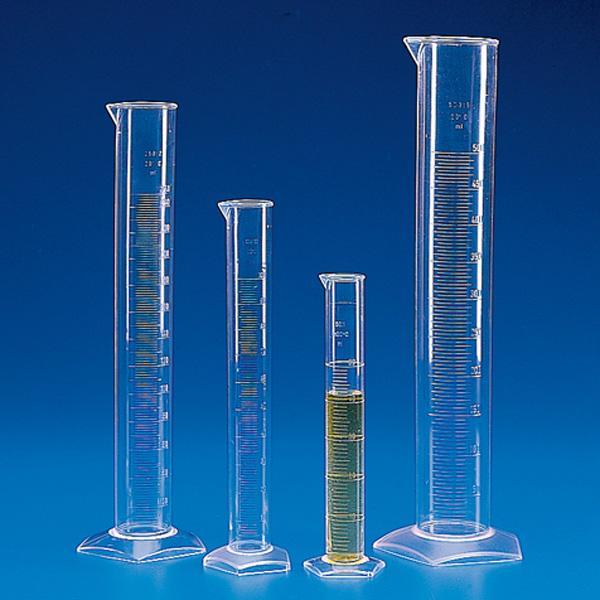

Globe Scientific PMP Graduated Cylinder w/Molded Graduations

These superior quality graduated cylinders are ideal for the safe and accurate measurement of all types of liquids. Our cylinders offer a wide rim and a tapered pour spout for easy filling and pouring. The non-wetting interior surface eliminates concave menisci, providing more accurate measurements. The wide pentagonal shaped base provides stability and makes the cylinder roll-resistant. The heavy-duty plastic withstands repeated autoclaving. Switching from glass cylinders to Globe’s plastic equivalents will greatly reduce breakage and the potential for injury.

DON'T NEED A CASE? BUY BY THE EACH!

• Wide opening and tapered pour spout.
• Shatter-resistent
• Can withstand temperatures of up to 170°C.
• Also known as TPX®, a registered trademark of Mitsui Chemicals.
• Conforms to ISO 6706-1981 (E) and BS 5404 Part 2 (International standards for plastic cylinders).
• Class B Tolerance. (Class B indicates the tolerance of the graduation marks in accordance with ISO 6706 & BS 5404)
• Crystal clear polymethylpentene (PMP).

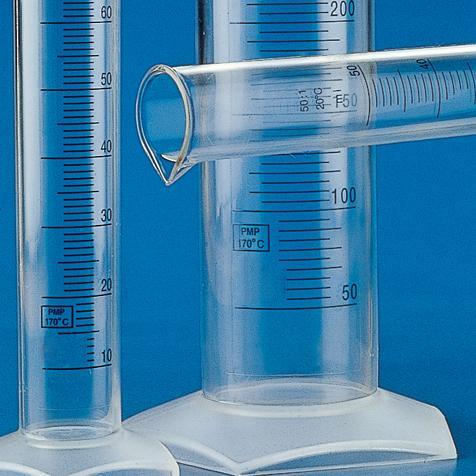

• Molded graduations.
• Graduated in milliliters (mL).
• Chemically resistant to most acids, bases and many common solvents.
• Autoclavable at 121°C for 20 minutes.

Cylinder Size:	Height	Outer Diameter	Graduation Range	Graduation Intervals	Tolerance
10mL	140mm	13.5mm	1 - 10mL	0.2mL	+/- 0.2mL
25mL	195mm	18.5mm	5 - 25mL	0.5mL	+/- 0.5mL
50mL	199mm	26mm	10 - 50mL	1mL	+/- 1mL
100mL	249mm	31mm	10 - 100mL	1mL	+/- 1mL
250mL	315mm	41.5mm	20 - 250mL	2mL	+/- 2mL
500mL	361mm	55mm	50 - 500mL	5mL	+/- 5mL
1000mL	439mm	66mm	100 - 1000mL	10mL	+/- 10mL
2000mL	531mm	84mm	200 - 2000mL	20mL	+/- 20mL
