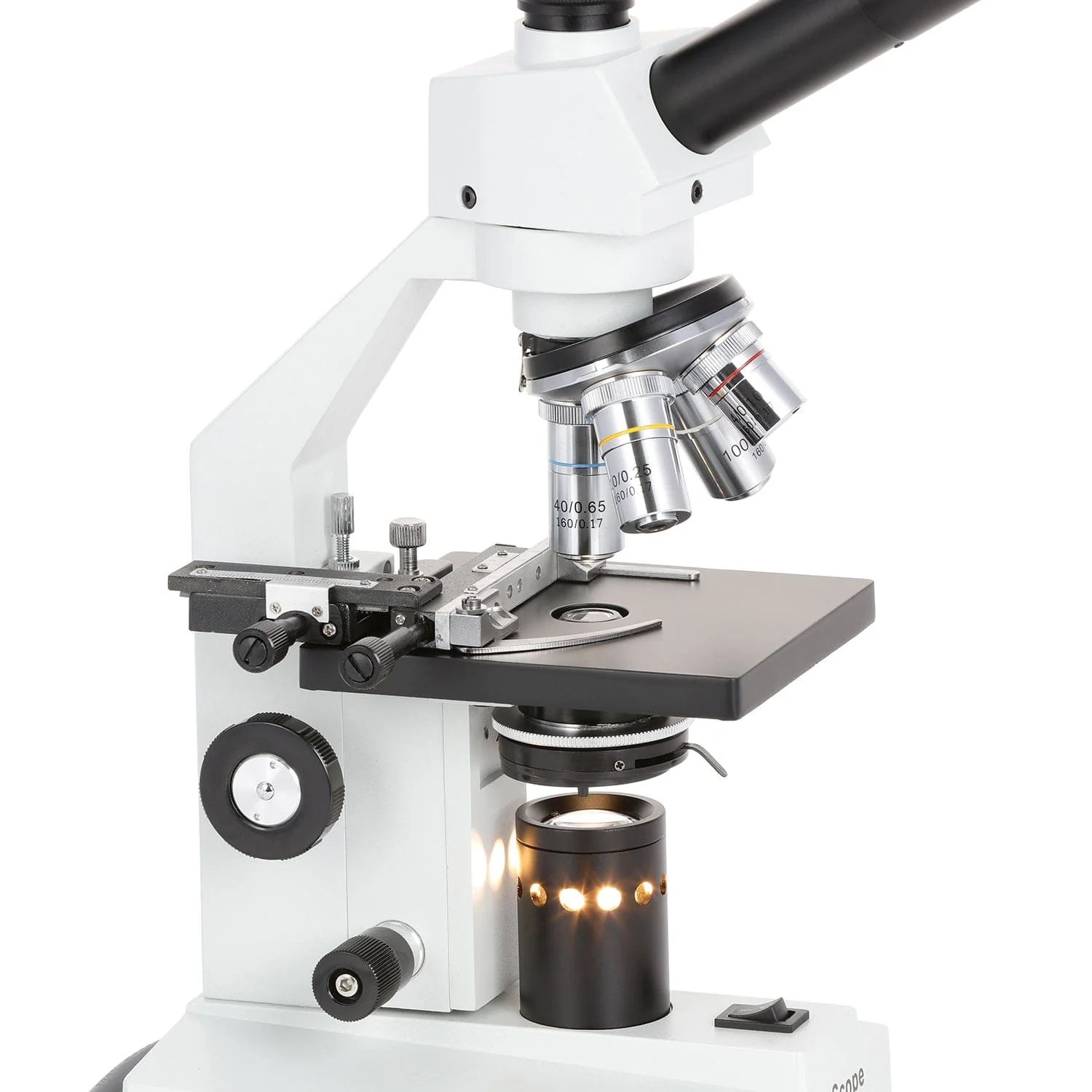

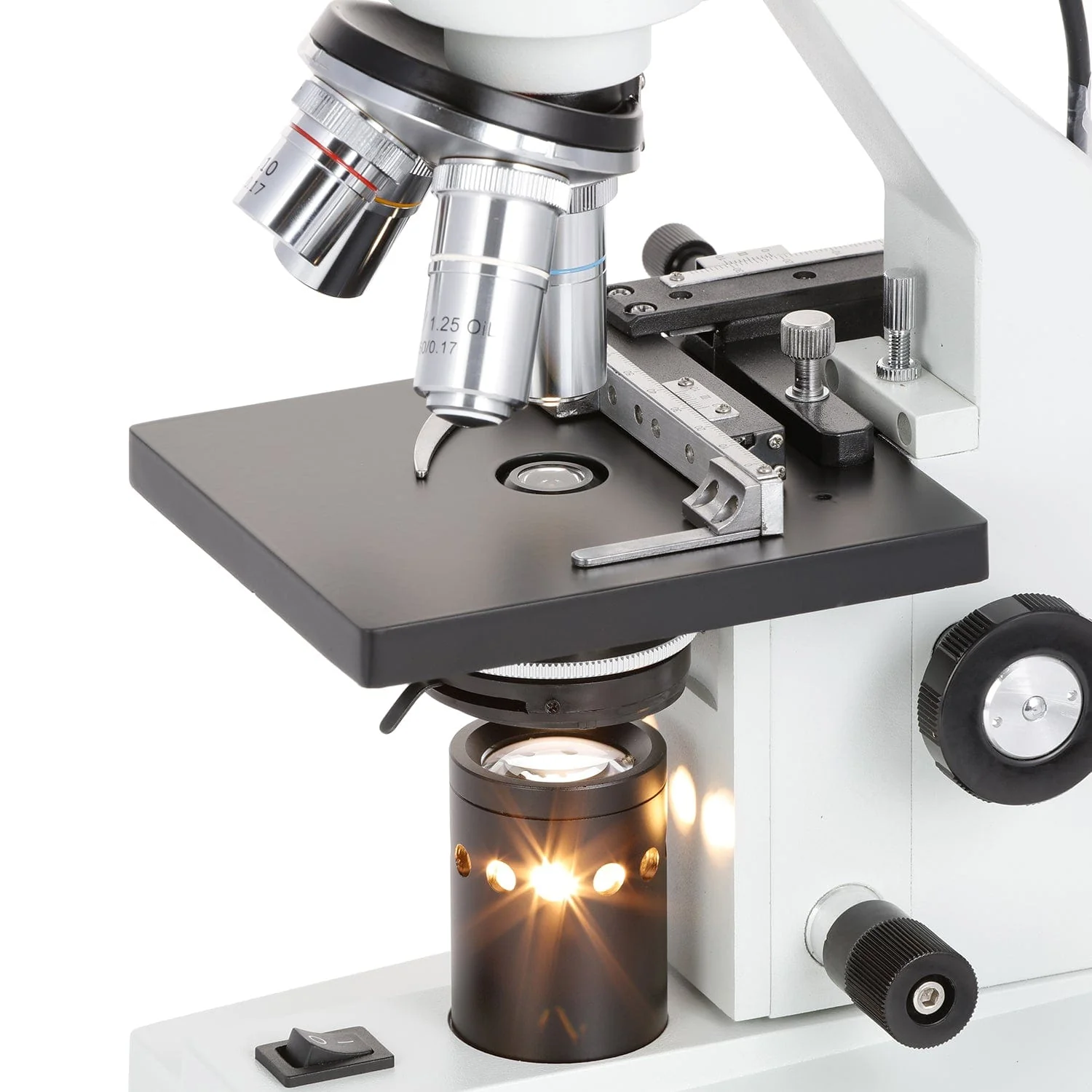

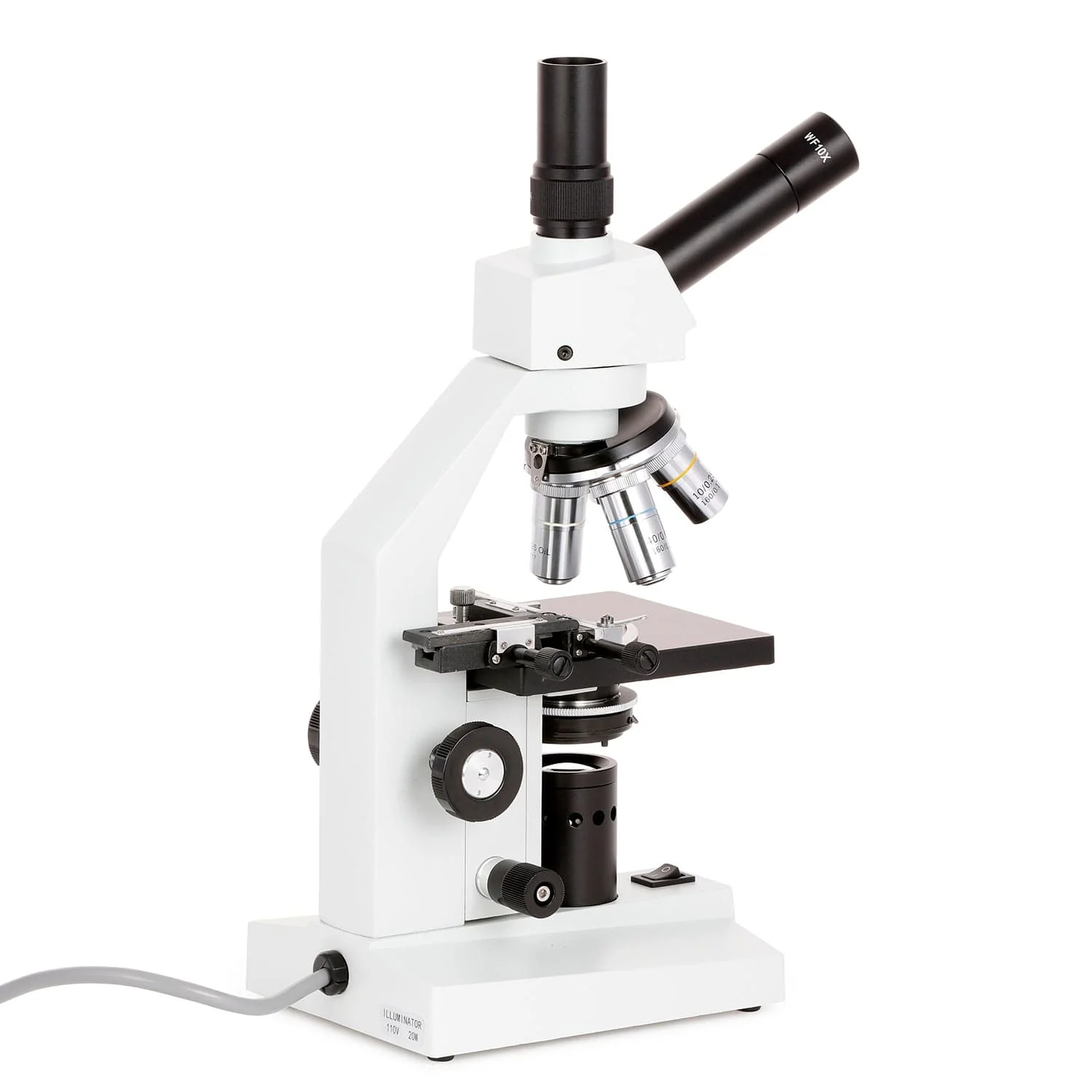

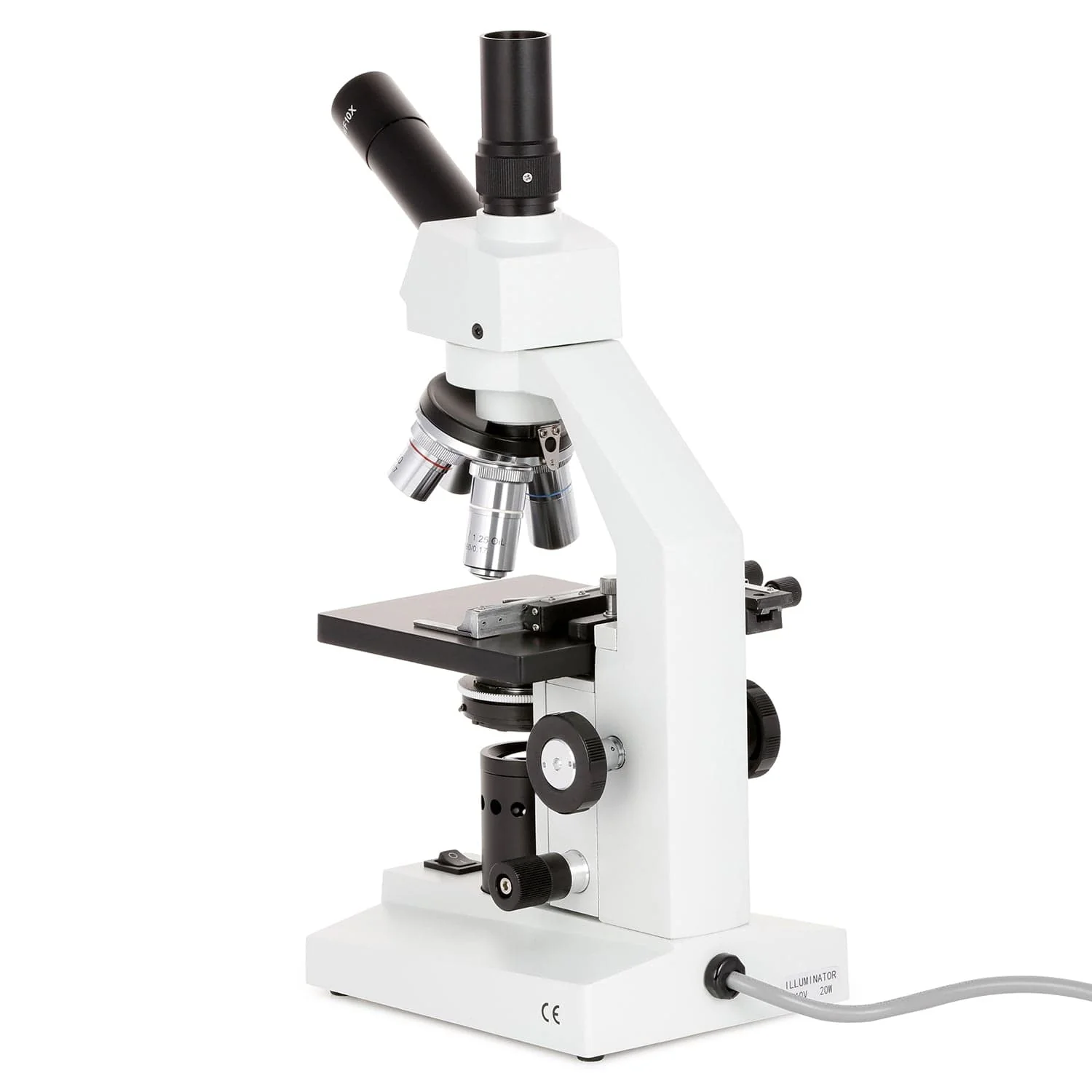

40X-1000X Dual-View Compound Microscope with Mechanical Stage

This is a brand new teaching & training high power compound microscope with mechanical stage. It offers four magnification settings: 40X, 100X, 400X and 1000X. This microscope is specially designed for teaching and training purpose. It is a perfect family or home school microscope. It is also an ideal instrument for biological, bacteriological and pharmaceutical researches.

Features :

• 360 Degree Swiveling Dual Viewing Head
• 45 Degree Inclined and Upright Viewing Tubes
• Adjustable Diopter on Upright Viewing Tube
• Mechanical Stage for Easy Control of Slide Gliding
• Separate Coarse & Fine Focusing
• Fully Coated Optical System with High Resolution
• Crystal Clear Sharp Images
• High Quality Teaching/Training Microscope
• Four Levels of Magnification: 40X, 100X, 400X and 1000X
• Upward Stage Stopper to Protect Slides and Objectives
• Built-In Illumination System
• Abbe Condenser with Iris Diaphragm
• Focusing Control Knobs on Both Sides
• Four DIN Achromatic Objectives
• Two Eyepieces and Pointer Included
• Full Optical Glass Elements
• All Metal Mechanical Components
• Precise Ground Glass Lens
• Rugged Metal Frame and Stand with Stain Resistant Enamel Finish
• Manufactured under ISO 9001 Quality Control Standard
• Excellent FIVE (5) YEAR Factory Warranty



Specifications :

• Nosepiece: quadruple
• Head: dual viewing head
• Wide-field Eyepieces: WF10X/18MM with pointer
• Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
• Stage Dimensions: 4-3/8" x 4-3/4" (110x120mm)
• Condenser: NA=1.25 with iris diaphragm
• Focusing Control: rack & pinion
• Illumination: tungsten lamp, 115V/20W
• Dimensions: 7-1/2" x 5-1/8" x 15-0"
• Shipping Weight: 10 lbs
