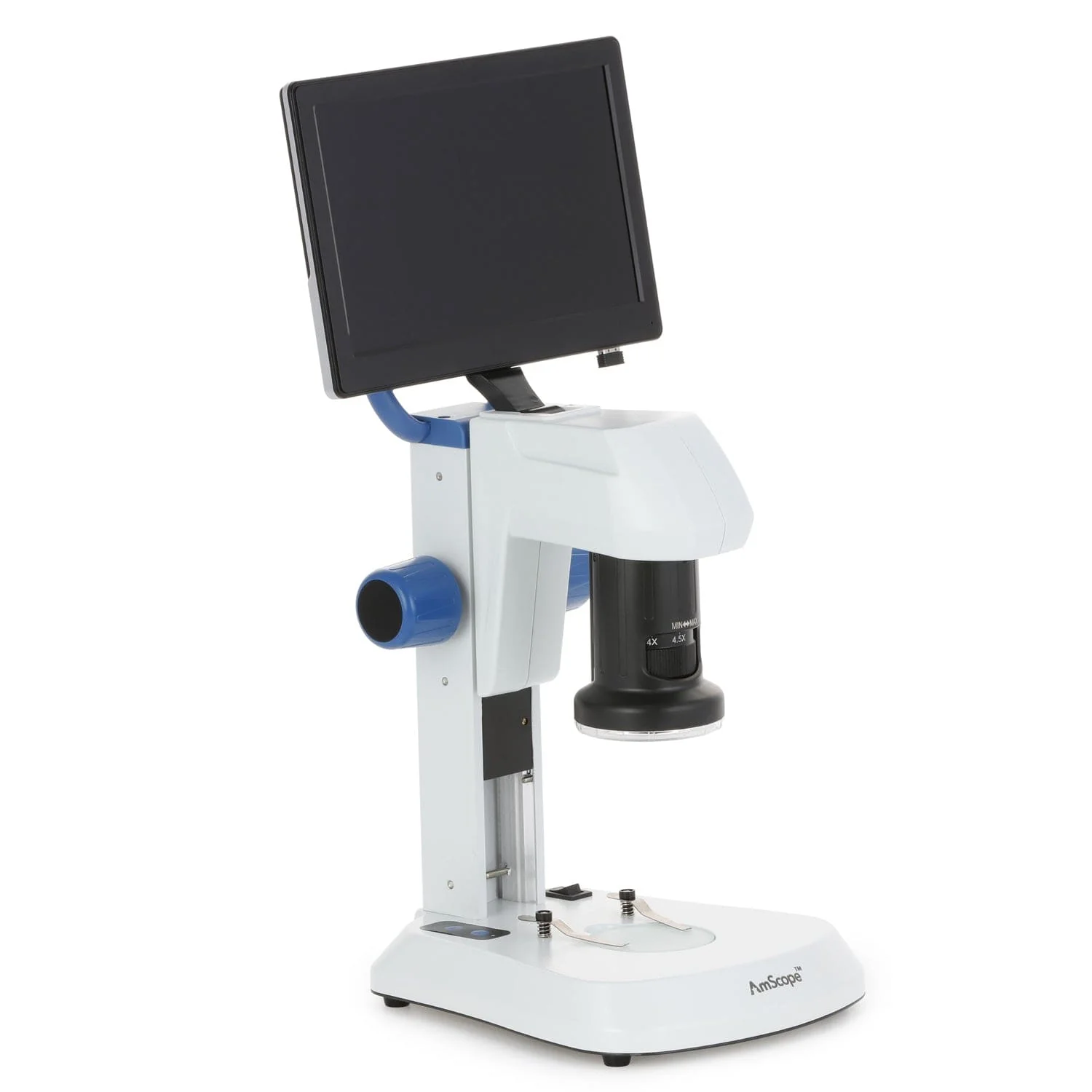

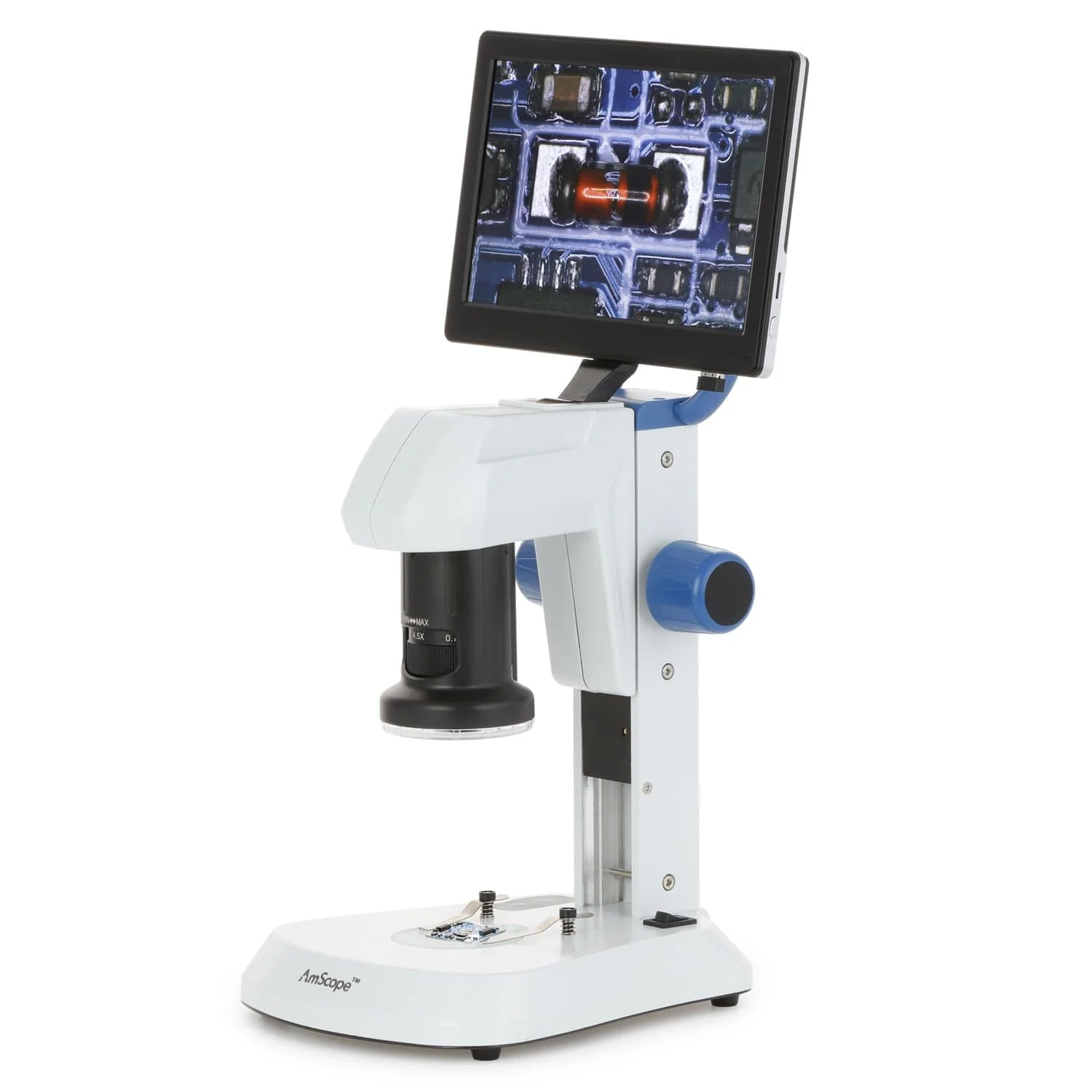

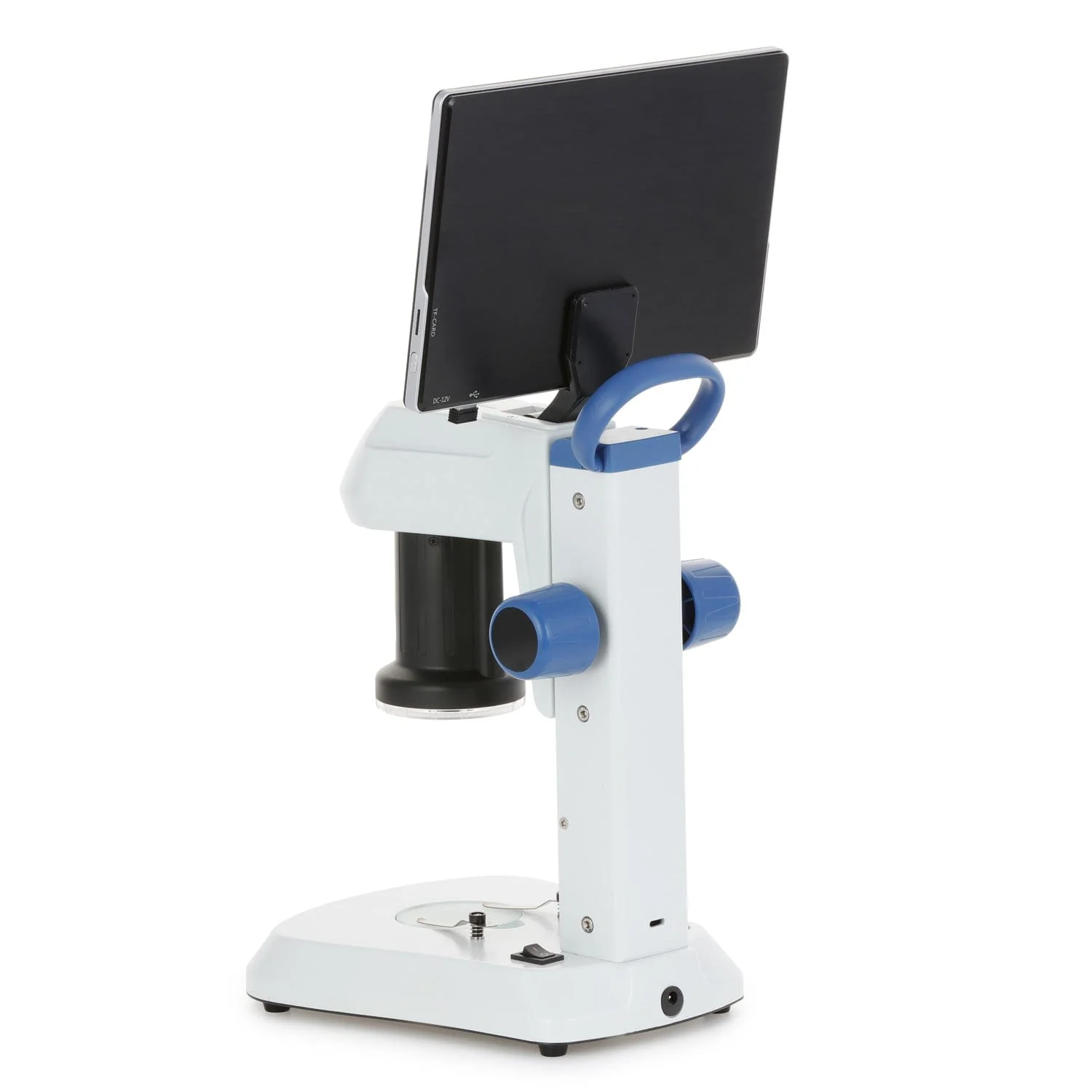

AmScope DM745 Series Digital Microscope for Industrial Inspection with 0.7X-4.5X Magnification Zoom on Track Stand with 9" Screen

This all-in-one microscope combines zoom optics, dual illumination, digital recording, and a 9” screen to create a self-sufficient inspection system. Designed for use in industrial environments, laboratories, and classrooms, this all-in-one instrument provides the tools needed to efficiently view, record, and analyze. The ability to capture photos and videos, and perform calibrated on-screen measurements will be especially useful for machining, and PCB assembly and inspection.

Zoom Optics

The zoom objective lens provides 0.7X to 4.5X optical magnification to cover a wide range of subjects, and is ideally suited for dissection, soldering, and machining. The use of a single objective eliminates the inconsistent focus and distortion caused by lens-tilt seen with stereo microscopes.

Digital Imaging

The built-in camera and 9” screen bring images to life with clarity and precision. Use the included mouse to navigate the on-screen controls, capture photos and video, and variety of measurement tools. The screen can be folded down for easy transportation and storage.

Ergonomics and Illumination

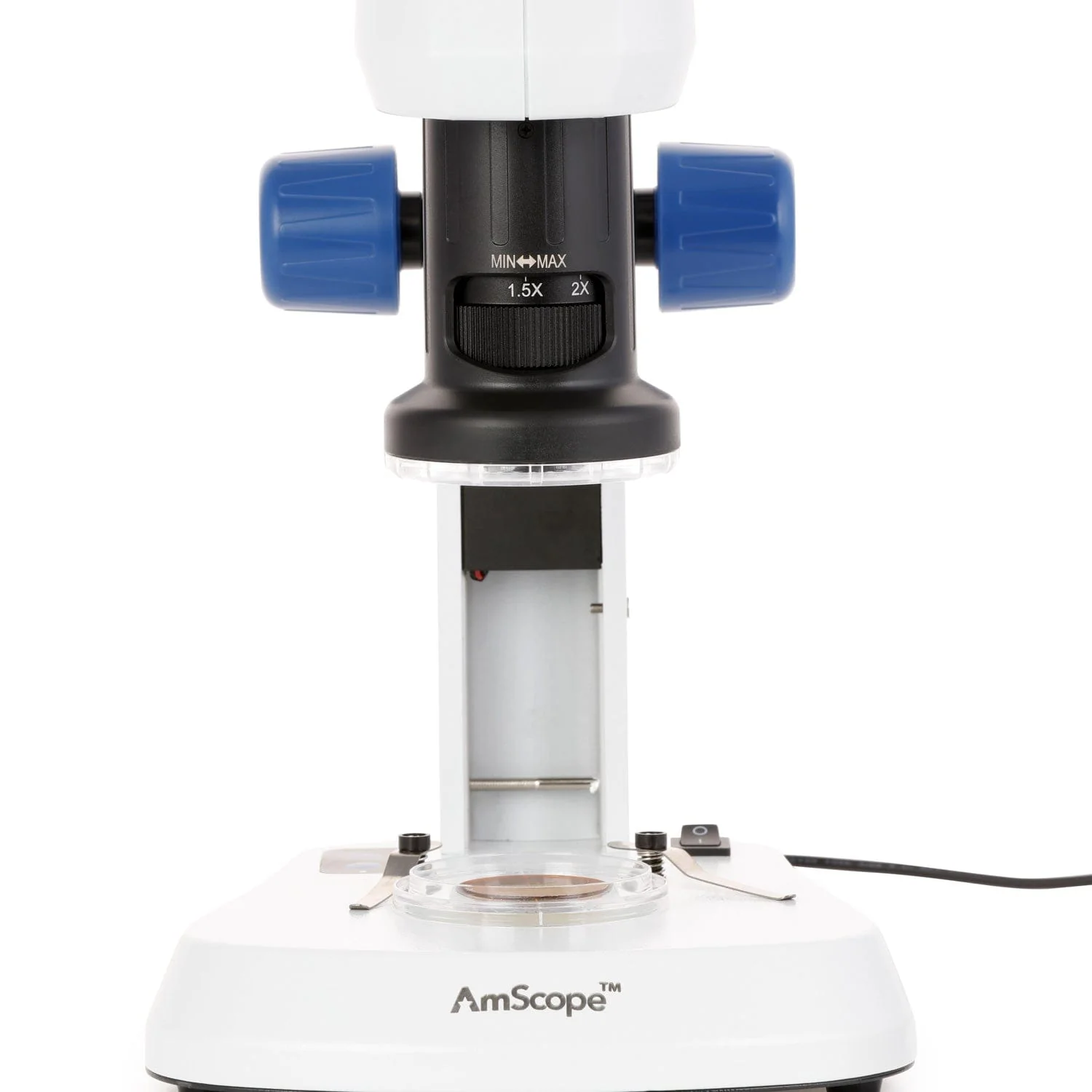

The microscope is pre-mounted to a tabletop stand with rack-and-pinion focus, and dual illumination. Focus is controlled by symmetrical knobs located on either side of the track-style column. An integrated LED ring-light provides bright and even reflected lighting, and sub-stage LED lighting provides transmitted illumination for viewing translucent materials.

Specifications

Lens
Optical System	Finite-conjugate
Objective Magnification	0.7X-4.5X zoom
Integrated Reduction	0.3X
Working Distance	100mm
Camera
Sensor Type	CMOS
Sensor Optical Format	1/2.8"
Active Recording Pixels	4M
Shutter	electronic rolling shutter
Monitor
Display Size	9"
Native Resolution	1024 x 600
Stand
Stand Type	Table stand with track
Illuminator
Illuminator Type	Reflected: 21-LED Transmitted: 7-LED
General
Power Requirements	100-240VAC, 50-60HZ, auto-switching wide-band

Contents

One microscope with attached monitor

One USB mouse

One AC power adapter

One reversible black/white stage plate

Once glass stage plate
