AmScope DM750 Series Zoom Tabletop Video Inspection Digital Microscope System 0.7X-5X Magnification on Pillar Stand with 11.6" Monitor + 3D Rotary Viewer
AmScope DM750 Series Zoom Tabletop Video Inspection Digital Microscope System 0.7X-5X Magnification on Pillar Stand with 11.6" Monitor + 3D Rotary Viewer
Original: $1,523.99
-65%$1,523.99
$533.40The Story

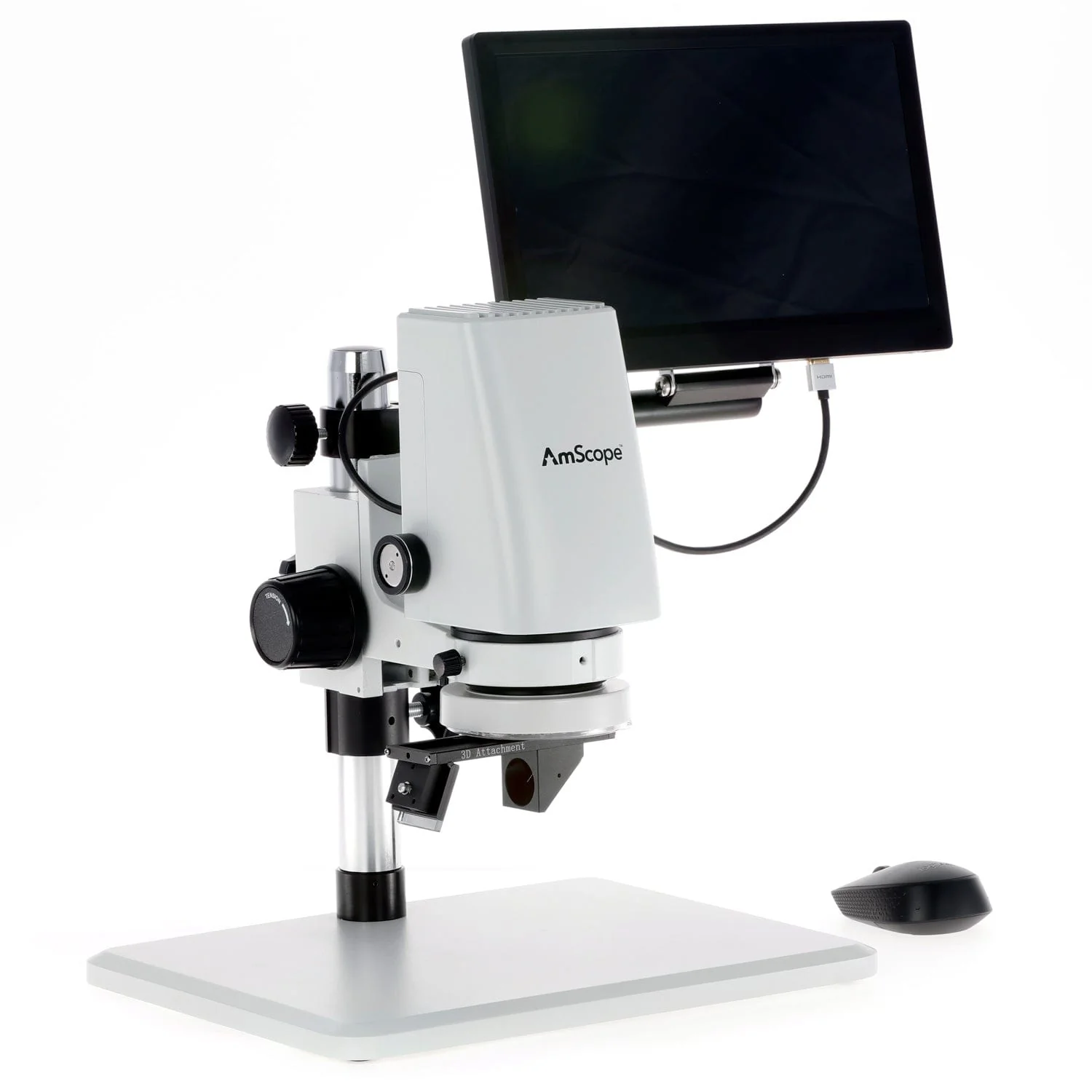

The DM750-2MP-HDM11-3DR is a complete video-inspection system for use in industrial environments, laboratories, and classrooms. It combines high-quality zoom optics with 1080p digital imaging capable of capturing photos and videos while you work. This tabletop system includes an 11.6” HD monitor for viewing live video and using the on-screen controls and measurement tools. Bright, even illumination is provided by a 144-LED ring light with adjustable intensity. The system simplifies the inspection process, making it ideal for machine shops, PCB assembly, and general quality-control.
Zoom Optics
The zoom objective lens provides 0.7X to 5X optical magnification to cover a wide range of subjects, and is ideally suited for dissection, soldering, and machining. The use of a single objective eliminates the inconsistent focus and distortion caused by lens-tilt seen with stereo microscopes. Key magnifications in the zoom range have a detent for improved repeatability, especially when performing measurements.
Tabletop Stand

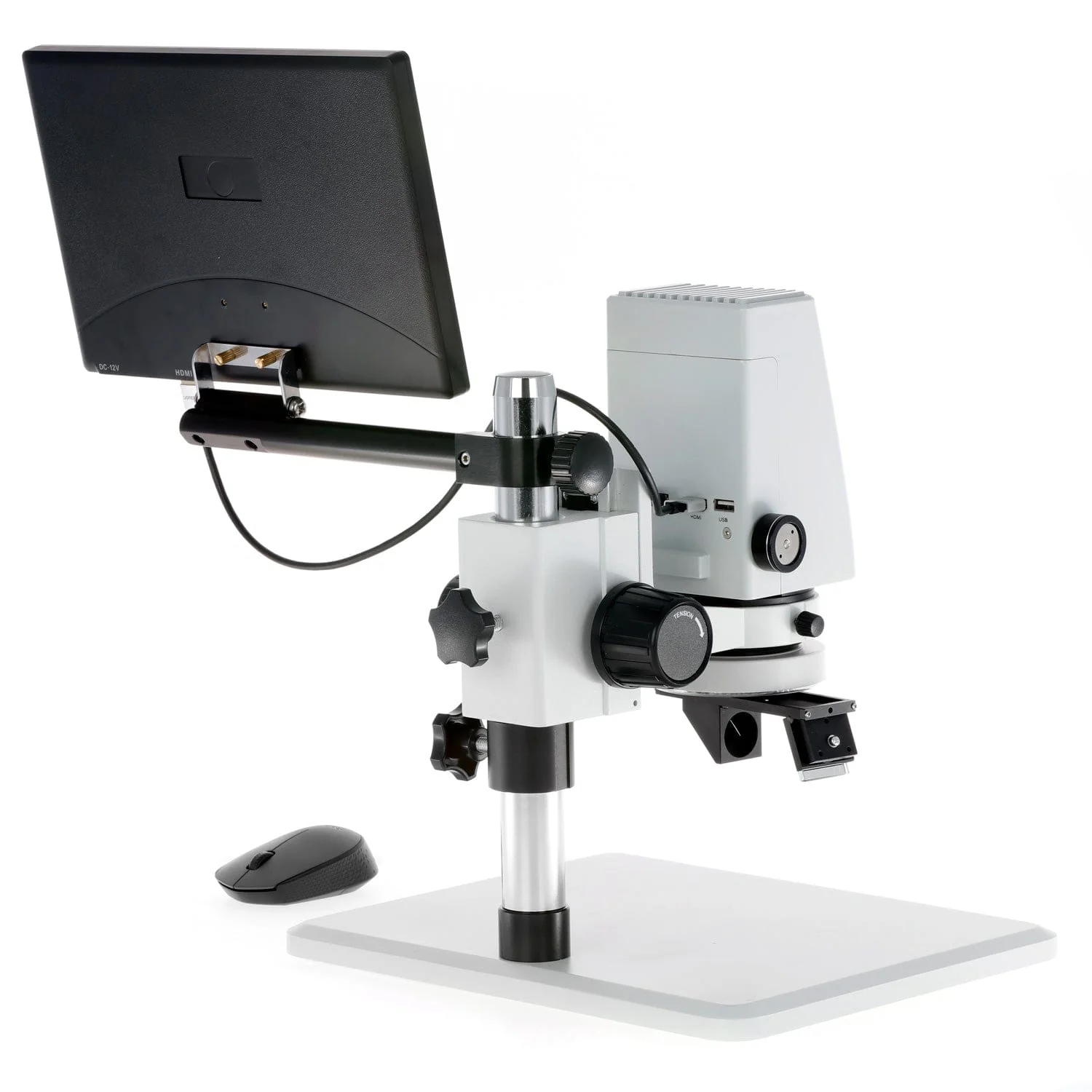

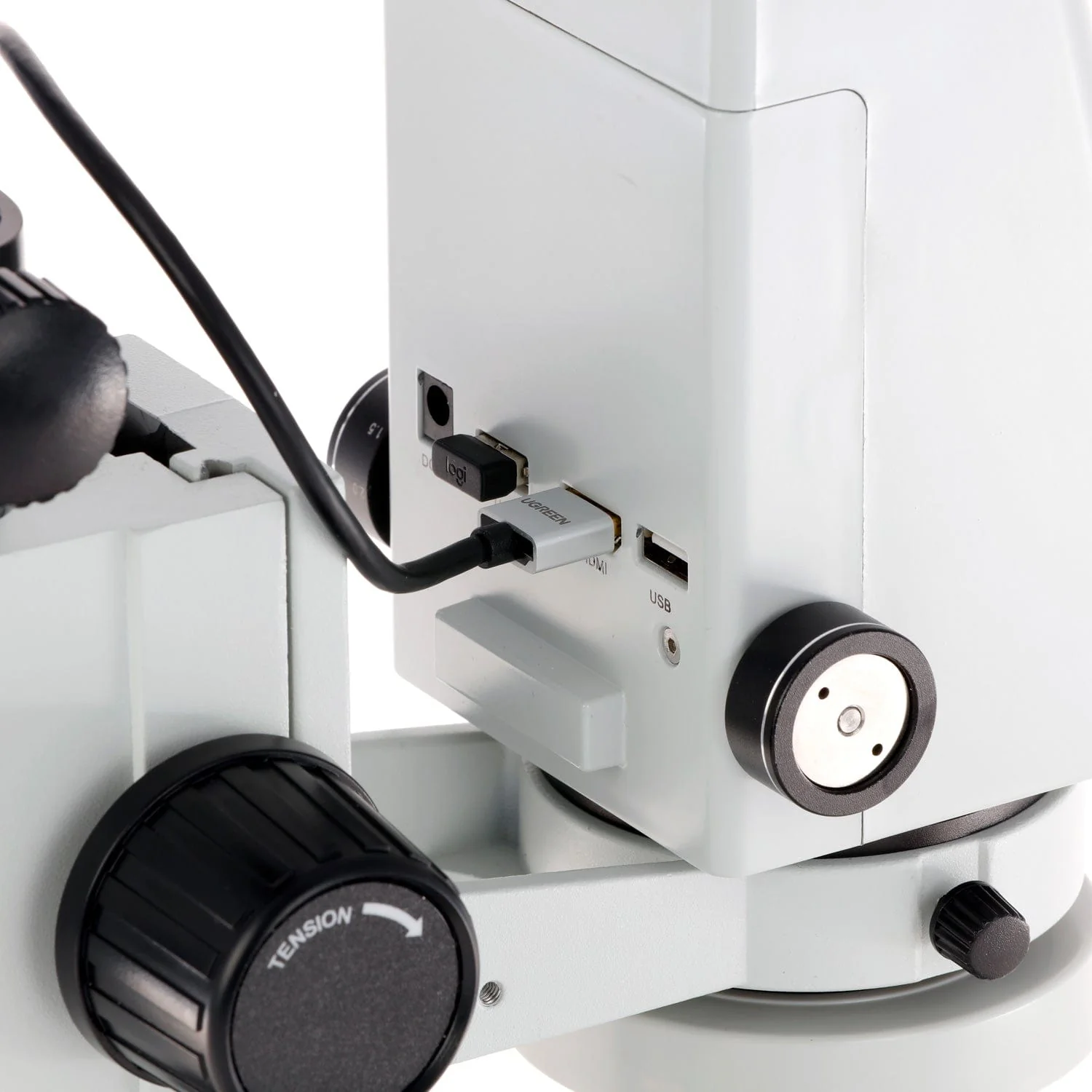

The included table stand provides essential stability with a small footprint. The pillar-type stand allows the focusing block to swing laterally for flexible coverage. The focusing block can be raised and lowered freely for coarse adjustments, while symmetrical focusing knobs with adjustable tension provide the precision adjustment. Since the microscope uses the same 76mm mount as our bestselling stereo microscopes, it can be used with a wide range of additional support systems including boom arms and articulating arms.
High Definition 11.6” Monitor

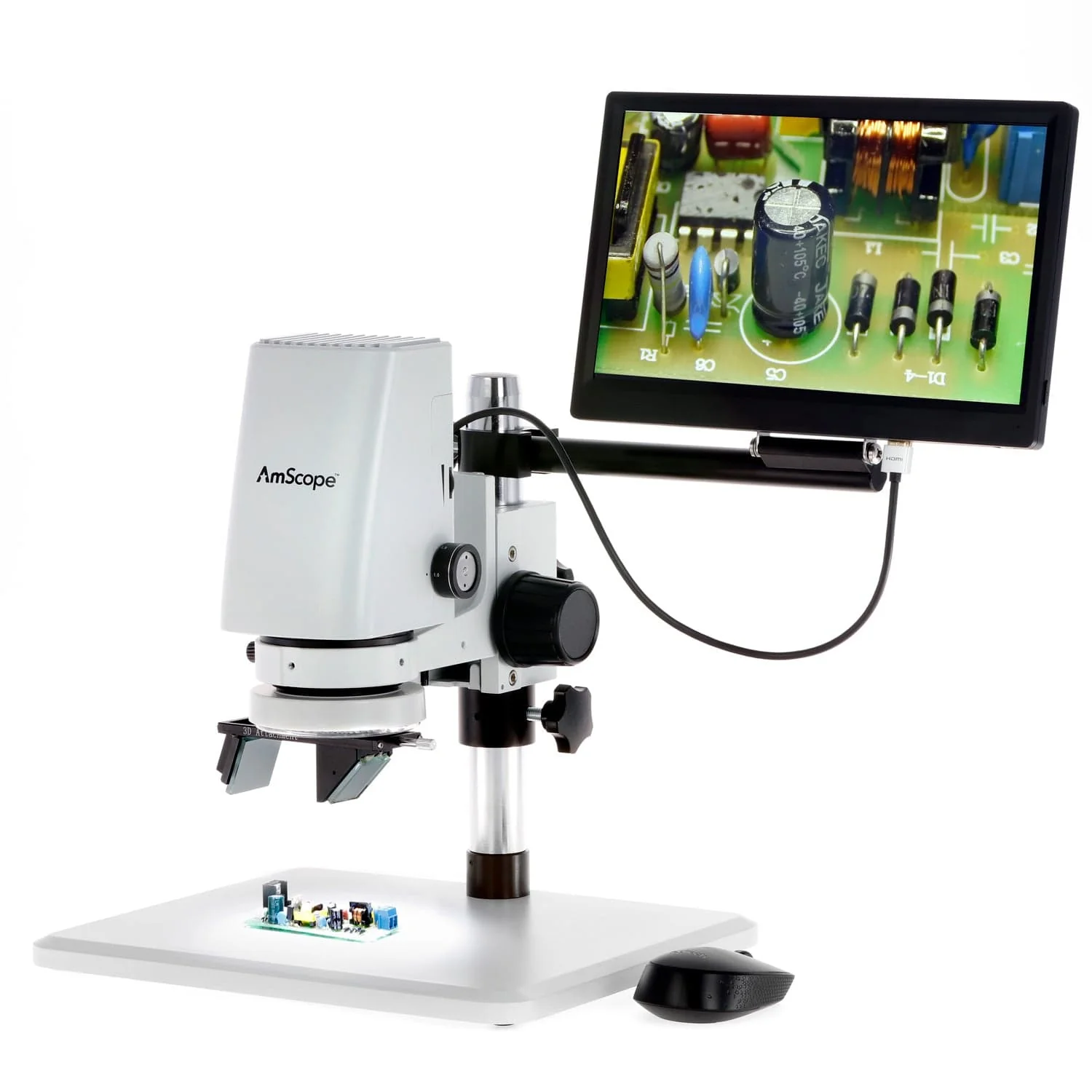

The 11.6” monitor attaches to the table stand’s pillar using a mounting arm which places the monitor conveniently next to the microscope. The screen uses IPS technology to produce accurate colors when viewed from virtually any angle. Using HDMI, the 1080p video is crisp and lag-free.
Illumination
A clip-on 144-LED ring light can be easily detached or attached to the head as needed, and provides bright, even, low-heat illumination.
3D Rotation

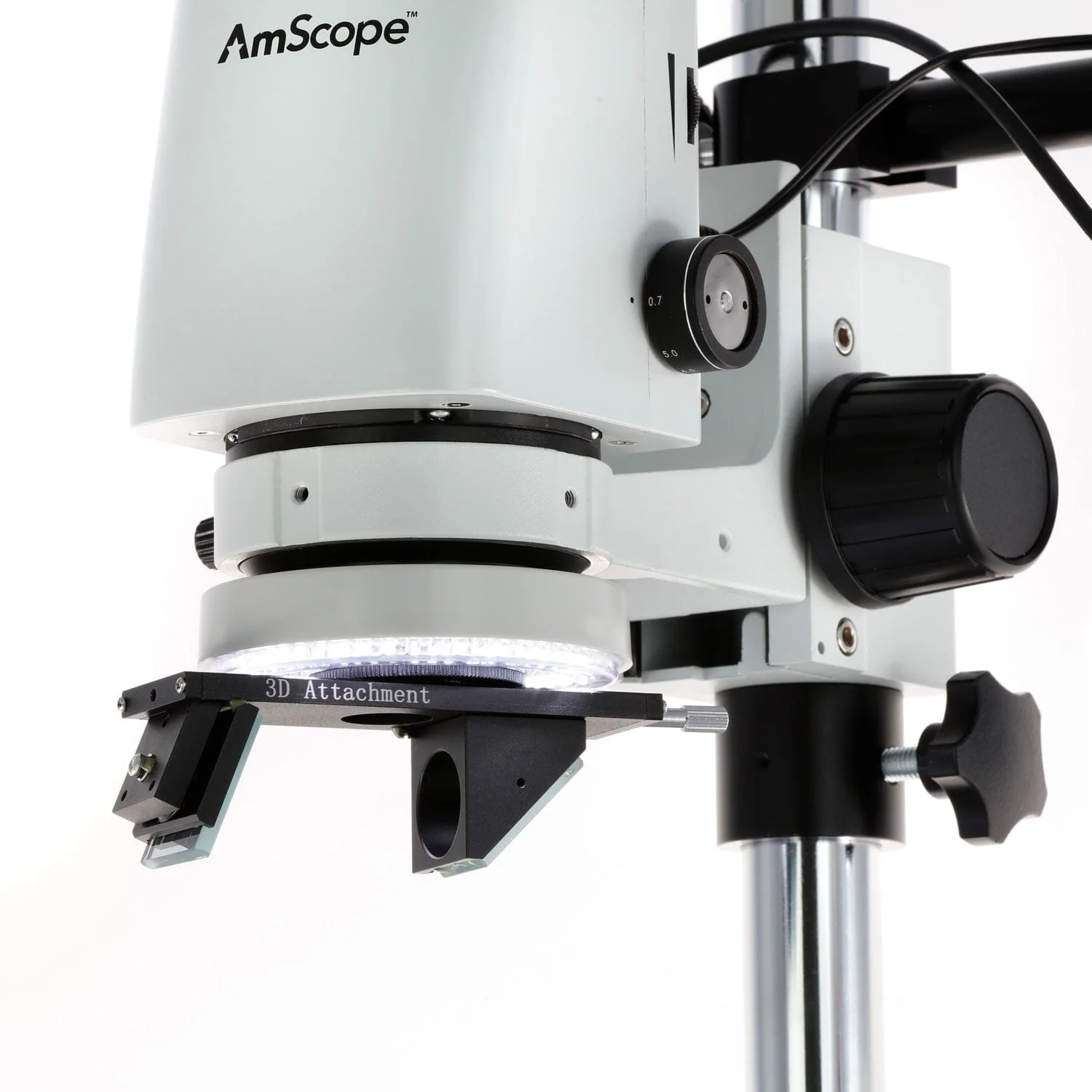

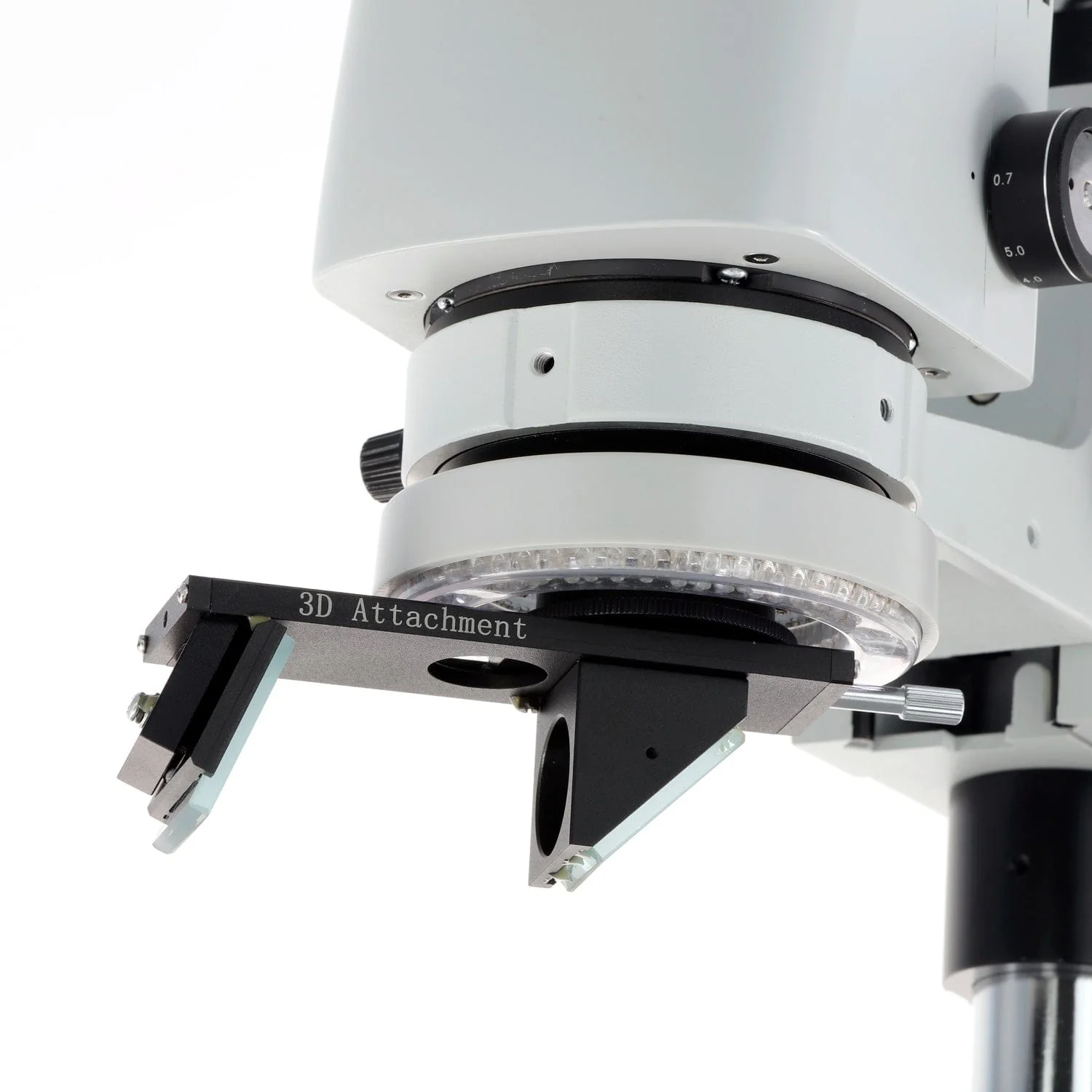

A 3D rotary viewer is included, which can be mounted to the objective lens to provide a new perspective. It uses a series of mirrors to shift the viewing angle, allowing you to see objects from any side. This is the perfect solution for working in tight spaces, allowing you to adjust the view instead of the object.
Specifications
| Lens | |
| Optical System | Finite-conjugate |
| Objective Magnification | 0.7X-5X zoom with detent |
| Integrated Reduction | 0.4X |
| Working Distance | 100mm |
| Camera | |
| Sensor | Sony IMX307 (color) |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.8" |
| Active Pixels | 2M (1920 x 1080) |
| Pixel Size | 2.9µm x 2.9µm |
| Active Sensor Area | 5.57mm x 3.13mm |
| Shutter | electronic rolling shutter |
| Monitor | |
| Display Size | 11.6" |
| Monitor Magnification | 46X |
| Displayed Magnification | 12.9X-92X |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 220 nits |
| Stand | |
| Stand Type | Table stand with pillar |
| Base Dimensions | 320mm x 260mm x 20mm |
| Illuminator | |
| Illuminator Type | 144-LED ring light |
| General | |
| Power Requirements | 12VDC 1A input 110-240VAC, 50-60HZ adapter included |
