The Story

AmScope’s new EduPro line includes a cohesive assortment of microscopes intended for educational institutions ranging from middle school to college. EduPro microscopes are meticulously designed and manufactured to achieve enduring quality with a modern, elegant aesthetic.

From beginning to advanced biology, the compound microscope has long been a standard tool in classrooms for studying cell structures and functions, observing microorganisms, and much more.


The dual-illumination model offers the flexibility to view a wider range of specimens using traditional specimen slides, culturing dishes, and unmounted objects. Rather than using a typical rectangular stage with a caliper, this model uses a round stage with positioning clips to allow for more diversity.

The included stage has a fixed Abbe condenser which provides the same functionality as the standard biological model for viewing cells, microorganisms, and other microscopic structures. The stage can accommodate standard slides, depression slides, and dishes for viewing anything from onion cells to live protozoa.

What makes this model even more unique is the addition of a gooseneck light which can be positioned behind, above, or to the side of the specimen being observed. This type of reflected lighting is commonly used for viewing opaque objects such as textiles, plastics, circuit boards, and dry soil. Certain subjects including microorganisms in water can benefit from side-lighting which creates a shadow effect.

Specifications

Optical System Finite
Mechanical Tube Length 160mm
Head Binocular, 30° incline
Interpupillary Adjustment Compensation-free Siedentopf, 48-75mm
Eyepieces 10X, FN 18mm, 23.2mm mount
Nosepiece Quadruple reversed
Objective Lenses 4X, 10X, 40X (spring), 100X (spring, oil)
Focusing System Coaxial coarse and fine focus, upper limit-stop, tension-control
Focus Travel 30mm, 0.002mm fine-adjustment
Stage Round with clips
X-Y Translation Range ⌀108mm
Sub-stage Condenser-holder Fixed
Condenser Abbe, NA1.25, iris diaphragm
Transmitted Illumination Variable-intensity 3W LED
Power AC Input: 100-240V, 50/60Hz, 0.35A
DC Output: 6V, 1A

Objective Lenses

Magnification Corrections NA Cover-glass Thickness
4X Achromatic 0.10 0.17mm
10X Achromatic 0.25 0.17mm
40X Achromatic 0.65 0.17mm
100X Achromatic 1.25 0.17mm
AmScope EduPro EDU55 Series Binocular Multi-purpose Microscope with 3W LED illumination - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

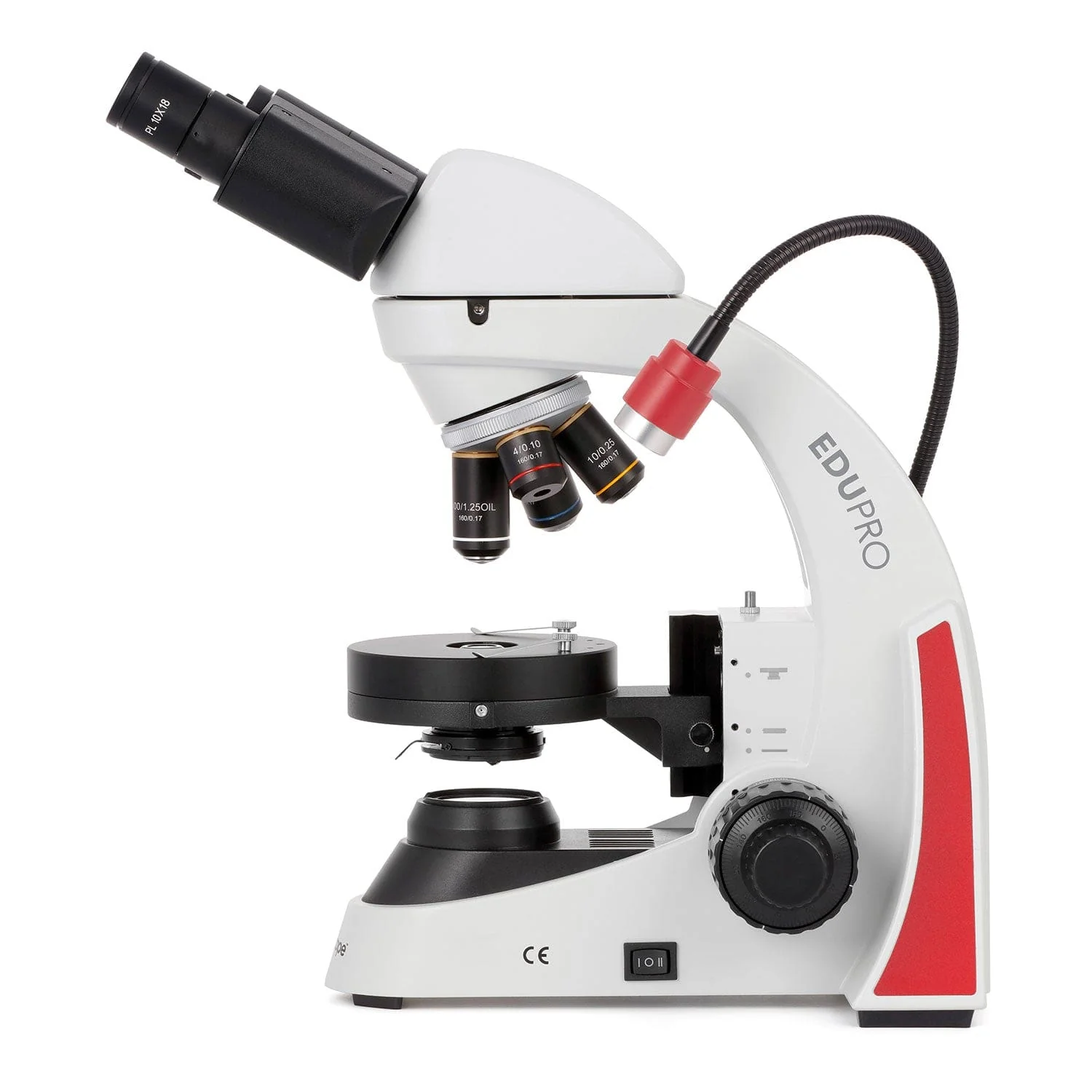

AmScope EduPro EDU55 Series Binocular Multi-purpose Microscope with 3W LED illumination - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

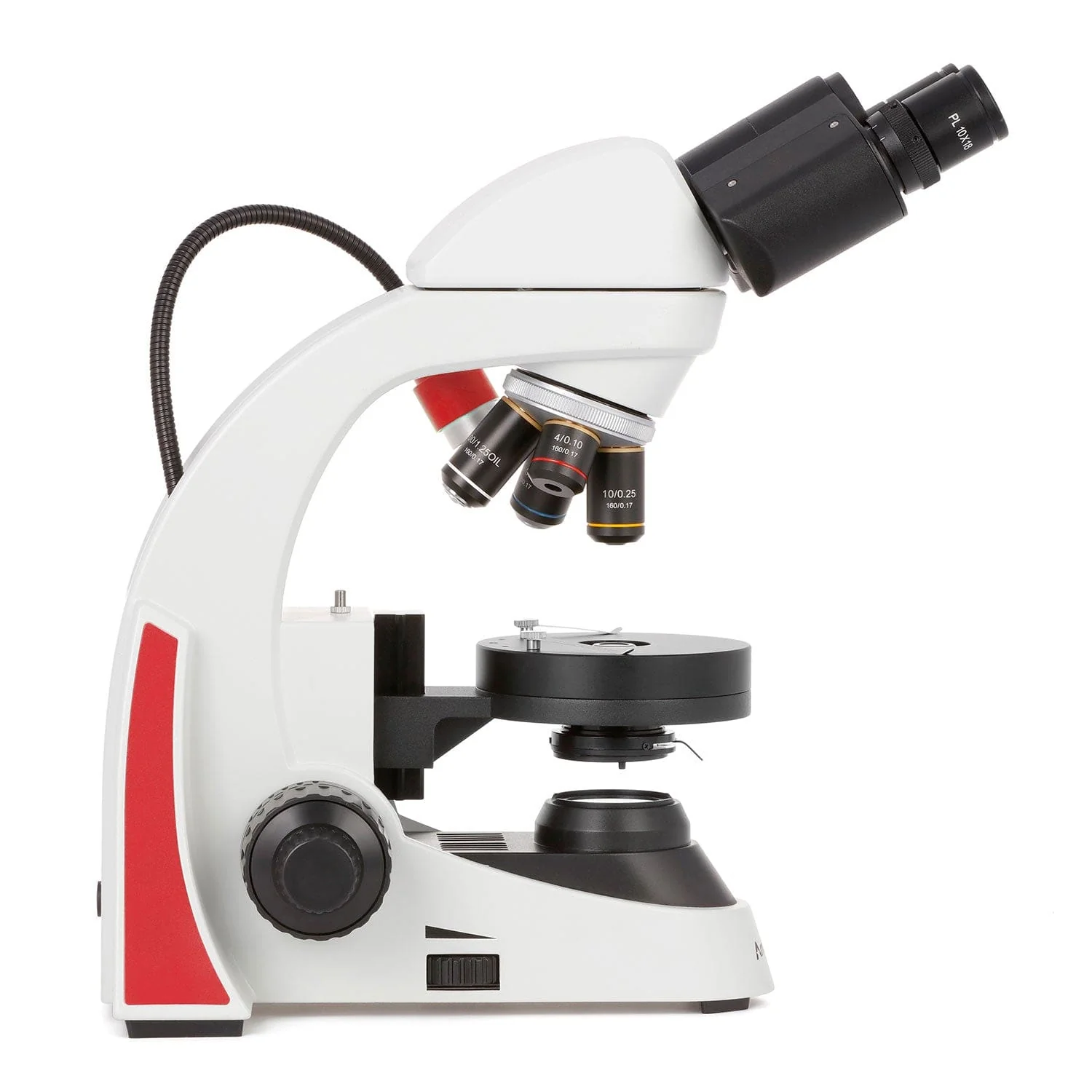

AmScope EduPro EDU55 Series Binocular Multi-purpose Microscope with 3W LED illumination - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

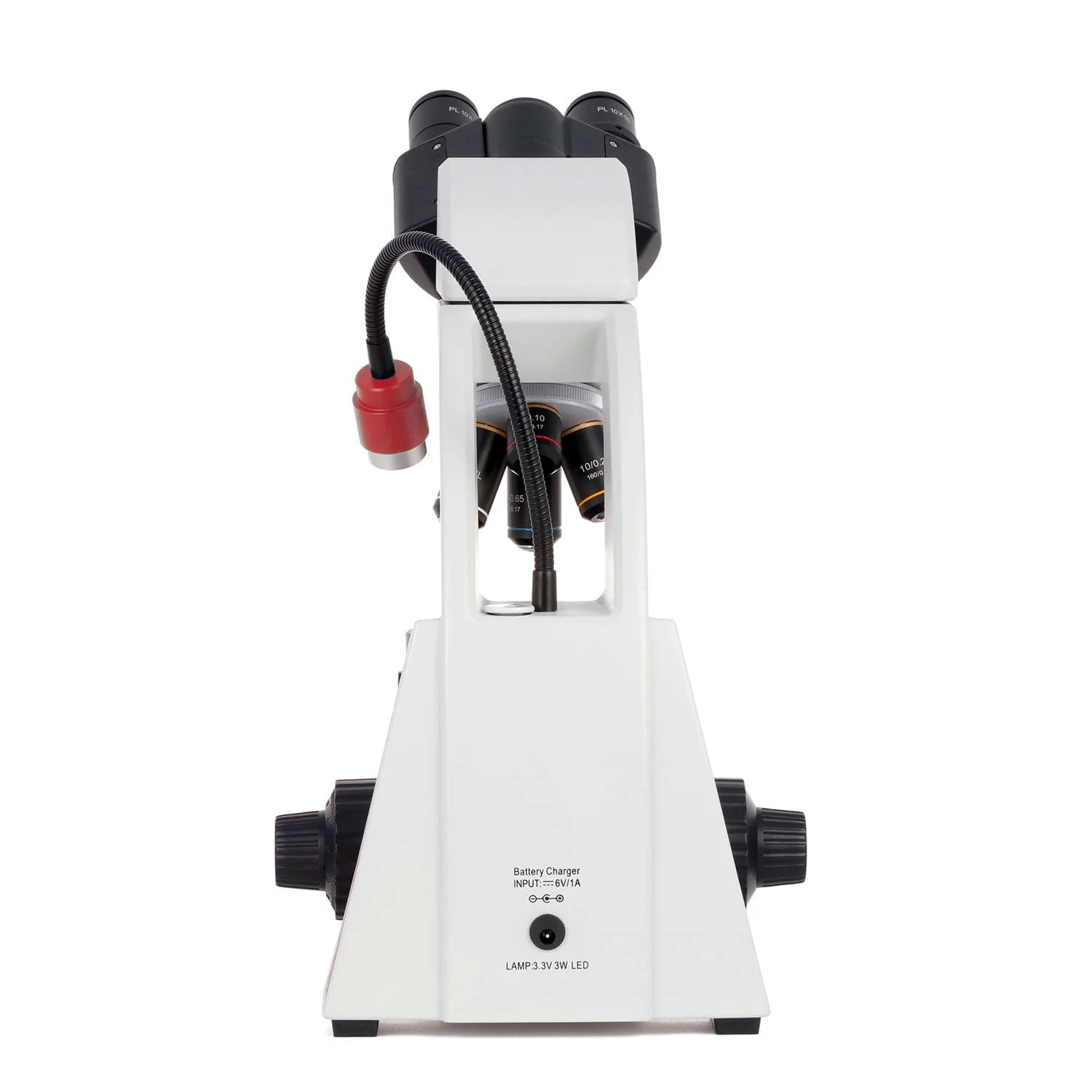

AmScope EduPro EDU55 Series Binocular Multi-purpose Microscope with 3W LED illumination - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

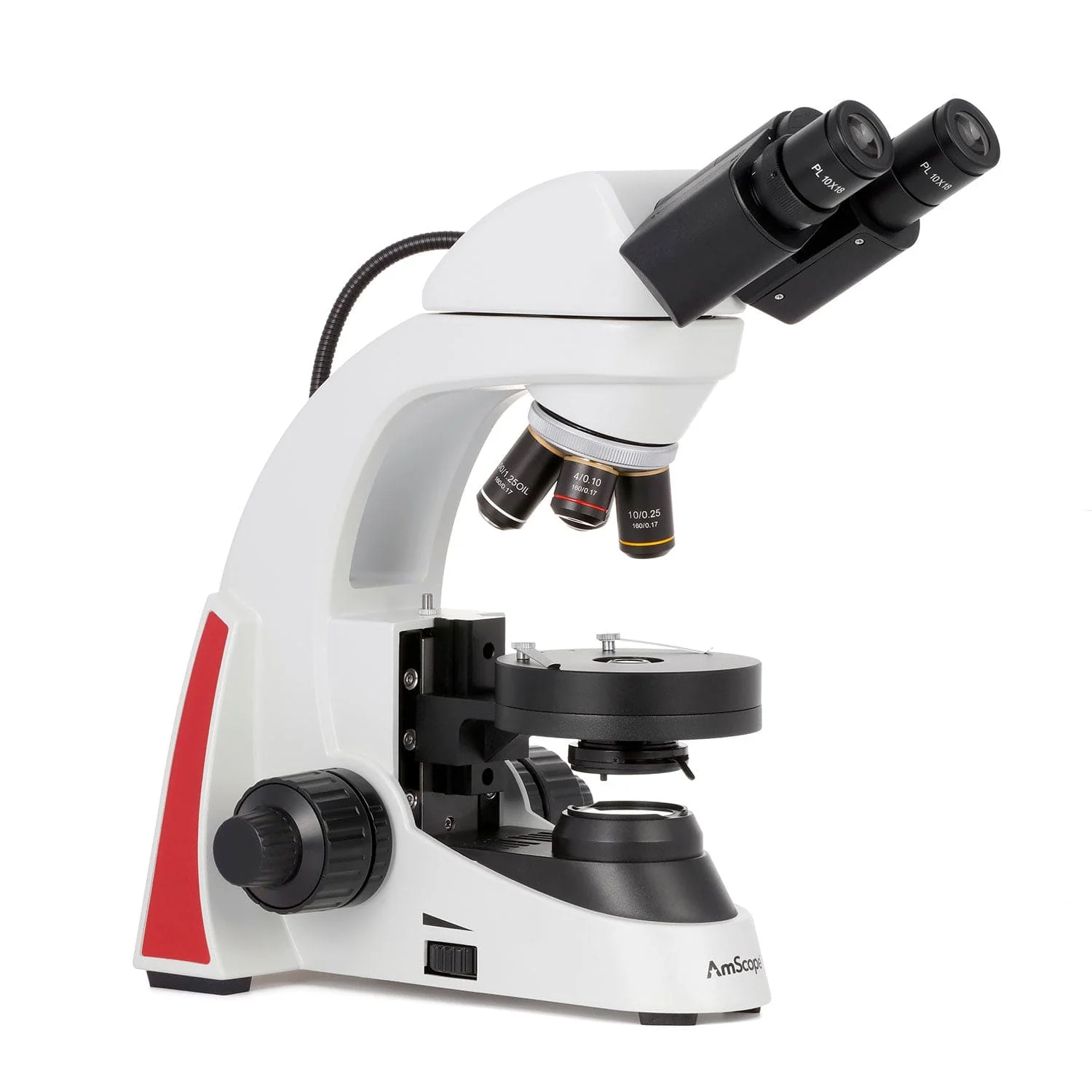

AmScope EduPro EDU55 Series Binocular Multi-purpose Microscope with 3W LED illumination - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

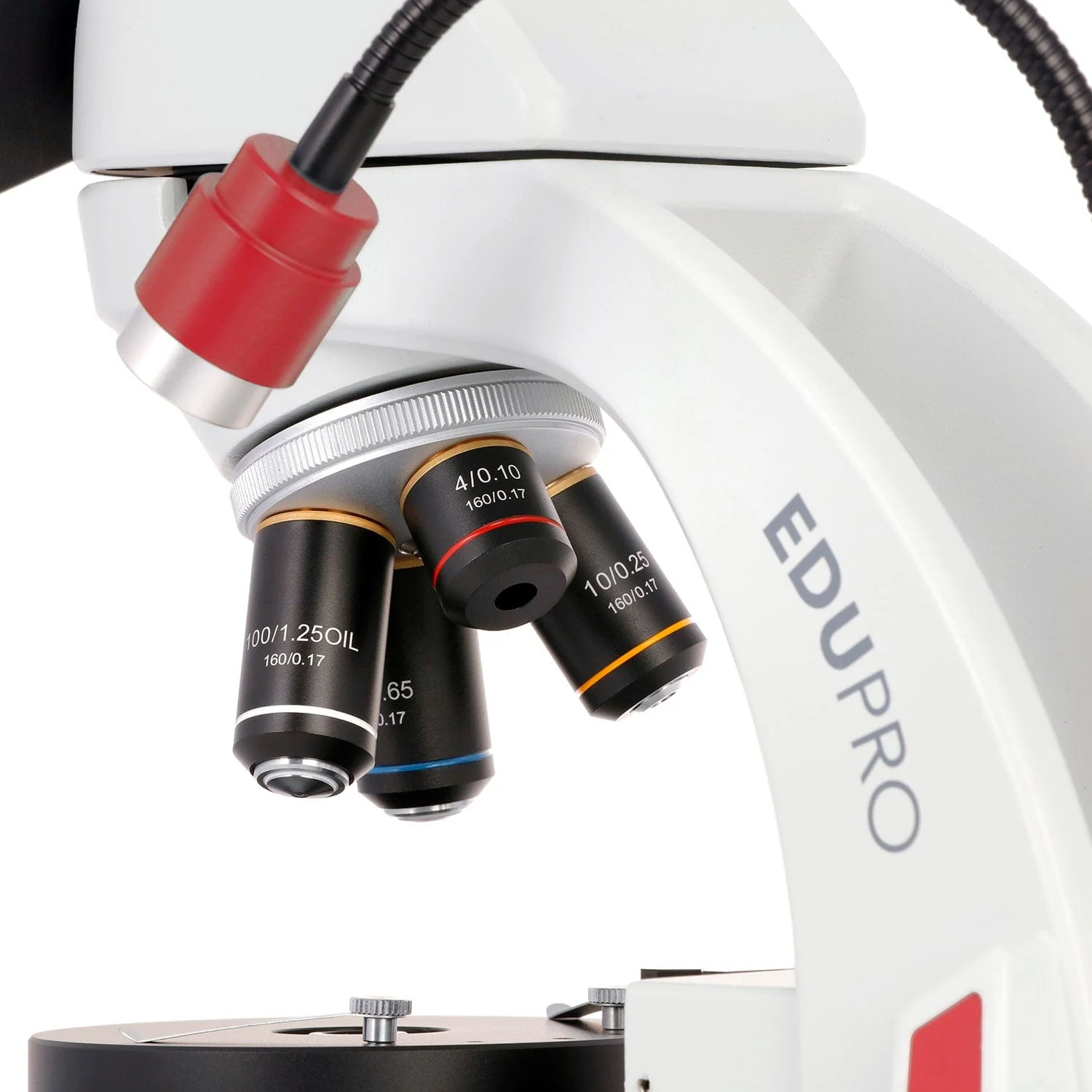

AmScope EduPro EDU55 Series Binocular Multi-purpose Microscope with 3W LED illumination - Image 7

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

AmScope EduPro EDU55 Series Binocular Multi-purpose Microscope with 3W LED illumination - Image 8

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

AmScope’s new EduPro line includes a cohesive assortment of microscopes intended for educational institutions ranging from middle school to college. EduPro microscopes are meticulously designed and manufactured to achieve enduring quality with a modern, elegant aesthetic.

From beginning to advanced biology, the compound microscope has long been a standard tool in classrooms for studying cell structures and functions, observing microorganisms, and much more.


The dual-illumination model offers the flexibility to view a wider range of specimens using traditional specimen slides, culturing dishes, and unmounted objects. Rather than using a typical rectangular stage with a caliper, this model uses a round stage with positioning clips to allow for more diversity.

The included stage has a fixed Abbe condenser which provides the same functionality as the standard biological model for viewing cells, microorganisms, and other microscopic structures. The stage can accommodate standard slides, depression slides, and dishes for viewing anything from onion cells to live protozoa.

What makes this model even more unique is the addition of a gooseneck light which can be positioned behind, above, or to the side of the specimen being observed. This type of reflected lighting is commonly used for viewing opaque objects such as textiles, plastics, circuit boards, and dry soil. Certain subjects including microorganisms in water can benefit from side-lighting which creates a shadow effect.

Specifications

Optical System Finite
Mechanical Tube Length 160mm
Head Binocular, 30° incline
Interpupillary Adjustment Compensation-free Siedentopf, 48-75mm
Eyepieces 10X, FN 18mm, 23.2mm mount
Nosepiece Quadruple reversed
Objective Lenses 4X, 10X, 40X (spring), 100X (spring, oil)
Focusing System Coaxial coarse and fine focus, upper limit-stop, tension-control
Focus Travel 30mm, 0.002mm fine-adjustment
Stage Round with clips
X-Y Translation Range ⌀108mm
Sub-stage Condenser-holder Fixed
Condenser Abbe, NA1.25, iris diaphragm
Transmitted Illumination Variable-intensity 3W LED
Power AC Input: 100-240V, 50/60Hz, 0.35A
DC Output: 6V, 1A

Objective Lenses

Magnification Corrections NA Cover-glass Thickness
4X Achromatic 0.10 0.17mm
10X Achromatic 0.25 0.17mm
40X Achromatic 0.65 0.17mm
100X Achromatic 1.25 0.17mm
