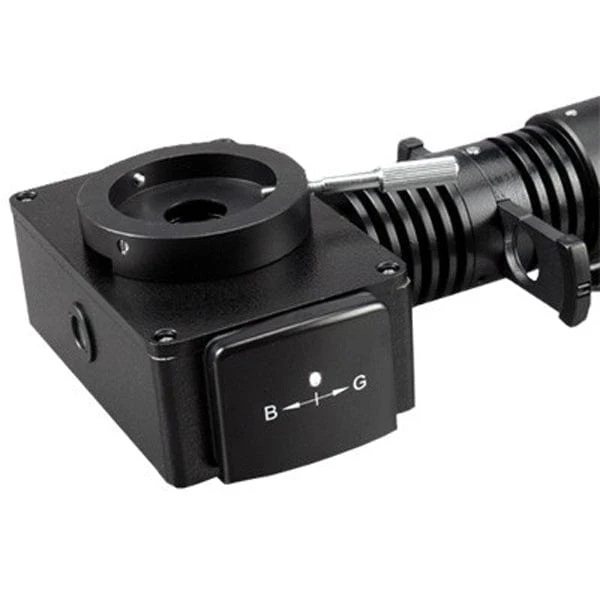

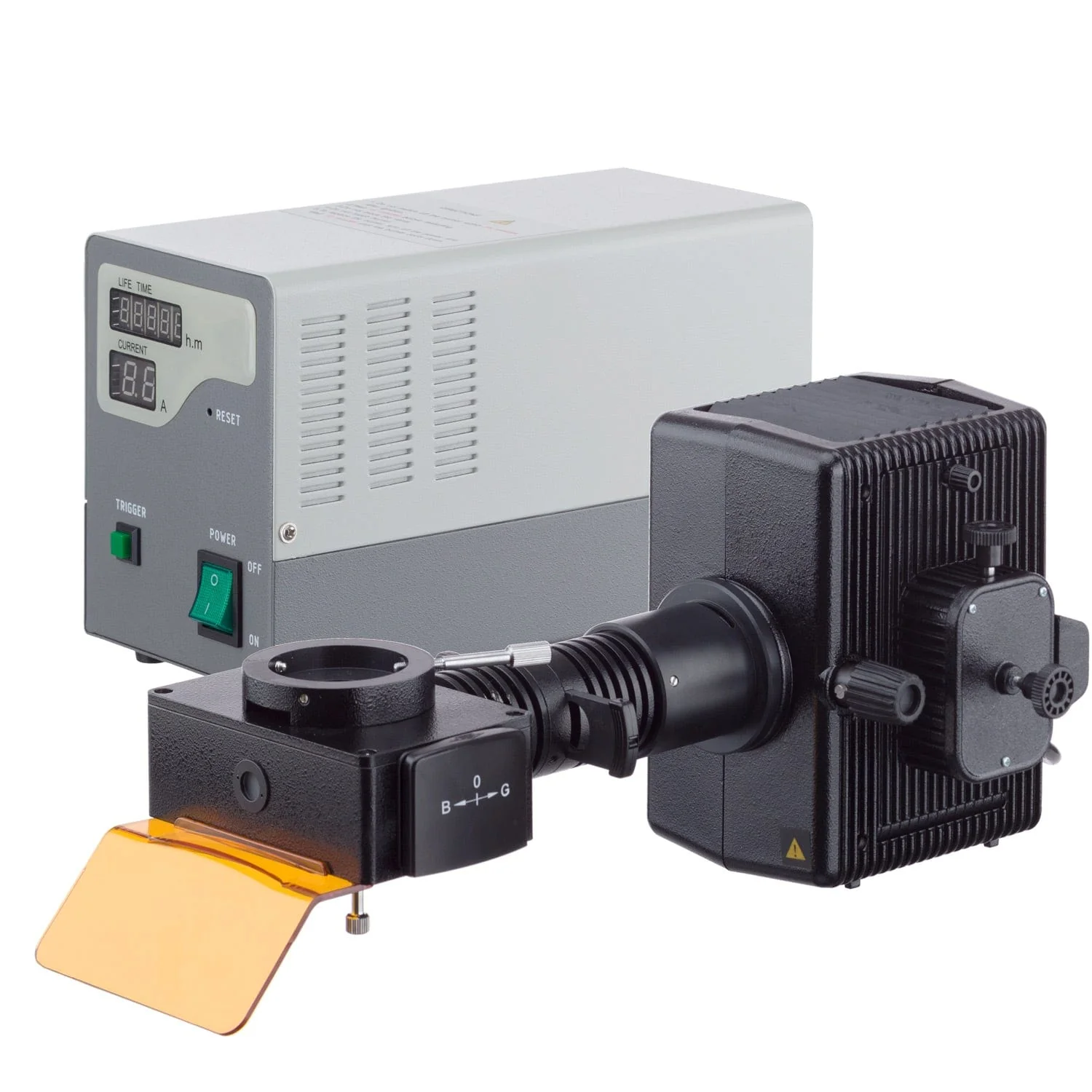

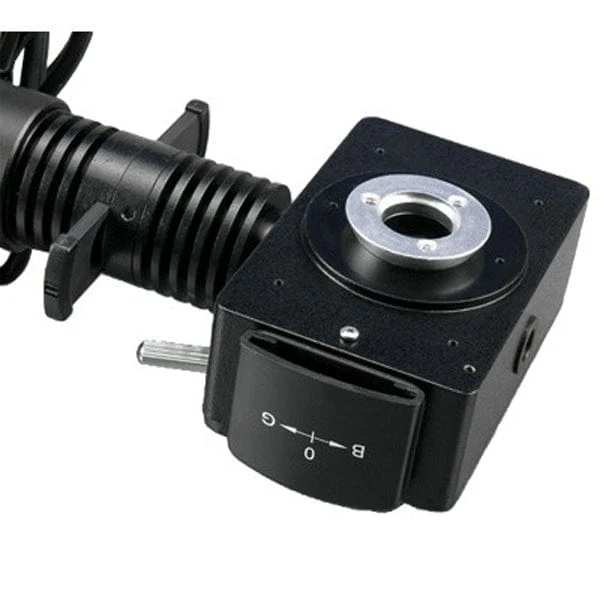

AmScope Fluorescence Kit Epi-illumination System for Compound Microscopes

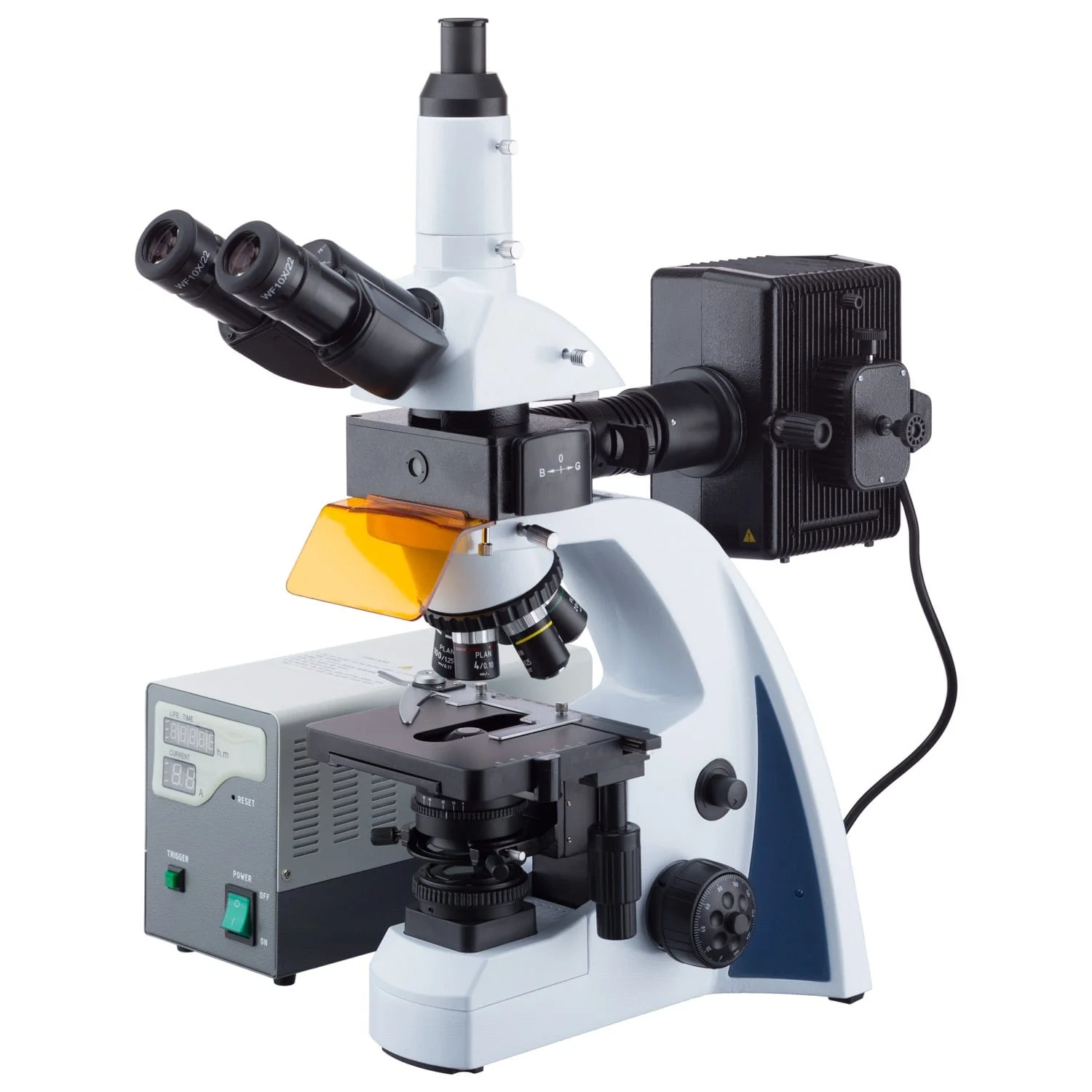

This is fluorescence epi-illumination system for compound microscopes. The system includes a 100W wide-spectrum mercury lamp, and green and blue filter blocks. Compatible with B390, T390, B600, T600, and T670 compound microscopes.

Features & Specifications:

• A complete EPI-fluorescent kit
• 100W HBO ultra hi-voltage spherical mercury lamp
• Blue & green excitation
• Three-position fluorescent filter slider assembly for blue, green, and brightfield microscopy
• 220V/110V (Interchangeable) external digital power supply (100W DC)
• Easy control design for centering arc of the mercury lamp
• Fluorescent light condenser with moving-control knob
• Fluorescent light field diaphragm with centering control adjustment
• Three-setting fluorescence excitation light path control dial: no light, partial light, full light
• Ultraviolet-blocking eye-shield included
• Excitation Filters: 490nm (blue), 545nm (green)
• Dichroic Mirrors: 510nm (blue), 580nm(green)
• Barrier Filters: 530nm (blue), 590nm (green)
• Manufactured under ISO 9001 Quality Control Standard
• Net Weight: 22 lbs
• Shipping Weight: 30 lbs

Contents:

• One episcopic illuminator with blue and green filters
• One 100W power supply
• One mercury-vapor bulb
• Two fuses
• One UV-blocking eye-shield
• One power cord

Optional Accessories :

• UV filter system
• Auxiliary exciting filter: EX450-490
