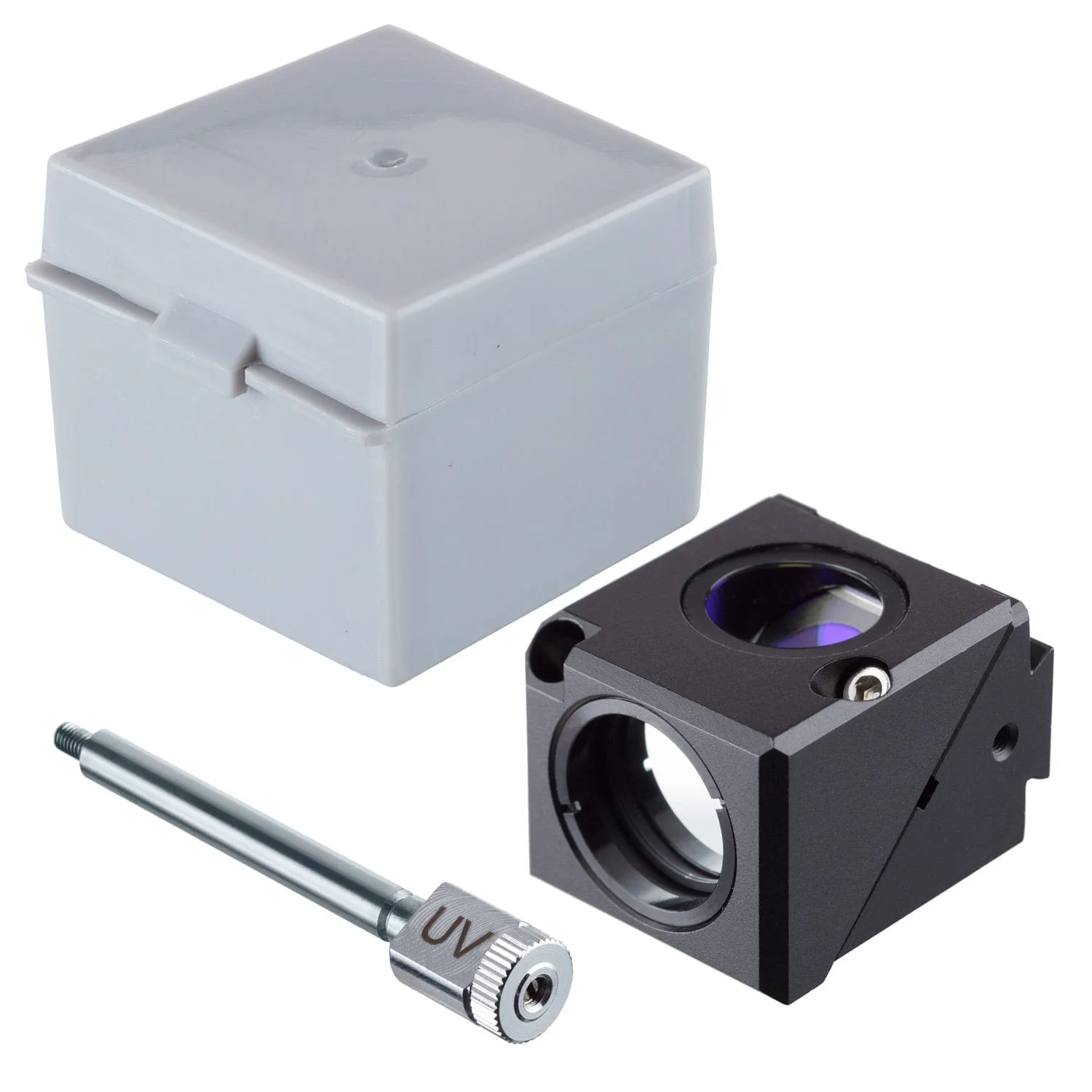

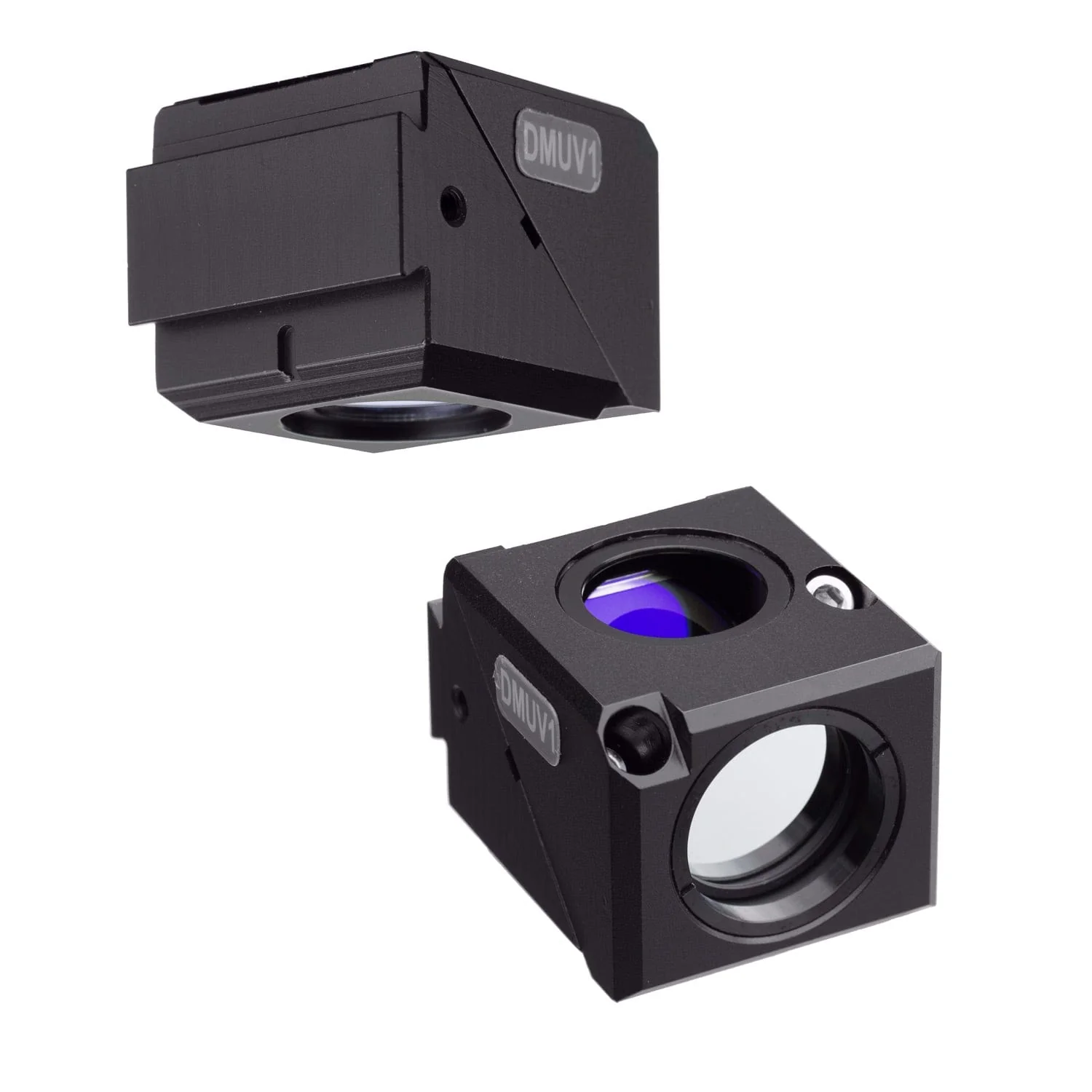

AmScope UV Filter Block for IN480-FL Series Microscopes

This is a UV filter block for the IN480-FL series fluorescent microscopes. When installed, this filter assembly allows you to view specimens which fluoresce in the violet to blue range when excited by ultraviolet light. With the excitation center wavelength of 365nm, and emission center wavelength of 450nm, this filter works with DAPI, Hoechst 33342 and 33258, AMCA, and AMCA-X stains.

Features & Specifications:

• Excitation Filter Type: bandpass
• Excitation Center Wavelength: 365nm
• Excitation Band: 50nm
• Dichroic Mirror Type: dichroic longpass
• Dichroic Mirror Cut-on Wavelength:400nm
• Emission Filter Type: descriminating filter
• Emission Center Wavelength: 450nm
• Emission Band: 65nm
• Stains: DAPI, Hoechst 33342, Hoechst 33258, AMCA, AMCA-X



Packing List:

• 1 filter cube in plastic case
• 1 screw-in rod
