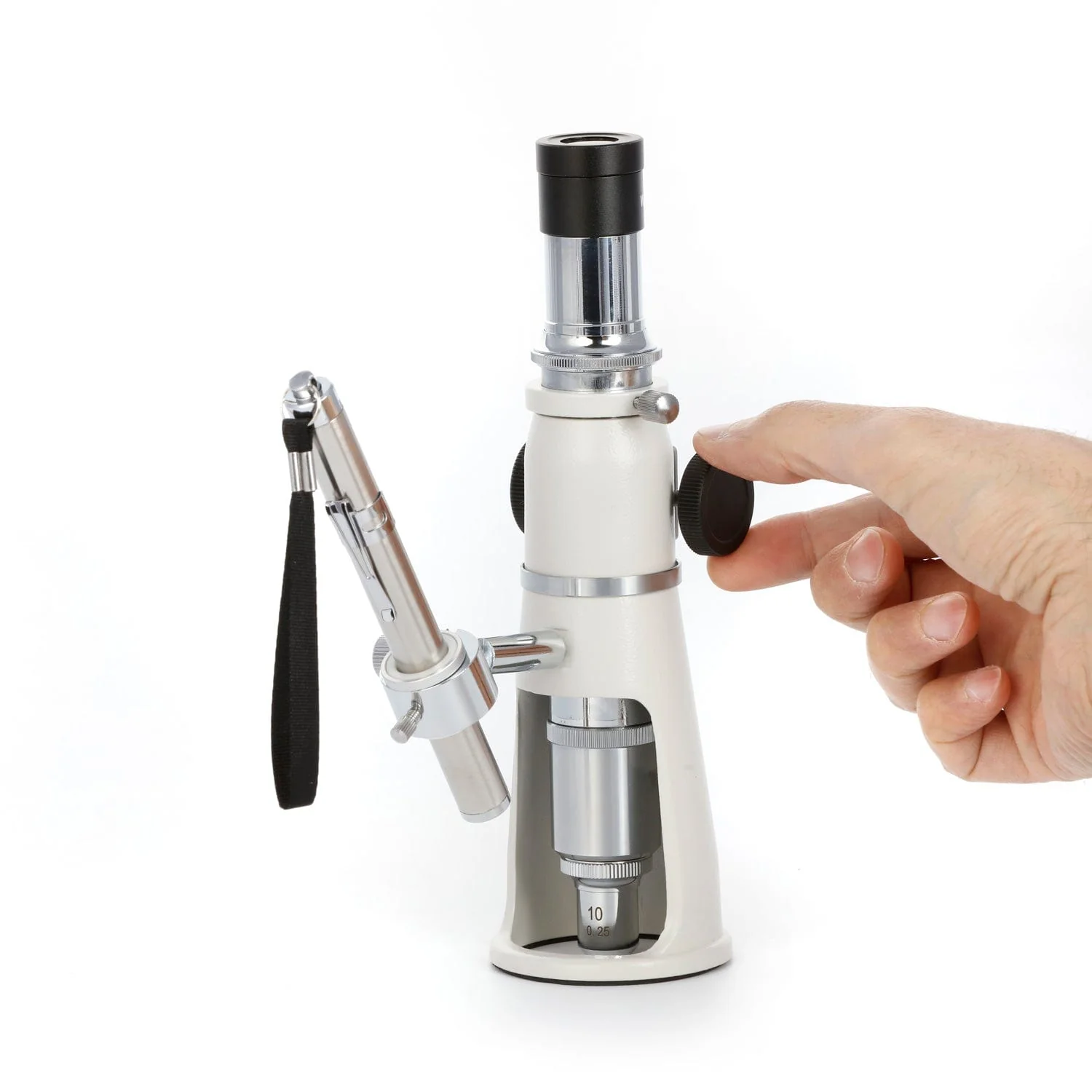

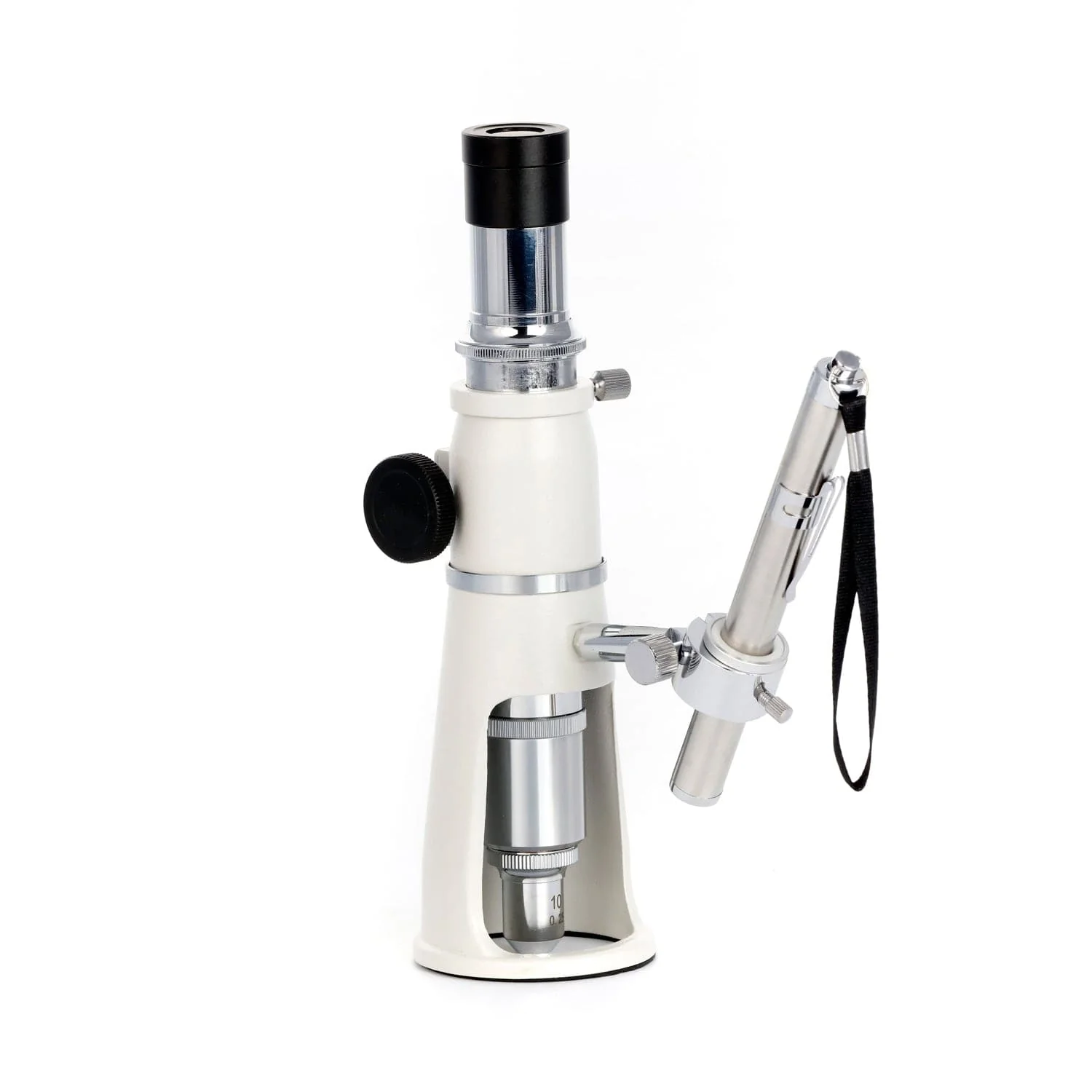

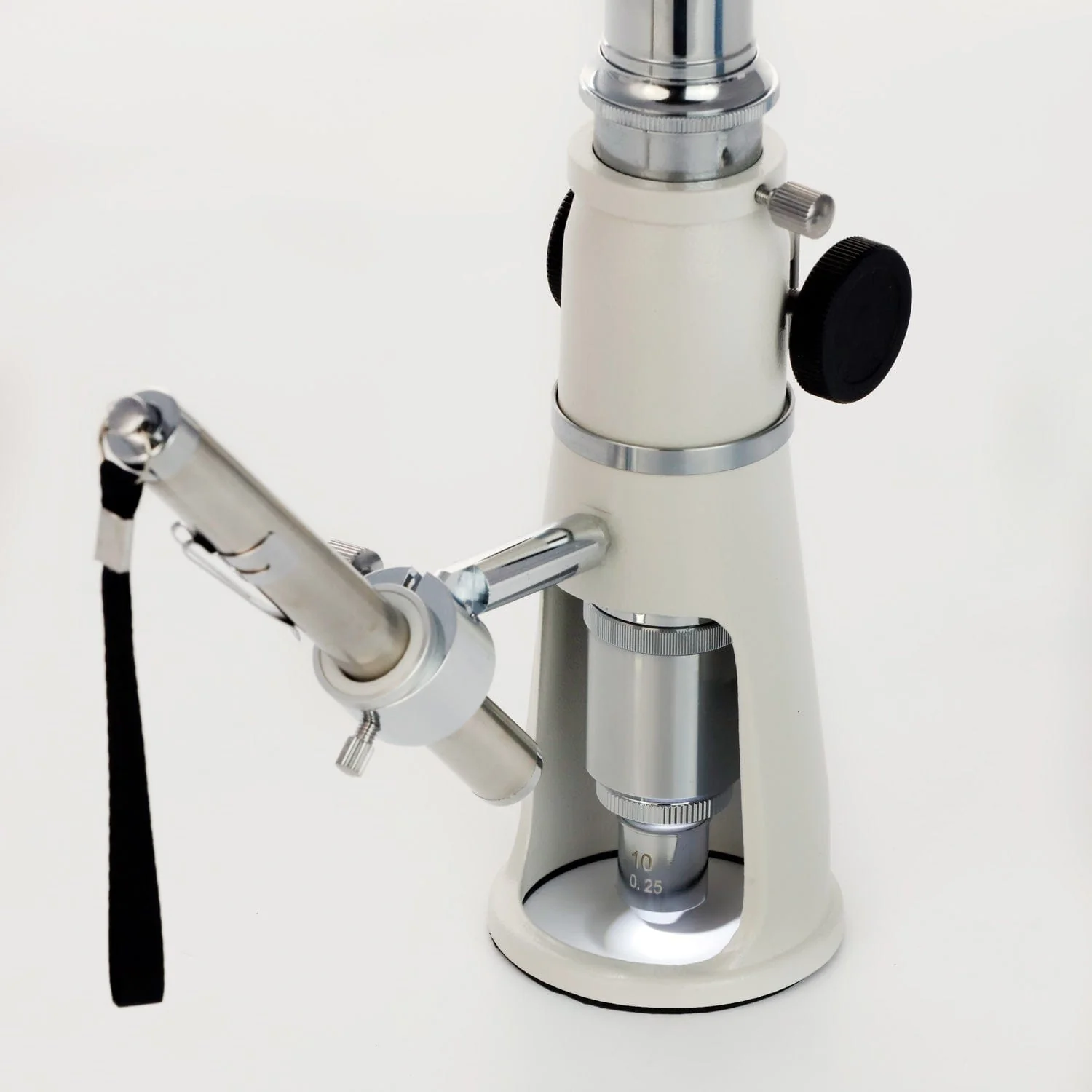

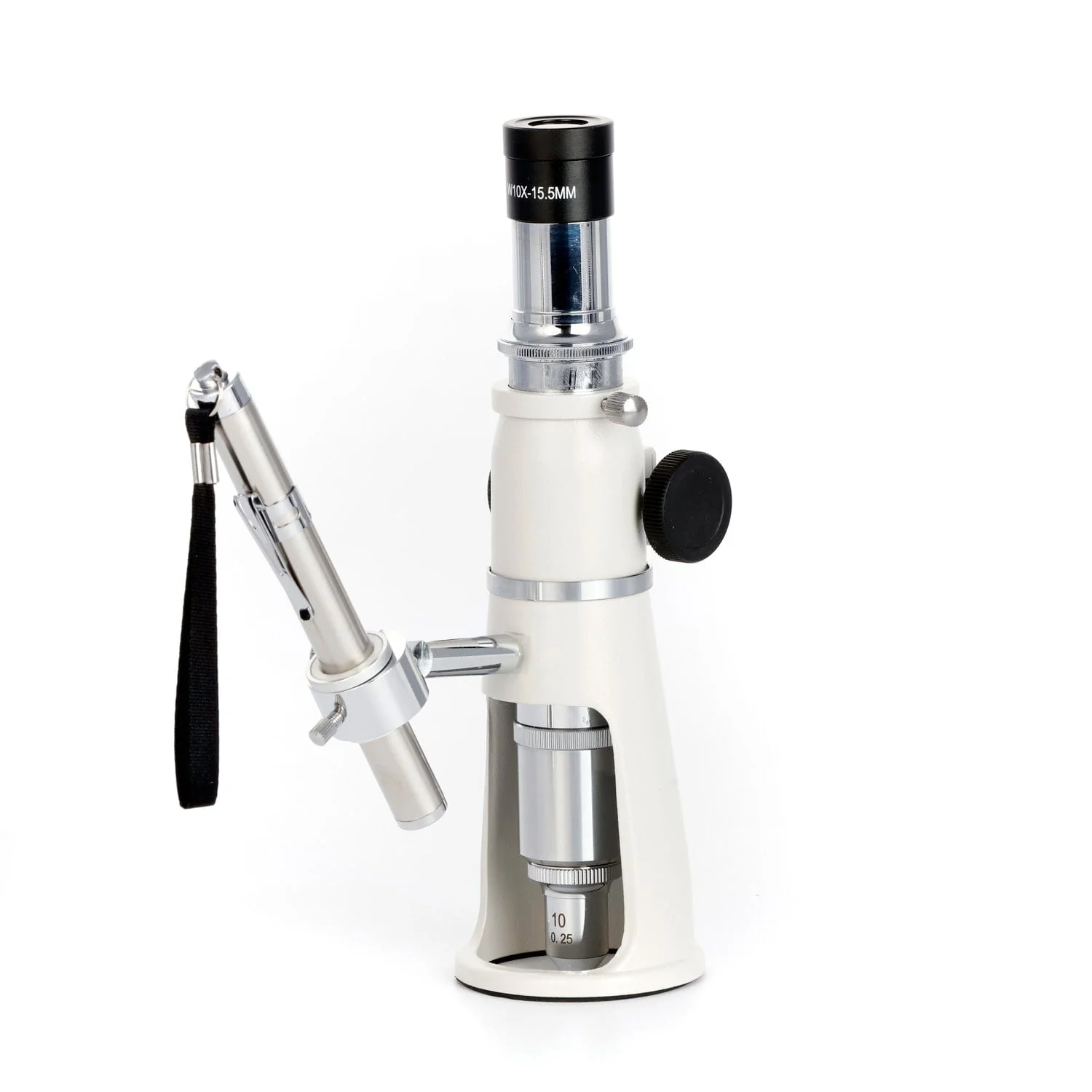

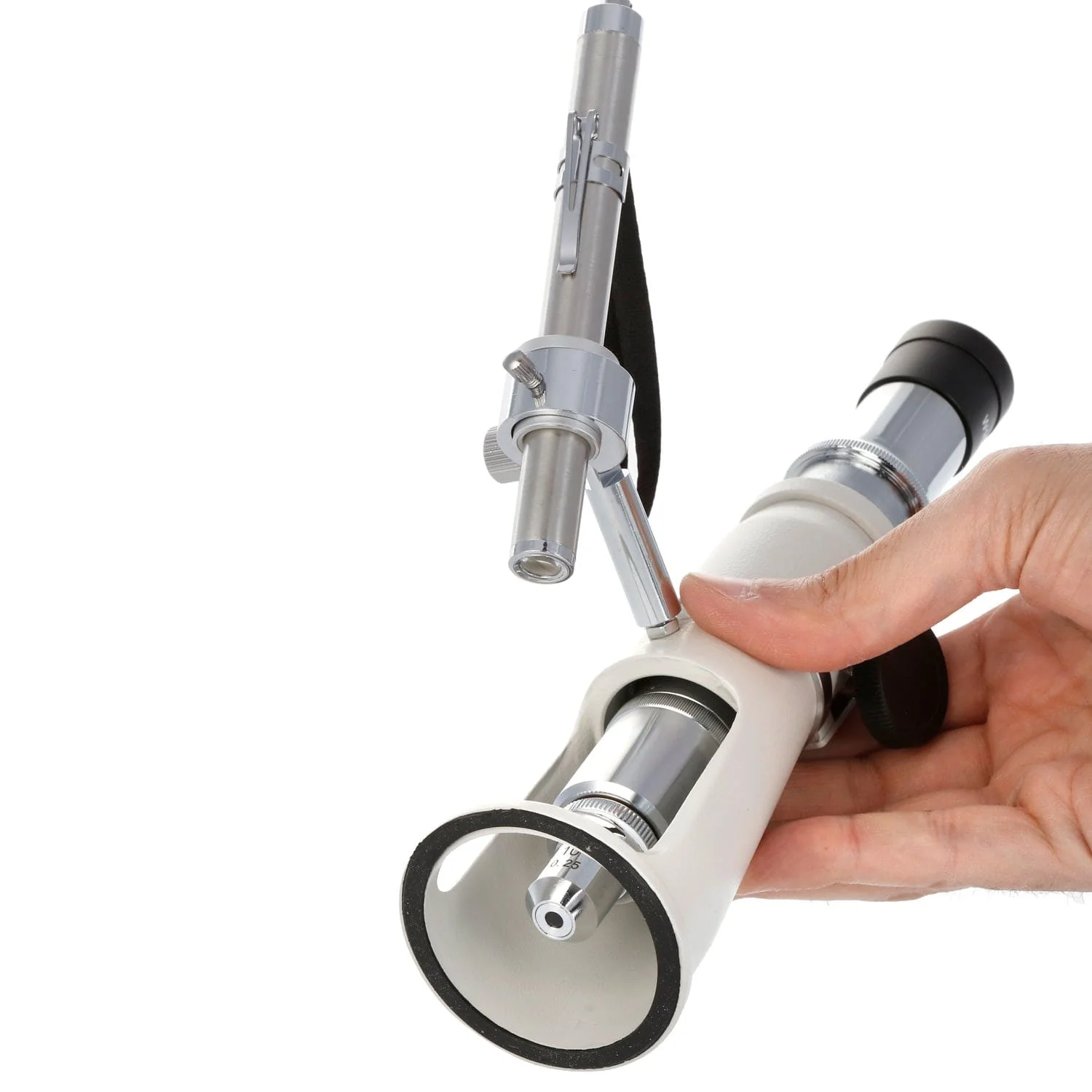

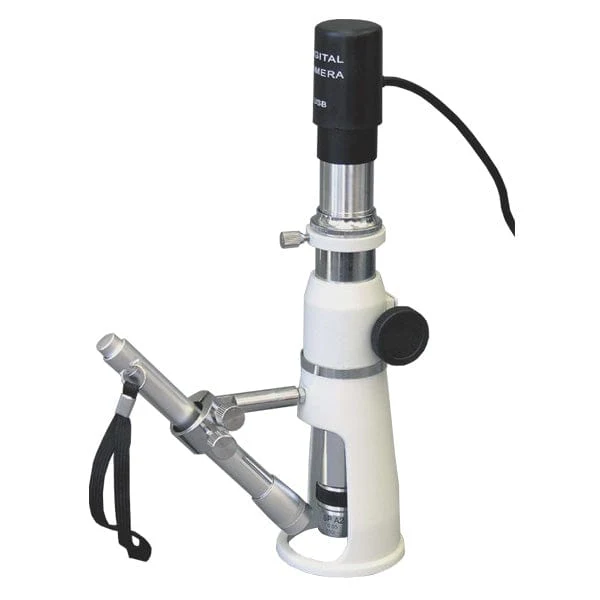

This measuring shop microscope offers 100X magnifications with color USB camera. Combining compact design and exceptional precise optics, it is an ideal shop tool, giving clear images with flat field of view. WF10X eyepiece with direct reading reticle (no calibration required) shows metric scales and allows for precise measurement. Adjustable penlight makes it versatile. The digital camera captures still images and video, and allows you to view a live stream on your PC. The included software for Windows offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. On Mac computers, the camera can be used as a driverless imaging device, compatible with various applications, such as ProScope and Photo Booth. This microscope system offers high quality clear images and unbeatable low price.
Features :
- A shop measuring microscope with color USB digital image system!
- 100X magnification setting
- Captures microscope images and streams real-time live videos on computer screens
- High quality clear images with 640x480 pixel resolution
- Software included
- Easy USB connection.
- Built-in scale showing millimeters (0.1mm Graduation)
- Adjustable pen light
- Full metal body
- Manufactured under ISO 9001 Quality Control Standard.
- Excellent Five (5) Year Factory Warranty.
Specifications :
- Total Magnification: 100X
- Power of Eyepiece: 10X
- Power of Objective: 10X
- Reading Graduation: 0.05mm, 0.02mm and 0.01 under 20X, 50X and 100X respectively
- Focusing Range: 30mm
- Diameter of Viewing Field: 17mm
- Reticle of Eyepiece: 0.1 micrometer
- Illumination System: pen lamp with two AA batteries
- Overall Size: 65mm (2-1/2") base diameter x 250mm (9-7/8") height
Camera Specifications:
- Sensor: Aptina
- Sensor Type: CMOS
- Sensor Size: 3.58x2.69mm
- Pixel Size: 5.6
- Resolution: .35MP (640x480)
- Frame Rate: 30@640x480
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX (Mac software not provided)
Software Specifications:
- OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10
- Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
Shipping List :
- One Shop Microscope Body
- One Widefield 10X Eyepiece with Reticle Graduated in 100 Units
- One 10X Achromatic Objective
- One Pen Light
- User's Manual Download
- One 640x480 Pixel USB Camera
- Shipping Weight: 6 lbs
