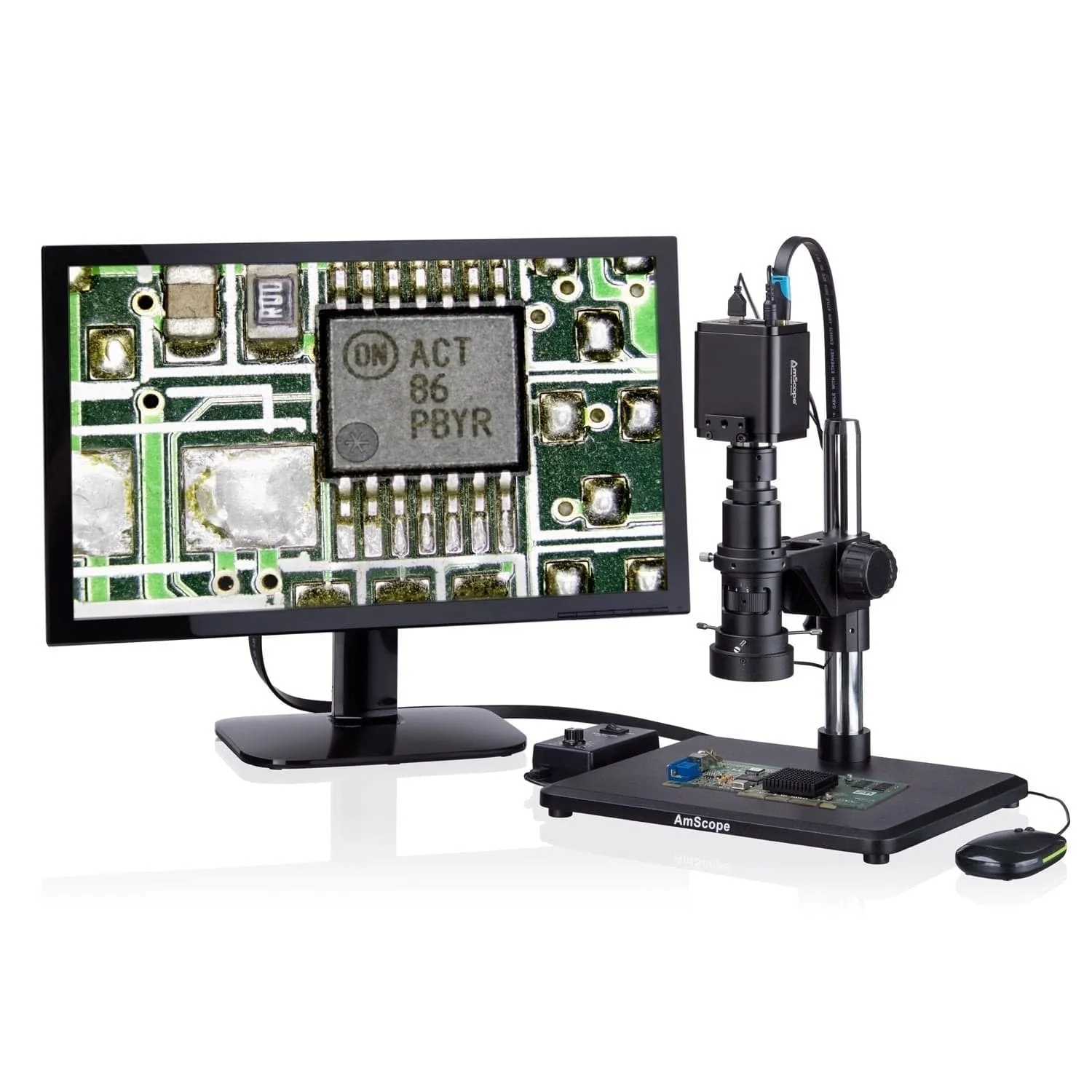

Engineered for professional photomicrography, the H800 single-optical-path zoom microscope delivers artifact-free images across a broad 0.7X–5X range. Unlike stereo systems, which can introduce off-axis distortion and keystoning, the H800’s dedicated imaging lens produces true, rectilinear photos and video — ideal for documentation, inspection, and publication-quality results.
A height-adjustable C-mount camera interface enables precise parfocal tuning so focus is maintained while zooming. An integrated 0.4X reduction is optimized for 1/2" sensors, expanding field of view without sacrificing clarity. For additional flexibility, the optional AD-C23 adapter converts the C-mount to a 30mm/23mm tube for use with eyepieces or reduction optics — including 23mm DSLR adapters for hybrid workflows.
The package includes a stable table stand with an 11" pillar and a model-specific focusing block. Symmetrical, tension-adjustable coarse-focus knobs provide smooth, repeatable movement, while the large base maximizes working area and stability for assembly, QC, or documentation tasks.

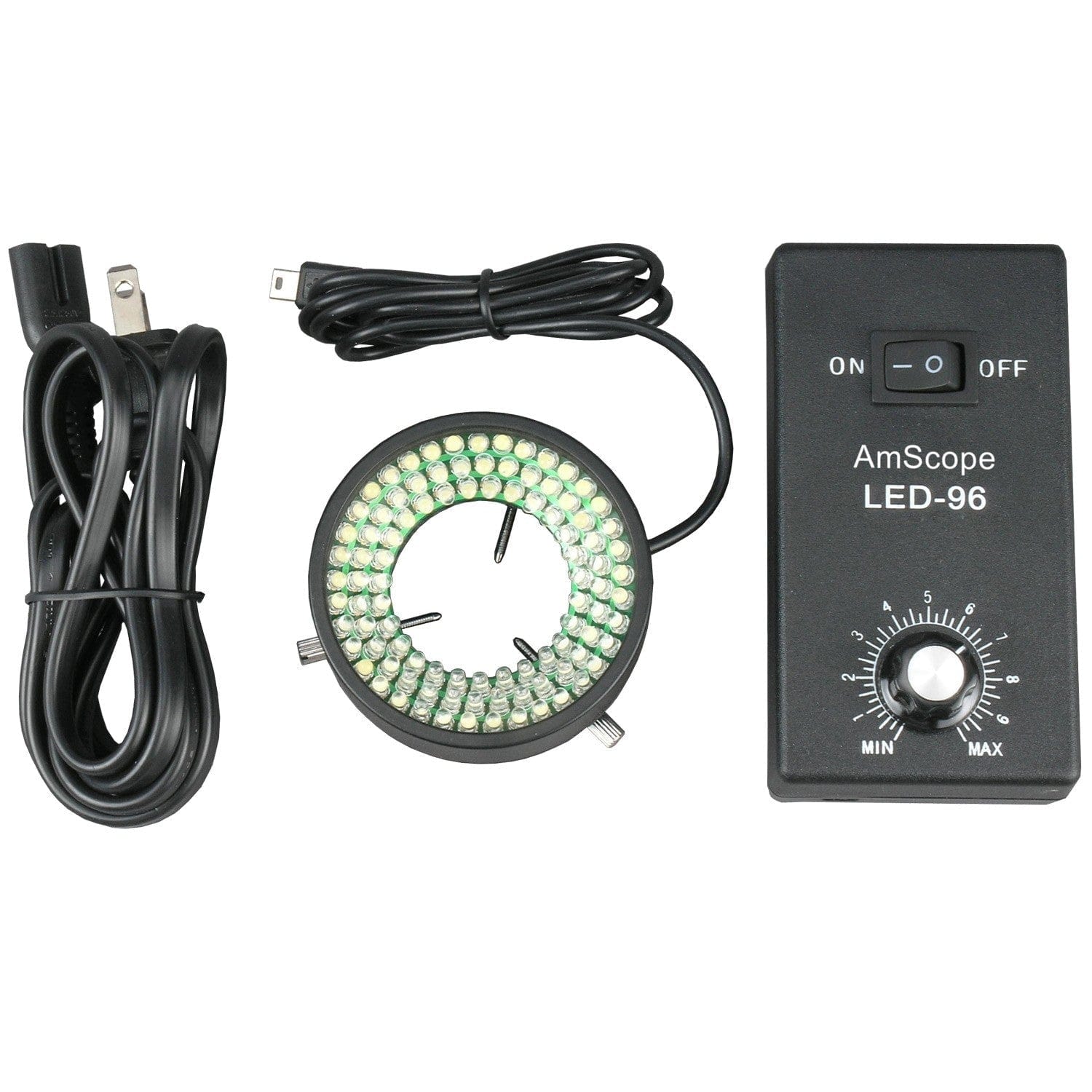

Illumination is handled by a bright, uniform 96-LED ring light with a simple, single-knob controller, providing ample intensity control for reflective and textured surfaces.
To complete the imaging pipeline, the system ships with the HD408L 4K Ultra HD camera, delivering four-times 1080p resolution for exceptional detail on modern displays. Run real-time HDMI to a monitor for latency-free viewing, or capture 4K video and up to 8MP stills directly to SD/USB — no PC required. Built-in software supports measurement and image processing for a standalone workflow, while the included PC software unlocks advanced tools such as time-lapse, stitching, and focus stacking.
Specifications
| Lens | |
| Optical System | Finite-conjugate |
| Objctive Magnification | 0.7X-5X continuous zoom |
| Objctive Numerical Aperture | 0.02-0.07 |
| Objective Resolution | 63 lp/mm @ 0.7X 180 lp/mm @ 5X |
| Optical Corrections | Semi-Apochromatic |
| Camera Mount | C-Mount (25.4mm) |
| Integrated Reduction | 0.4X |
| Working Distance | 105mm |
| Lens Mounting Diameter | 50mm |
| Stand | |
| Stand Type | Table stand with pillar |
| Base Dimensions | 320mm x 260mm x 16mm |
| Pillar Dimensions | Height: 280mm Diameter: 32mm |
| Focusing-block Focus Range | 42mm |
| Illuminator | |
| Illuminator Type | 96-LED ring light with wired remote |
| Power Output | 4.5W |
| Brightness | 15000lux @ 100mm |
| Color Temperature | 6400K |
| Power Requirements | 110-240V, 50-60HZ, auto-switching wide-band |
| Camera Specifications | |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/1.8" |
| Active Pixels | 8.3M (3840 x 2160) |
| Pixel Size | 2µm x 2µm |
| Active Sensor Area | 7.68mm x 4.32mm |
| Shutter | electronic rolling shutter |
| Sensitivity | 505mV @ 1/30s (f/5.6) |
| Spectral Response | 380-650nm with IR-cut filter |
| Video Preview Resolution (HDMI) | 3840 x 2160 |
| Video Preview Framerate (HDMI) | 30fps |
| Video Capture Resolution | 3840 x 2160 |
| Video Capture Framerate | 20fps (SecureDigital) 20fps max (USB) |
| Internal Video Capture Format | MP4 (H264, H265) |
| Photo Capture Resolution | 3840 x 2160 |
| Internal Photo Capture Format | JPG, TIFF |
| Recording Media | SecureDigital card |
| Connectivity | HDMI, USB (PC), USB (storage) |
| Lens-mount | C-mount |
| Power | 12VDC 1A |
Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | ||||||||||||||||||
| Features |
|
||||||||||||||||||
| Supported File Formats (Photo) | JPG,JP2,PNG,TFT,TIF,WEBP | ||||||||||||||||||
| Supported File Formats (Video) | MP4, WMV (Windows) |
Packing List:
- Monocular zoom microscope
- Focusing block
- Base plate for table-stand
- Column for table-stand
- Hex wrench
- Three screws and washers
- Dust cover
- 96-LED ring light
- Power control unit for ring light
- Power cord
- HD408L 4K camera
- USB mouse
- HDMI cable
- USB drive
- AC adapter for camera
- Software
