$108.50The Story

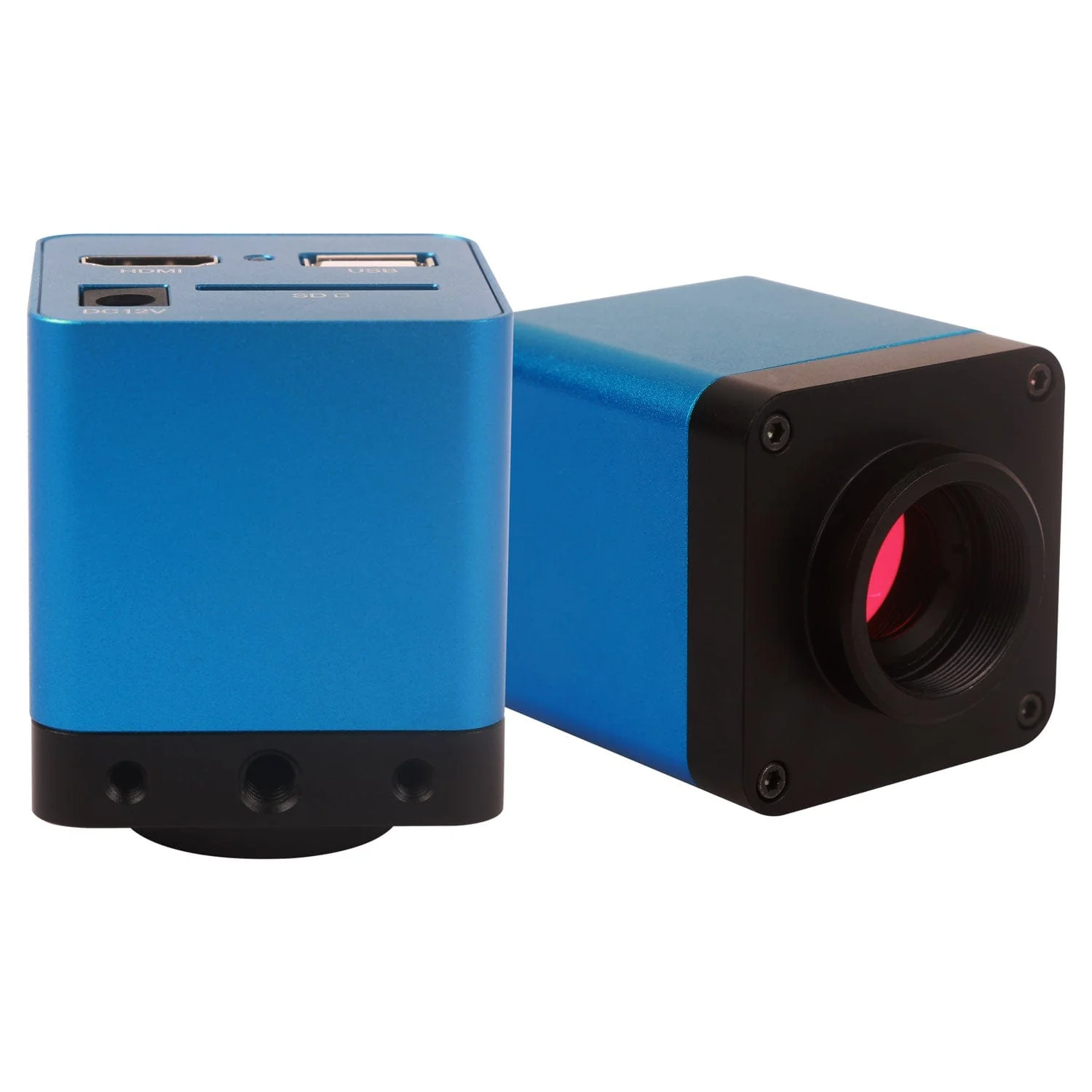

The HD102-M is a 2MP digital camera delivering 720p video at 30fps over HDMI, and capturing 1080p images using the built-in SD-card writer. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.

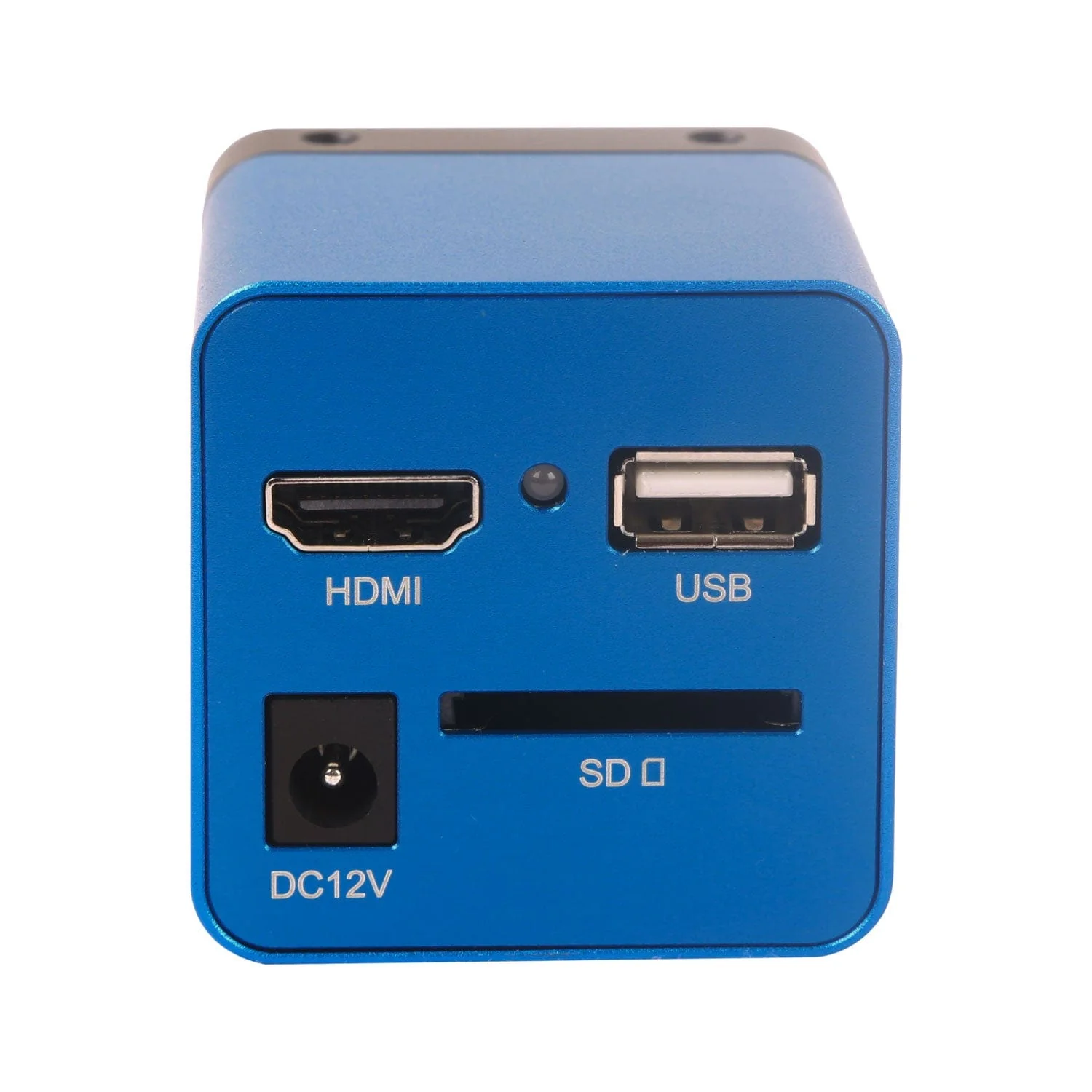

Connected to an HDMI monitor or TV, 720p live video can be viewed at a smooth 30fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure. Optionally, a companion HDMI monitor can be attached directly to the camera, creating a self-sufficient turnkey system.
Specifications
| Sensor Specifications | |
| Model | IMX322 (color) |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.9" |
| Active Pixels | 2.07M (1920 x 1080) |
| Pixel Size | 2.8µm x 2.8µm |
| Active Sensor Area | 5.38mm x 3.02mm |
| Shutter | electronic rolling shutter |
| Sensitivity | 510mV @ 1/30s |
| Spectral Response | 380-650nm with IR-cut filter |
| Other Camera Specifications | |
| Video Preview Resolution (HDMI) | 1280 x 720 |
| Video Preview Framerate (HDMI) | 30fps |
| Photo Capture Resolution | 1920 x 1080 |
| Recording Media | SecureDigital card |
| Connectivity | HDMI |
| Lens-mount | C-mount |
| Compensating Lens | 0.37X (optional) |
| Power | 12VDC 1A |
| Dimensions | 50mm x 50mm x 61mm |
| Operating Temperature | -10-50°C |
| Operating Humidity | 30-80% |
Contents:
