AmScope HD Series 1080p 60fps 2.0MP HDMI High-sensitivity Color CMOS C-mount Microscope Camera with Monitor for Stand-alone and PC Imaging

Our 60fps 1080p digital video camera and 11.6" monitor kit provides live viewing and recording of your microscope image with ease and extremely high quality! Now, viewing your microscope's image digitally has never been easier, with crystal clear image quality and a completely live, stutter-free 60fps image on screen. On-screen adjustments can be easily made for exposure, saturation, brightness, contrast, tint, and noise reduction to provide you with the best image possible for any application. Compatible with stereo microscopes and compound microscopes, whether your needs are biological, industrial, gemological, or any other type of microscopy, the TC2 camera will provide flawless results--even for low light fluorescent imaging! Everything you need to mount the camera and monitor is included, so you can conveniently view your microscope's image without any external device necessary!

The standard C-mount connection allows the camera to be used with any number of optional lenses and C-mount photo ports. For 23mm drop-in photo-ports, a 0.5X reduction lens is recommended.

Camera Specifications:

Sensor: Sony IMX236 CMOS

Sensor Size: 1/2.8"

Preview and Capture Resolution: 3264x1840 (SD Card),  3264x1840, 1920x1080 (PC)

Video Resolution: 1920x1080

Live Frame Rate: 60fps @ 1920x1080 via HDMI, 30fps @ 1920x1080 via USB2.0 & SD Card Slot Recording

Recording Frame Rate: 30fps @ 1920x1080

Image Storage: SD Card Slot

Scan Mode: Progressive

Exposure Time: 0.001 sec ~ 10.0 sec

White Balance: Auto

Settings: Gain, Gamma, Saturation, Cotraction

Screen Built-in Software: Cloud 1.0

PC Software: ISCapture

Interfaces: USB2.0, HDMI

Compatibility: Windows XP/7/8 (32/64 bit)

Optical Port: Standard C-mount

Power Supply: DC 12V / 2A

Dimensions: 78mm x 70.8mm x 90.7mm

Built-in Software Features

- Captures Still Images & Records Video

- 1080p Video Recording (30 fps)

- Auto Exposure & Manual Exposure Setting Options

- Saturation, Brightness, Contrast, & Tint Options

- Auto White Balance Functionality

- 3D Noise Reduction

- ROI Magnification Functions (Image Flip, Rotation, ROI)

- Image Side by Side Comparison Functionality

- Built-in File Browser

- Lifetime software updates

Computer Software Features

- Compatible with Windows XP/Vista/7/8 (32 & 64 bit)

- Computer Requirements: CPU Equivalent to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 port

- Preview live images right on your computer

- Record images and video (30 fps record rate over USB2.0)

- Auto and manual control of exposure, gain, white balance, gamma, contrast, saturation, and more

- Lifetime software updates

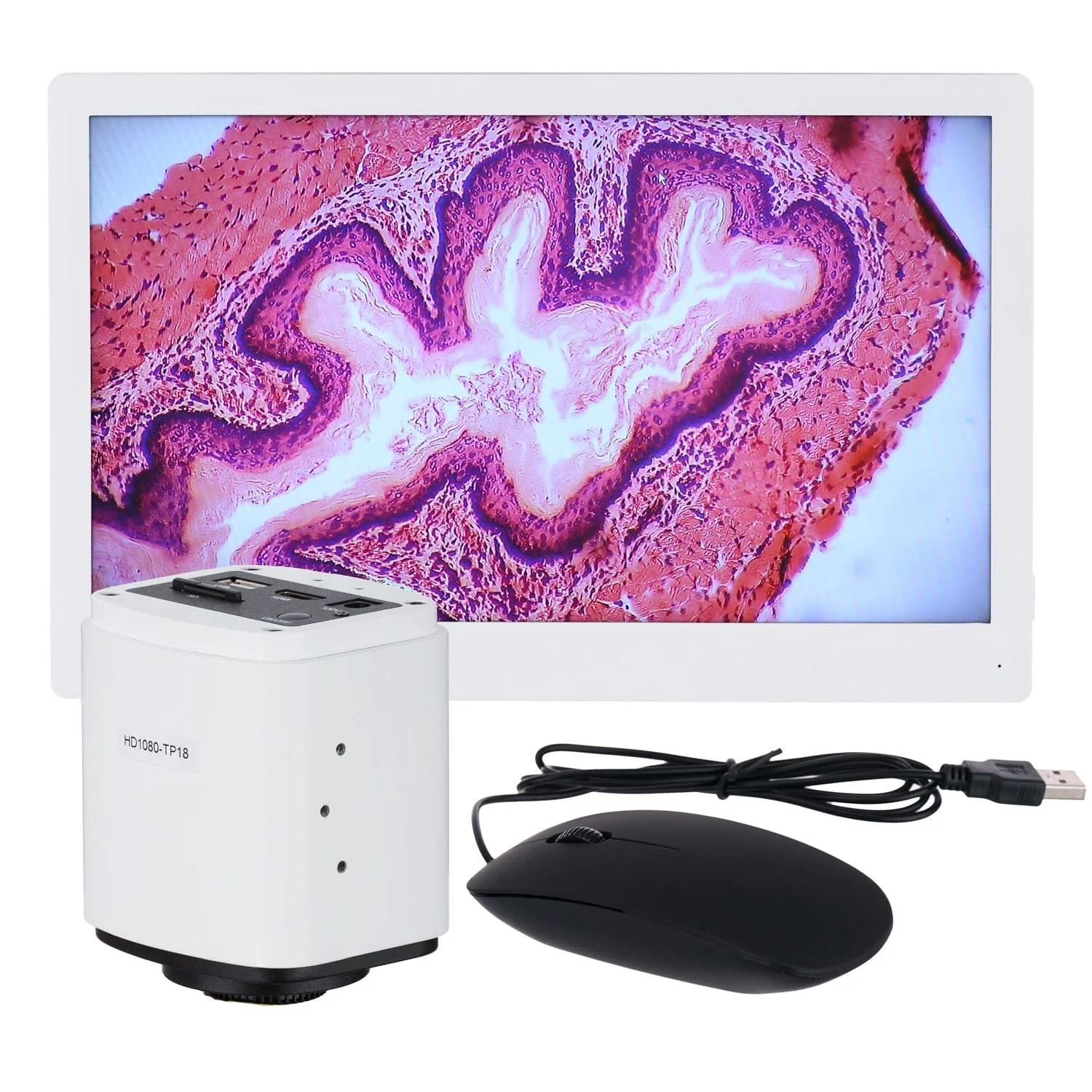

Packing List

TC2 Camera Body

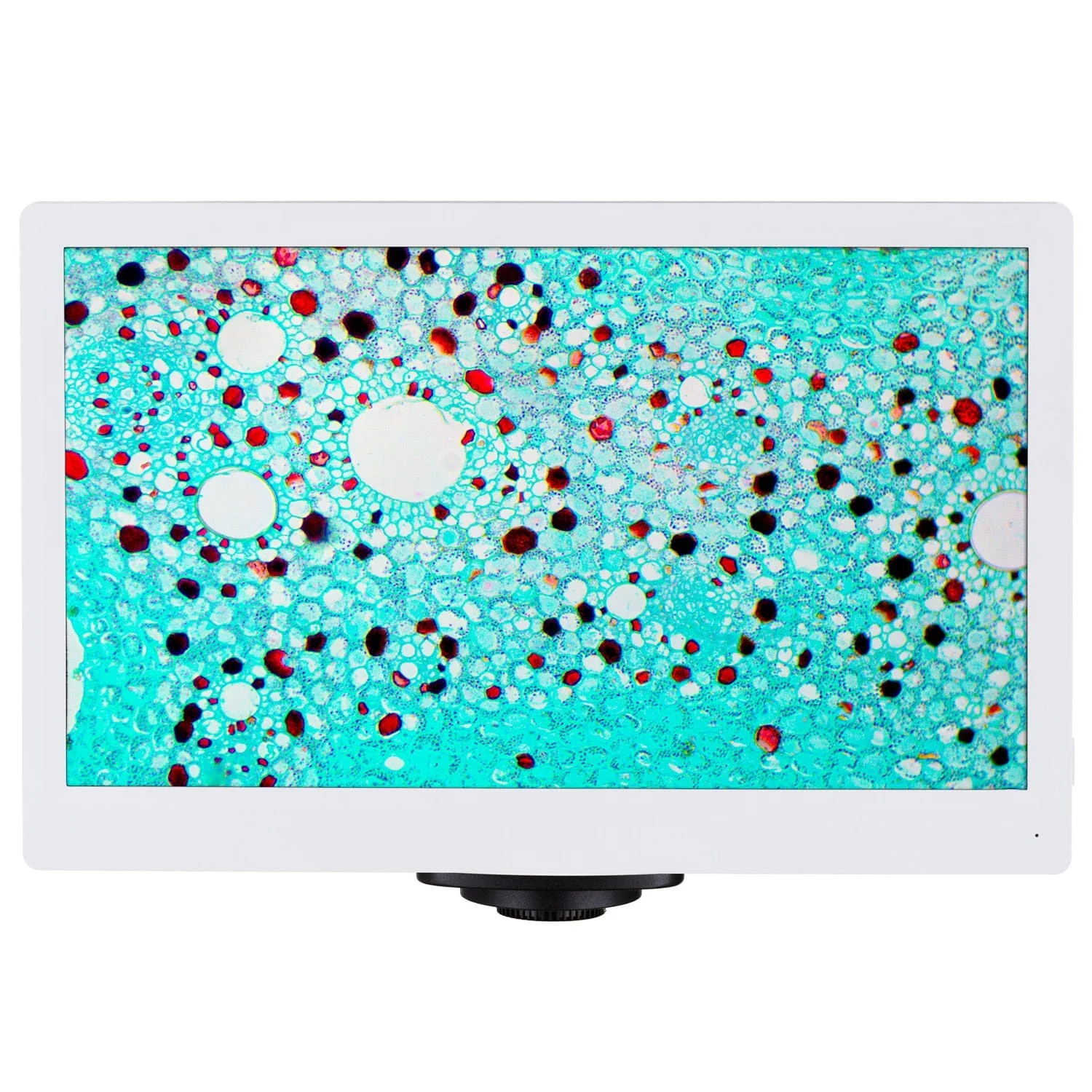

11.6" HDMI Monitor

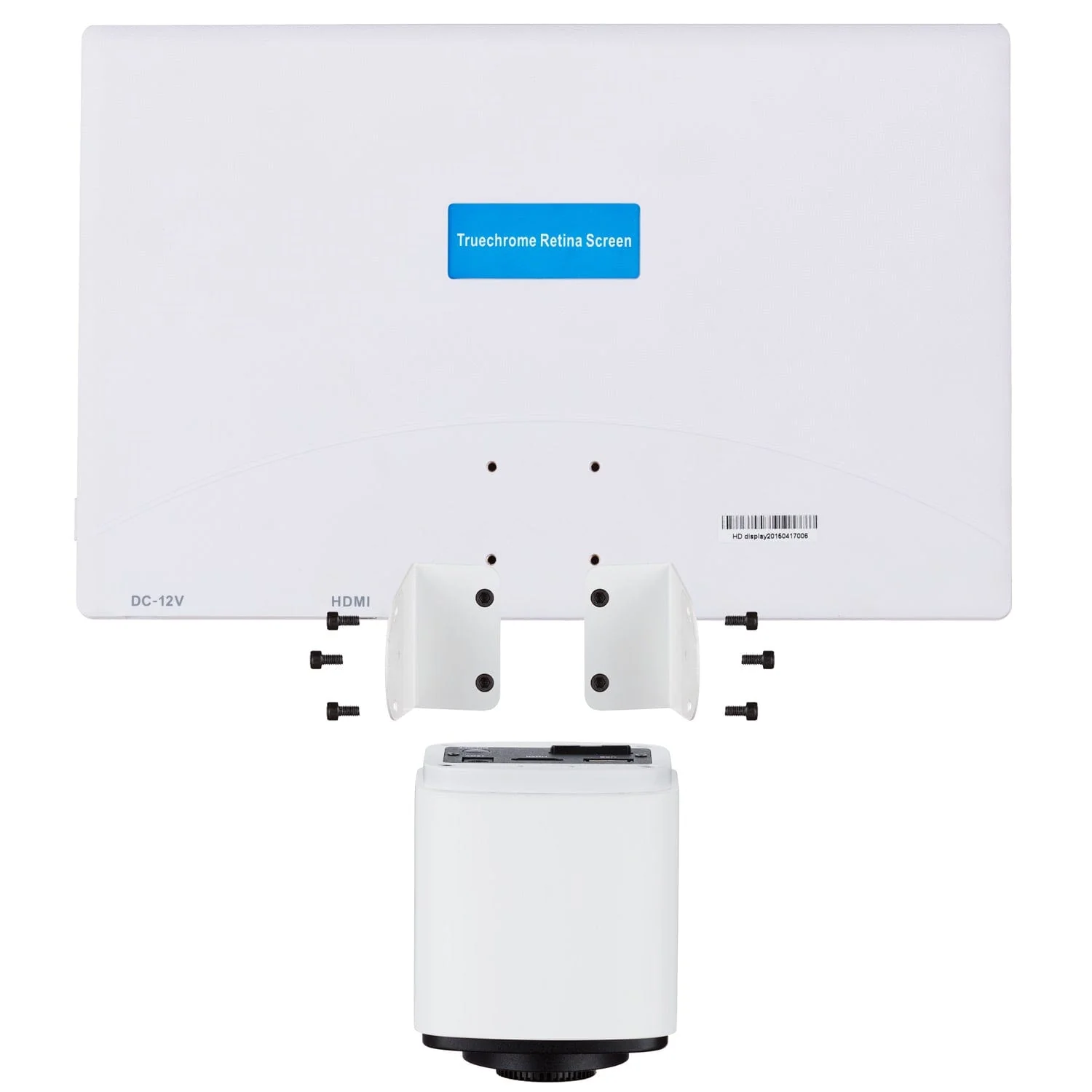

Mounting Brackets

HDMI Cable

USB Mouse

SD Card

AC Splitter Cable

Power Supply

Software CD
