The Story

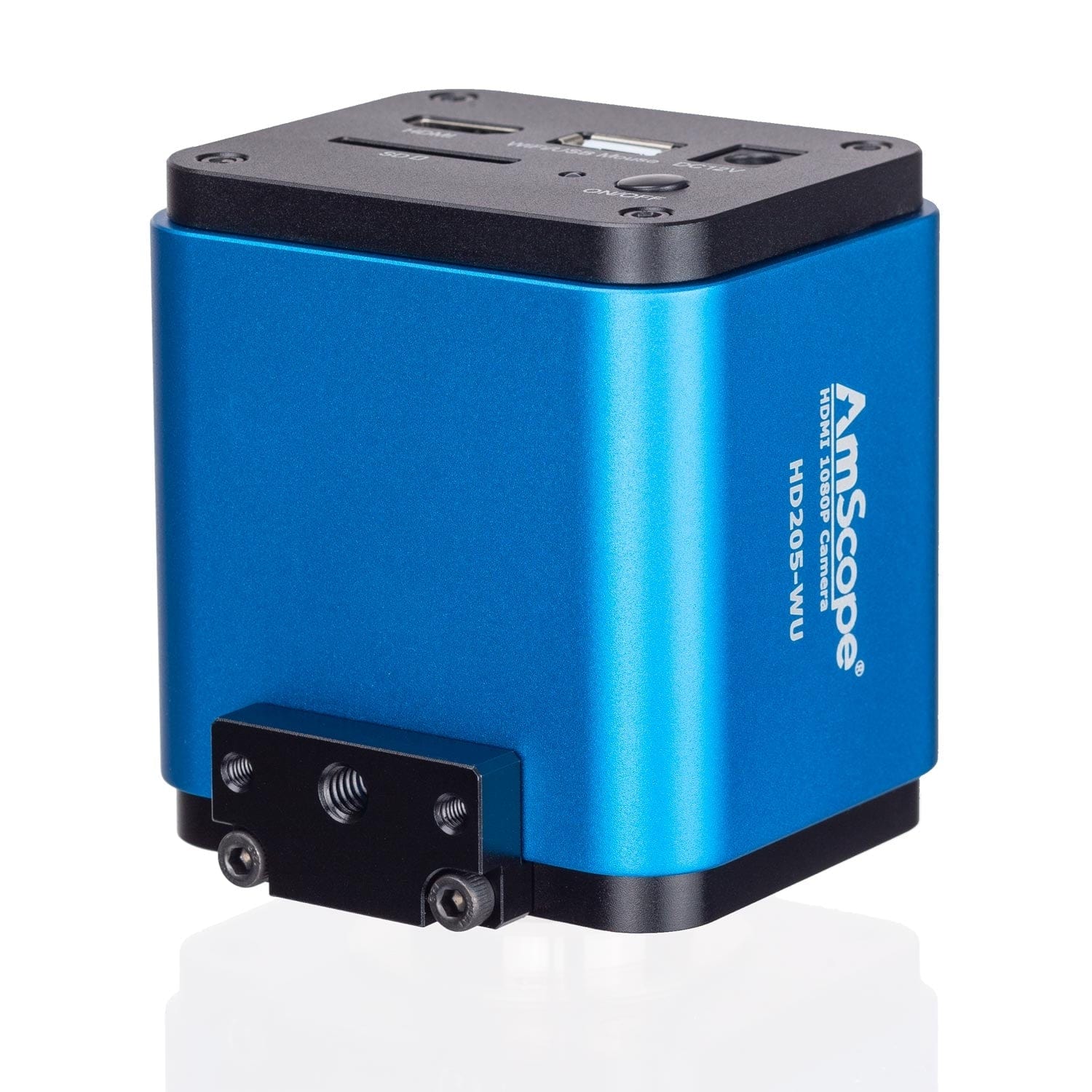

The HD205-WU is an HDMI-capable digital camera, delivering 1080p video and 5MP still images. Able to be used as a standalone recording device using Secure Digital memory, or as a WiFi camera on a networked computer, this is an extremely flexible imaging solution. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo-ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.
Connected to an HDMI monitor or TV, live video can be viewed at 1080p resolution. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure, and control recording functions. As an alternative solution, connect to the camera over WiFi for remote software control, with 25fps streaming. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Notice: an adapter is required to mount the camera to 23mm photo ports. A 0.5X reduction lens is recommended.
Specifications
| Sensor Specifications | |
| Model | IMX178 (color) |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/1.9" |
| Active Pixels | 5.04M (2592 x 1944) |
| Pixel Size | 2.4µm x 2.4µm |
| Active Sensor Area | 6.22mm x 4.67mm |
| Shutter | electronic rolling shutter |
| Sensitivity | 425mV @ 1/30s (f/5.6) |
| Spectral Response | 380-650nm with IR-cut filter |
| Other Camera Specifications | |
| Video Preview Resolution (HDMI) | 1920 x 1080 |
| Video Capture Resolution | 1920 x 1080 |
| Video Capture Framerate | 30fps (SecureDigital) 25fps max (wi-fi) |
| Internal Video Capture Format | ASF |
| Photo Capture Resolution | 2592 x 1944 |
| Internal Photo Capture Format | JPG |
| Recording Media | SecureDigital card |

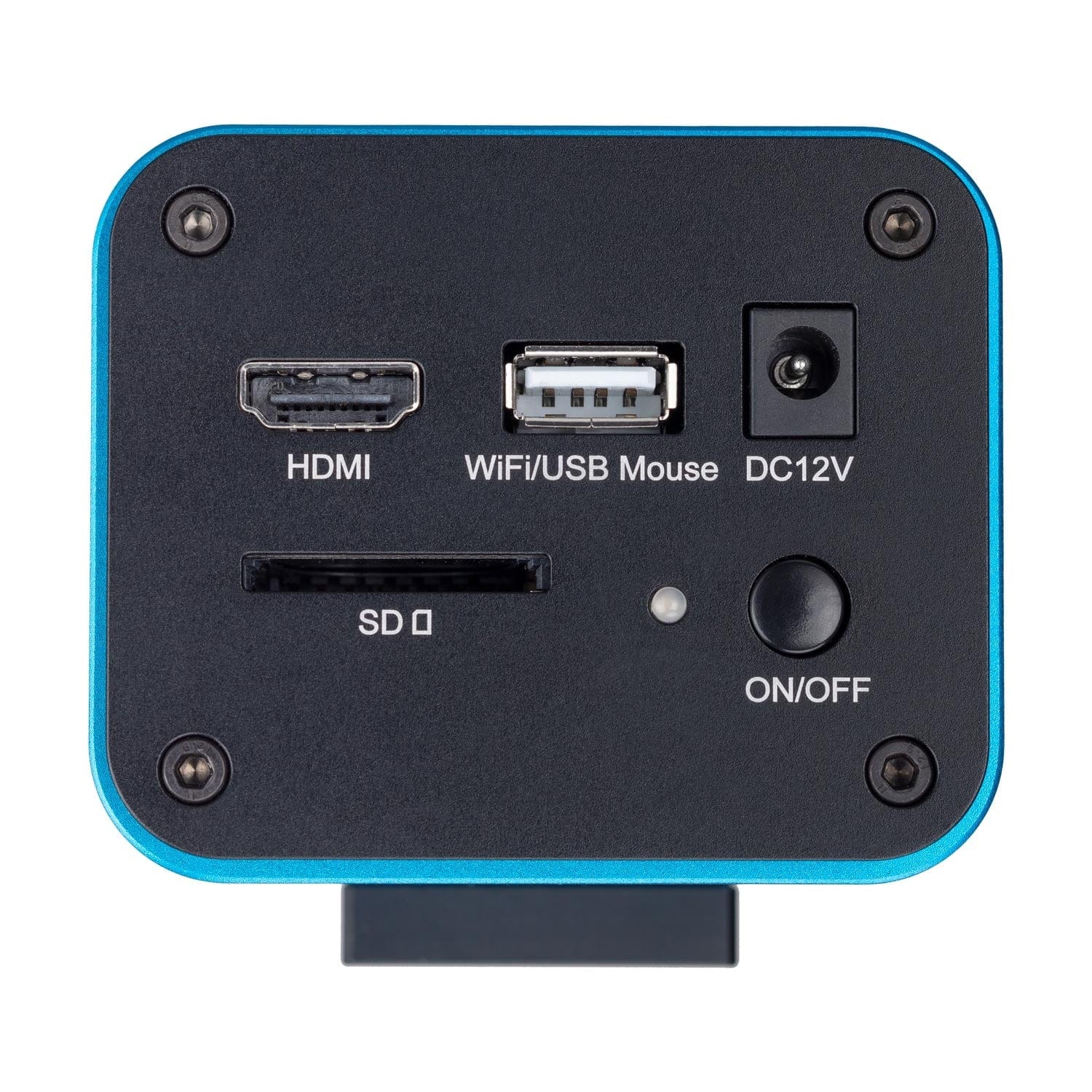

| Connectivity | HDMI, wi-fi |
| Wi-fi Standard | 802.11n 150Mbps |

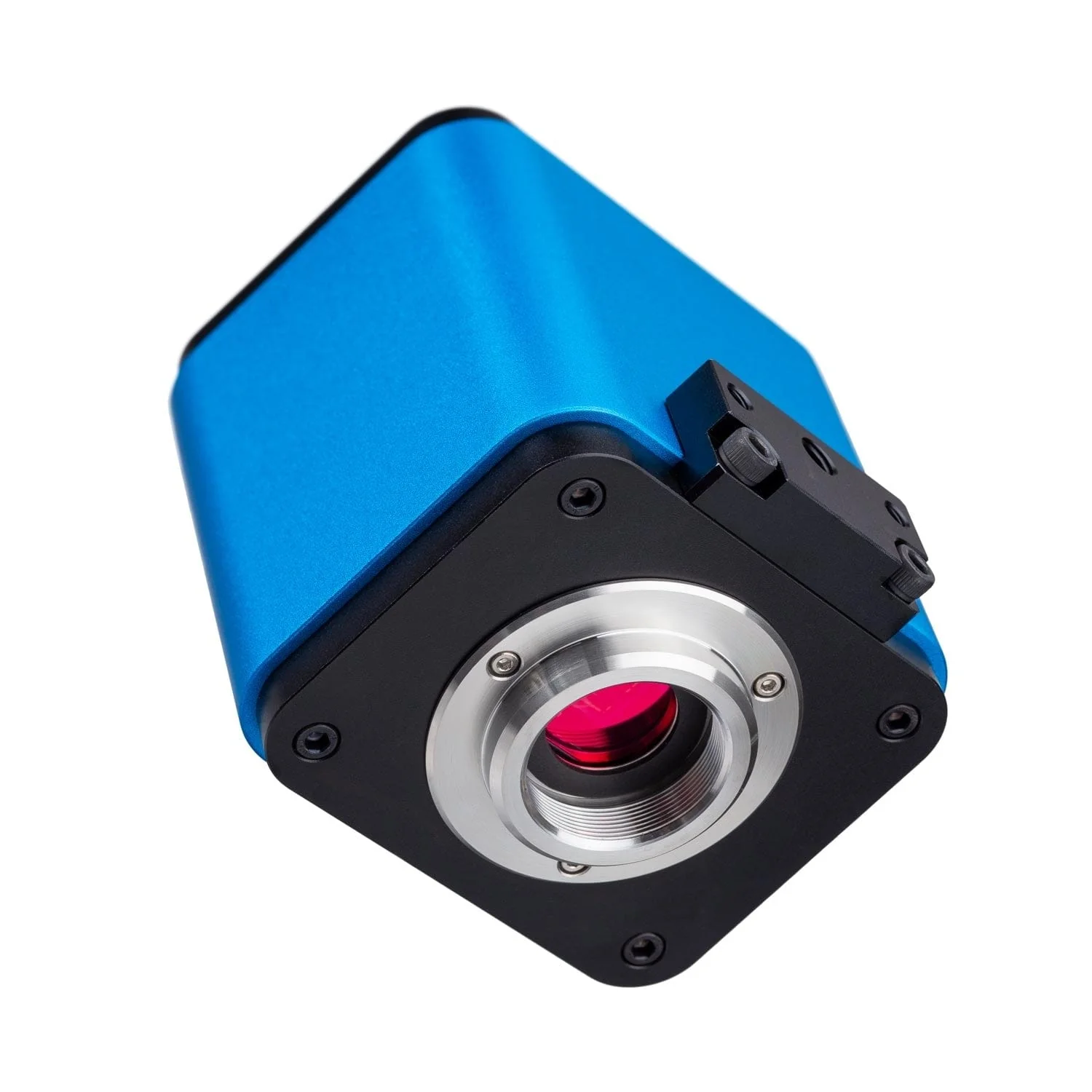

| Lens-mount | C-mount |
| Compensating Lens | 0.5X (optional) |
| Power | 12VDC 1A |
| Dimensions | 78mm x 65mm x 88mm |
| Operating Temperature | -10-50°C |
| Operating Humidity | 30-80% |
Software
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | ||||||||||||||||||
| Features |
|
Contents:
- One HD Digital Camera
- One USB Mouse
- One USB WiFi Antenna
- One HDMI Cable
- One SD Card
- One Power Adapter
- One software CD
