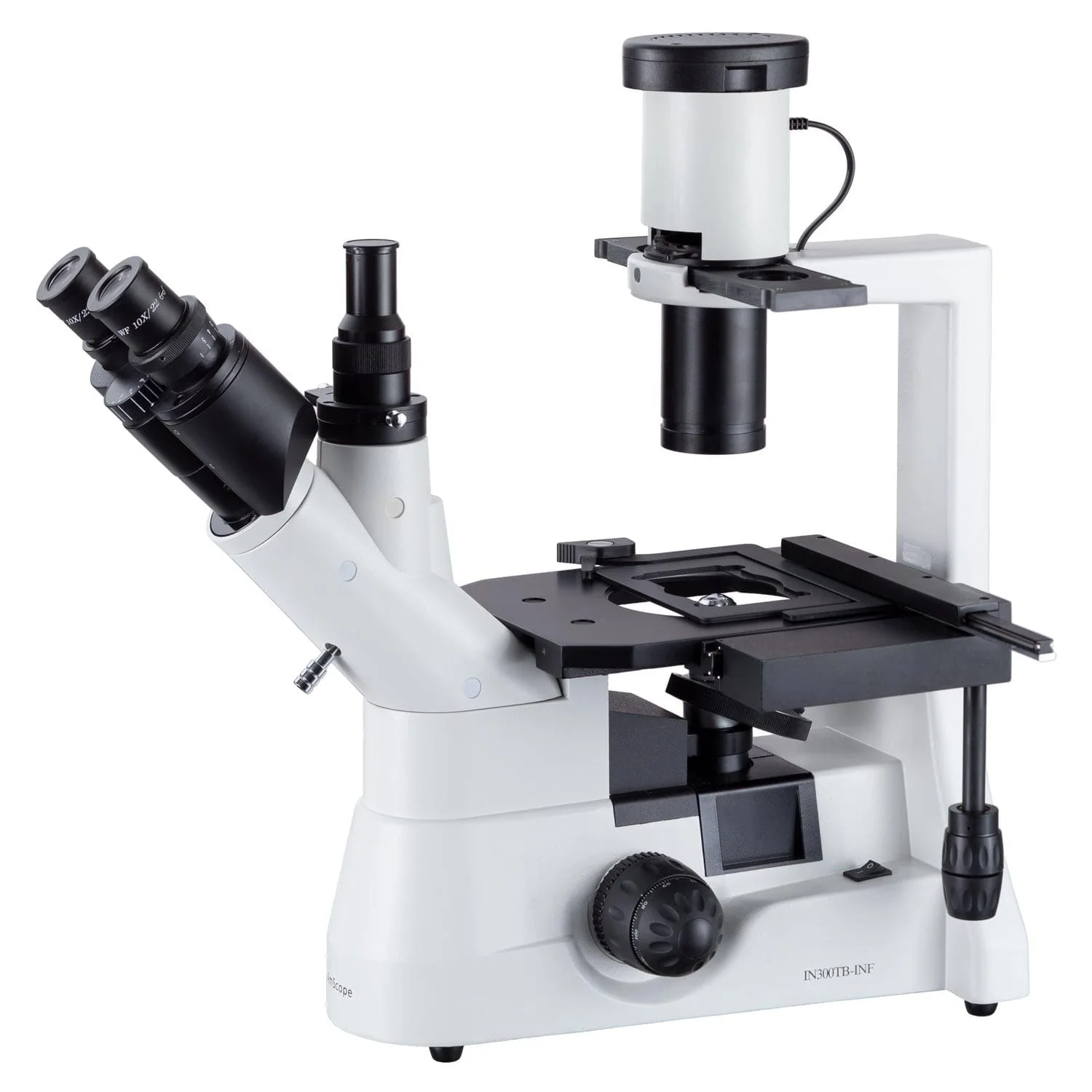

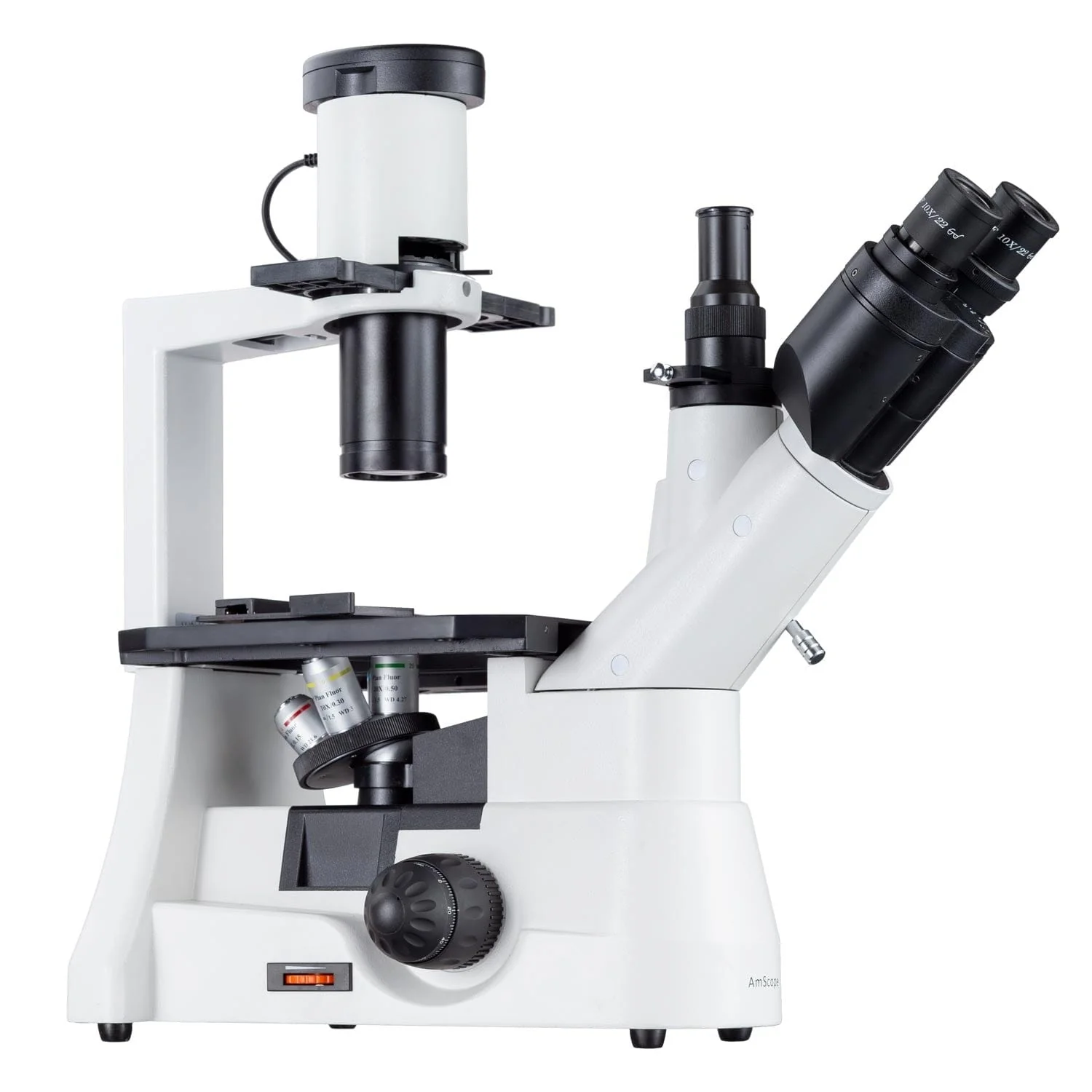

AmScope IN300 Series Infinity-corrected Inverted Biological Trinocular Compound Microscope 40X-800X Magnification with Phase-contrast

The IN300T-INF is an inverted biological microscope with an infinity-corrected optical-system. The microscope features a large stage with mechanical X-Y translation, and templates for holding multi-well plates, Petri dishes, and slides. Four plan-fluor objective lenses (4X, 10X, 20X, 40X) are included for high-resolution, highly-corrected images. The 10X and 20X objectives can be used with the included annulus board for phase-contrast. Two sets of eyepieces are included for an extended magnification range of 40X to 800X.

Features :

An inverted biological microscope with infinity-corrected, plan-fluor optics for highly-corrected, high-resolution images.

The 10X and 20X lenses can be used with the included annulus board for phase-contrast.

Stage templates are included for Petri dishes, Terasaki plates, and slides.

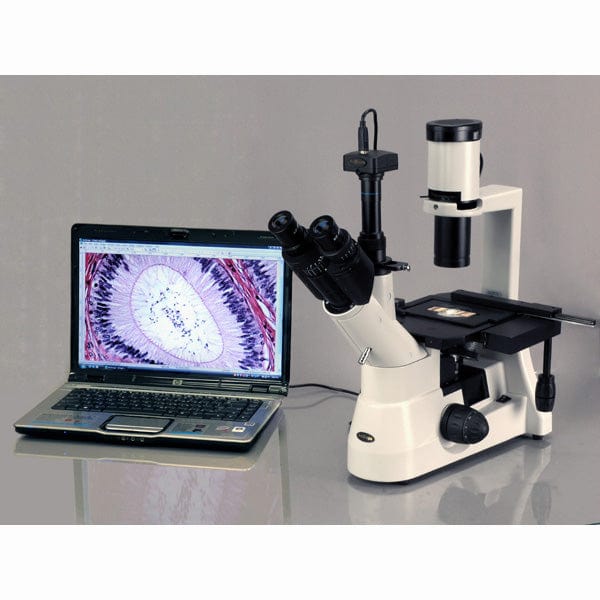

The switched trinocular photo-port offers a dedicated mount for an analog or digital imaging system.

Specifications

Optical System	Infinity-corrected

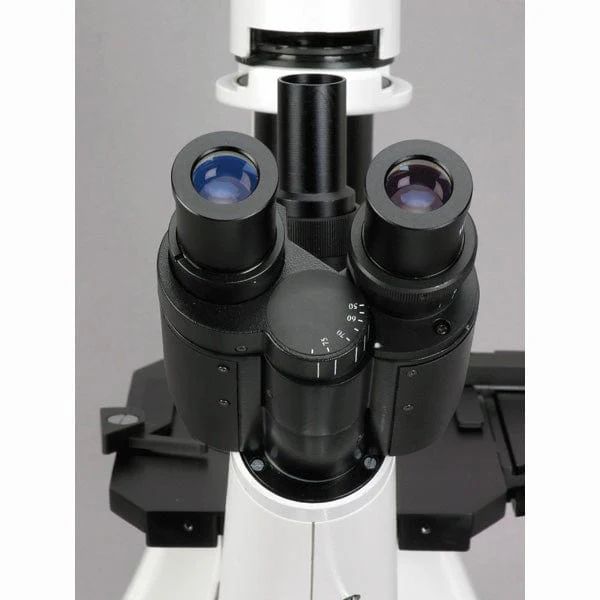

Head	Trinocular, 45° incline
Interpupillary Adjustment	Compensation-free gemel, 50mm-75mm
Eyepiece Mount Diameter	30mm
Eyepieces	10X FN 22mm, 20X
Photo-port	23mm, compatible with reduction lenses
Nosepiece	Quintuple
Objective Lenses	4X, 10XPH, 20XPH, 40X
Focusing System	Coaxial coarse and fine focus
Fine Focus Precision	0.002mm
Stage	Double-layer 9.53"x6.77" (242x172mm)
Stage Aperture	110mm
X-Y Translation Range	4.53"x2.59" (115x75mm)
Condenser	Fixed NA0.3, 75mm WD
Transmitted Illumination	30W halogen, continuous adjustment

Objective Lenses

Magnification	Corrections	NA	Working Distance	Cover-glass Thickness
4X	Plan fluor	0.15	21.6mm	1.5mm
10X	Plan fluor	0.30	3mm	1.5mm
20X	Plan fluor	0.50	4.25mm	1.5mm
40X	Plan fluor	0.60	2.23mm	1.5mm

Packing List :

One Inverted Microscope with Trinocular Compensation-Free Head

Four Objective Lenses: 4X, 10X, 20X, 40X

One Pair 10X Eyepieces

One Pair 20X Eyepieces

One Transmitted Light-source

One 30W halogen bulb

One Dust Cover

Color Filters

Power Cord and Other Accessories
