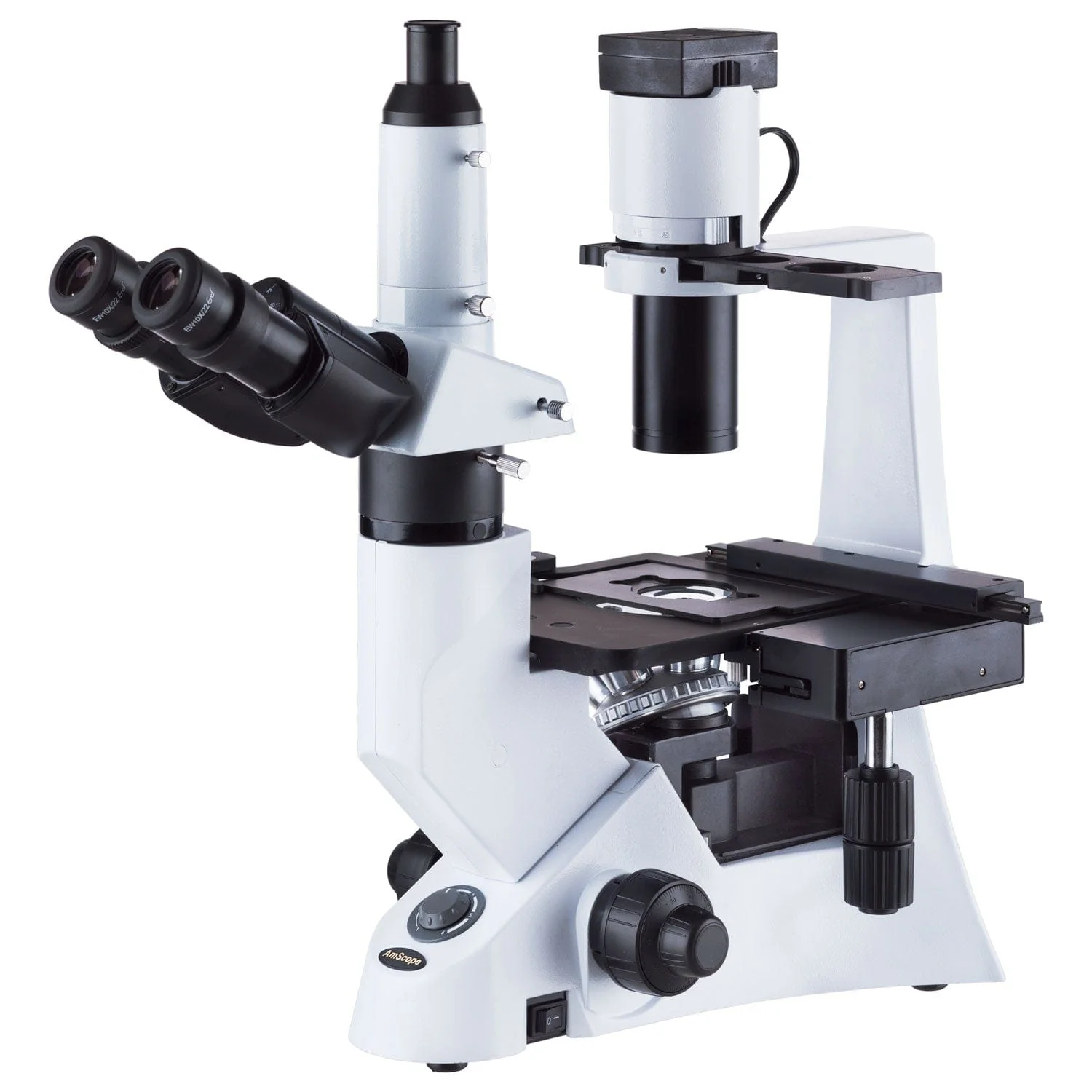

40X-1000X Trinocular Inverted Infinity-corrected Biological Microscope with Phase-contrast

The IN330T is an inverted, infinity-corrected compound microscope designed for biological applications. With 10X and 25X high-eyepoint, extreme-wide-field eyepieces, and four objective lenses (4X, 10X, 20X, 40X), the microscope offers seven magnifications: 40X, 100X, 200X, 250X, 400X, 500X, and 1000X. The inverted format, large stage, and assortment of specimen-holders make this an ideal microscope for cell-cultures and multiple samples. The mechanical stage controls allow for easy observation of large samples, or multiwell plates. The 30-degree inclided head with Siedentopf adjusters provides a comfortable viewing platform.

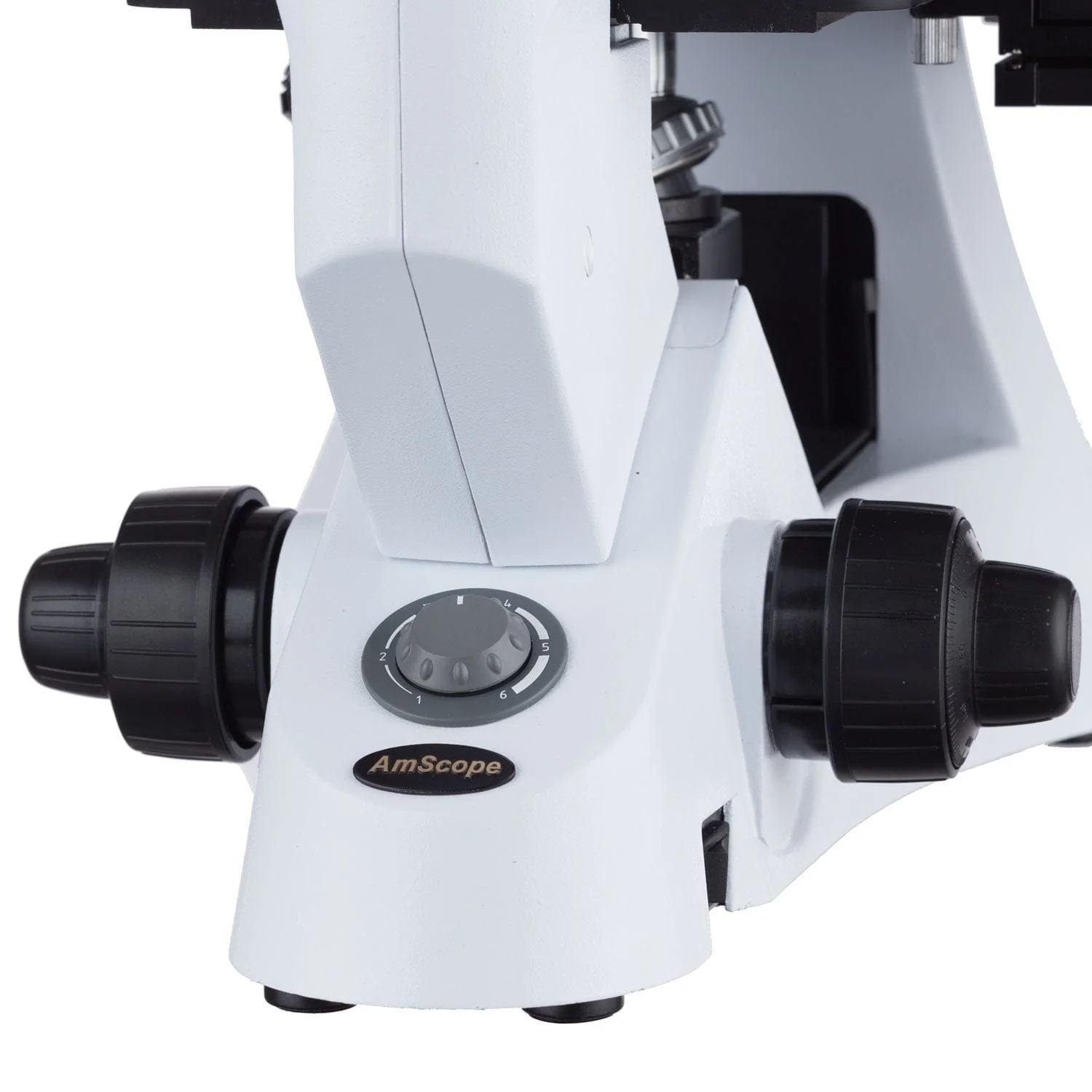

The overhead illuminator can utilize color filters (3 included), and a phase-contrast annulus board for use with the 10X and 20X phase-contrast objective lenses. Intensity is controlled by an easy-to-reach, front-mounted dial. The addition of a trinocular photo-port adds extra convenience, allowing for permanent mounting of an imaging system with vertical stability.

Specifications:

Optical System: infinity-corrected

Head Viewing Angle: 30 degrees inclined

Interpupillary Distance: 48-75mm

Eyepieces: high-eyepoint, extreme wide-field 10X, 25X

Nosepiece: quintuple sub-stage

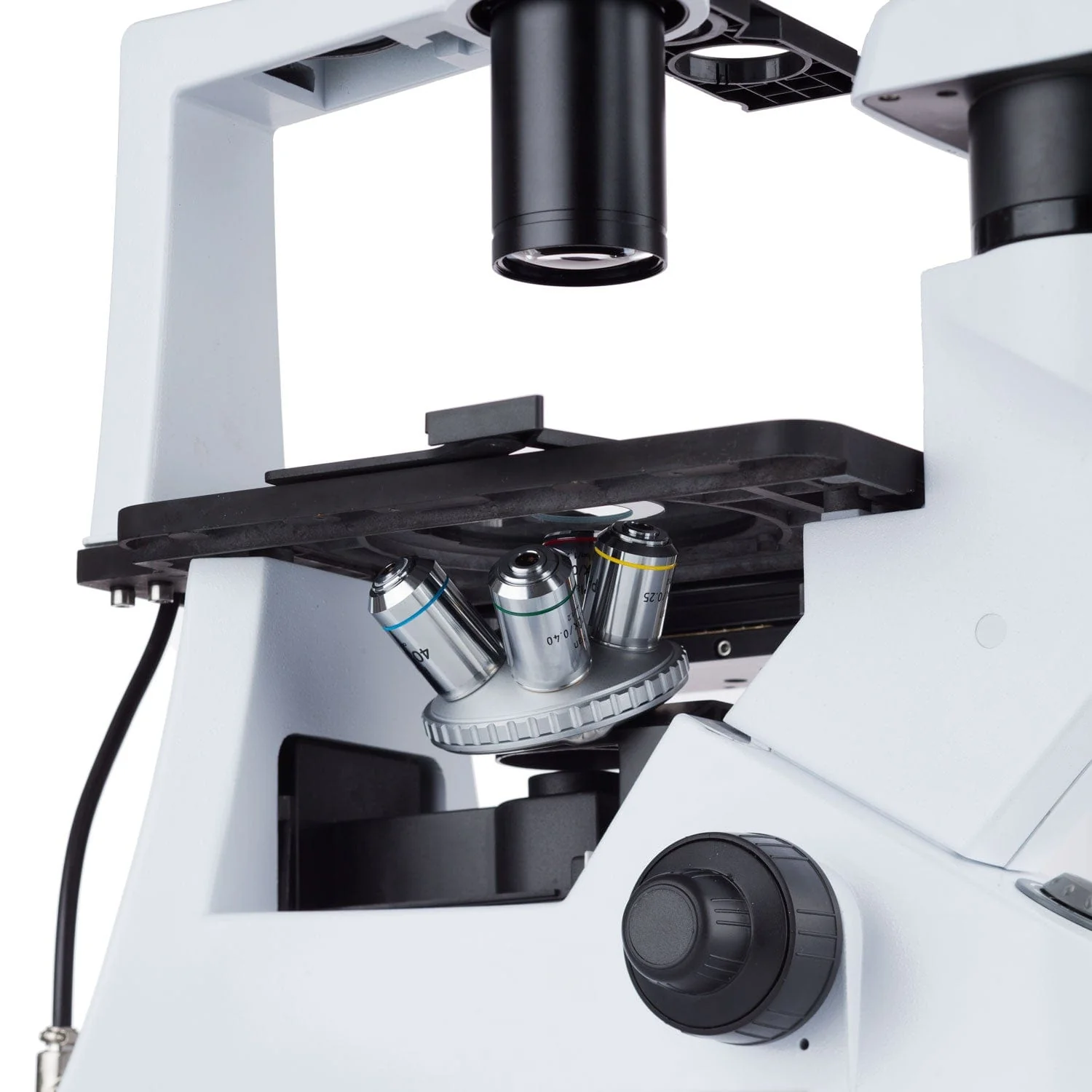

Objective Lenses: Plan 1.2mm glass-thickness (4X, 10XPh, 20XPh, 40X)

Condenser: NA 0.3 LWD

Stage Dimensions: 160mm x 250mm

Mechanical Stage Control: X-Y coaxial

Mechanical Stage Range: 120mm x 78mm

Focusing Control: coaxial coarse/fine objective-movement

Illumination: 30W halogen

Filters: 45mm blue, green, frosted

Photo Tube: 23mm adjustable-height

Contents:

One inverted microscope body

One mechanical stage

One stage extension

One halogen lamp

One lamp condenser

One phase-contrast annulus board

Three filters: blue, green, frosted

One trinocular head

One photo port

One pair WF10X eyepieces

One pair WF25X eyepieces

Four objectives: 4X, 10X, 20X, 40X

One glass stage plate

One 35mm Petri dish holder

One 54mm slide holder

One Terasaki plate holder

Two fuses

One spare bulb

One AC cord

One dust cover

One tension-adjustment wrench
