The Story

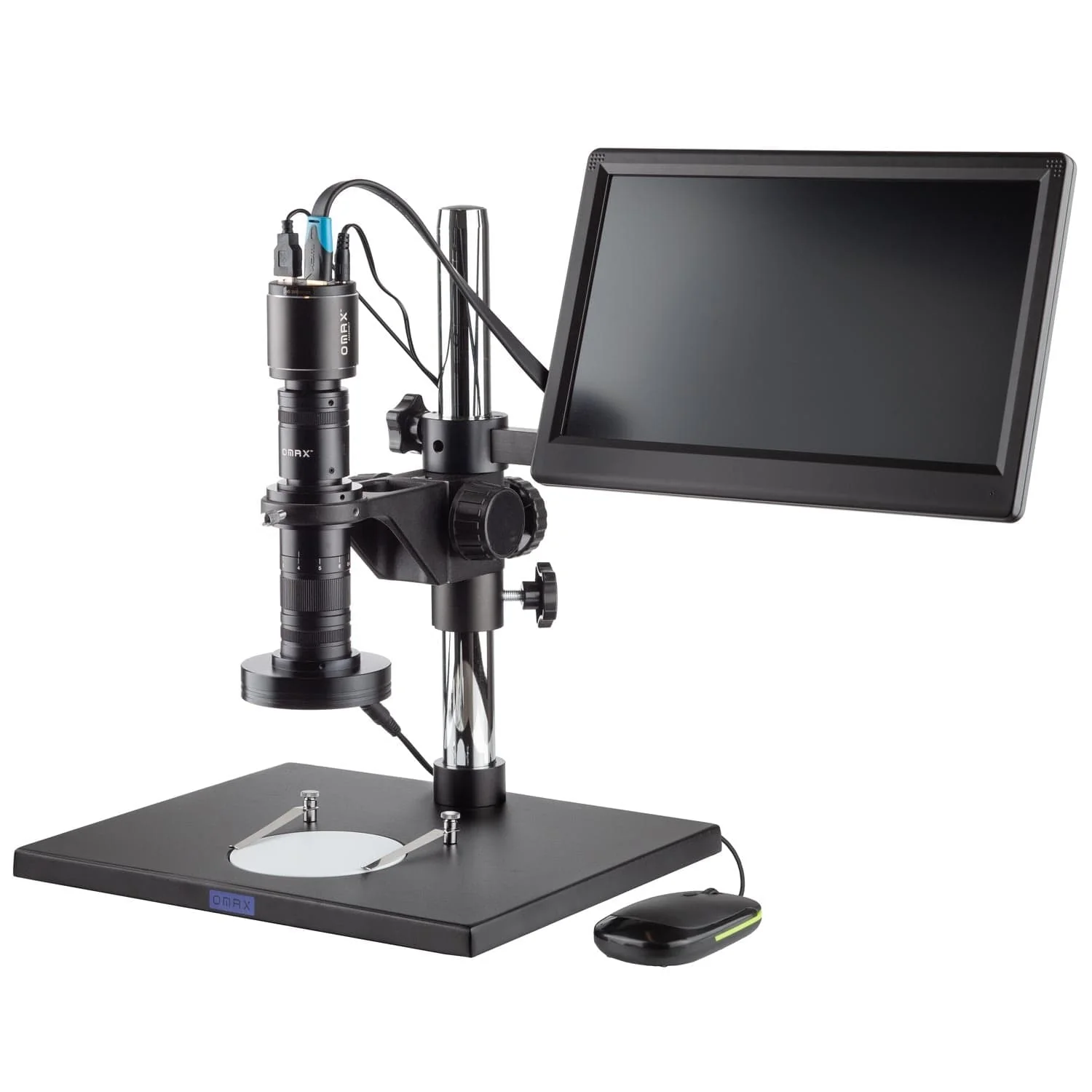

This OMAX M5 Series video inspection system includes our 0.4X-6X zoom lens, a 1080p camera with live HDMI output, a 60-LED ring light, and a 12.5" monitor with a mounting arm.
Zoom Optics

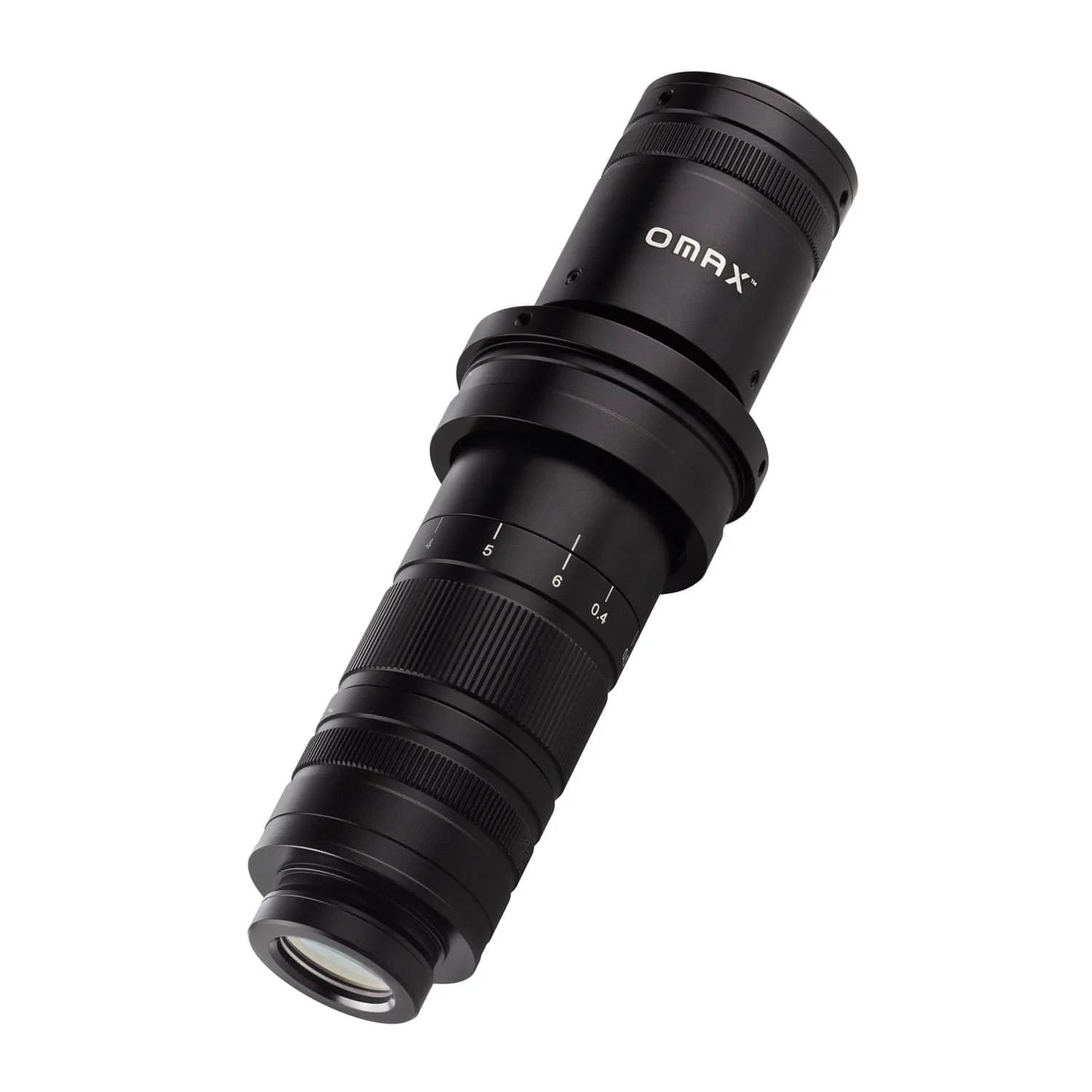

The M5460 lens provides a wide 0.4X to 6X zoom range with stunning clarity. The continuous zoom allows you to increase and decrease magnification quickly and precisely. The lens incorporates a 0.75X reduction lens to increase the field of view for the included camera.
Real-Time Video Monitoring

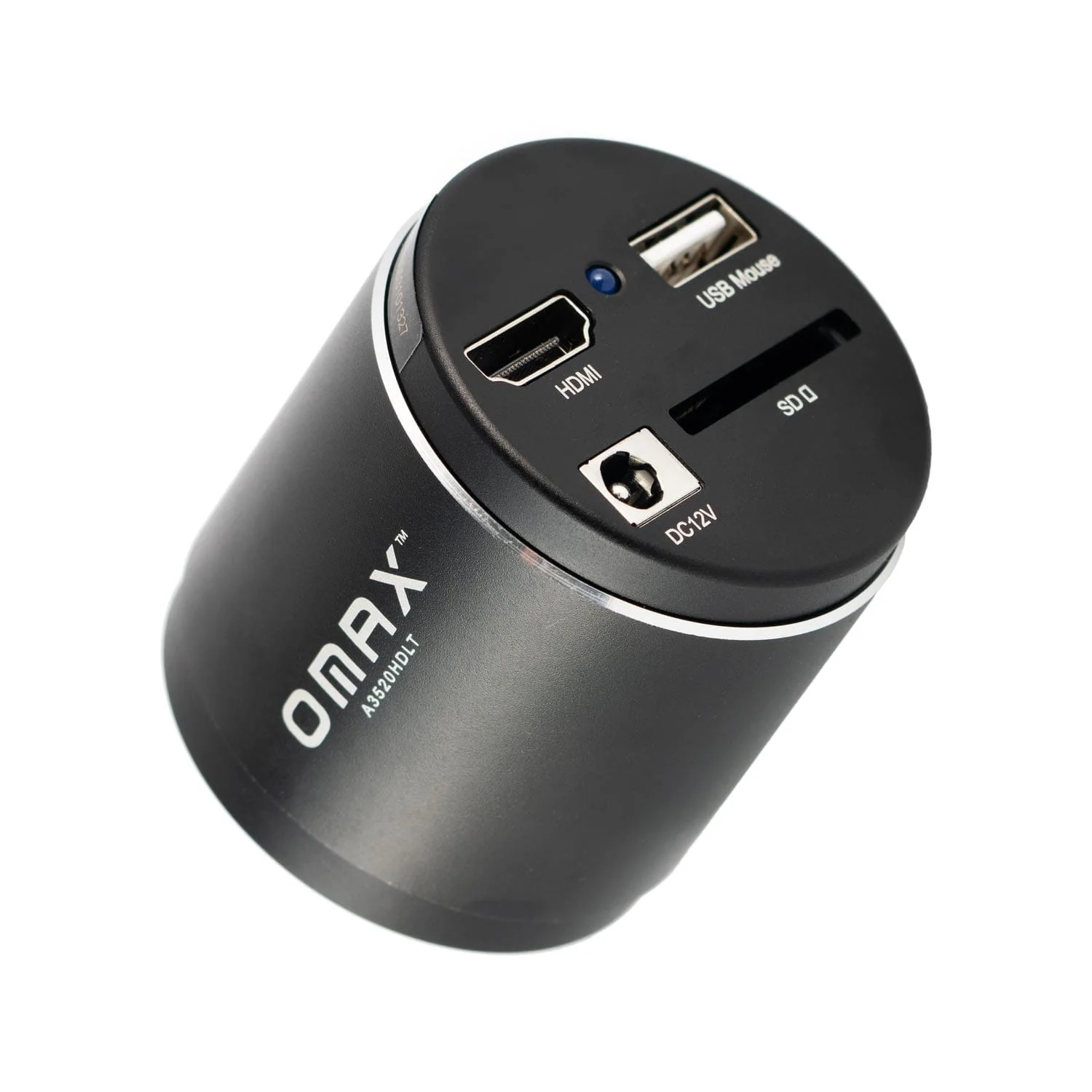

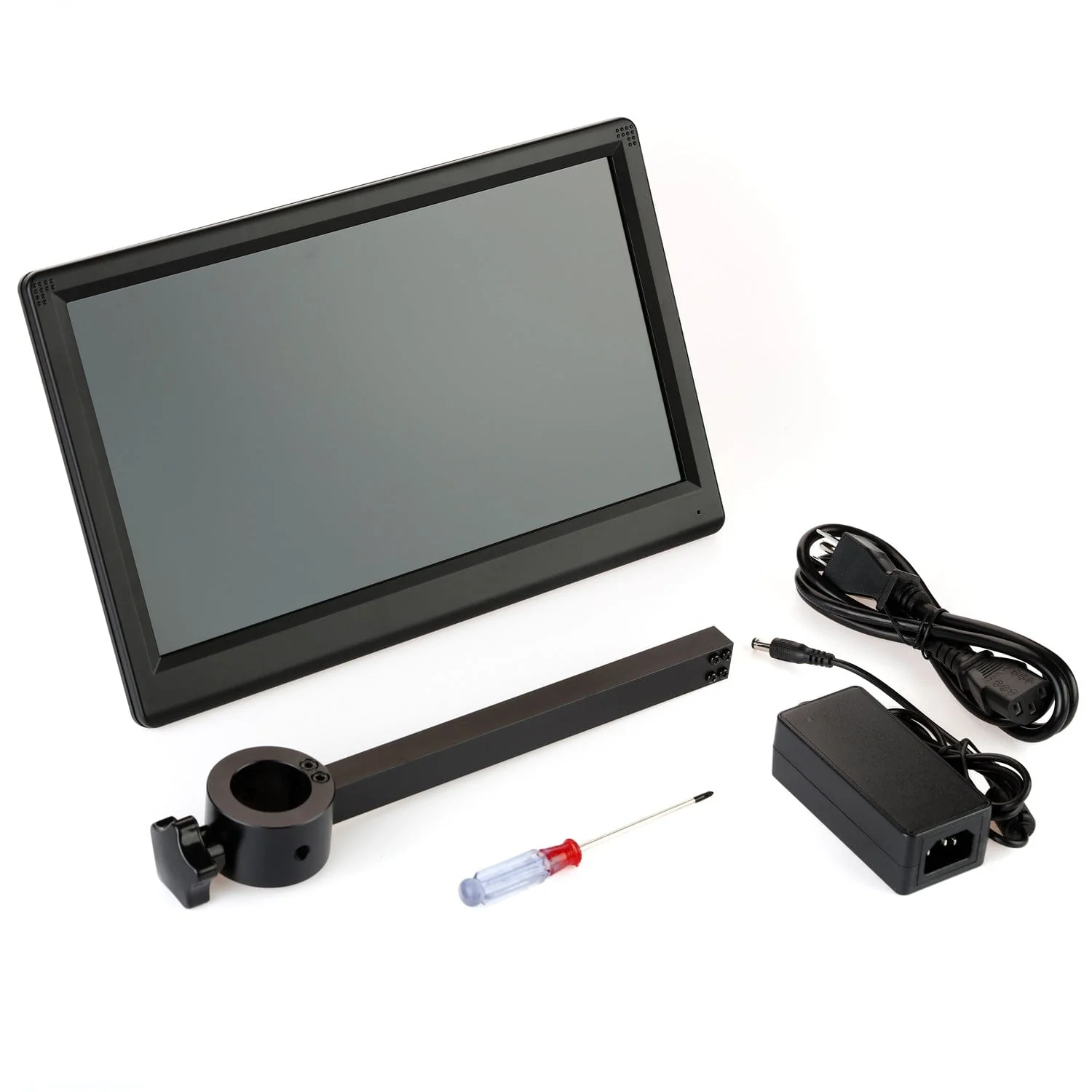

The included camera delivers real-time 1080p video at 60fps, and can capture videos and still images thanks to its built-in Secure Digital recorder. The 12.5” monitor attaches to the table stand using an arm mount which can swivel and allows the screen to tilt. A USB mouse is included to navigate the on-screen controls which eliminates handling vibration.
Illumination

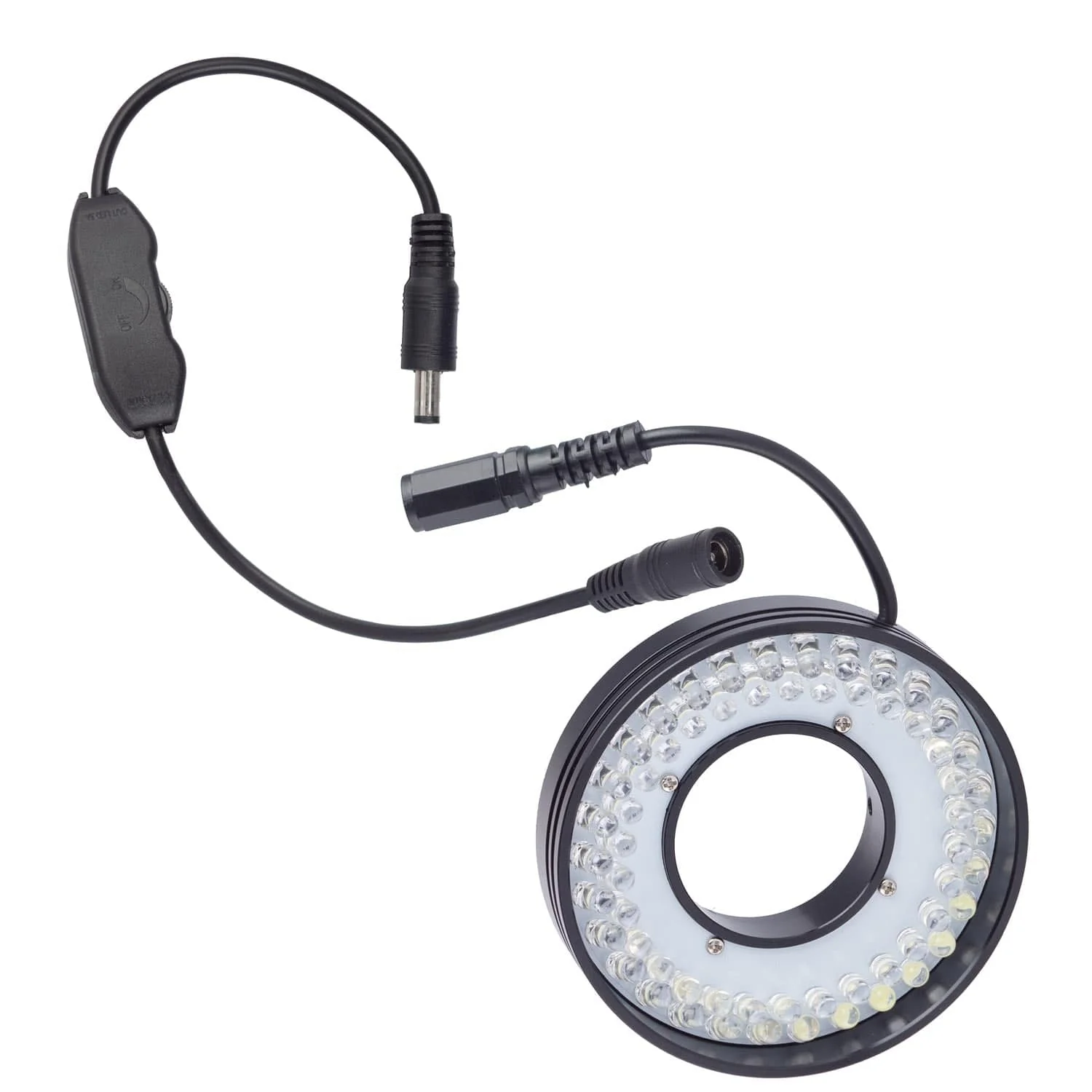

An LED ring light is included to provide cool, even illumination. With the illuminator attached to the lens, the light will always be where you need it. 60 individual LEDs blanket the subject with light, daylight-balanced at 6500K for ideal imaging. Brightness can be controlled using the wired controller.
Table Stand
This package includes a table stand to provide fundamental support and focusing ability. The lens mounts to a basic focusing block designed specifically for the lens’ smaller diameter. An extra-tall pillar provides ample latitude and rotation while the focusing block offers symmetrical, tension-adjustable coarse focus knobs with 43mm travel. A large base provides plenty of stability along with a sturdy, metal working surface.
Specifications
| Sensor Specifications | |
| Model | IMX307 (color) |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.8" |
| Active Pixels | 2.1M (1920 x 1080) |
| Pixel Size | 2.9µm x 2.9µm |
| Active Sensor Area | 5.57mm x 3.13mm |
| Shutter | electronic rolling shutter |
| Sensitivity | 1300mV @ 1/30s (f/5.6) |
| Spectral Response | 380-650nm with IR-cut filter |
| Other Camera Specifications | |
| Video Preview Resolution (HDMI) | 1920 x 1080 |
| Video Preview Framerate (HDMI) | 60fps |
| Video Capture Resolution | 1920 x 1080 |
| Video Capture Framerate | 50-60fps (based on SD card performance) |
| Internal Video Capture Format | MP4 |
| Photo Capture Resolution | 1920 x 1080 |
| Internal Photo Capture Format | JPG |
| Recording Media | SecureDigital (SDI3.0) |
| Connectivity | HDMI (v1.4) |
| Lens-mount | C-mount |
| Power | 12VDC 1A |
| Lens | |
| Primary Objective Magnification | 0.4X-6X zoom |
| Auxiliary Objective Lens | 1X |
| Camera Mount | C-Mount (25.4mm) |
| Integrated Compensating Lens | 0.75X |
| Working Distance | 86mm |
| Lens Mounting Diameter | 50mm |
| Ring Light | |
| Light Source | LED x 60 |
| Color Temperature | 6500K |
| Maximum Power | 3W |
| Maximum Current | 1.056A (17.6mA/LED) |
| LED Driver | Voltage Control |
| Power Requirements | 100-240VAC 50Hz/60Hz 0.3mA 12V 1A adapter included |

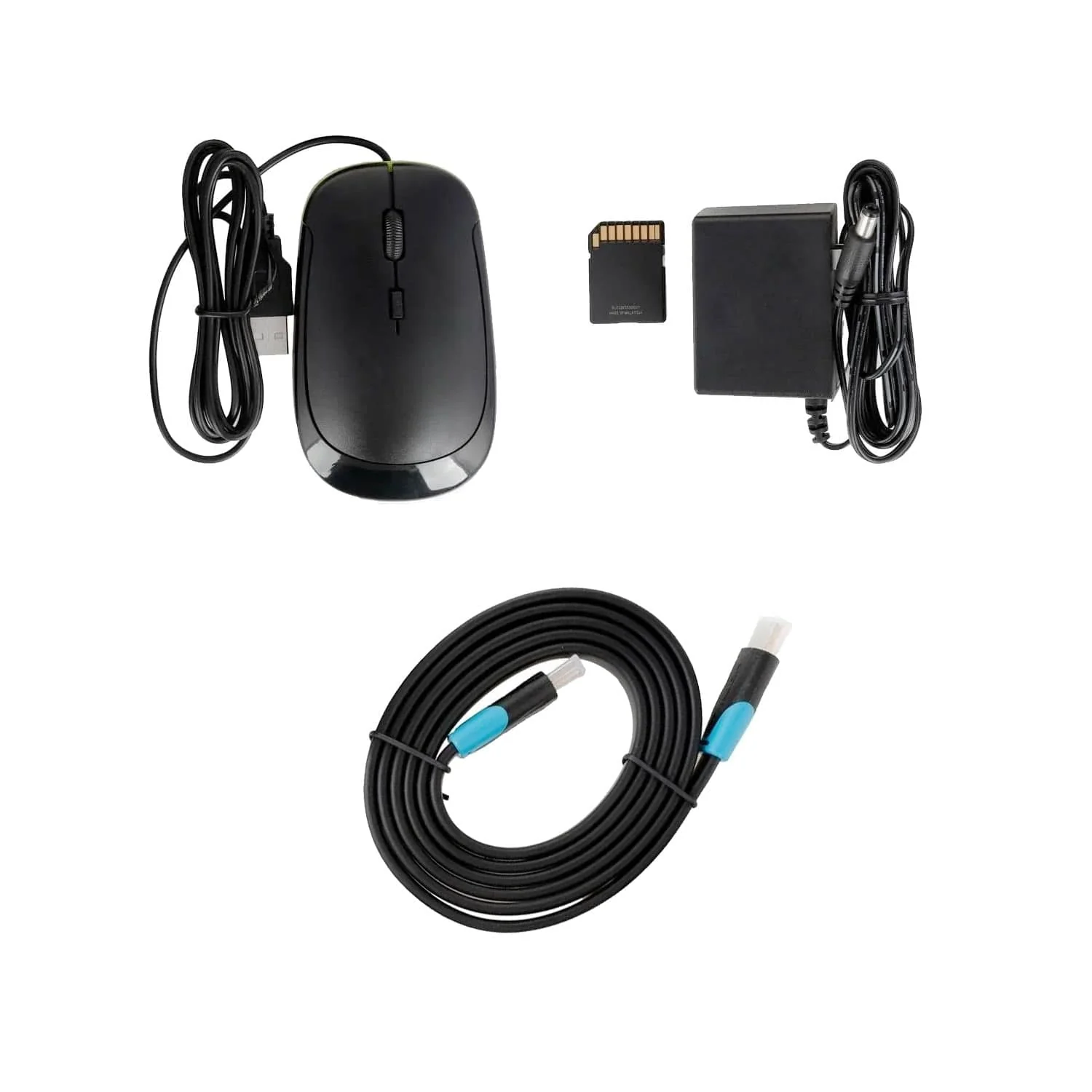

Packing List:
