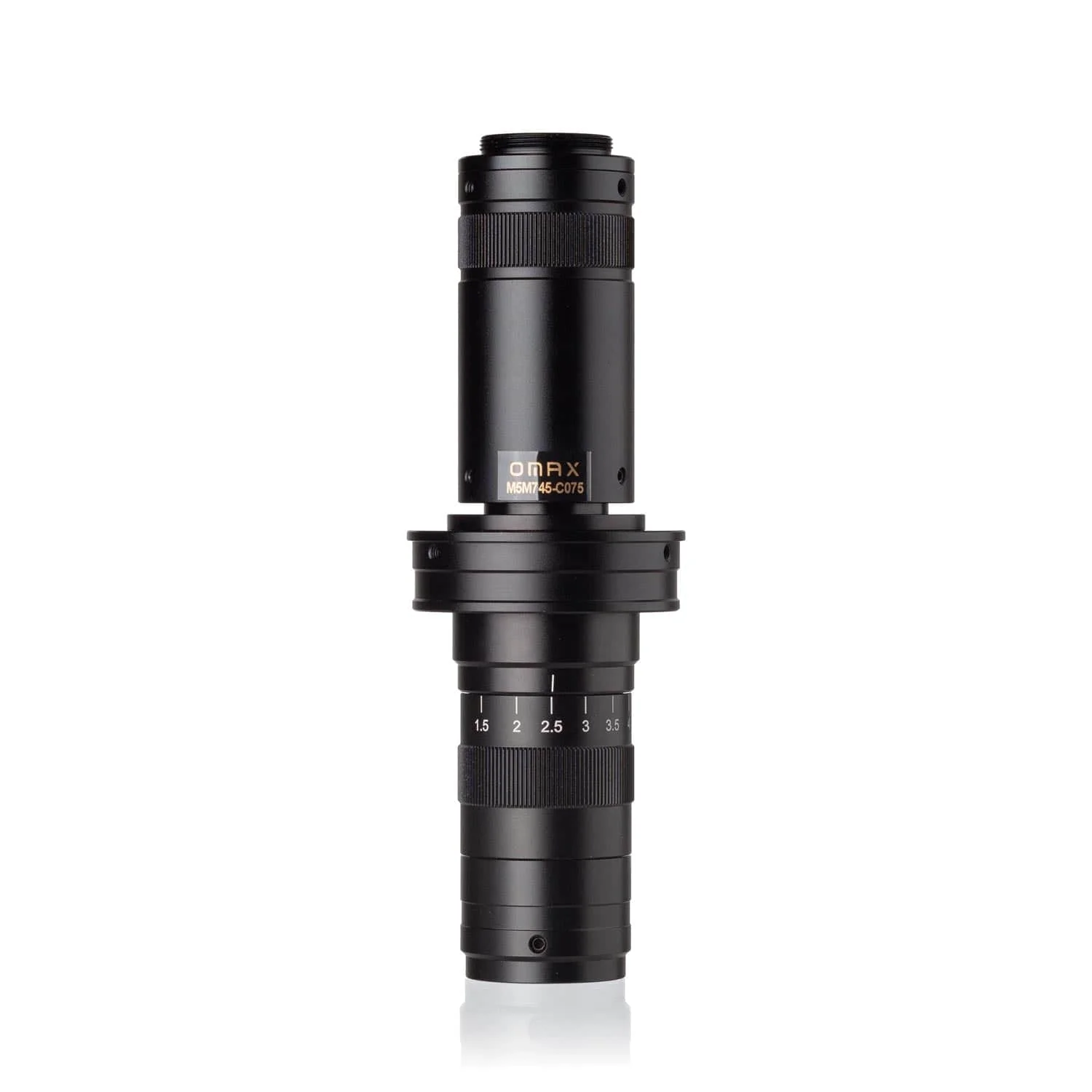

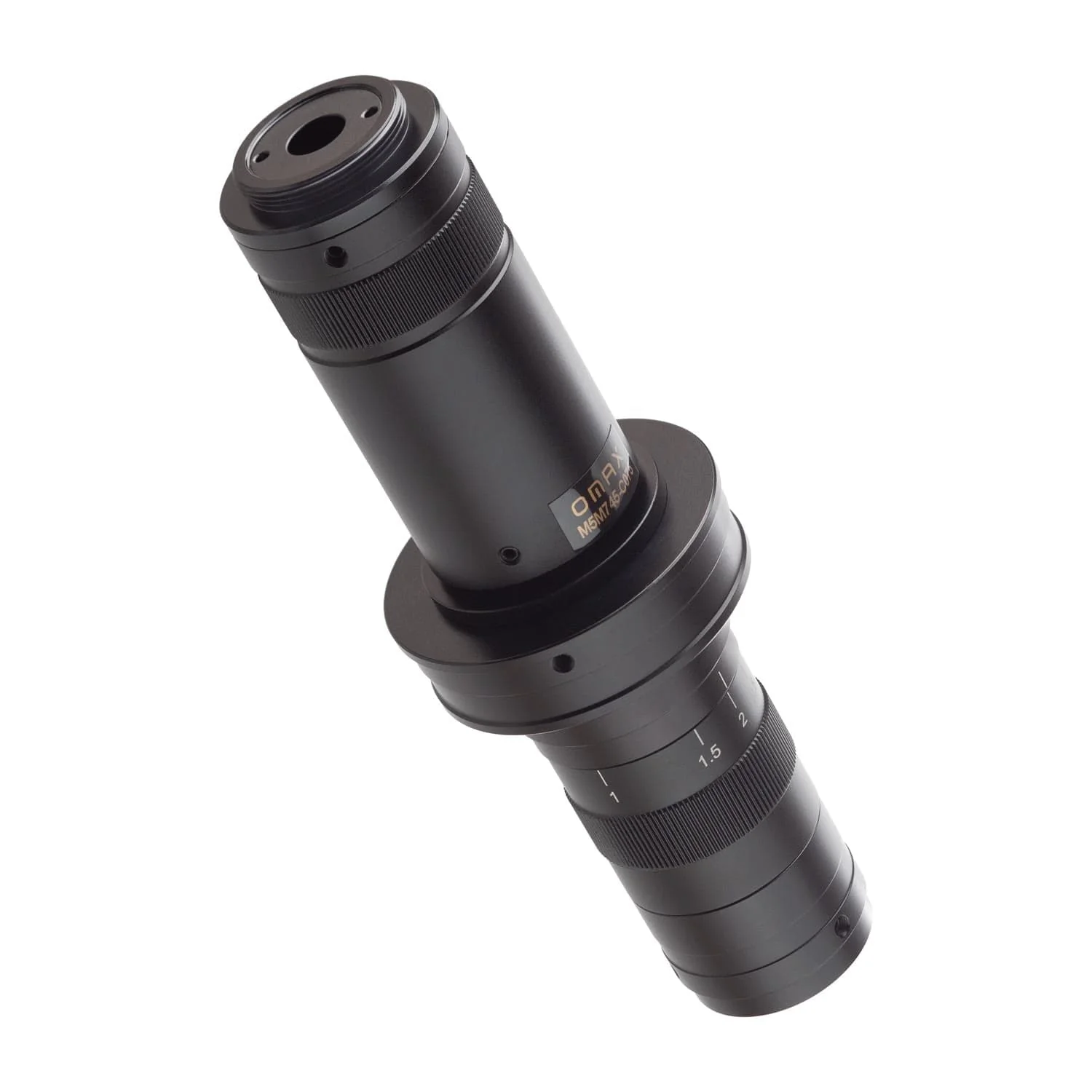

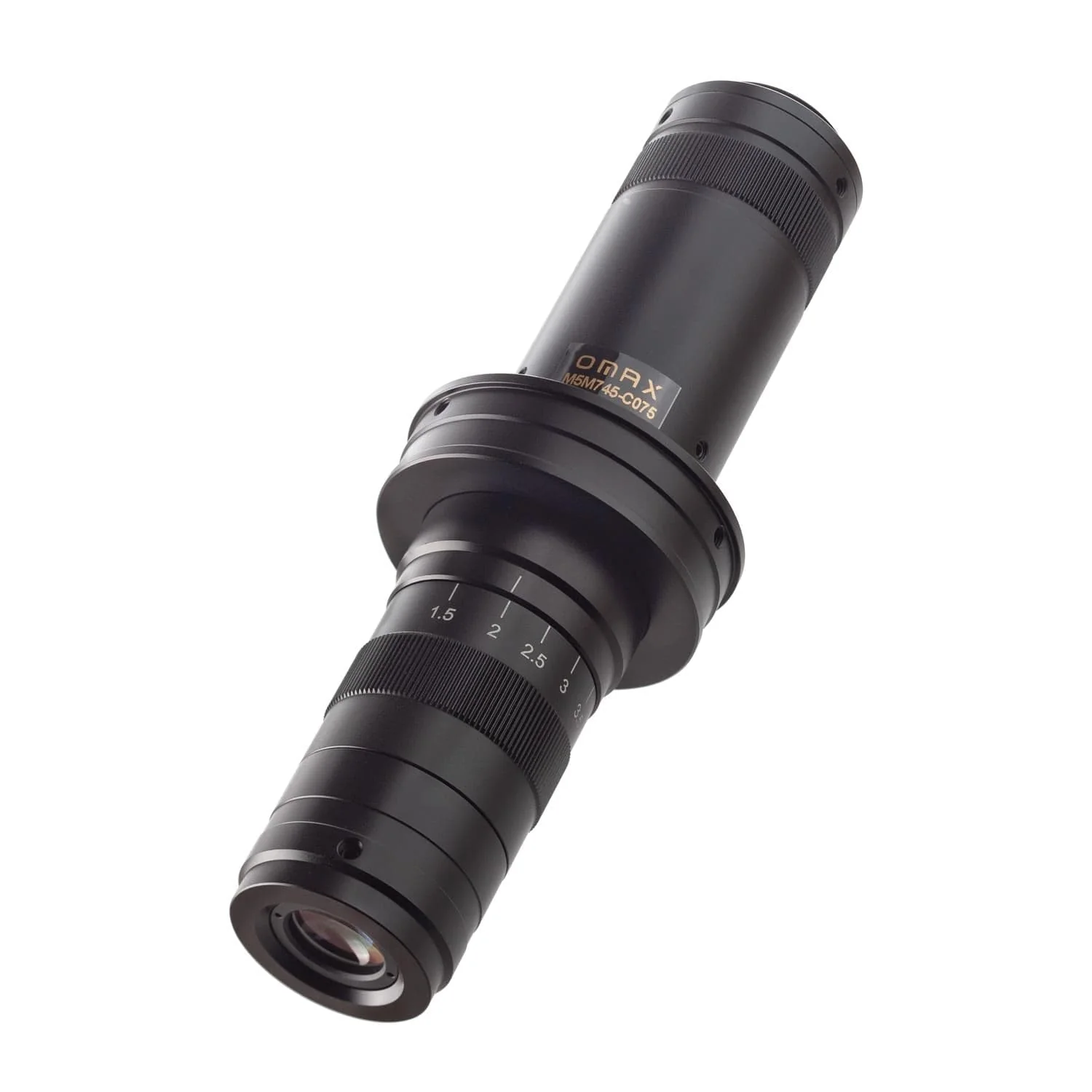

0.7X-4.5X Mini Zoom Video Inspection Lens for Cameras with Sensors up to 2/3" Format

OMAX M5 Mini series provides high quality zoom optics in a smaller and more economical lens. These lenses can be used with a wide range of C-Mount cameras to easily integrate into standalone or computer-based workflows. The 50mm mounting diameter works with small-profile table-stands and large-format boom and articulating supports. Multiple illumination options are available to complete the package.

Zoom Optics

The M5M745 lens provides a 0.7X to 4.5X zoom range with stunning clarity. The continuous zoom allows you to increase and decrease magnification quickly and precisely. This C075 model includes an integrated 0.75X compensating lens to optimize the field of view for 2/3" format and smaller camera sensors.

Support Options

M5M745 series lenses are designed to be used with a range of support systems, including table stands, boom stands, and articulating stands. The lens can be mounted in 50mm collars, or combined with the AD-SZ76 adapter to fit the 76mm collars used by our most popular stands.

Single Lens vs Stereo

While stereo microscopes view subjects with three-dimensional depth for applications such as micro-soldering and dissection, the stereo lens design is not optimal for producing accurate photos or videos due to off-axis, angular distortion and keystoning. Using a single lens allows you to view subjects on a single axis to achieve focus across the entire field, and without the angular distortion. This makes the single lens ideal for video monitoring systems and photomicrography. By providing a similar magnification range as stereo microscopes, the single-lens solution can easily fit into similar workflows.

Packing List:

One C-Mount lens

One hex wrench
