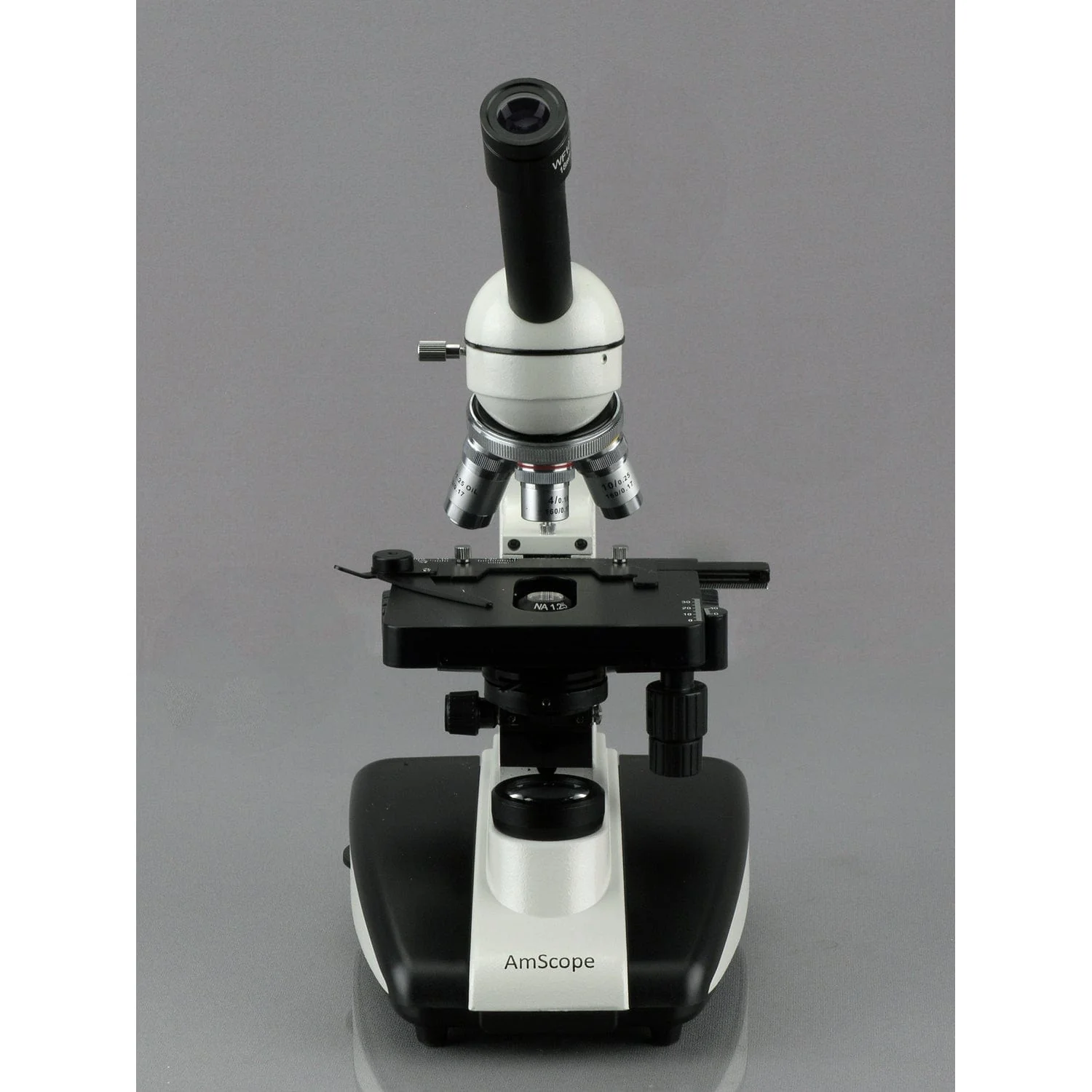

AmScope M630 Series Monocular Compound Microscope 40X-1000X Magnification with LED, 3D Stage & Reversed Nosepiece

Our new monocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for a range of people from students in high school to teachers including those with a major in biology, or enrolled in medical school. It comes with a professional monocular head, double layer mechanical stage, course & fine focusing and LED illumination. There are four magnification settings: 40X, 100X, 400X, & 1000X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Features :

• 30 degree inclined 360 degree swiveling monocular head
• High quality precise optical glass elements
• Four magnification settings, 40X, 100X, 400X, 1000X
• Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
• Reversed nosepiece for convenient changing of objectives
• One pair widefield eyepieces: WF10X
• Variable intensity illumination
• Coaxial coarse and fine focus adjustment
• Focusing knobs are on both sides of the microscope
• Stage upward moving lock protects objectives and slides
• Stain-resistant double layer mechanical stage
• NA1.25 Abbe Condenser with iris diaphragm & filters
• Rack and pinion adjustment condenser
• Manufactured under ISO 9001 Quality Control Standard
• Excellent five (5) year manufacturer warranty



Specifications :

• Eyepieces: widefield, WF10X
• Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
• Head: 30 degree inclined 360 degree swiveling monocular
• Adjustable ocular diopter
• Nosepiece: Reversed revolving quadruple
• Mechanical Stage: 3-D double layer
• Size: 4-5/8" x 5" (118mm x 127mm)
• - Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
• Condenser: NA1.25 Abbe condenser with iris diaphragm
• Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
• Focusing: coaxial coarse & fine knobs on both sides
• Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
• Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm0



Packing List :

• One Monocular Microscope Head
• One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
• Four DIN Standard Objectives, 4X, 10X, 40X and 100X
• One Widefield 10X Eyepiece
• One Blue Color Filter
• One Dust Cover
• Sample Immersion Oil
• User's Manual Download
• Net weight: 12 lbs
• Shipping weight: 12 lbs
