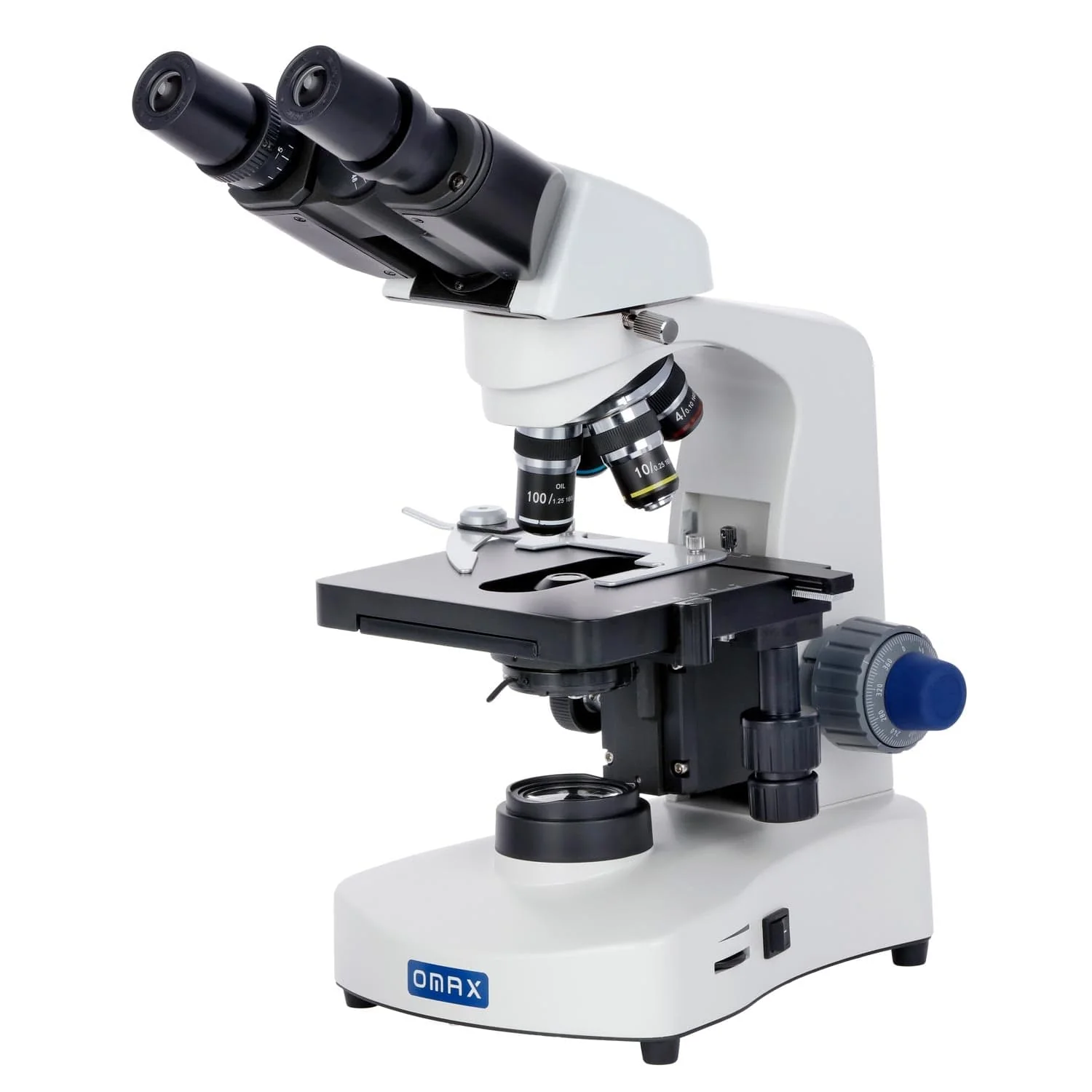

OMAX M8211 LED Binocular Compound Microscope 40X-2000X Magnification With Reversed Nosepiece





This is a professional binocular compound LED microscope 40X-2000X. It comes with Siedentopf binocular head, reversed nosepiece, two pairs of widefield eyepieces, four DIN achromatic objectives, large double layer mechanical stage, Variable-intensity LED illumination You can add advanced accessories including darkfield condenser and phase contrast kit to upgrade your microscope. All lenses are made of high quality optical glass. The high resolution image in the field of view is crystal clear and will satisfy the demands of professionals. This binocular microscopy is designed for clinical examinations, veterinary offices, laboratories and college.

Features:

• 40X-2000X binocular compound reversed microscope
• LED transmitted light with adjustable intensity

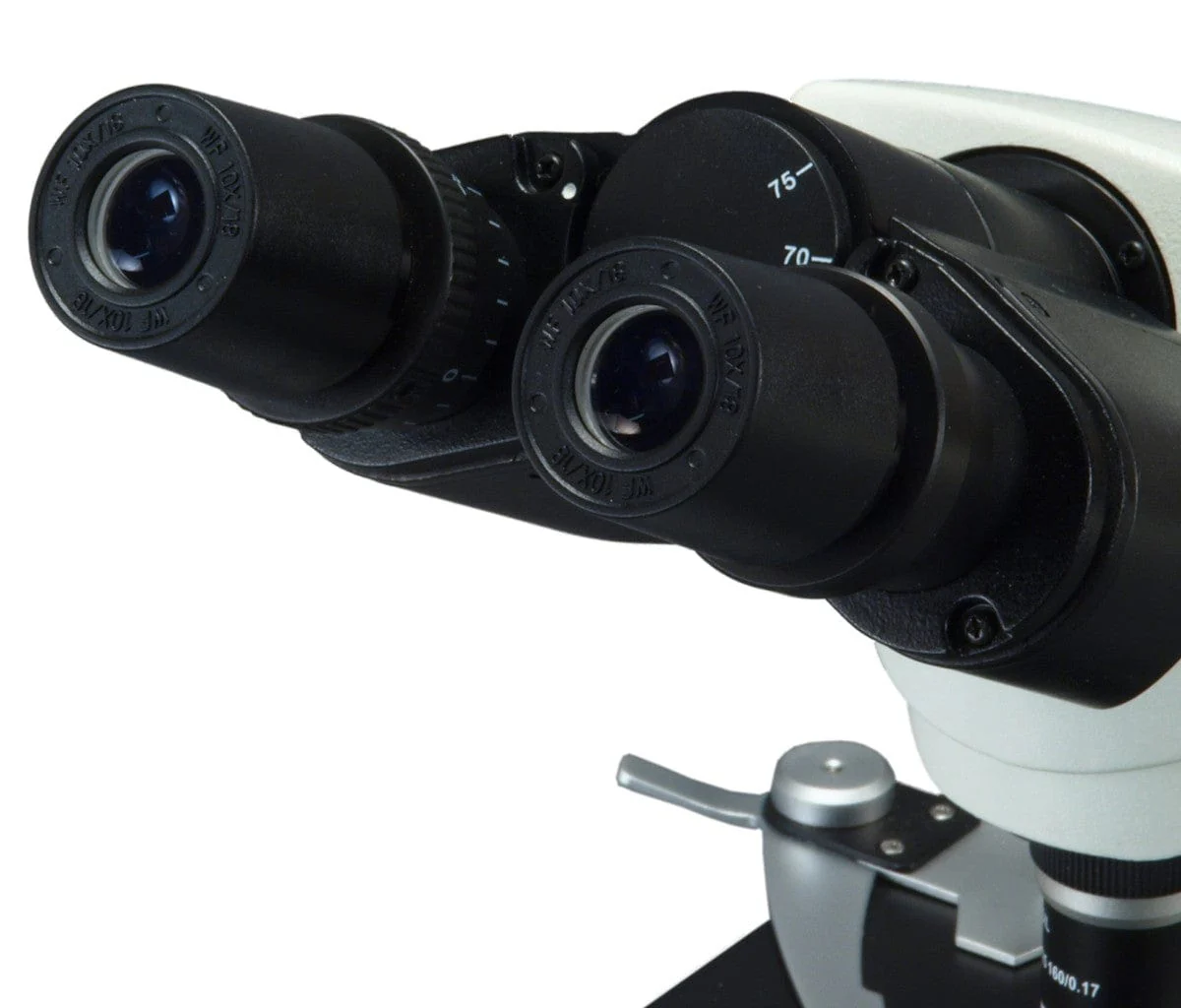

• 30 degree inclined 360 degree rotatable Siedentopf binocular viewing head
• Large double layer mechanical stage with NA1.25 Abbe condenser & iris diaphragm
• Coaxial coarse & fine focus knobs with tension control and stop



Specifications:

• Model: M8211
• Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X
• Eyepieces: widefield WF10X/18 and WF20X
• Objectives: achromatic DIN 4X, 10X, 40X (spring),100X (spring,oil)
• Head: 30°Inclined 360°rotatable binocular Siedentopf
• Interpupillary: hinge adjustment 1-7/8" ~ 2-15/16" (48mm ~ 75mm)
• Diopter: adjustable on left eyepiece tube

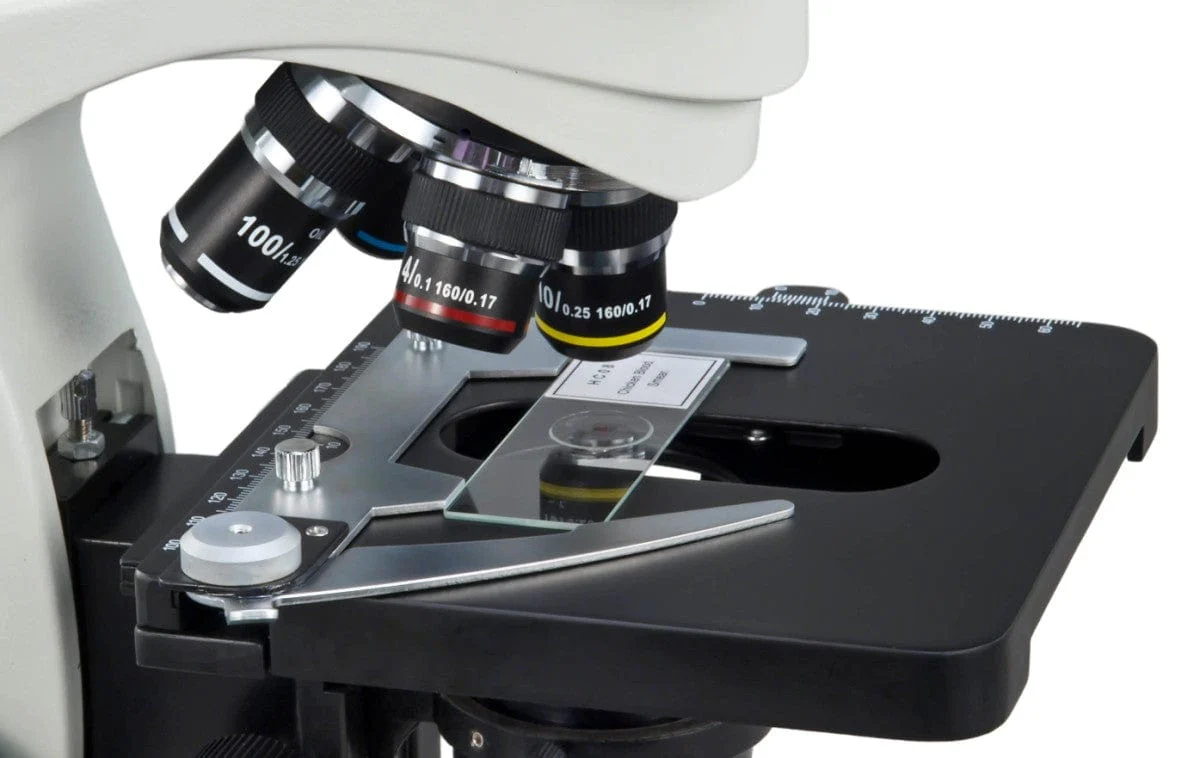

• Nosepiece: revolving, quadruple, reversed

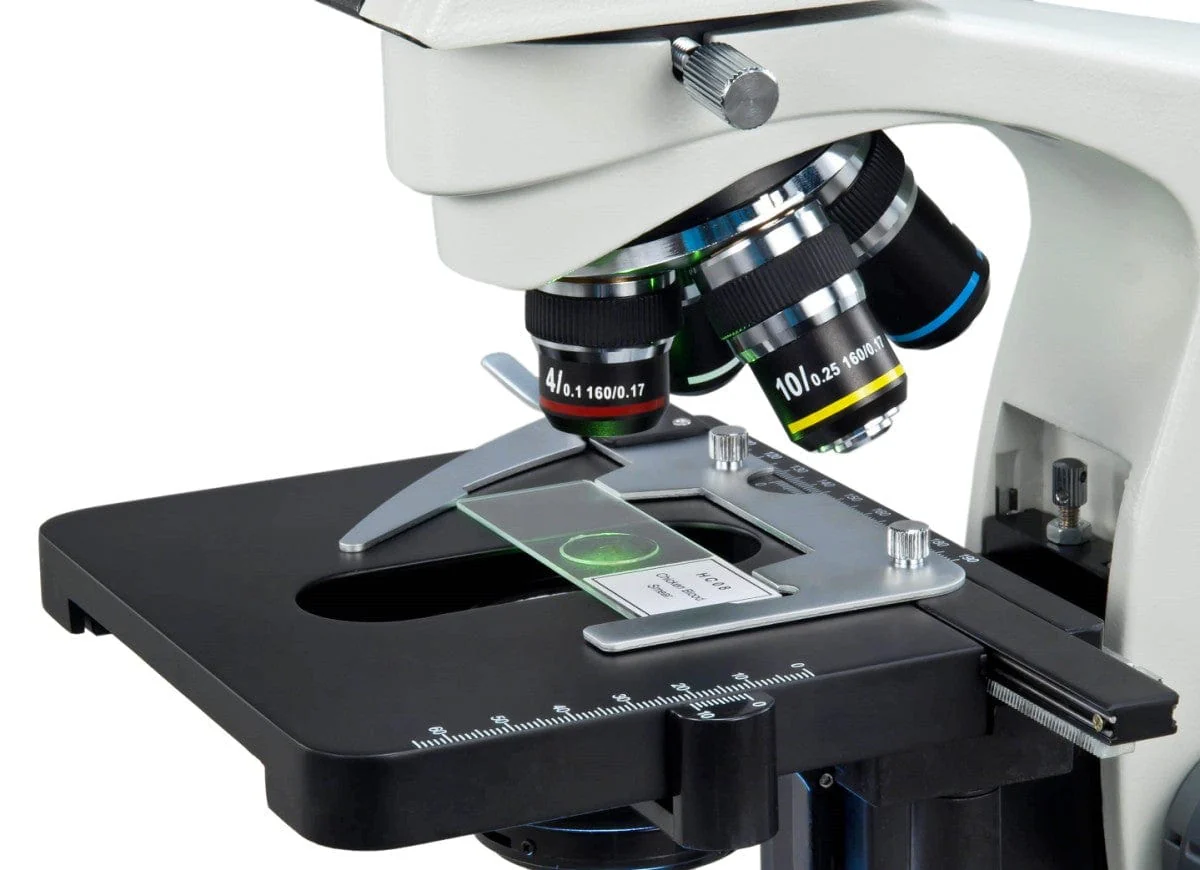

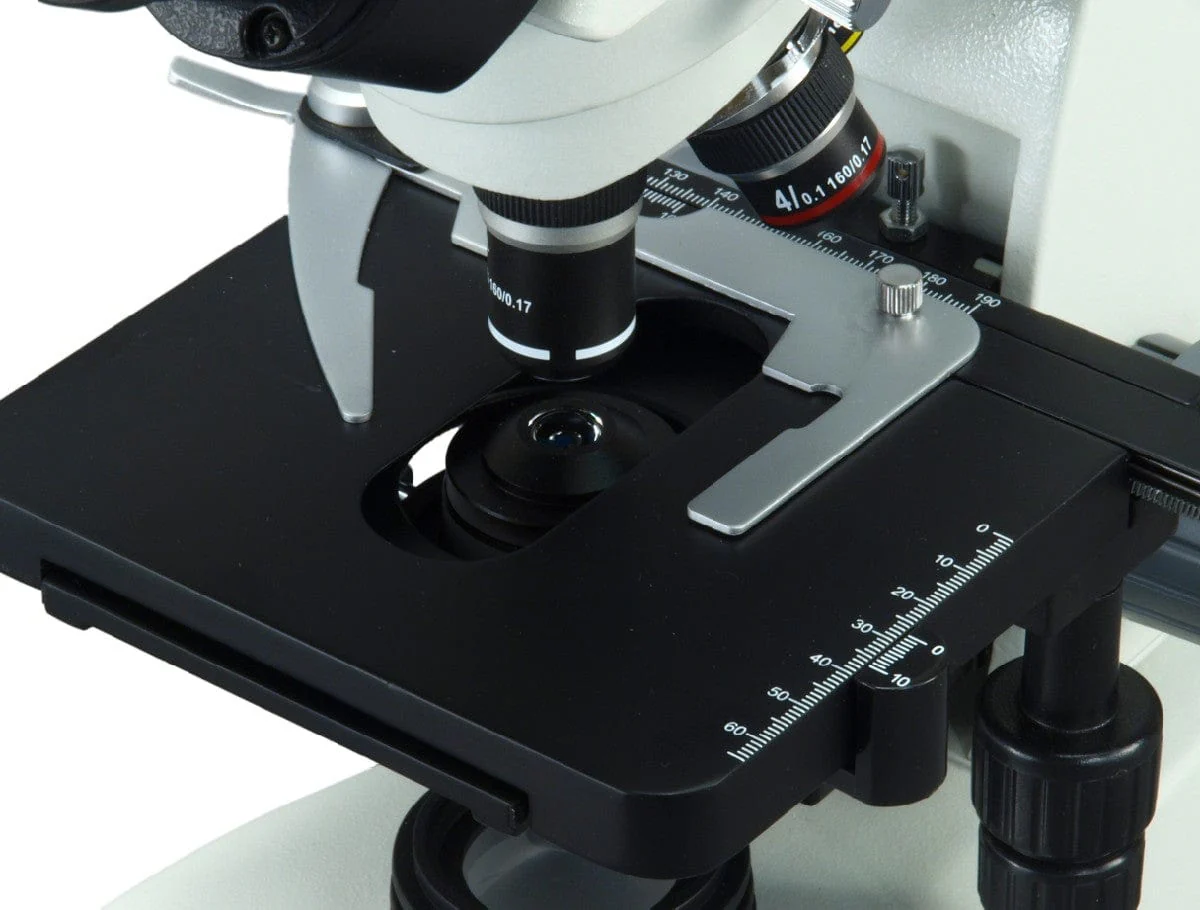

• Stage: X-Y mechanical stage with scales, range 3" x 1-9/16" (78mm x 40mm), dimension 5-1/2" x 4-1/4" (140mm x 110mm)
• Focus: coaxial coarse and fine focus knobs on both side, rack & pinion adjustment, with tension control and stop

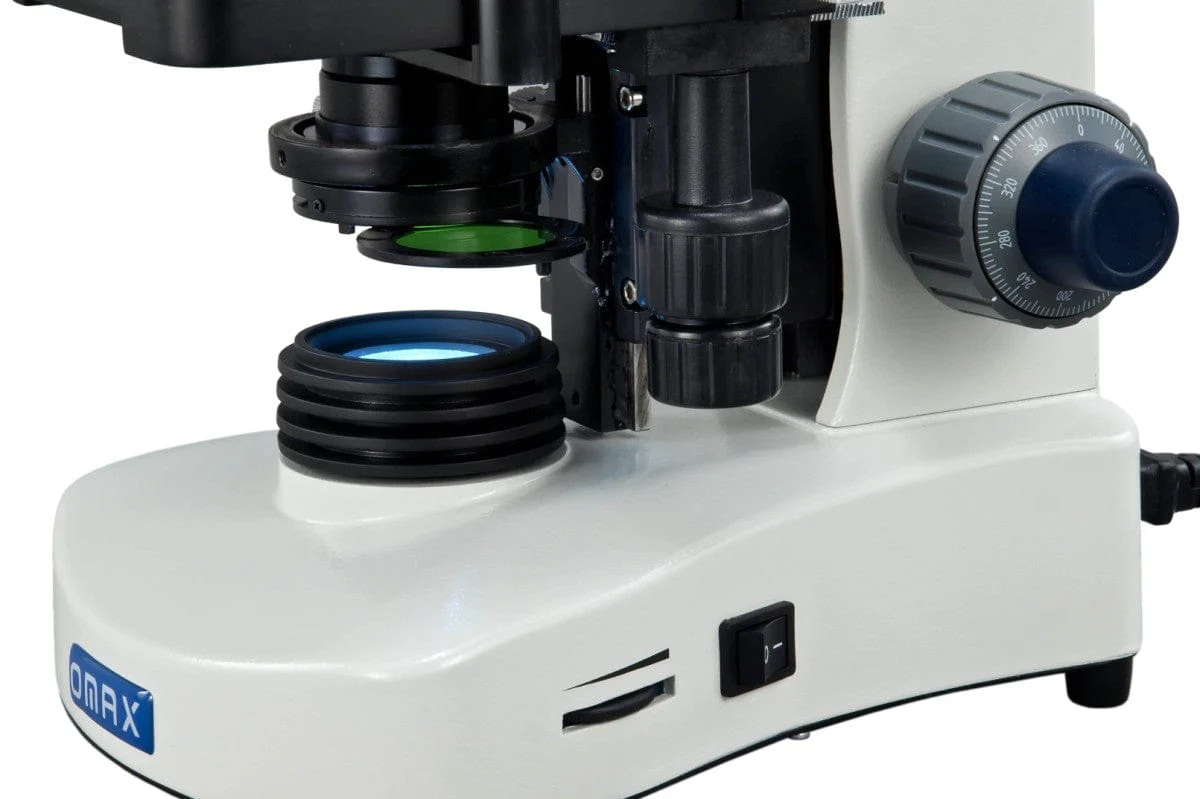

• Illumination: LED transmitted light, intensity adjustable

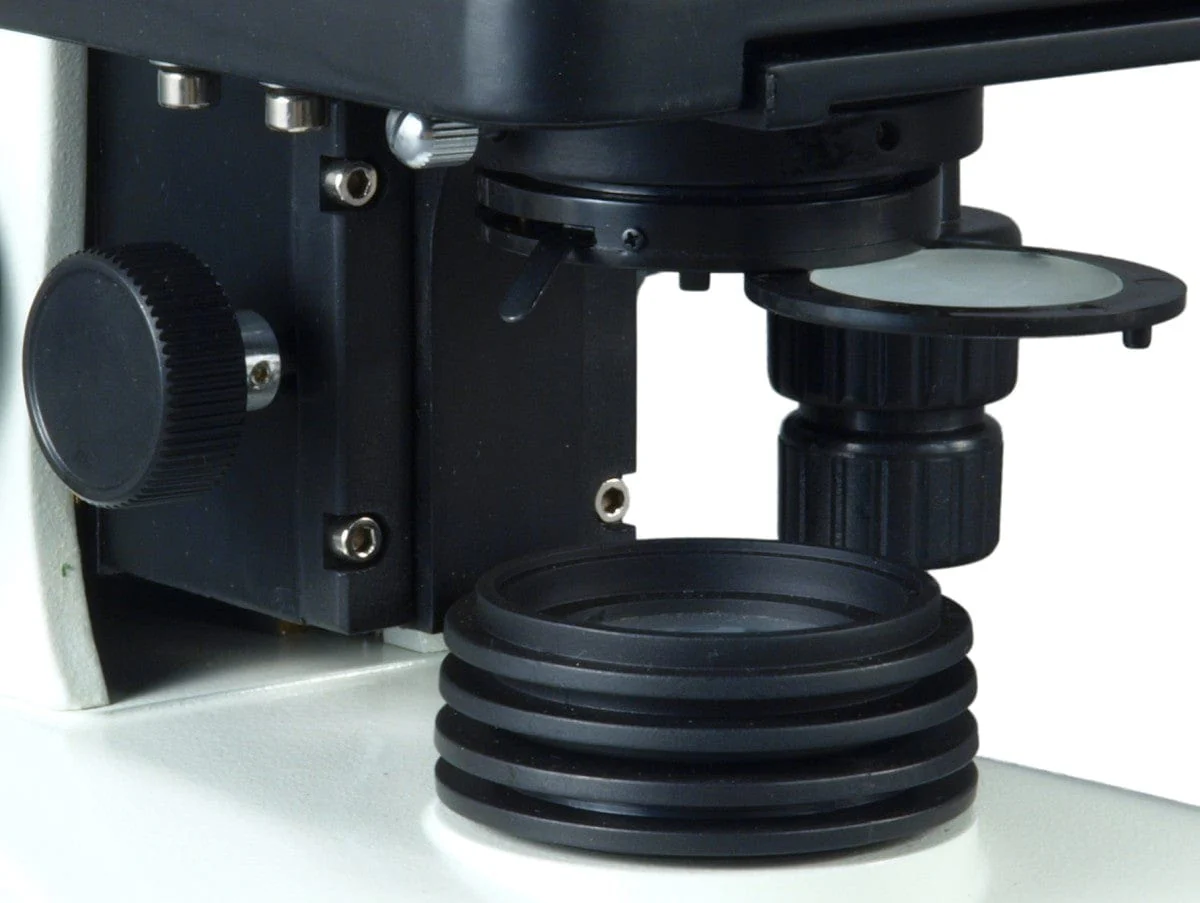

• Condenser: Abbe NA1.25 with iris aperture diaphragm and swing-out filter holder, rack & pinion adjustment
• Solid metal base and stand
• Power supply: AC 100V ~240V 50/60Hz (US and Canada plug)
• Dimension: 12" x 8" x 15" (31cm x 20cm x 39cm)
• Shipping package: 20 lb (9 kg)

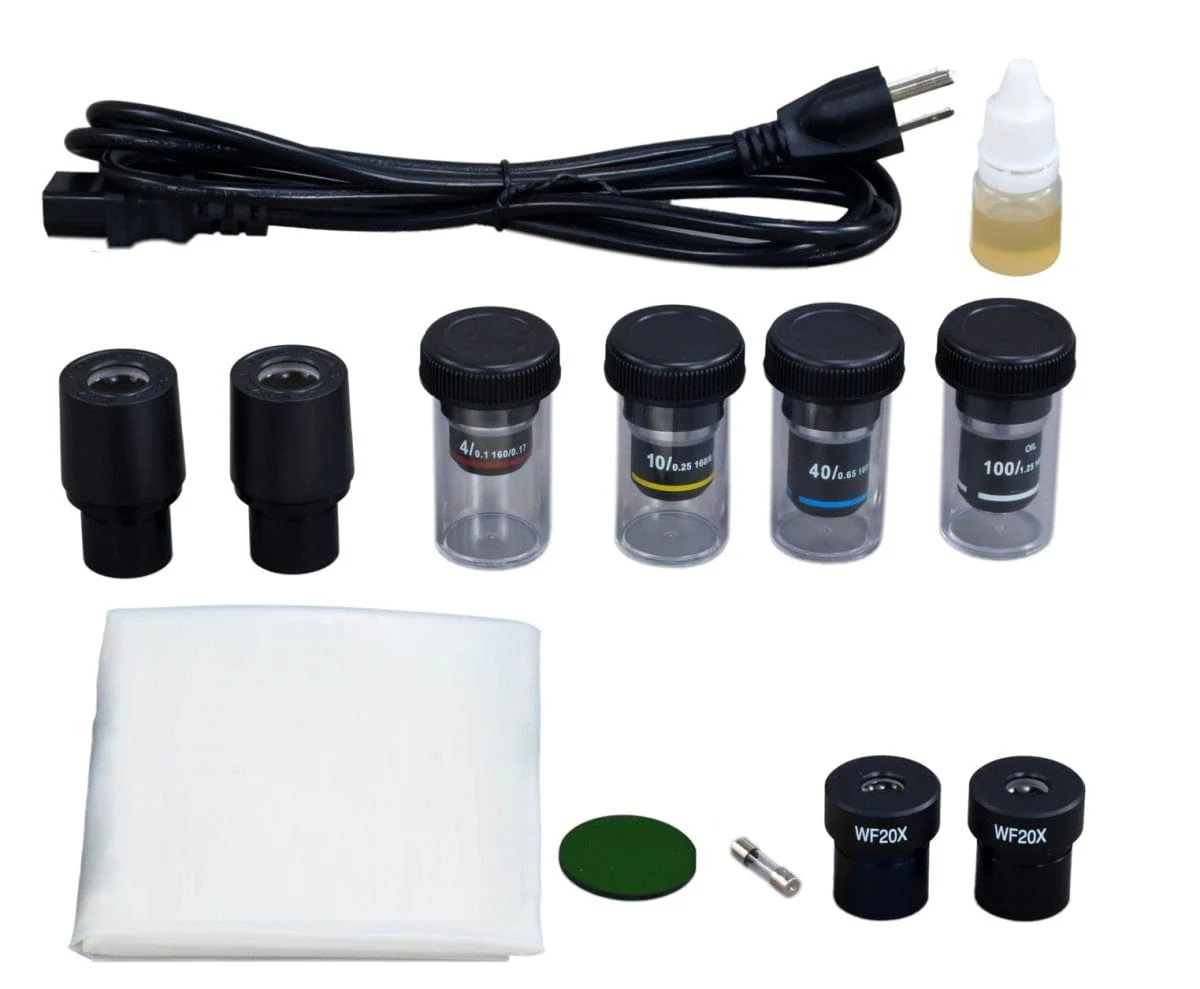

Packing List:

• One binocular microscope Siedentopf head
• One microscope stand and base
• A pair of eyepieces WF10X
• A pair of eyepieces WF20X
• Four objectives: 4X, 10X, 40X, and 100X
• One bottle of immersion oil
• One power cord (US and Canada standard)
• One focus tension adjustment wrench
• One dust cover
• Color filter: green
• Extra fuse (in the fuse holder of the microscope)
