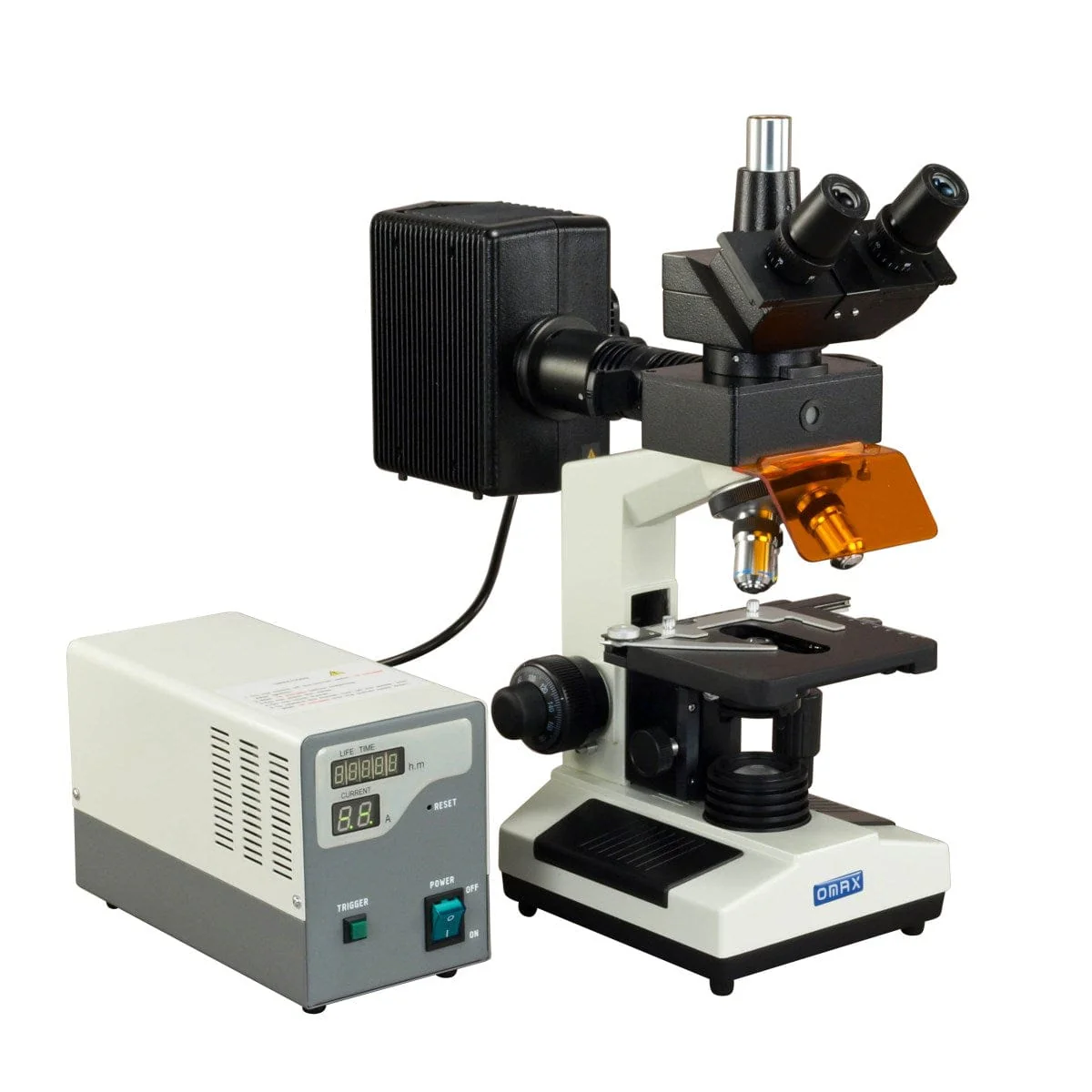

OMAX M837FLR Series Epi-Fluorescence Trinocular Compound Microscope 40X-1600X Magnification

This is a brand new professional EPI-fluorescent trinocular compound microscope that offers quality performance and advanced features. It comes equipped with four high quality fluorescence objectives, an EPI-fluorescent assembly, a 100W HBO power supply for mercury lamp, and double-layer mechanical stage. The microscope can also be used in standard brightfield operation without necessitating the teardown of the microscope. It is an ideal instrument for advanced research in biology, cytology, oncology, hematology, genetics, immunology, microchemistry and environmental protection.

Features:

• Epi-fluorescence illumination with blue and green exciting light filters
• Transmitted brightfield illumination
• Trinocular compensation free viewing head, easy to mount digital camera to catch ordinary and high contrast fluorescent images

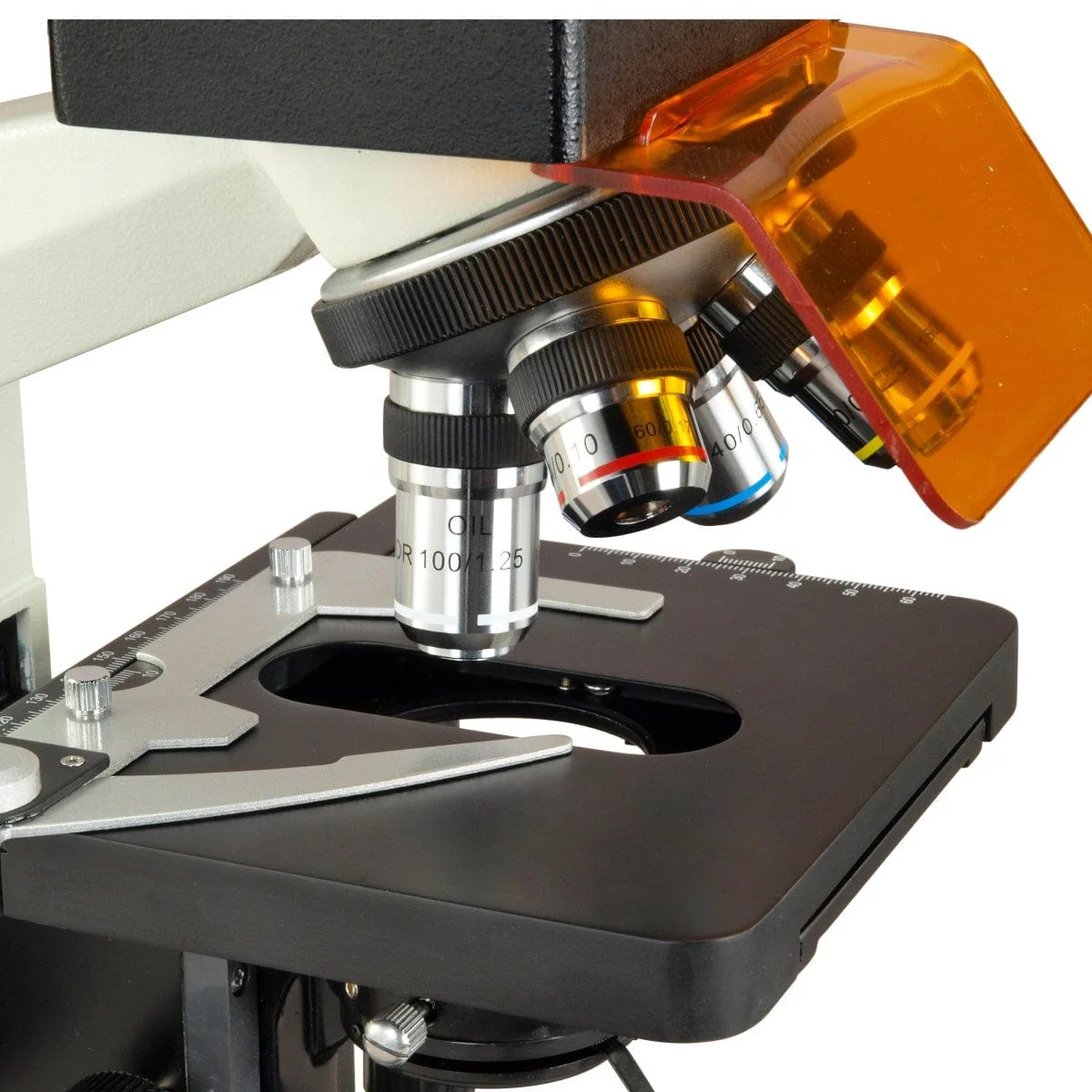

• 4 high quality fluorescence objectives: FLUOR 4x, 10x, 40x(S), 100x(S,Oil)
• Large stain-resistant double layer stage can hold two slides in parallel

Specifications:

• Model: M837FLR

• Magnifications: 40x, 64x, 100x, 160x, 400x, 640x, 1000x, 1600x
• Microscope Head:
  - Trinocular viewing head: anti-mould, 45°Inclined 360° swiveling, compensation free
  - Sliding interpupillary adjustment, range 2-3/16" - 3.0" (55 mm-75 mm)
  - Nosepiece: revolving, quadruple
  - Adjustable diopter ring on both ocular tubes
  - Photo tube: Inner diameter 23.2mm, height adjustment range: 3/4" (18 mm)
• Eyepieces
  - 2 pairs of eyepieces: WF10X (18 mm field of view) and P16X
• Objectives: high quality fluorescence objectives
  - FLUOR 4x (0.1 NA)
  - FLUOR 10x (0.25 NA),
  - FLUOR 40x (0.65 NA, Spring),
  - FLUOR 100x (1.25 NA, Spring,Oil)
• EPI-Fluorescent illumination:
  - Power supply: 100W, AC 100-240V with digital displays for Life Time (h.m) and Current (A)
  - 100 W HBO ultra Hi-pressure spherical Mercury bulb, center adjustable in lighthouse
  - Built-in condenser, position adjustable
  - Fluorescence blue and green filter cubes in a sliding assembly
  - Epi-Fluorescence light path control: block/open
  - Three-position sliding filter assembly: blue filter, green filter, and transmitted brightfield illumination
  - Blue exciting filter: 410 - 490 nm, barrier (emission) filter: 515 nm
  - Green exciting filter: 490 - 540 nm, barrier (emission) filter: 590 nm
  - Protection barrier (suppression filter or front light baffle to resist the ultraviolet light
  - Fluorescence free immersion oil
• Transmitted illumination:
  - Power supply: 100V~240V 50/60Hz worldwide range (US and Canada plug)
  - 6V/20W halogen bulb
  - Intensity adjustable
• Condenser:
  - NA1.25 Abbe condenser
  - Built-in iris aperture diaphragm
  - Built-in swing-out filter holder
  - Rack and pinion adjustment
• Focusing:
  - Coaxial coarse and fine focus knobs on both sides
  - Tension adjustable
  - Focusing stroke: 1-3/16" (30mm)
  - Division of fine focusing: 0.002 mm
• Stages
  - Mechanical double layer stage
  - Stain resistance
  - Large size, can hold two slides
  - Dimensions: 5-1/2" x 5-1/2" (140 mm x 140 mm)
  - Traveling range (X-Y stroke): 3" x 2" (75mm x 50mm)
  - Stage upward moving lock protects objectives and slides
• Dimension: 11" x7-1/2" x 17" (28 cm x 19 cm x 43 cm)
• Two shipping package: 15 lbs (7 kg) & 15 lbs (7 kg)

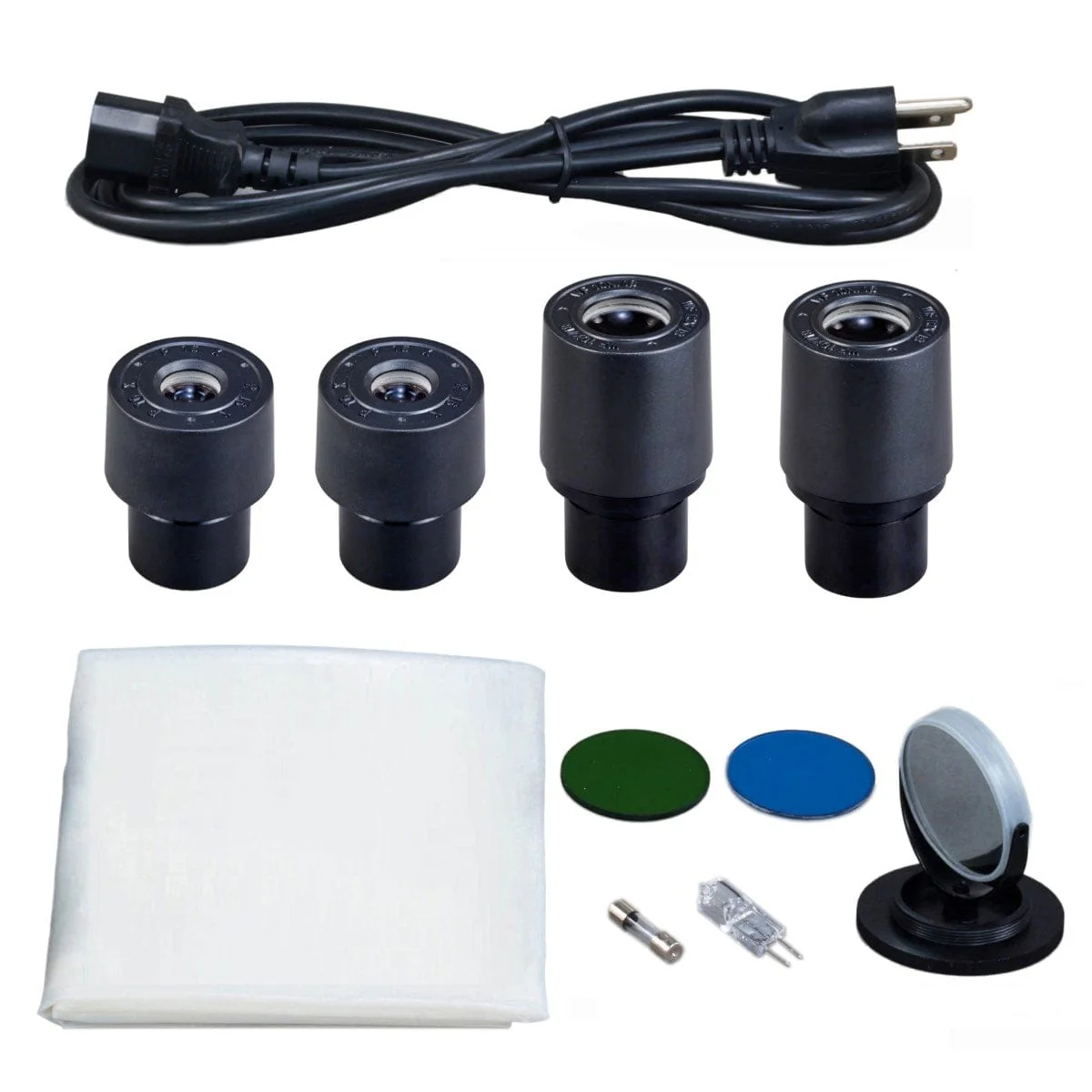

Packing List:

• Trinocular compensation-free microscope head
• Microscope stand
• Photo tube
• A pair of WF10X and a pair of P16X
• Power cord (US and Canada standard)
• Color filters
• Extra halogen bulb (6V/20W)
• Extra fuses
• One complete set of fluorescent kit, including:
  - Epi-Fluorescence illuminator;
  - 4 fluor objectives: 4x, 10x, 40x, 100x;
  - Power supply;
  - Power cord;
  - Mercury bulbs;
  - Protection barrier;
  - Fluorescence free oil;
  - Extra fuses
