OMAX M83E Series LED Trinocular Lab Compound Microscope 40X-2500X Magnification with 5.0MP Digital Camera and Mechanical Stage

This is a digital LED trinocular compound microscope that includes a digital imaging system. The trinocular microscopy comes with a 45° inclined 360° swiveling trinocular sliding viewing head, two pairs of widefield eyepieces, four achromatic objectives, stain-resistant double layer mechanical stage with scales, coarse & fine focusing, NA 1.25 Abbe condenser and variable intensity LED transmitted illumination system. It offers six levels of magnification power: 40X-100X-250X-400X-1000X-2500X.

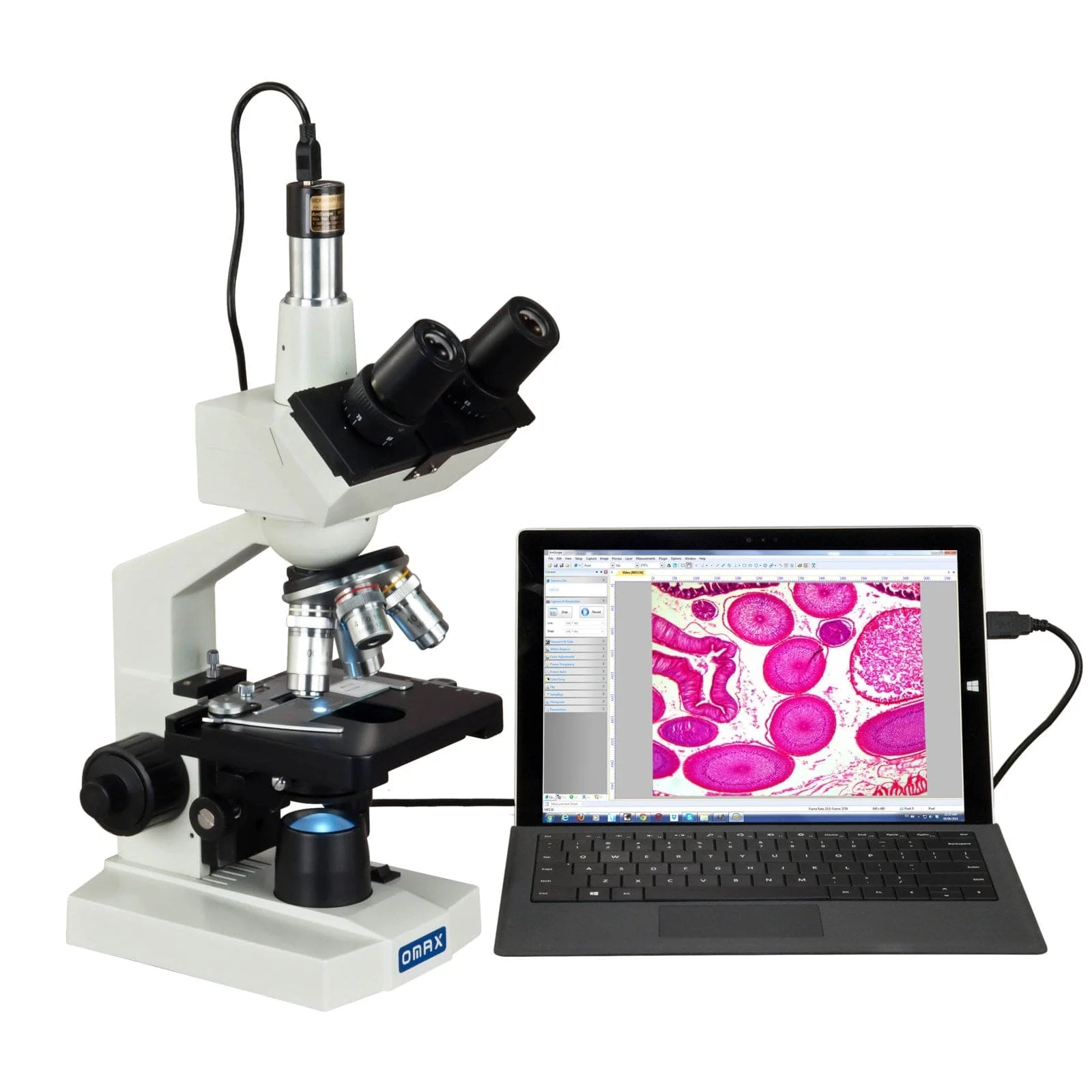

The 5MP (2592x1944 pixels) USB digital imaging system captures still microscope images and live video on computer. The included software compatible with Windows (see version information below). The user-friendly editing and processing software for Windows offers advanced features including stitching, EDF (Extended Depth of Focus), video recording and measurement functions. The software allows you to make notes, shapes, and watermarks with ease. You can analyze, present, and share images of samples and specimens using the software.
This type of digital compound microscopy is perfect for teaching demonstration and clinical examination, laboratories and advanced applications.

Features:

• 5MP color digital camera compatible with Windows
• Trinocular viewing head with sliding adjustable interpupillary distance
• Double layer mechanical stage and coaxial coarse & fine focus knobs on both sides
• NA1.25 Abbe condenser with iris diaphragm & filters
• Variable intensity LED transmitted illumination

Specifications:

• Model: M83EZ-C50S
• Total magnification: 40X-100X-250X-400X-1000X-2500X
• Eyepieces: wide field WF10X and WF25X
• Objective: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

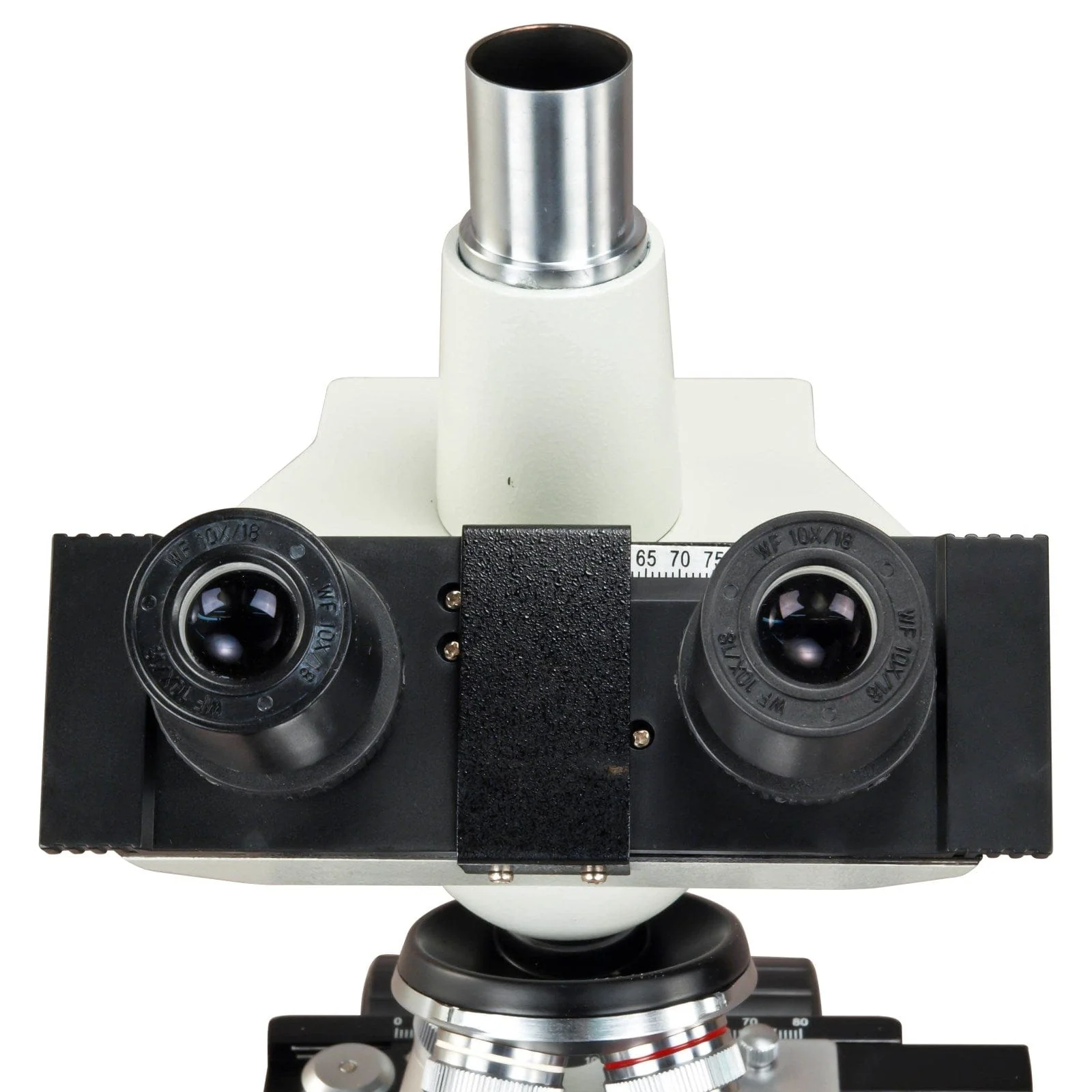

• Viewing head: 45°Inclined 360°swiveling trinocular
• Sliding adjustable interpupillary distance: 2-3/16" ~ 2-15/16"(55mm ~ 75mm)
• Ocular diopter adjustable on both eyetubes
• Nosepiece: revolving quadruple
• Stage: mechanical double layer size: 4-1/2"x 4-15/16" (115mm x 125mm)
• Stage x-y stroke (travel range): 2-13/16" x 1-3/16" (70mm x 30mm)
• Condenser & diaphragm: NA1.25 Abbe condenser with iris diaphragm
• Transmitted (lower) illuminator: LED light, intensity adjustable
• Focus adjustment: Coaxial coarse & fine knobs on both sides
• All metal mechanical components
• Power supply: AC/DC adapter, 100V-240V (UL approved)
• Digital camera:
  - True color 2592x1944 pixels (5MP)
  - Frame speed: 2fps at 2592x1944, 3fps at 2048x1536, 5fps at 1600x1200, 7.5fps at 1280x1024
  - Software compatible with Windows operating systems
  - Offers capturing still images, stitching, EDF, video recording and measurement functions
  - USB2.0 cable included
• Dimension: 9-1/16" x 7-1/8" x 14-1/4" (23cm x 18cm x 36cm)
• Package weight: 11 lbs (5 kg)

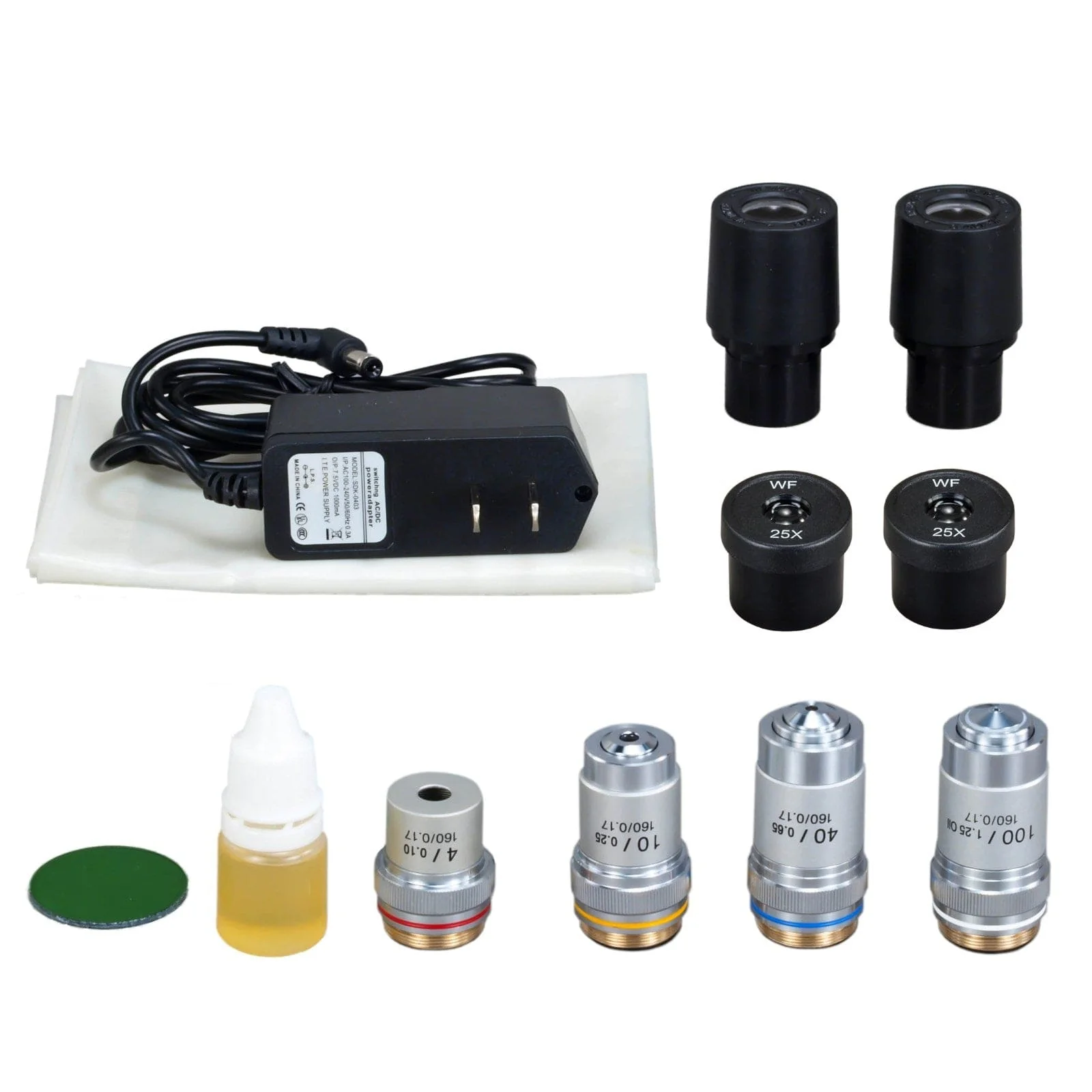

Packing List:

• Trinocular microscope
• 4 DIN objectives 4X, 10X, 40X, 100X
• A pair of eyepieces WF10X
• A pair of eyepieces WF25X
• A bottle of Immersion oil
• AC adapter (US and Canada standard)
• Dust cover
• Color filter
• 5MP digital camera
• 1 CD including driver, software and user's instruction
• USB cable
