Original: $132.99
-65%$132.99
$46.55The Story

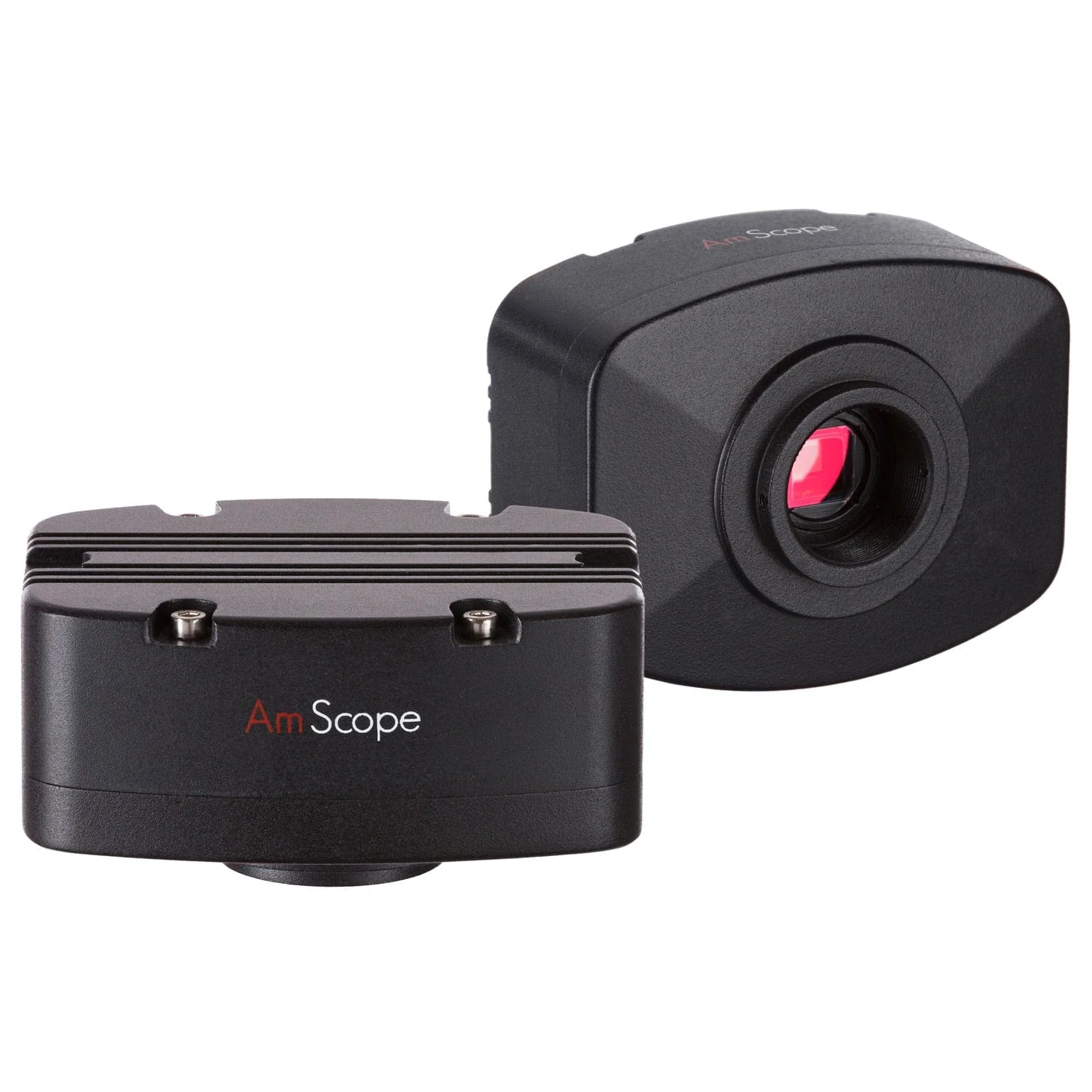

This is a 3-Megapixel, color digital-imaging-system, especially designed for microscopes. Accurately displaying images of the observed specimen on your computer, it's suitable for all kinds of optical microscopes, including biological, metallurgical, and inspection microscopes. Setup is easy, using a single USB 2.0 cable for computer-connectivity and power. The advanced, yet easy-to-use software for Windows (7/8/10) provides a range of tools for capturing, editing, compositing, and measuring. The measurement tools can be calibrated at multiple magnifications, and offer a variety of shapes. Stitching and Extended-Depth-of-Field provide methods for multidimensional compositing to increase field size and depth. Both versions allow you to simultaneously preview and capture live video and still images at different resolutions.
The camera uses a standard C-mount interface, making it compatible with a wide range of optical systems. The included reduction lens optimizes the field-of-view, and can be coupled with the included sizing adapters for 23mm, 30mm, and 30.5mm photo-ports and ocular ports.
| Sensor | |
| Model | MT9T001 |
| Sensor Type | CMOS |
| Sensor Size | 1/2" format (6.554mm x 4.915mm) |
| Pixels | 3M |
| Pixel Size | 3.2µm x 3.2µm |
| Shutter | Electronic Rolling shutter |
| Sensitivity | 1.0V/Lux-sec |
| Dynamic Range | 54dB |
| SNR Max | 43dB |
| Camera | |
| Frame Rate(s) | 7fps @ 2040x1528 23fps @ 1016x760 51fps @ 632x472 |
| Connectivity | USB 2.0 |
| Lens-mount | C-mount |
| Compensating Lens | 0.45X |
| Power | 5V over USB |
| Dimensions | 65mm x 86mm x 37mm |
| Operating Temperature | 0-60°C |
| Operating Humidity | 45-85% |
| OS ompatibility | Windows (32/64 bit) 7/8/10, Mac OSX (legacy) |

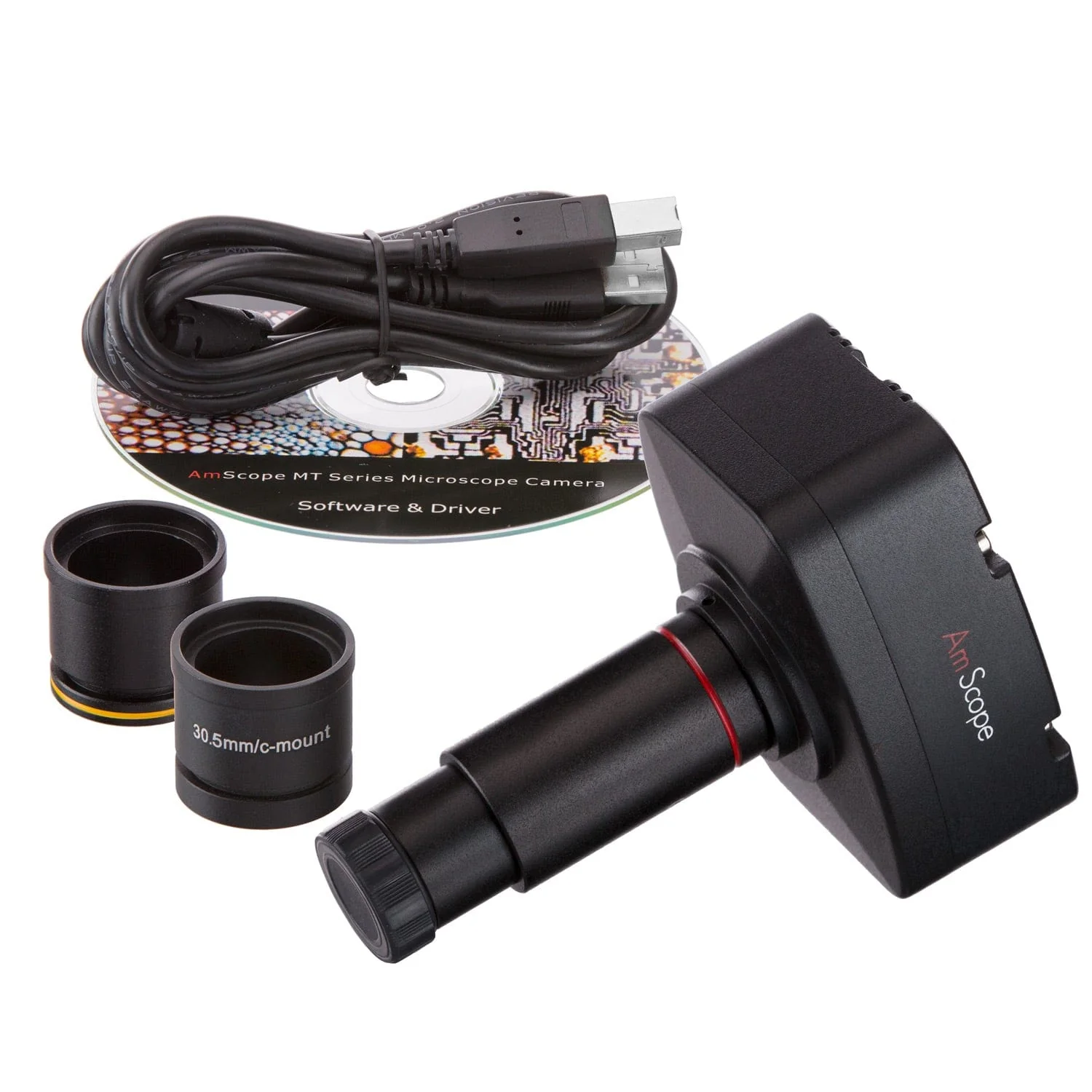

Packing List:
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This is a 3-Megapixel, color digital-imaging-system, especially designed for microscopes. Accurately displaying images of the observed specimen on your computer, it's suitable for all kinds of optical microscopes, including biological, metallurgical, and inspection microscopes. Setup is easy, using a single USB 2.0 cable for computer-connectivity and power. The advanced, yet easy-to-use software for Windows (7/8/10) provides a range of tools for capturing, editing, compositing, and measuring. The measurement tools can be calibrated at multiple magnifications, and offer a variety of shapes. Stitching and Extended-Depth-of-Field provide methods for multidimensional compositing to increase field size and depth. Both versions allow you to simultaneously preview and capture live video and still images at different resolutions.
The camera uses a standard C-mount interface, making it compatible with a wide range of optical systems. The included reduction lens optimizes the field-of-view, and can be coupled with the included sizing adapters for 23mm, 30mm, and 30.5mm photo-ports and ocular ports.
| Sensor | |
| Model | MT9T001 |
| Sensor Type | CMOS |
| Sensor Size | 1/2" format (6.554mm x 4.915mm) |
| Pixels | 3M |
| Pixel Size | 3.2µm x 3.2µm |
| Shutter | Electronic Rolling shutter |
| Sensitivity | 1.0V/Lux-sec |
| Dynamic Range | 54dB |
| SNR Max | 43dB |
| Camera | |
| Frame Rate(s) | 7fps @ 2040x1528 23fps @ 1016x760 51fps @ 632x472 |
| Connectivity | USB 2.0 |
| Lens-mount | C-mount |
| Compensating Lens | 0.45X |
| Power | 5V over USB |
| Dimensions | 65mm x 86mm x 37mm |
| Operating Temperature | 0-60°C |
| Operating Humidity | 45-85% |
| OS ompatibility | Windows (32/64 bit) 7/8/10, Mac OSX (legacy) |
Packing List:
