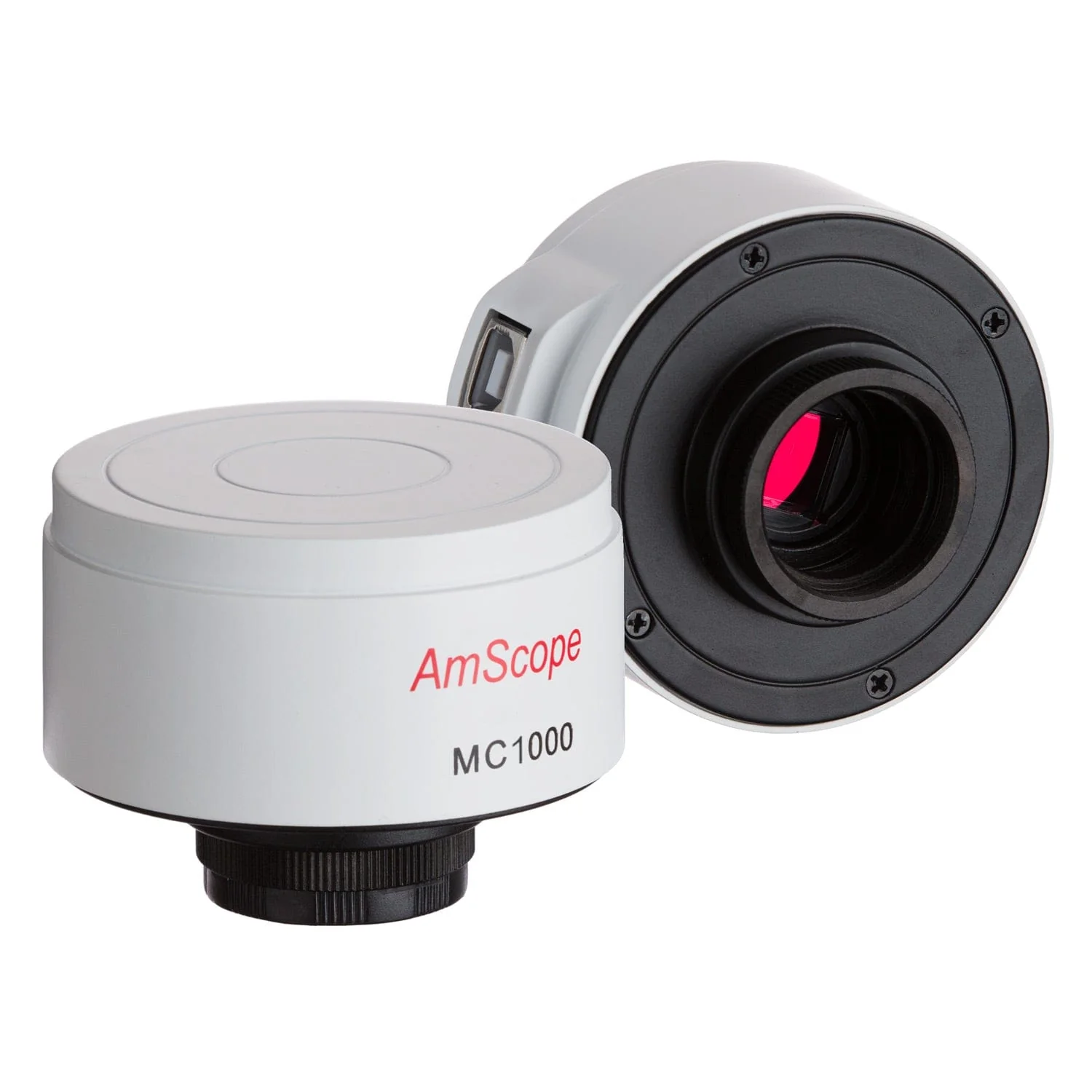

AmScope MC Series 10.0MP Digital Microscope Camera for Windows & Mac OS

The MC1000 is a low-profile 10-megapixel, color digital camera for microscopes. The C-mount fitting accepts a variety of lenses and adapters, including the supplied 0.5X relay lens. With the included ocular-port adapters, the camera can mount on virtually any optical microscope via the ocular ports or photo port. Compatible with both Windows and Mac computers, the camera allows you to view a real-time image, and can capture video and still images with a slew of image controls and measurement tools. The camera is powered via the USB 2.0 connection, making it extremely plug-and-play.

Specifications:

Image Sensor: Micron 1/2.3” Color CMOS

Pixel Size:1.67 micron x 1.67 micron

Hardware Resolution: 3664x2748 pixels

Imaging Resolution: 10.0 MP

File Format: BMP, TIFF, JPG and others

Frame Rate: 20fps @ 908x672, 2.5fps @ 3656x2740 pixels

White Balance: Auto/Manual

Exposure Control: Auto/Manual

Scan Mode: Progressive

Shutter: Electronic Rolling Shutter

Filter: RGB Bayer Pattern

Mount: 23mm Photo Port, C CS-Mount (Ring Adapter Included)

Power Supply: Via USB 2.0 connector

System Required:Windows 2000/8.1/10/11 and Mac OS 10.6 & up with USB 2.0 port

Shipping Weight: 2 lbs

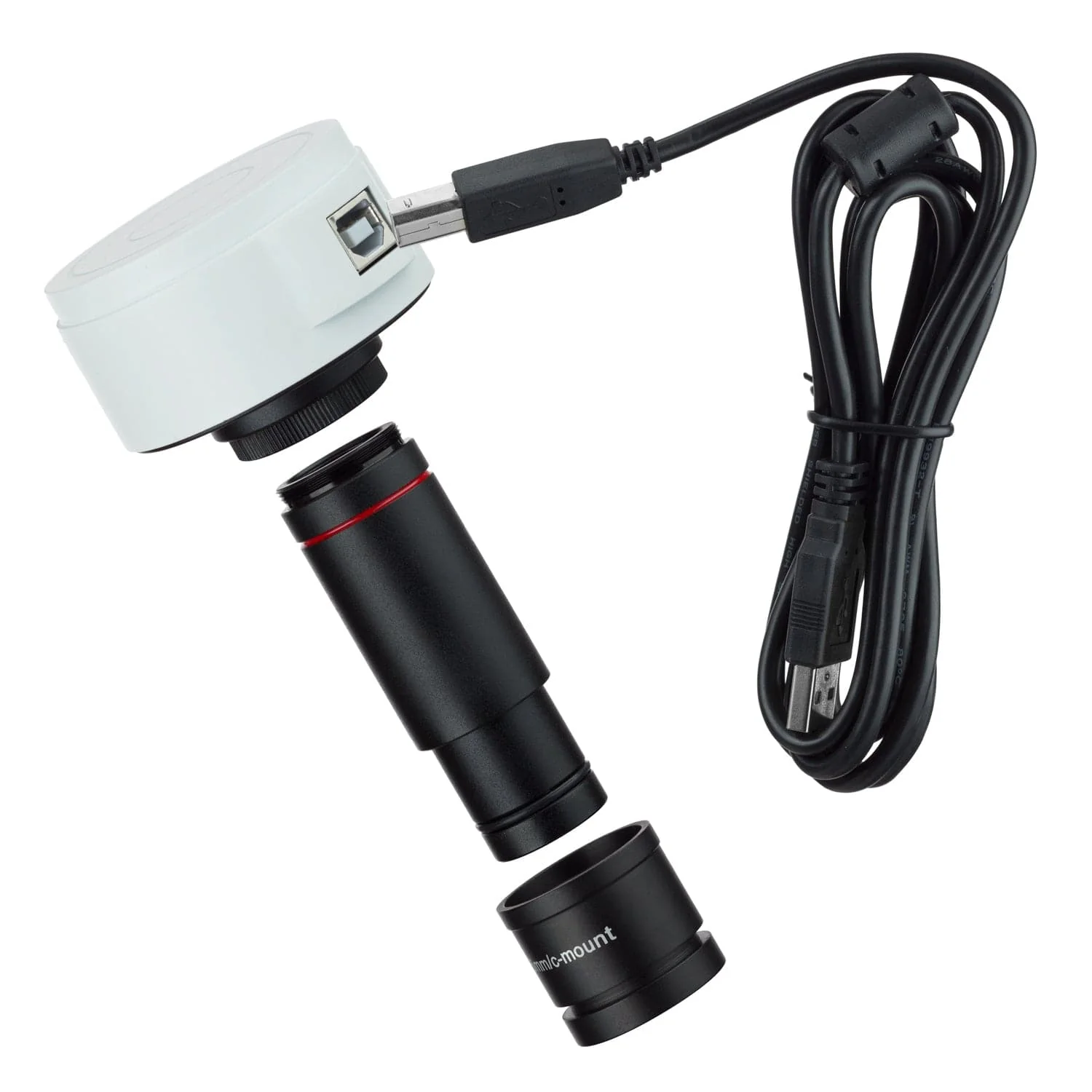

Packing List:

One 10.0MP Color Digital Camera

One 0.5X C-mount Relay Lens

One 6' (1.8m) USB Cable

Two Ocular Port Adapters, 30.0mm 30.5mm

Two Rubber Gaskets

One CD with Software and Driver
